Flow meter / anemometer – use in numerous areas

There are different designs of the flow meter. It is also available as an anemometer and can be used in a variety of areas. There are thus some sectors, particularly in the industrial field, where flow measurement plays an important role. In addition to duct measurement, these also include outlet measurement and filter measurement. Whether you use a vane anemometer or a volume flow hood as a flow meter is dependent on the conditions. It is all the more important for you to have a look at the individual instruments for flow measurement and to decide which of the models best meets your expectations.

The flow meter is a great help in these areas:

  • duct measurements

  • outlet measurements

  • comfort level measurements

  • filter measurements

Measuring instruments for flow measurement

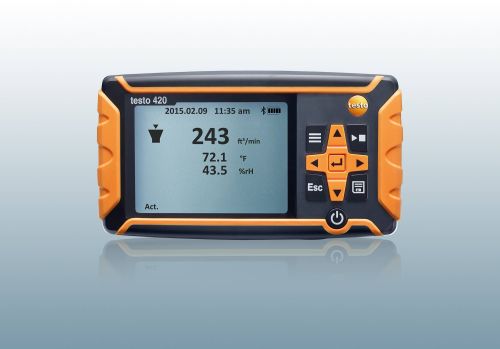

Differential pressure
Differential pressure

Ideal for measuring pressure differences at filters and for carrying out pitot static tube measurements in air ducts.

Thermal anemometer
Thermal anemometer

For flow measurements in ventilation ducts as well as for checking the exhaust air at ventilation grilles, plate outlets and laboratory fume cupboards.

Vane anemometer
Vane anemometer

For flow measurements at air outlets and in ventilation ducts as well as for checking the supply and exhaust air at ventilation grills, plate outlets and swirl outlets.

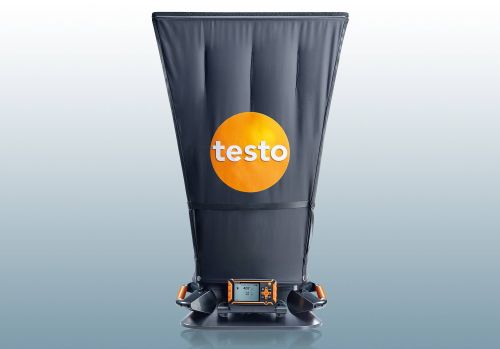

Volume flow hood
Volume flow hood

For measuring volume flow, temperature and relative humidity at larger swirl outlets.

Flow measurement – this is where it is particularly important

A detailed look at the fields of application is helpful when it comes to deciding which flow meter is suitable. They are particularly frequently used for duct measurement. Here they are used to enable airspeed to be controlled in the duct. The ventilation duct is one of the most important core elements of air conditioning and ventilation systems. The use of flow meters is also a solution to enable the function to be controlled in this area.

However, it is not only air conditioning systems that need to be efficient. This aspect should not be underestimated when it comes to duct outlets either. Outlet measurement is therefore another factor which needs to be taken into account in terms of flow measurement. The anemometer can be a particularly great help in this respect. Even small changes in volume flow can affect the system.

The influence of airspeed on the ambient conditions in different rooms is underestimated. The comfort level that a person experiences in a room is heavily dependent on the environment. Temperature and humidity, as well as airspeed, have an influence on this. A thermal anemometer is particularly frequently used in these areas. However, the vane anemometer may also be a good choice in terms of obtaining effective values.

In relation to flow measurement, it is worth going back to air conditioning systems again. Air conditioning systems are equipped with a filter. Regular control is advisable to ensure their optimum operation. Filter measurement can be carried out using an anemometer. This is the only way to prevent dirt from being able to find its way inside through the filter and harming the indoor air.

The following are anemometers for measuring flows and other values:

Anemometers – instruments with helpful features

Flow measurement can become a challenge if you do not have the appropriate instruments to hand. When you are searching for a flow meter, it is therefore important for you to check exactly what values will be recorded by the instrument.

A classic wind speed meter has different features from a thermal anemometer or a volume flow hood. It is possible to measure flow with various instruments. However, they are variable in terms of the specific features. So, a vane anemometer is for example capable of a timed and multi-point mean value calculation. This may not be provided by an air velocity & IAQ measuring instrument.

The air velocity & IAQ measuring instrument instead has considerably more fields of application. It is one of the most popular flow meters and has the quality of not just being able to measure flow . The focus here is also on temperature and pressure, as well as humidity and heat. This means you are able for instance to analyze the environment precisely and to respond quickly when changes occur.

The following features are important for a flow meter:

  • high sensitivity in terms of measuring data
  • fast analysis in a system
  • easy operation
