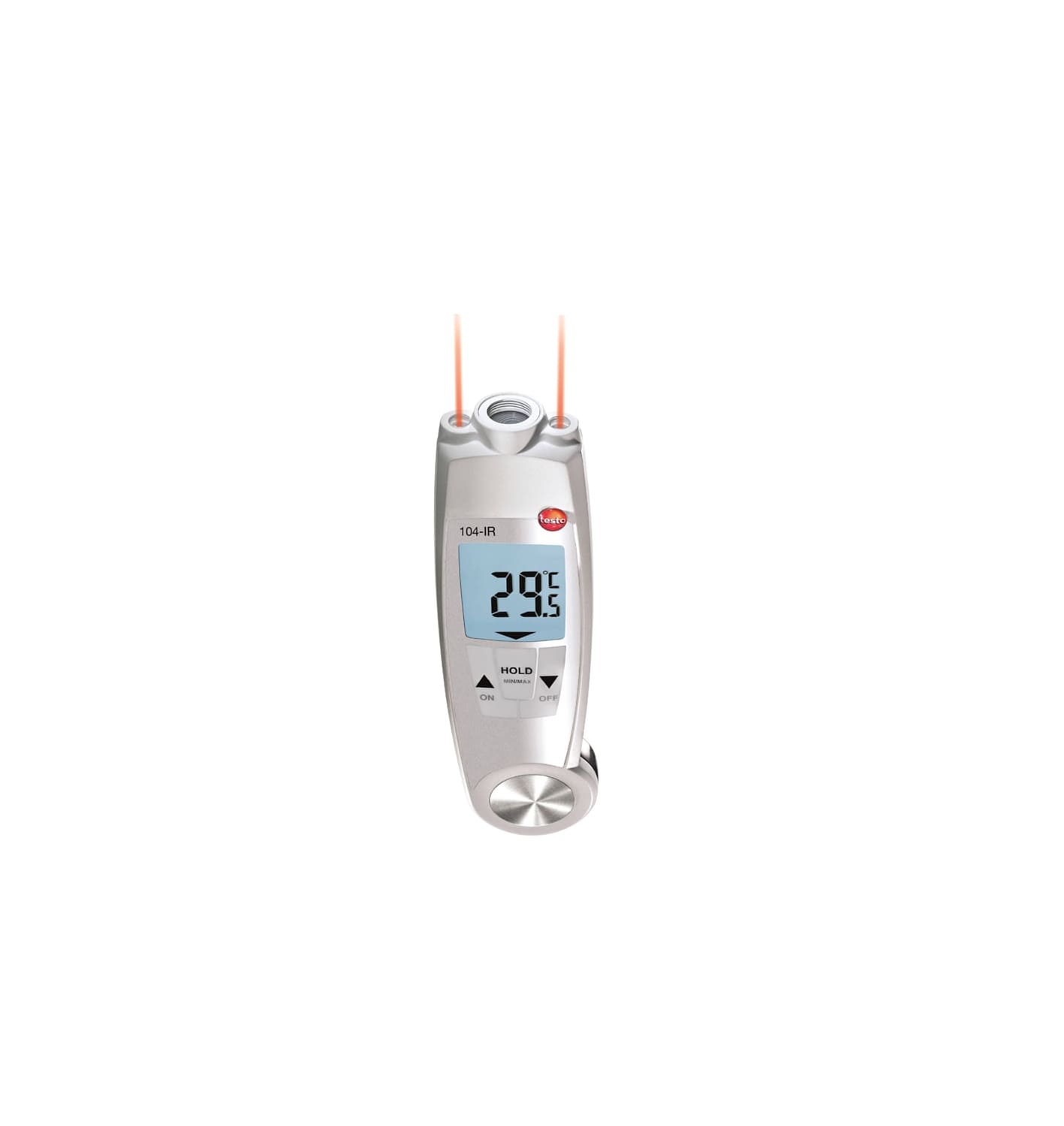

testo 104-IR - Food safety thermometer

Order-Nr. 0560 1040
  • For carrying out surface and core temperature measurements

  • Durable and practical: rugged folding joint, waterproof housing (IP65), fits snugly in any pocket

  • HACCP / EN 13485 compliant

Incoming food, food on display, food in storage: the testo 104-IR infrared probe thermometer allows you to carry out quick and reliable temperature and food safety checks in the course of your busy working day. Ideal for use in the food sector, restaurants and the retail industry.

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

The reference oil allows you to calibrate or adjust a Testo cooking oil tester. Simply immerse the measuring instrument (in calibration mode) in the oil which has been heated to approx. 50°C. For calibration, the display on the measuring instrument is compared to the printed value on the reference oil bottle and noted. Or adjust the measuring instrument to this value.

Probe thermometer and infrared thermometer rolled into one

The testo 104-IR is equipped with a high-precision 2-point laser and 10:1 optics which show the exact measurement range and allow you to carry out quick and accurate non-contact surface temperature measurements. The 2-in-1 thermometer is especially useful for checking incoming goods and for scanning the surface temperature of individual food products as well as whole pallets.

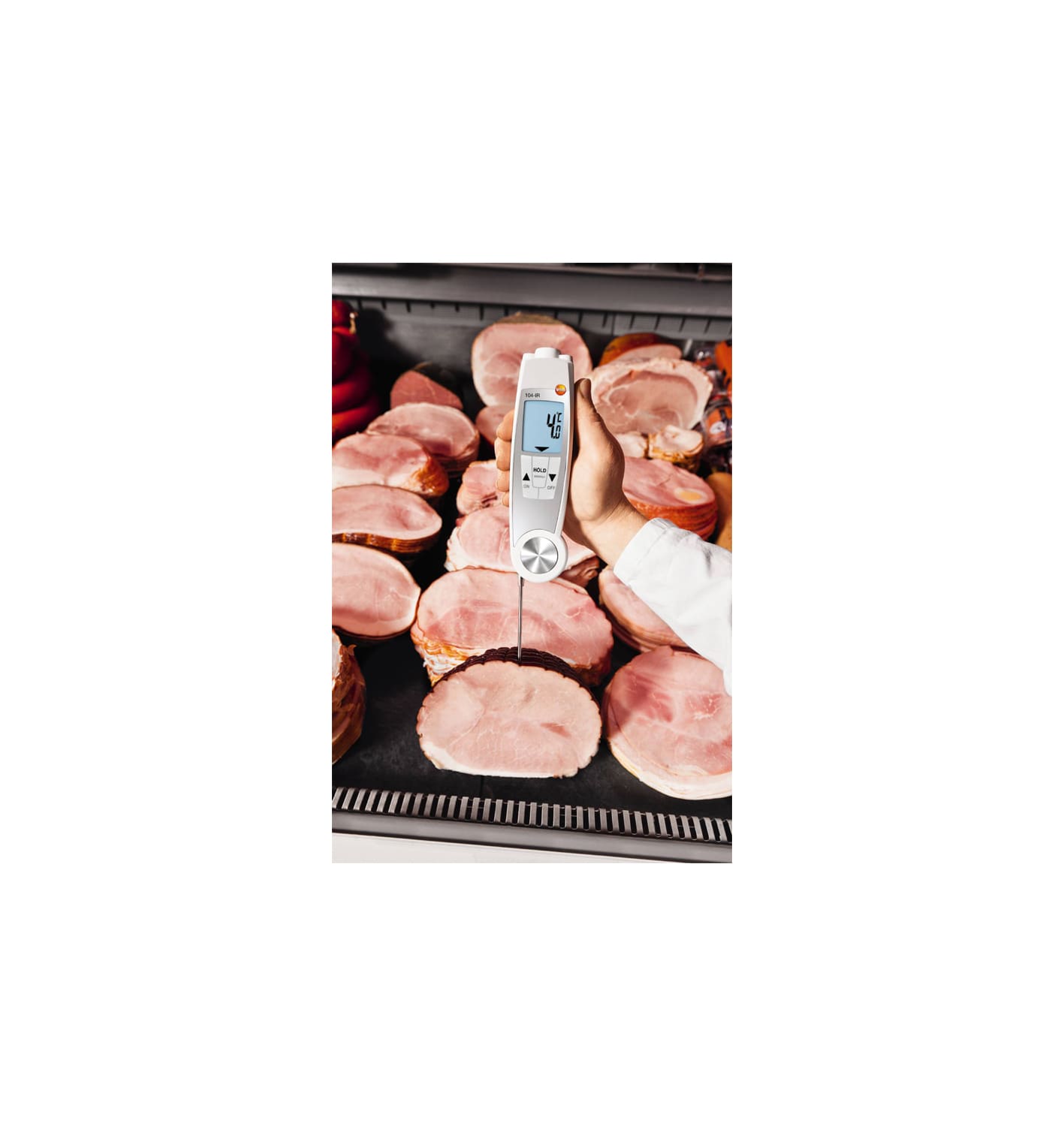

The folding probe thermometer is used to measure the core temperature of food products like meat and sausage meat for example. It generally comes into play when the infrared surface measurements are not within the prescribed thresholds. The probe can be folded away when not in use to protect against breakage.

Quick and easy to use. Tried and tested in the field

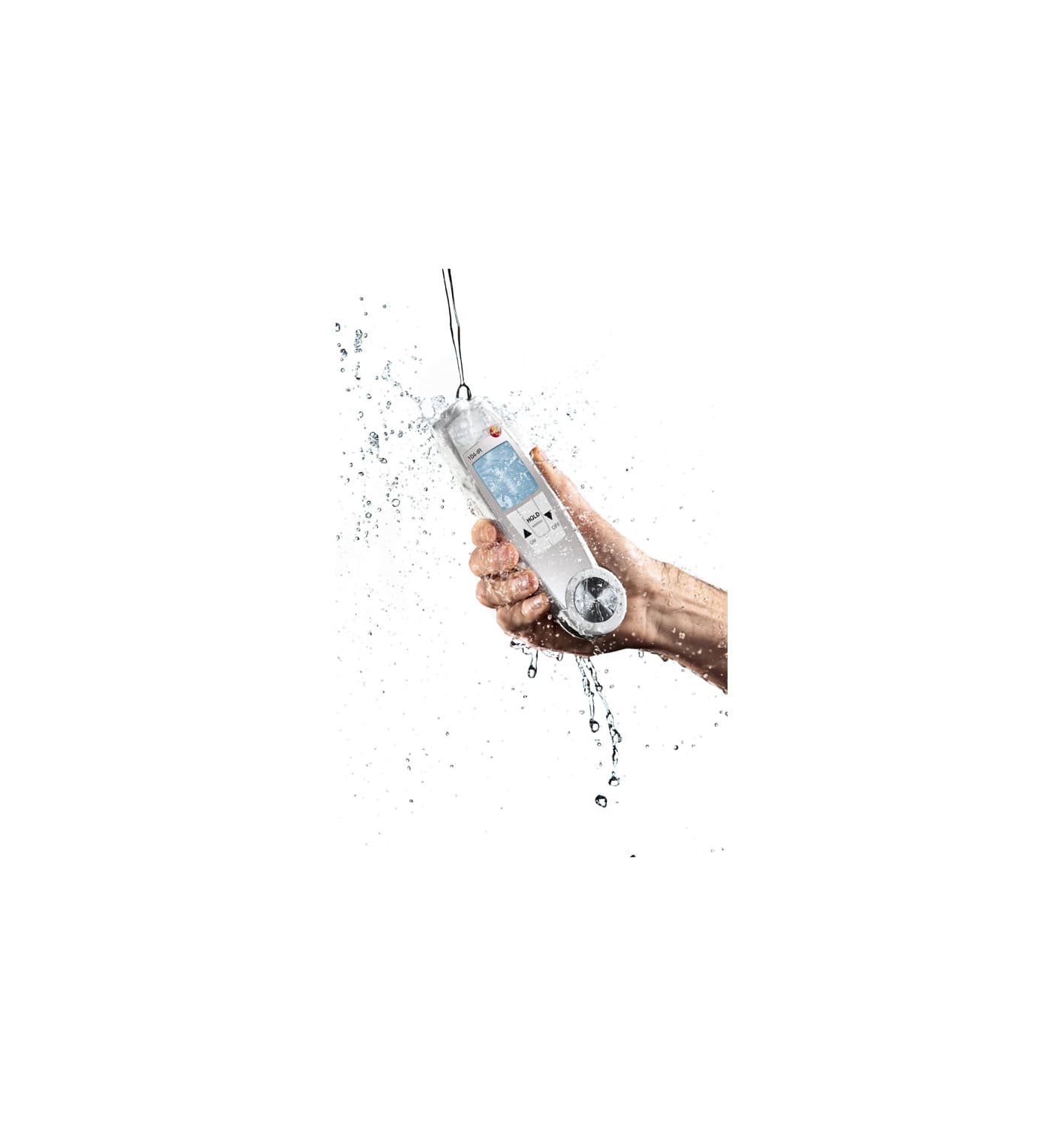

The thermometer is immediately activated when the probe sensor is folded down. Simply press a key to start the infrared measurement. The results are presented on a large, easy-to-read display. Because the keys themselves are easy to understand, there is no need to instruct individuals on how to use the thermometer. Last but by no means least, the food safety infrared thermometer is waterproof and IP65 rated.

Areas of Application

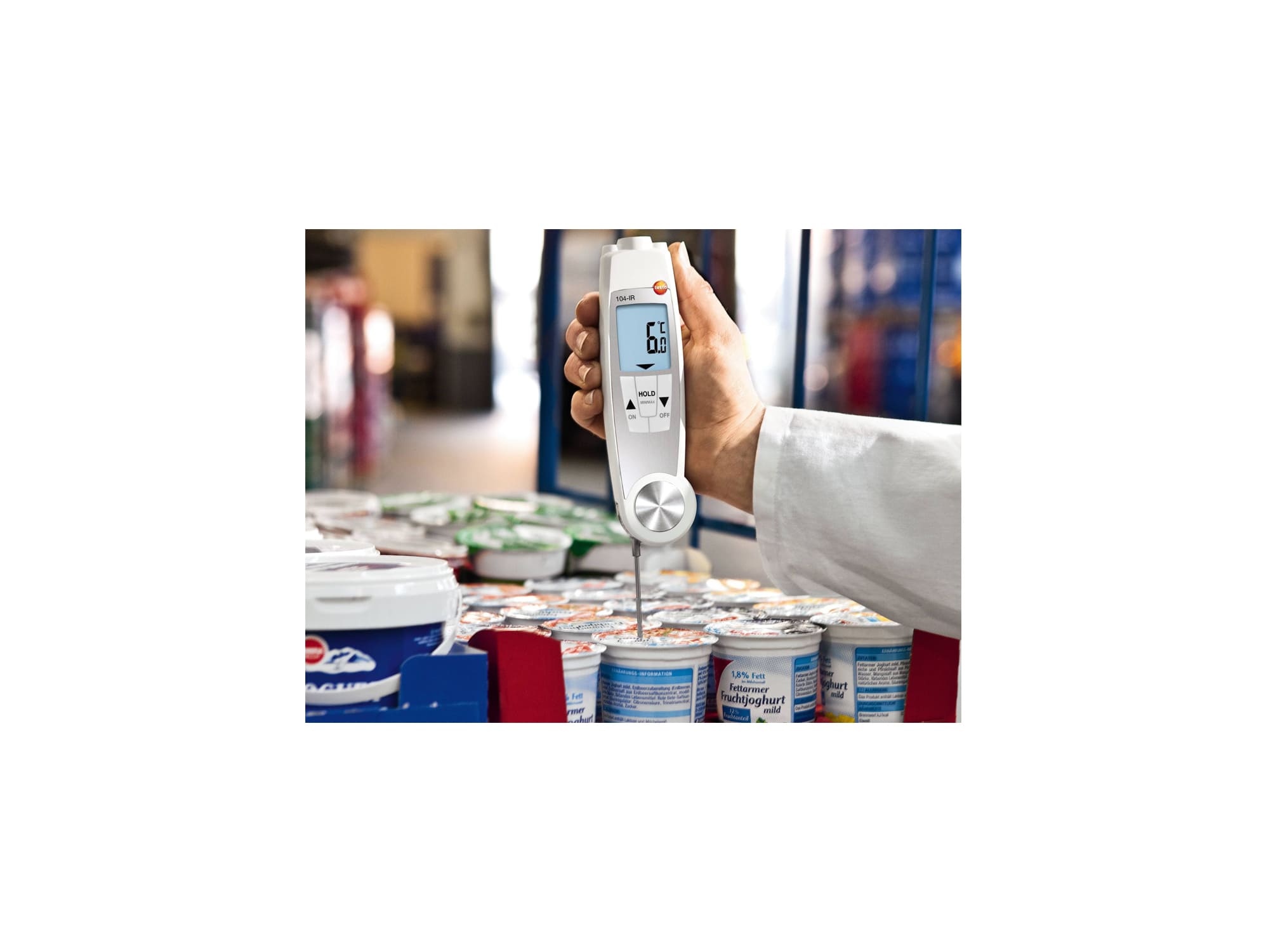

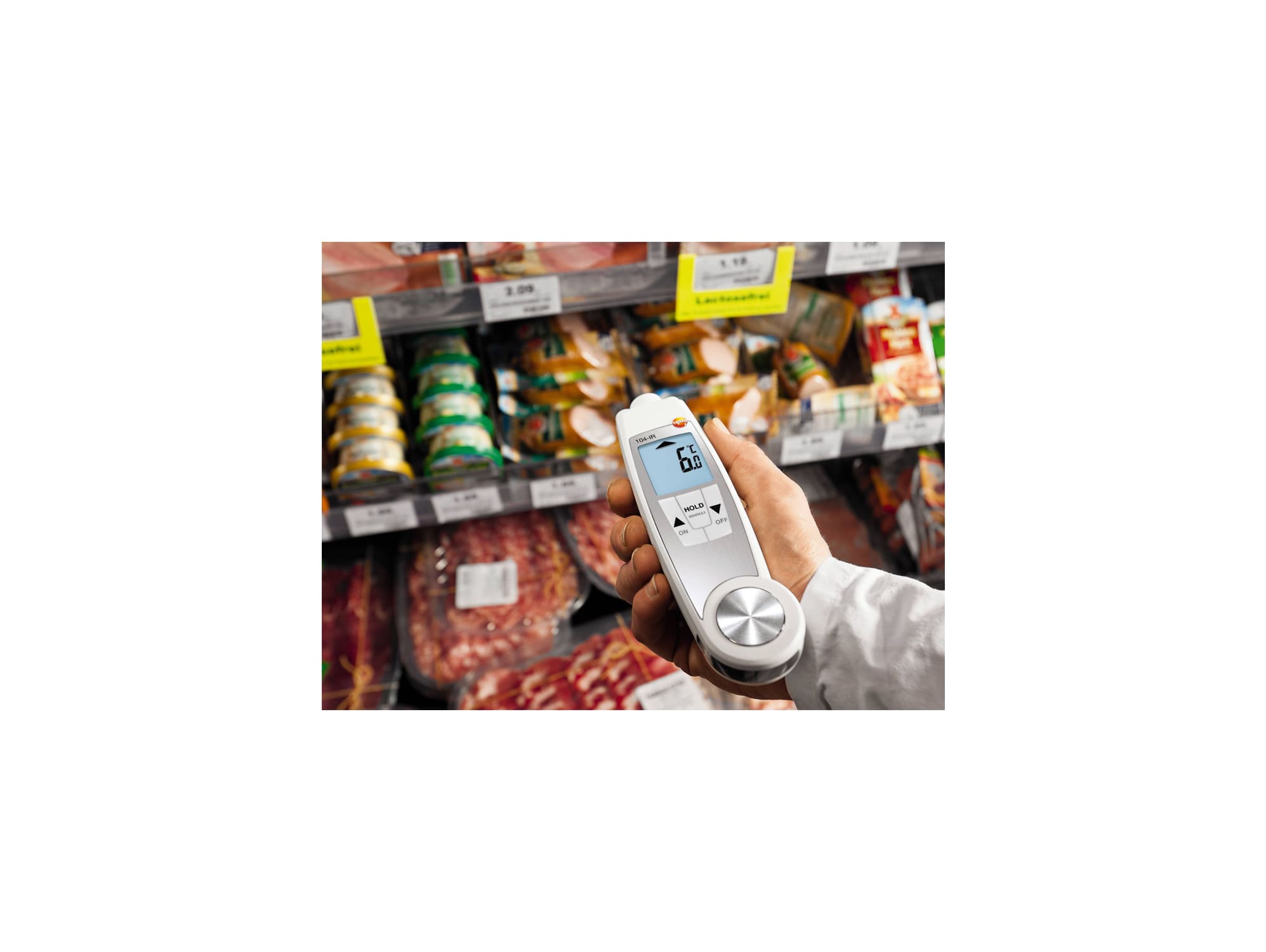

It doesn’t matter whether the food in question is being delivered, is in transit or in storage – in all three cases it is imperative that the cold chain is maintained at all times. The testo 104-IR food safety thermometer is ideal for ensuring that the prescribed temperature is maintained at each point in the cold chain. And like all the testo temperature meters for the food industry the testo 104-IR is EN 13485 certified and HACCP compliant.

Delivery Scope

1 x testo 104-IR waterproof penetration/infrared thermometer, including fold-away penetration probe, batteries and calibration protocol.

Temperature - NTC

Measuring range

-50 to +250 °C

Accuracy

±1 °C (-50.0 to -30.1 °C)

±0.5 °C (-30.0 to +99.9 °C)

±1 % of mv (Remaining Range)

Resolution

0.1 °C

Reaction time

t₉₉ = 10 s (measured in moving liquid)



Temperature - Infrared

Measuring range

-30 to +250 °C

Accuracy

±2.5 °C (-30 to -20.1 °C)

±2.0 °C (-20 to -0.1 °C)

±1.5 °C or ±1.5 % of mv (Remaining Range)

Measuring rate

0.5 s

Infrared resolution

0.1 °C



General technical data

Weight

198 g (incl. batteries)

Dimensions

281 x 48 x 23 mm (Probe folded out)

178 x 48 x 23 mm (probe folded away)

Operating temperature

-20 to +50 °C

Protection class

IP65

Length probe shaft

106 mm

Product-/housing material

ABS / TPE / PC, diecast zinc, stainless steel

Diameter probe shaft tip

2.5 mm

Diameter probe shaft

3 mm

Length probe shaft tip

32 mm

Product colour

white

Laser spot

on / off

Measurement value

Temperature °C / °F / °R

Measurement mode

Hold or auto hold (immersion probe)

Dimensions (probe folded out)

281 x 48 x 23 mm

Dimensions (probe not folded out)

178 x 48 x 23 mm

Standards

EN 13485

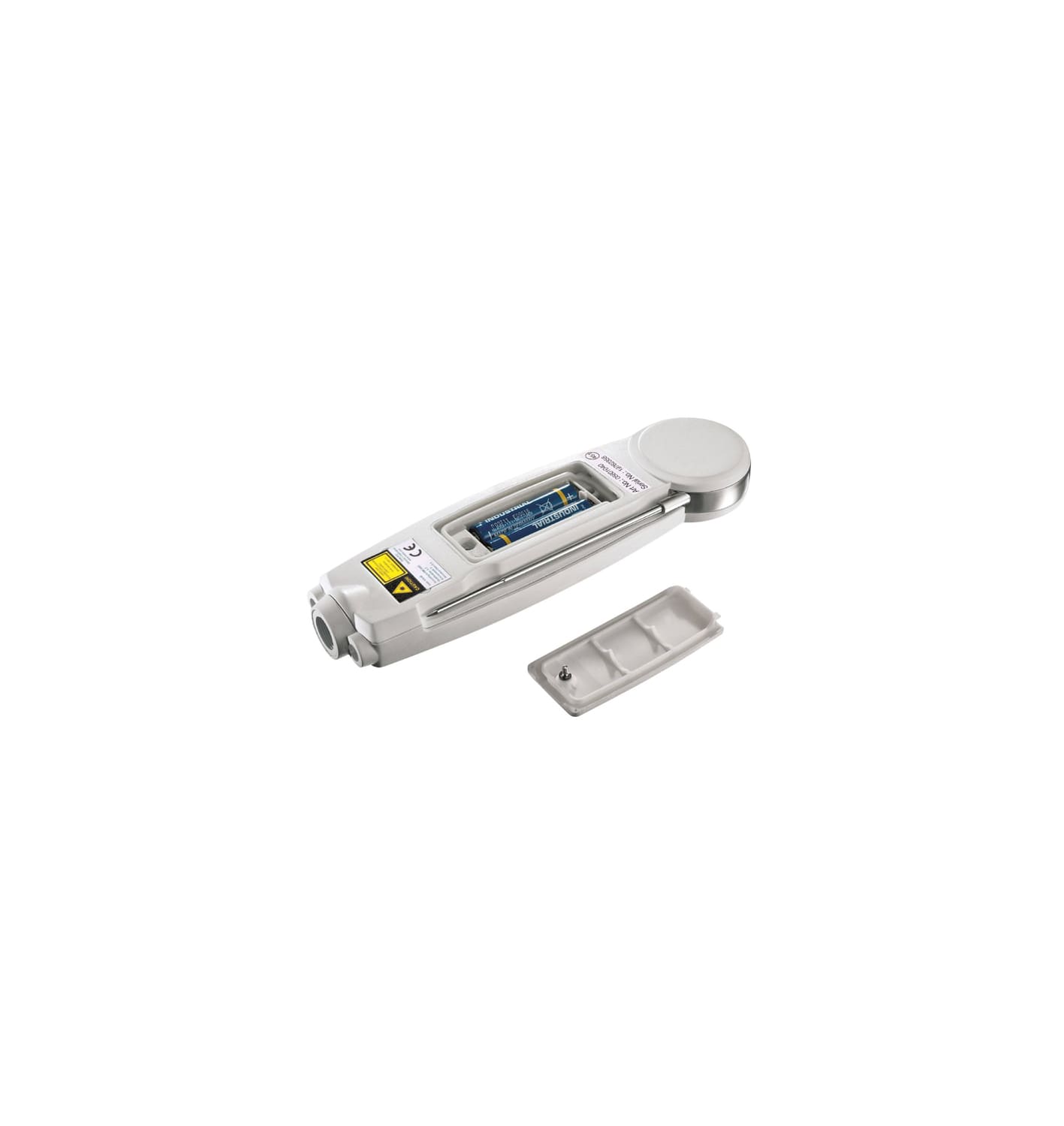

Battery type

2 AAA micro batteries

Battery life

10 h at 25°C typical

Display type

LCD (Liquid Crystal Display)

Display size

one-line

Display function

with status line (°C,°F,°R, battery, hold/auto hold, min, max, laser, measurement, emissivity)

Display ligthing

illuminated

Storage temperature

-30 to +70 °C

Transport case food small

Transport case food small (340 x 60 x 270 mm)

Order Number: 0516 7302


Transport case food large

Transport case food large (500 x 160 x 400 mm)

Order Number: 0516 7303


Calibration certificate

ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0071




ISO calibration certificate/temperature

Order Number: 0520 0043


Calibration certificate

ISO calibration certificate for temperature for air/immersion probes; with 1 measuring point: -18 °C

Order Number: 0520 0061


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 1 measuring point: 0 °C

Order Number: 0520 0062


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 1 measuring point: +60 °C

Order Number: 0520 0063


Calibration certificate

ISO temperature calibration certificate for surface probes; with 1 measuring point: +120 °C

Order Number: 0520 0073


Calibration certificate

ISO temperature calibration certificate for surface probes; with 1 measuring point: +60 °C

Order Number: 0520 0072


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -8 / 0 / +40 °C

Order Number: 0520 0181


Calibration certificate

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0211


Calibration certificate

ISO calibration certificate for temperature for infrared measuring instruments/probes; calibration at 3 measuring points: -18 / 0 /+ 60 °C

Order Number: 0520 0401




ISO calibration certificate temperature

Order Number: 0520 0452
