testo 416 - Vane anemometer

Order-Nr. 0560 4160
  • Permanently connected telescopic sensor – maximum length 890 mm, diameter 16 mm

  • Airflow measurements, selective and time mean values for calculating air volume

  • Hold function; min/max display; auto power off

  • Calibration certificate and batteries included

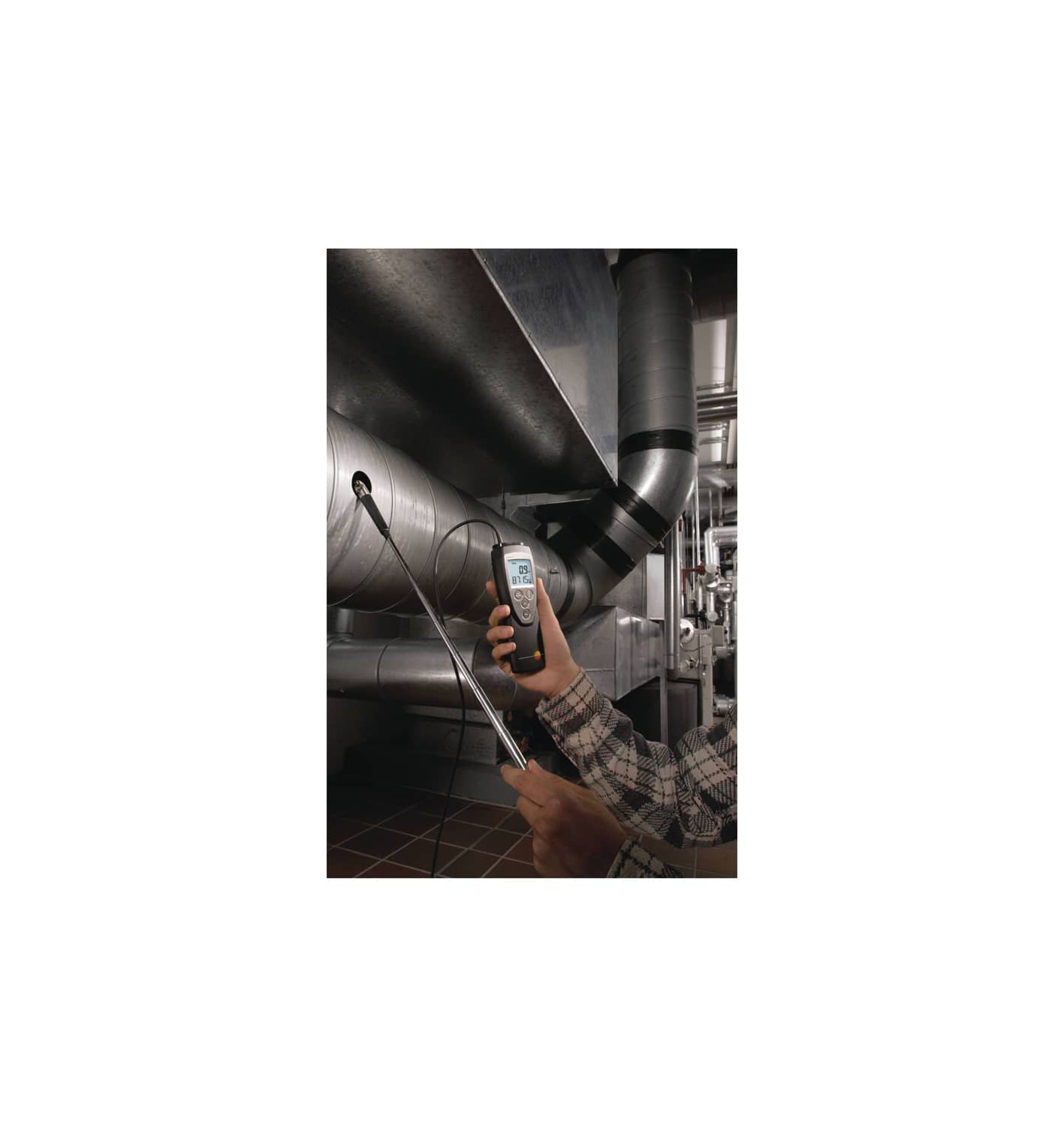

Vane anemometer with telescopic sensor – ideal for carrying out airflow measurements in air ducts.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

The testo 416 vane anemometer provides you with quick and reliable airflow readings on an easy-to-read, backlit display.

The permanently connected telescopic sensor, which can be extended to a maximum length of 890 mm and a mini vane that has a diameter of 16 mm make the anemometer ideal for measuring the airflow and air volume in air ducts.

In order to calculate the air volume simply enter the area of the air duct into the vane anemometer – the selective and time mean values will then show the average air volume. The testo 416 also has a hold function which allows you to freeze the last reading as well as min/max readings which can be displayed at the touch of a key.

More accessories for even more benefits in the field

Additional optional accessories include a practical all-in-one shoulder bag or carrying case and a TopSafe protective case that protects against impact and dirt and water.

Delivery Scope

testo 416 vane anemometer with permanently connected 16 mm telescopic vane (max. length 890 mm), calibration certificate, batteries.

Velocity - Vane

Measuring range

0.6 to 40 m/s

Accuracy

±(0.2 m/s + 1.5 % of mv)

Resolution

0.1 m/s



General technical data

Dimensions

182 x 64 x 40 mm

Operating temperature

-20 to +50 °C

Housing

ABS

Battery type

9V block battery, 6F22

Battery life

80 h

Storage temperature

-40 to +70 °C

Weight

325 g

Soft case for measuring instrument

Handy bag for measuring instrument and probes

Order Number: 0516 0210


TopSave

TopSafe protective case for measuring instrument, waterproof

Order Number: 0516 0221


Handy bag

Handy bag for measuring instrument and probes – also suitable for longer probes up to 35 cm total length

Order Number: 0516 0212


testo 0516 1201 case

Order Number: 0516 1201


Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 5 / 10 / 15 / 20 m/s

Order Number: 0520 0034
