testo 330i basic set - flue gas analyzer set

Order-Nr. 0563 3000 70

  • Operation independent of measuring location and display of readings via smartphone or tablet and the testo 330i App

  • Paperless documentation and report creation on site with the testo 330i App

  • Reliable attachment of the flue gas probe with the testoFix probe holder

  • Practical accessories, including probes and temperature probe

Everything you need to carry out efficient servicing and commissioning of heating systems using the testo 330i flue gas analyzer – in one compact set.

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

The testo 330i flue gas analyzer combines the proven measuring technology of the preceding model testo 330 LL with a revolutionary new method of operation: operation independent of measuring location via smartphone, a sturdy testoFix probe holder and paperless documentation. This instrument embodies the current trends in flue gas measurement.
The centrepiece of the set is the testo 330i flue gas analyzer with H2-compensated CO sensor. The flue gas analyzer is therefore also approved for the official acceptance testing of heating systems.

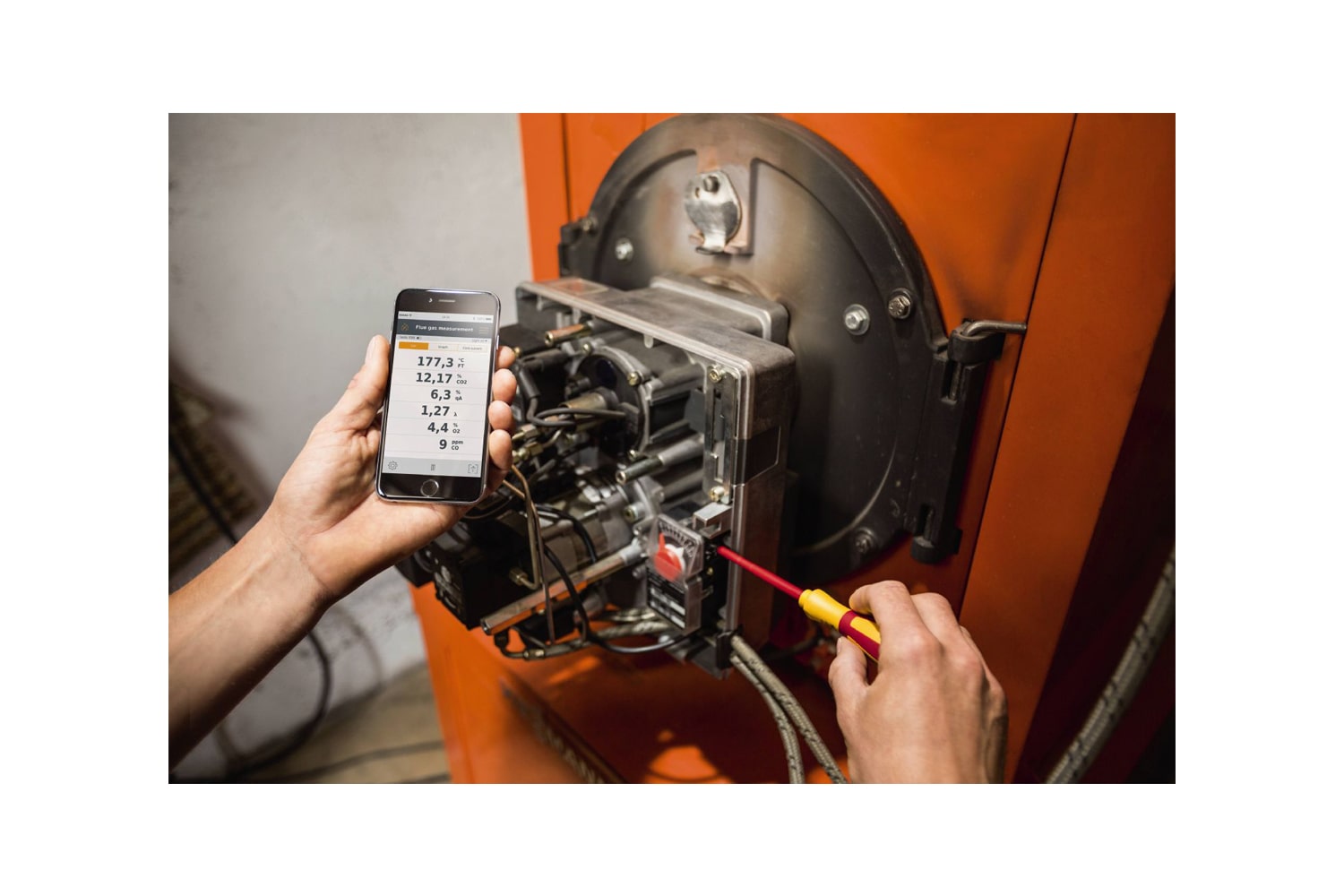

Operation of the flue gas analyzer and the display of readings are implemented independently of the measuring location via the testo 330i App on your smartphone or tablet. Here, you can make adjustments to the measuring instrument, analyze the flue gas values, enter customer data and create measurement protocols. You can then add comments or photos of the system to the protocols, and send them to the customer or your office via e-mail.

Requirement: iOS 7.1 / Android 4.3 or newer. Mobile end device with Bluetooth 4.0.

The testo 330i flue gas analyzer also has the following impressive features

  • User-replaceable long-life sensors with a service life of up to 6 years. This saves at least one sensor replacement over the flue gas analyzer's typical useful life

  • TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3

  • Integrated draught and gas zeroing without removing the probe. The probe can remain in the flue during zeroing

  • Fresh air dilution upon exceeding a CO threshold value up to 30,000 ppm

  • Fully enclosed, particularly robust plastic housing

Also included in the set: a modular flue gas sampling probe (180 mm) with a 65 cm long, extra-flexible hose and a 190 mm long combustion air temperature probe.
The testoFix probe holder is included in the set, which enables the probes to be securely attached to the flue gas duct quickly and easily. This global innovation also serves as a fall-proof suspension system for the testo 330i flue gas analyzer. A mains unit and the practical system case, in which all set components can be stowed away compactly and safely, complete this set.

Delivery Scope

  • testo 330i with H2-compensated CO sensor 0632 3000 51

  • Modular flue gas probe with hose (650 mm) 0600 9780

  • Combustion air temperature probe (190 mm) 0600 9787

  • International mains unit 0554 1096

  • testoFix probe holder for probes with a diameter of 8 mm (0554 3006)

  • Instrument case for testo 330i, probes and accessories (dimensions: 520 × 130 × 400 mm, WxHxD) 0516 3302

Differential Pressure - Piezoresistive

Measuring range

0 to 300 hPa

Accuracy

±0.5 hPa (0.0 to +50.0 hPa)

±1 % of mv (+50.1 to +100.0 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.1 hPa



Flue gas O₂

Measuring range

0 to 21 Vol.%

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%



Flue gas CO (with H₂-compensation)

Measuring range

0 to 8000 ppm

Accuracy

±10 ppm or ±10 % of mv (0 to 200 ppm)

±20 ppm or ±5 % of mv (201 to 2000 ppm)

±10 % of mv (2001 to 8000 ppm)

Resolution

1 ppm



CO determination (with H₂-compensation), automatic dilution

Measuring range

0 to 30000 ppm

Accuracy

±200 ppm or ±20 % of mv (0 to 30000 ppm)

Resolution

1 ppm



Flue gas NO

Measuring range

0 to 3000 ppm

Accuracy

±5 ppm (0 to 100 ppm)

±5 % of mv (101 to 2000 ppm)

±10 % of mv (2001 to 3000 ppm)

Resolution

1 ppm

Option

Flue gas Draught

Measuring range

-9.99 to +40 hPa

Accuracy

±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)

±0.03 hPa (+0.61 to +3.00 hPa)

±1.5 % of mv (3.01 to +40.00 hPa) (the greater value applies)

Resolution

0.01 hPa



Temperature

Measuring range

-40 to +1200 °C

Accuracy

±0.5 °C (0.0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C (-40 to +999.9 °C)

1 °C (Remaining Range)

dependent on the thermocouple

Flue gas degree of effectivity, Eta (calculated)

Measuring range

0 to 120 %

Resolution

0.1 %



Flue gas loss (calculated)

Measuring range

0 to 99.9 %

Resolution

0.1 %



Flue gas CO₂ calculation (calculated from O₂)

Measuring range

Display range 0 to CO₂ max

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%



General technical data

Dimensions

270 x 160 x 57 mm

Operating temperature

-5 to +45 °C

Power supply

Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)

System requirements

requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Maximum memory

500000 readings

Storage temperature

-20 to +50 °C

Weight

720 g (excluding battery)

System Case

Instrument case for testo 330i (height: 130 mm)

Order Number: 0516 3302

Hose extension

Hose extension - probe-instrument extension hose (length 2.8 m)

Order Number: 0554 1202

testo Fix

testoFix probe holder

Order Number: 0554 3006

O2-Sensor

O2 sensor for testo 330-1 LL/-2 LL

Order Number: 0393 0002

Connection cable

USB connection cable, instrument-PC

Order Number: 0449 0047

Spare battery 2600 mA

Spare battery 2600 mA

Order Number: 0515 0107

Large System Case

Instrument case for testo 330i (height: 180 mm)

Order Number: 0516 3303

Calibration certificate

ISO flue gas calibration certificate for flue gas analyzers; calibration at 6 measuring points: O2: 2.5 vol% / CO: 100 ppm / CO: 1000 ppm / NO: 800 ppm / NO2: 100 ppm / SO2: 1000 ppm

Order Number: 0520 0003

Adhesive pockets

Adhesive pockets testo 330-1/-2 LL for printout, paper barcode labels; 50 off

Order Number: 0554 0116

Spare thermal paper

Spare thermal paper for printer, permanent

Order Number: 0554 0568

testo BLUETOOTH ® -/IRDA printer

BLUETOOTH®-/IRDA printer with Bluetooth® and IrDA interface for printing out measurement data and graphs from compatible Testo measuring instruments or Testo Apps

Order Number: 0554 0621

Mains unit international

International mains unit

Order Number: 0554 1096

Battery charging station

Battery-charging station, desktop charging station for optimizing the charge time

Order Number: 0554 1103

Smoke tester with oil; soot sheet; for measuring soot in flu...

Smoke tester with oil and soot sheet, for measuring soot in flue gas, excl. cone (part no. 0554 9010)

Order Number: 0554 0307

Spare particle filter

Spare dirt filters - for probe handle (10 off)

Order Number: 0554 3385
