testo 440 100 mm Vane Kit with Bluetooth®

Order-Nr. 0563 4403

Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, humidity and temperature in ventilation ducts or at air outlets
Precise: combine the vane probe with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
Convenient: wireless probe, internal data storage and USB port for your data export
As multifaceted as your challenges themselves: the air velocity and IAQ measuring instrument can be expanded with a large portfolio of digital probes

Thông tin sản phẩm

Chi tiết sản phẩm
Thông số kỹ thuật
Phụ kiện
Download

Product Description

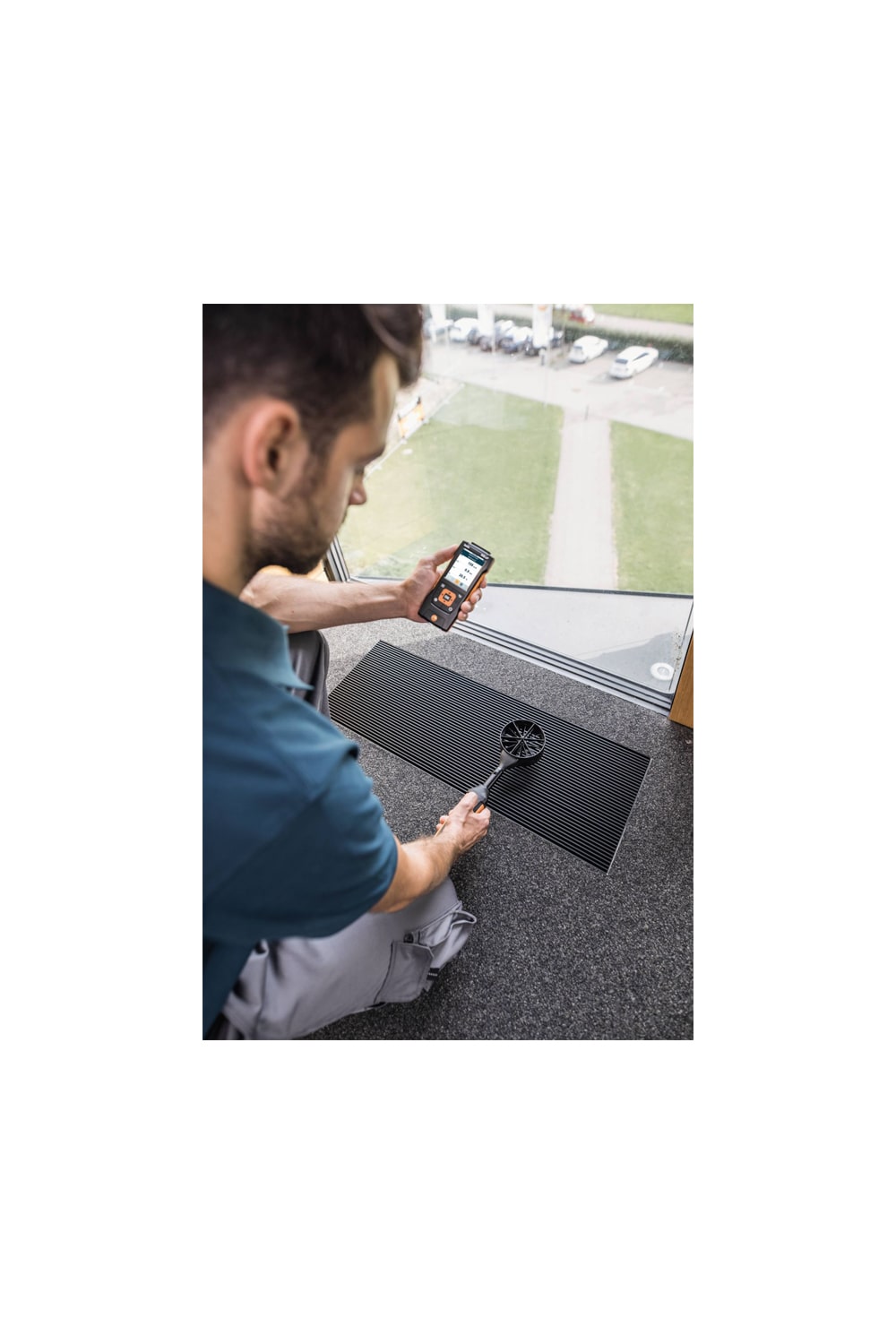

Kit for carrying out measurements at air outlets: the testo 440 air velocity and IAQ measuring instrument and the vane probe (Ø 100 mm) with Bluetooth^® including temperature sensor are all safely stowed away in the case. So you can get down to work straight away!

Products in set

testo 440 - Air velocity and IAQ measuring instrument

Order-Nr. 0560 4401
- Intuitive: clearly structured measurement menus for volume flow, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂
- Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately)
Vane probe (Ø 100 mm, digital) - with Bluetooth^® including temperature sensor

Order-Nr. 0635 9431
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
- Precise: get the right results in next to no time, even in turbulent air flow – using the optionally available funnel set and volume flow straightener

Delivery Scope

testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
Vane probe (Ø 100 mm) with Bluetooth^® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth^® handle); bracket for testovent measurement funnel; 4 x AA batteries and calibration protocol (0635 9431)
Basic case for testo 440 and 1 probe

testo 440 - Air velocity and IAQ measuring instrument

Order-Nr. 0560 4401

Temperature - NTC
Measuring range	-40 to +150 °C
Accuracy	±0.4 °C (-40 to -25.1 °C) ±0.3 °C (-25 to +74.9 °C) ±0.4 °C (+75 to +99.9 °C) ±0.5 % of mv (Remaining Range)
Resolution	0.1 °C

Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±0.4 °C (-40 to -25.1 °C)

±0.3 °C (-25 to +74.9 °C)

±0.4 °C (+75 to +99.9 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C

Temperature - TC Type K (NiCr-Ni)
Measuring range	-200 to +1370 °C
Accuracy	±(0.3 °C + 0.3 % of mv)
Resolution	0.1 °C

General technical data
Weight	250 g
Dimensions	154 x 65 x 32 mm
Operating temperature	-20 to +50 °C
Product colour	black/orange
Connectable probes	1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x Temperature TC Type K
Battery type	3 AA mignon 1.5 V
Battery life	12 h (typically vane measurement)
Interface	Bluetooth®; USB
Storage temperature	-20 to +50 °C

Vane probe (Ø 100 mm, digital) - with Bluetooth^® including temperature sensor

Order-Nr. 0635 9431

Temperature - NTC
Measuring range	-20 to +70 °C
Accuracy	±0.5 °C
Resolution	0.1 °C

Velocity / Volume flow
Measuring range	0.3 to 35 m/s
Accuracy	±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
Resolution	0.01 m/s

Velocity / Volume flow

Measuring range

0.3 to 35 m/s

Accuracy

±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)

±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)

Resolution

0.01 m/s

General technical data
Storage temperature	-20 to +60 °C
Weight	360 g
Dimensions	375 x 105 x 46 mm
Operating temperature	-5 to +50 °C
Probe head diameter	100 mm
Product colour	black/orange
Battery type	4 x type AA batteries
Battery life	60 h
Data transfer	Bluetooth®
Radio range	20 m

Accessories

testo BLUETOOTH ® -/IRDA printer

BLUETOOTH®-/IRDA printer with Bluetooth® and IrDA interface for printing out measurement data and graphs from compatible Testo measuring instruments or Testo Apps

Order Number: 0554 0621

Measuring tripod for IAQ and comfort level measurements

Measuring tripod for IAQ and comfort level measurements, to ensure standard-compliant, secure positioning of measuring instrument and probes including transport bag

Order Number: 0554 1591

Universal Bluetooth® handle for connecting probe heads

Bluetooth® handle for connecting probe heads: transmits readings conveniently via Bluetooth

Order Number: 0554 1111

Universal cable handle for connecting probe heads

Cable handle for connecting probe heads: transmits readings via cable

Order Number: 0554 2222

Telescope extension (length 0.4 to 0.9 m) for flow probes with universal handle

Telescope extension for flow probes, length 0.4 to 0.9 m

Order Number: 0554 0990

Extendable telescope (up to 1 m in length) for flow probes with universal handle

Extendable telescope (up to 1 m in length) for flow probes

Order Number: 0554 0960

90° angle for the attachment of vane probes (Ø 100 mm) with universal handle

90° angle: for connecting vane probes (Ø 100 mm): for correct positioning at ceiling outlets

Order Number: 0554 0991

Teleskop testo 480

Extendable telescope with ball head joint - for slanted ceiling outlets

Order Number: 0430 0946

testovent 417 funnel set

testovent 417 funnel set for volume flow measurement, consisting of a funnel for plate outlets (Ø 200 mm) and a funnel for ventilation grilles (330 x 330 mm), used with 100 mm vane

Order Number: 0563 4170

testovent 417 volume flow straightener

Flow straightener testovent 417

Order Number: 0554 4172

testovent 417 volume flow straightener set

testovent 417 volume flow straightener settestovent 417 flow straightener set for volume flow measurement, consisting of the testovent 417 volume flow straightener and the testovent 417 funnel set

Order Number: 0554 4173

Accessories for measuring instrument

USB mains unit incl. cable

Order Number: 0554 1105

Certificates

Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 1 / 2 / 5 / 10 m/s

Order Number: 0520 0004

Calibration certificate

ISO calibration certificate for flow; calibration at selectable measuring points between 0.5 and 27 m/s

Order Number: 0520 0104

Calibration certificate

DAkkS calibration certificate for flow; calibration at selectable measuring points between 0.1 and 68 m/s

Order Number: 0520 0214

Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 5 / 10 / 15 / 20 m/s

Order Number: 0520 0034

Calibration certificate

DAkkS flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 5 measuring points: 0.5 / 1 / 2 / 5 / 10 m/s

Order Number: 0520 0204

Calibration certificate

DAkkS calibration certificate for flow for anemometers and Pitot tubes; calibration at 3 measuring points: 2.5 / 5 / 10 m/s

Order Number: 0520 0254

Sensor heads

16 mm vane probe head including temperature sensor

16 mm vane probe head including temperature sensor; for attachment to extendable telescope for air velocity probes with universal handle – measuring range +0.6 to +50 m/s, -10 to +70 °C

Order Number: 0635 9570

High-precision 100 mm vane probe head including temperature sensor

High-precision 100 mm vane probe head including temperature sensor: for attachment to extendable telescope for air velocity probes with universal handle or to a universal Bluetooth® or cable handle – measuring range +0.1 to +15 m/s, -20 to +70 °C

Order Number: 0635 9370

100 mm vane probe head

100 mm vane probe head: for attachment to extendable telescope for air velocity probes with universal handle or to universal Bluetooth® or cable handle – measuring range +0.3 to +35 m/s, -20 to +70 °C

Order Number: 0635 9430

Hot wire probe head including temperature and humidity sensor

Hot wire probe head including temperature and humidity sensor: for attachment to extendable telescope for air velocity probes with universal handle – measuring range 0 to +50 m/s, -20 to +70 °C, 5 to 95% RH

Order Number: 0635 1570

Humidity/temperature probe head

Humidity/temperature probe head: for attachment to universal Bluetooth® or cable handle – accuracy ±2% RH / ±0.5 °C, measuring range 0 to 100% RH / -20 to +70 °C

Order Number: 0636 9730

High-precision humidity/temperature probe head

High-precision humidity/temperature probe head: for attachment to a universal Bluetooth® or cable handle – accuracy: ±(0.6% RH + 0.7 % of m.v.) (0 to 90% RH) / ±0.3 °C (+15 to +30 °C)

Order Number: 0636 9770

CO2 probe head including temperature and humidity sensor

CO₂ probe head including temperature and humidity sensor: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH

Order Number: 0632 1550

CO probe head

CO probe head: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 500 ppm

Order Number: 0632 1270

Transport and Protection

Combi-case for testo 440 and multiple probes

Combi-case for testo 440 and multiple probes; for protecting and transporting the testo 440 (dP) air velocity and IAQ measuring instrument and multiple probes

Order Number: 0516 4401

Service case for volume flow measurement

Service case for volume flow measurement; for protecting and transporting the testo 440 (dP) air velocity and IAQ measuring instrument, probes and accessories for measuring volume flow

Order Number: 0516 4900
