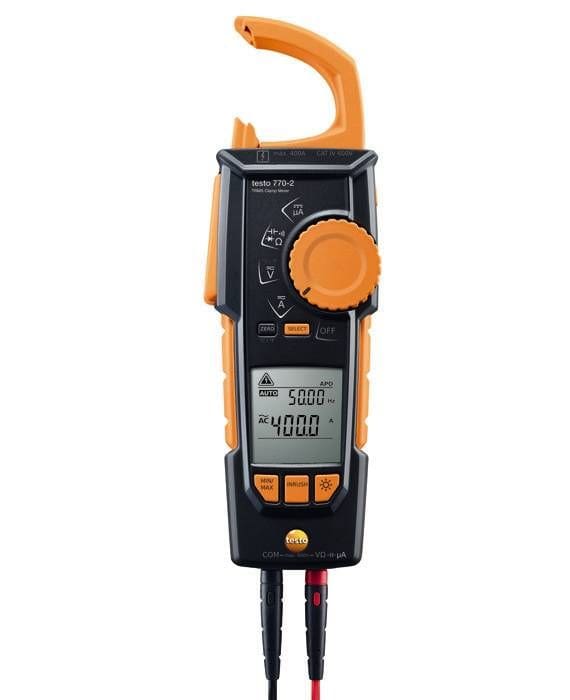

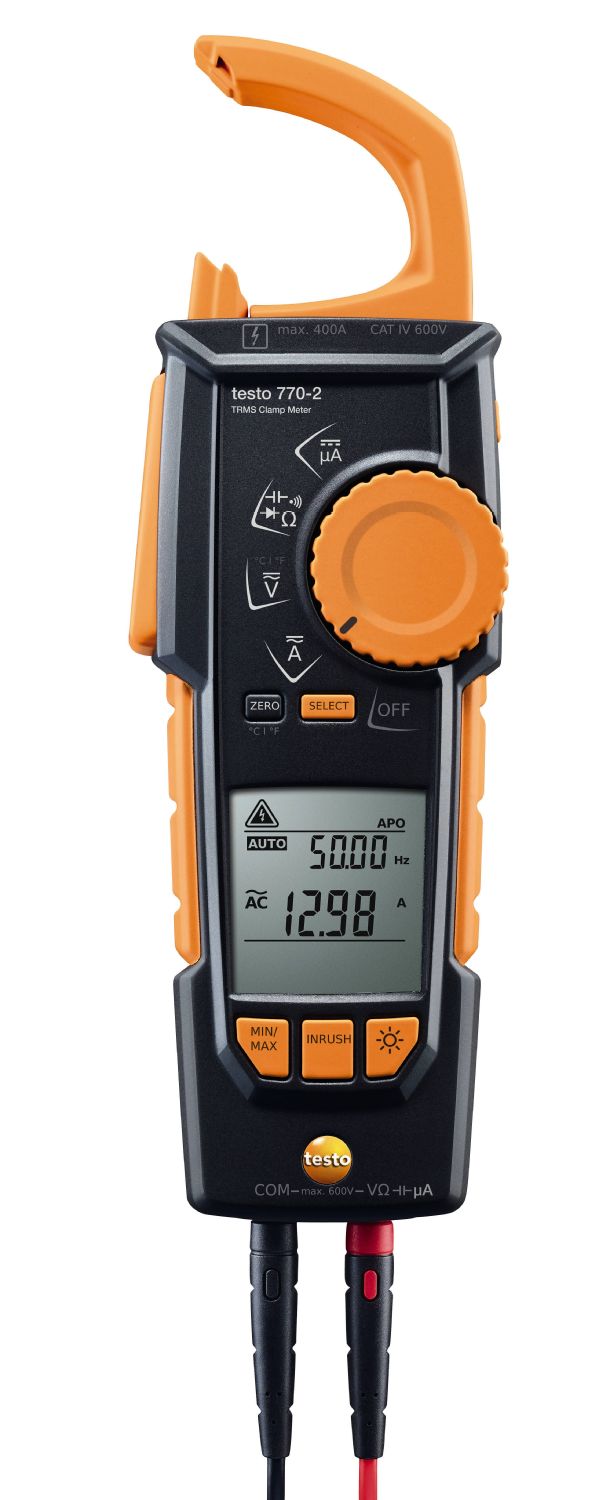

testo 770-2 - Clamp meter

Order-Nr. 0590 7702

Fully retractable pincer arm to make your work easy
Auto AC/DC and large two-line display
Measuring functions for starting current on electric motors and μA measurements
Temperature adapter for type K thermocouples

The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the µA range.

Thông tin sản phẩm

Chi tiết sản phẩm
Thông số kỹ thuật
Phụ kiện
Download

Product Description

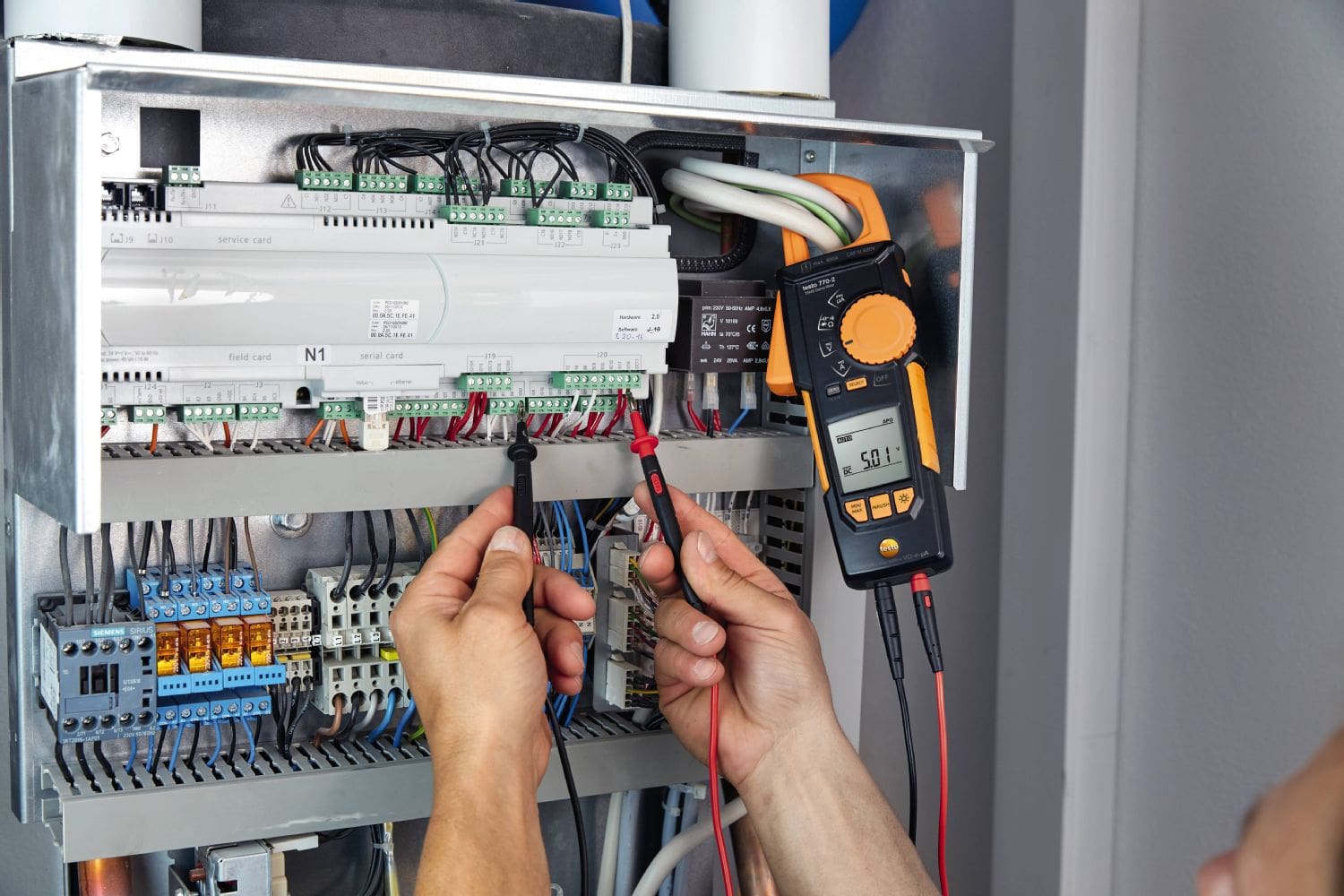

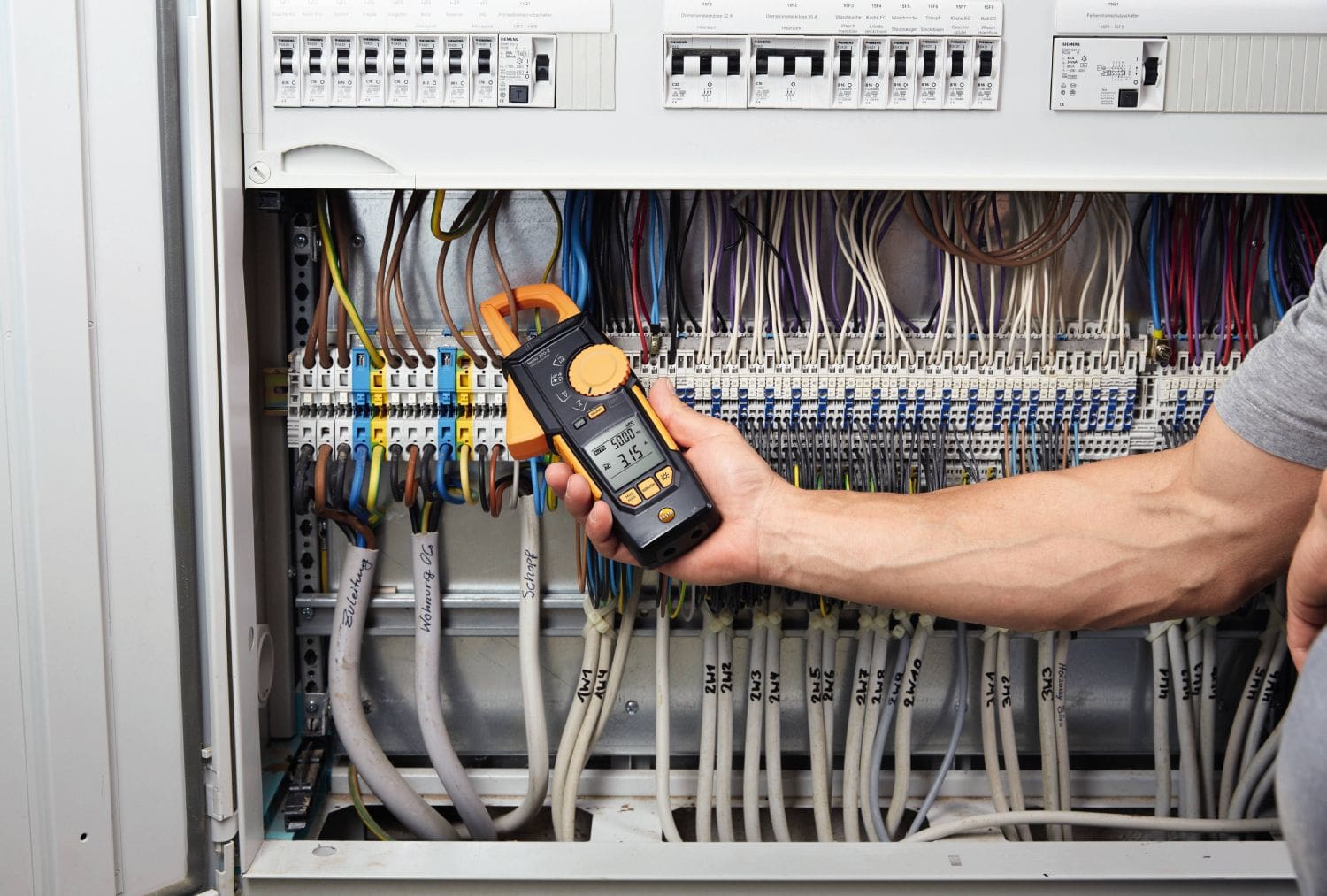

The testo 770-2 clamp meter makes it so much easier to work on tight measuring points, such as switching cabinets. The clamp meter's movable pincer arm can be fully retracted into the instrument. This means you can accurately grab tightly packed conductors such as cables and check them for faults.

Furthermore, it enables measurement of the starting current on electric motors and ionisation current testing in the µA range. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).

The clamp meter detects and selects AC/DC fully automatically and also provides automated selection of other electrical parameters such as resistance, continuity, diode and capacitance. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display.

Delivery Scope

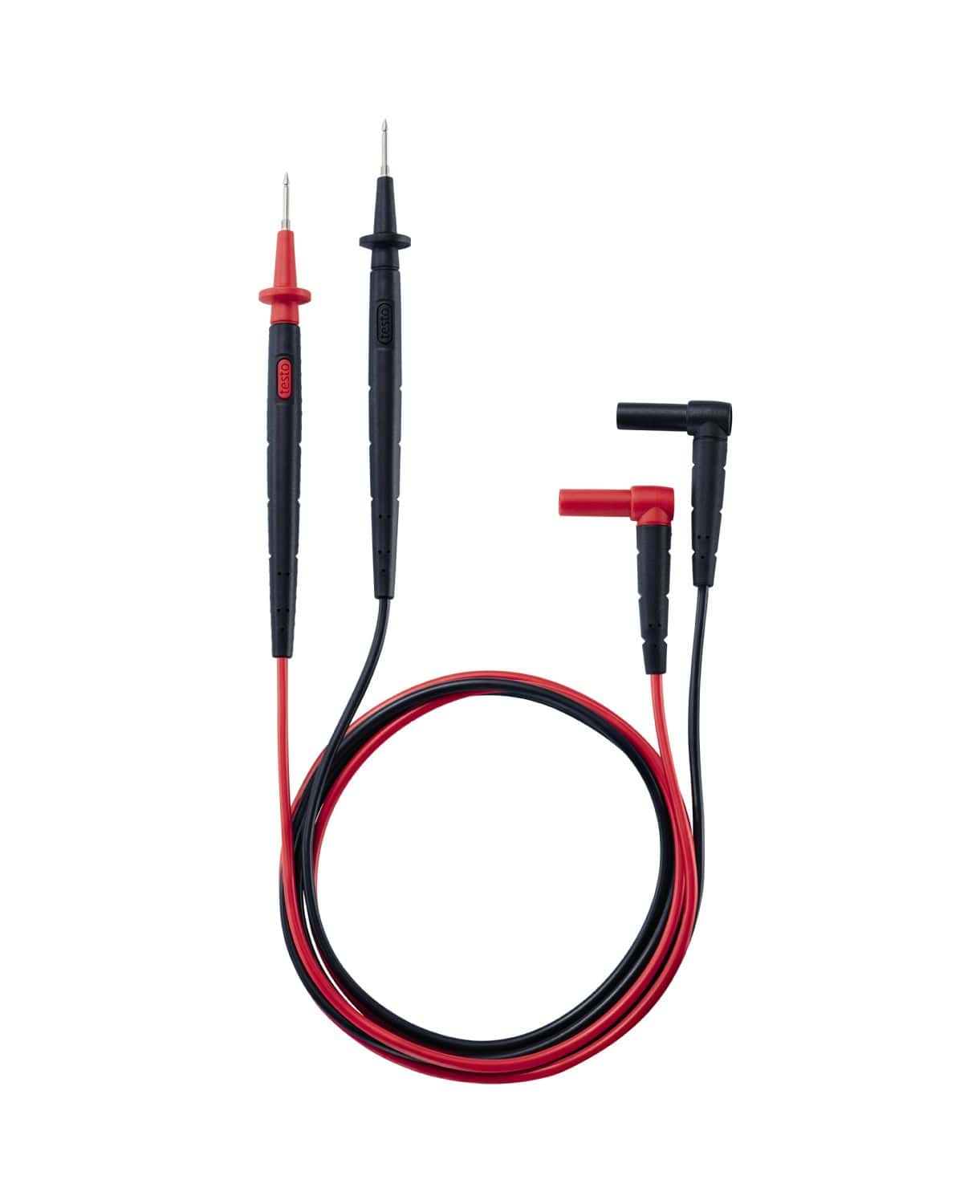

testo 770-2 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K, instruction manual.

Temperature - TC Type K (NiCr-Ni)
Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C

DC voltage
Measuring range	1.0 to 600.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage
Measuring range	1.0 mV to 600.0 V
Resolution	max. 1 mV
Accuracy	± (1.0 % of mv + 3 Digit)

DC current
Measuring range	0.1 to 400.0 A (clamp) 0.1 to 400.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 ) (measuring cables)

DC current

Measuring range

0.1 to 400.0 A (clamp)

0.1 to 400.0 μA (measuring cables)

Resolution

0.1 (clamp)

0.1 (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (1.5 % of mv + 5 ) (measuring cables)

AC current
Measuring range	0.1 to 400.0 A (clamp) 0.1 to 400 μA (measuring cables)
Resolution	0.1 A (clamp) 0.1 μA (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)

AC current

Measuring range

0.1 to 400.0 A (clamp)

0.1 to 400 μA (measuring cables)

Resolution

0.1 A (clamp)

0.1 μA (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (1.5 % of mv + 5 Digit) (measuring cables)

Resistance
Resolution	max. 0.1 Ohm
Measuring range	0.1 to 40.00 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capacitance
Resolution	max. 0.01 nF
Measuring range	10 nF to 100.0 μF
Accuracy	± (1.5 % of mv + 5 Digit)

General technical data
Operating humidity	0 to 80 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Standards	EN 61326-1; EN 61010-2-032; EN 61140

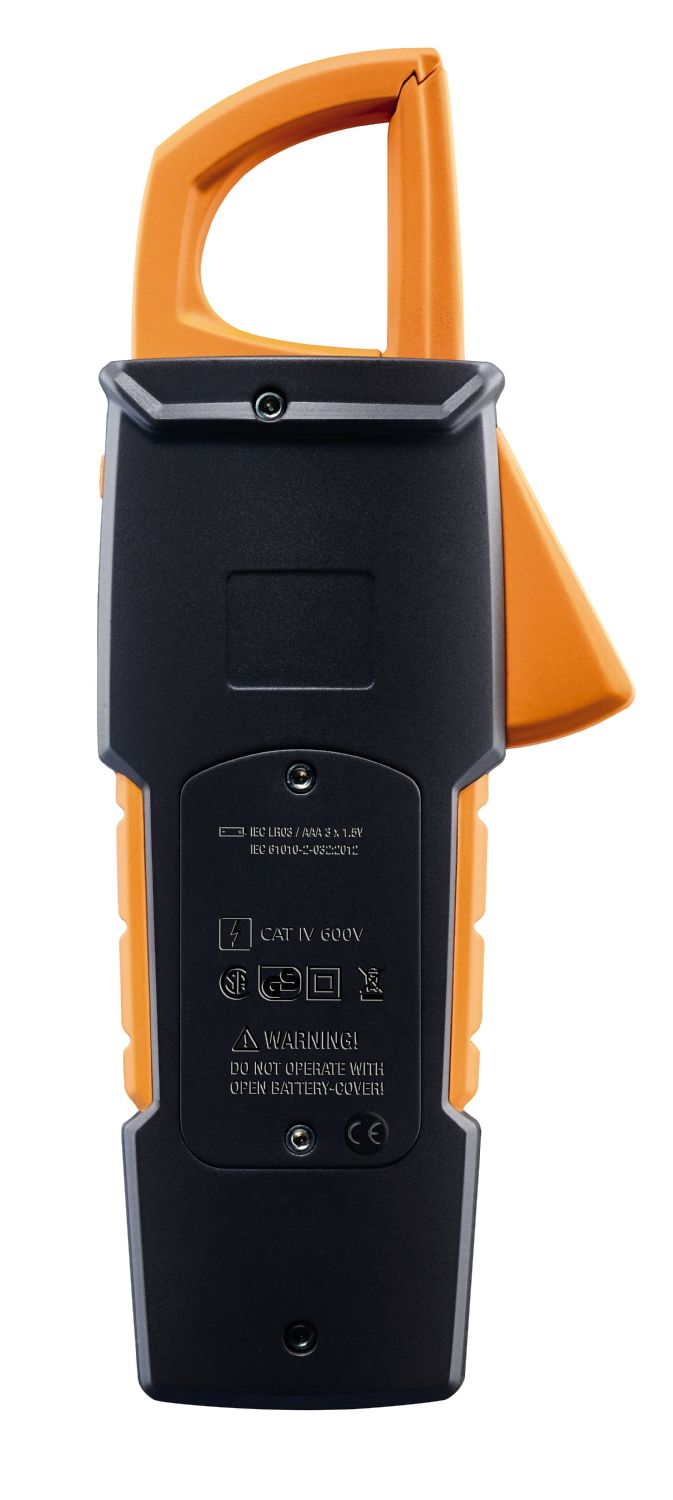

Battery type	3 AAA micro batteries
Display type	LCD (Liquid Crystal Display)
Display size	2 lines

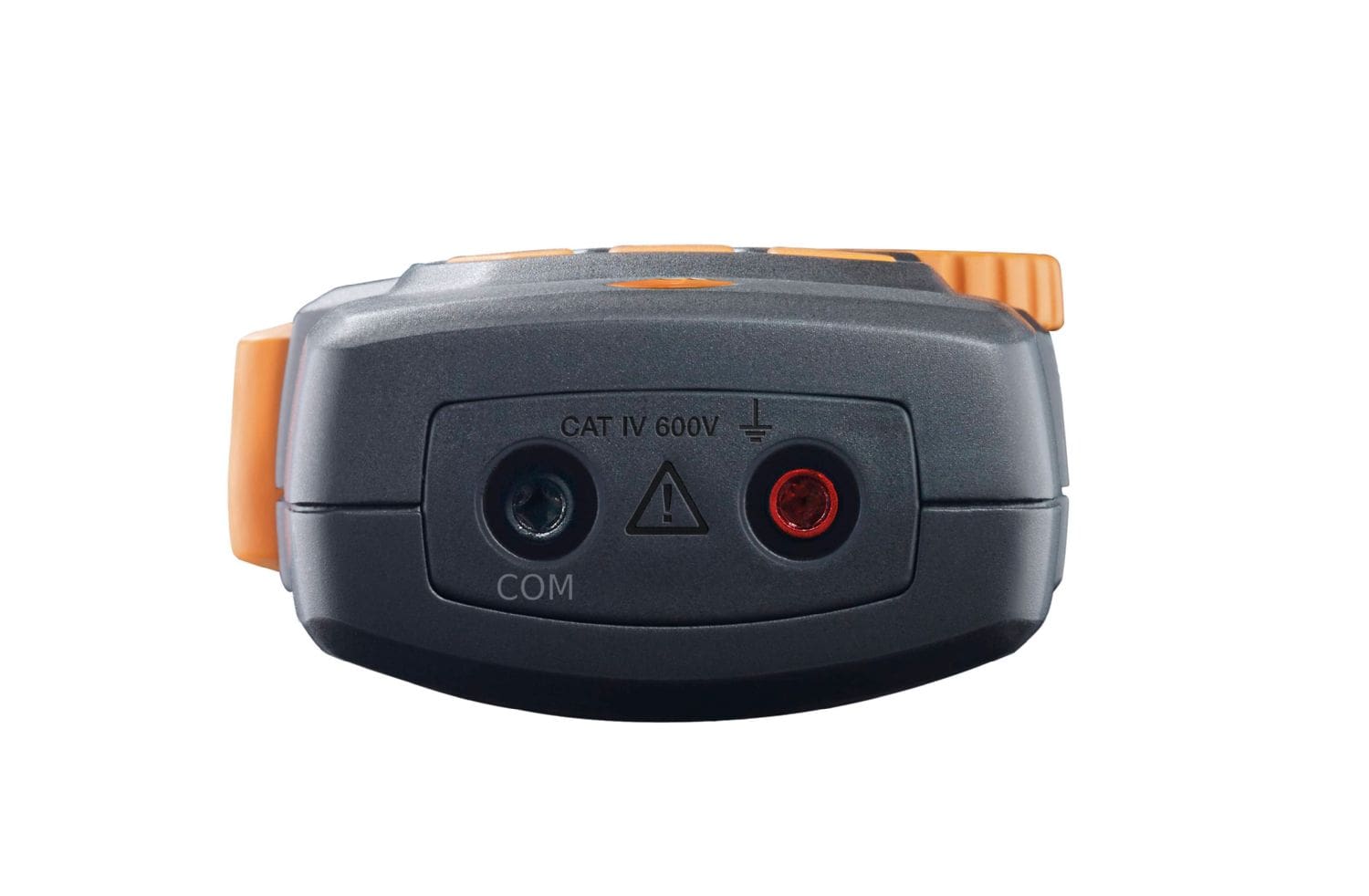

Interface	2 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions
Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Display (counts)	4,000
μA current measuring range	yes
Autom. measurement parameter detection	yes
