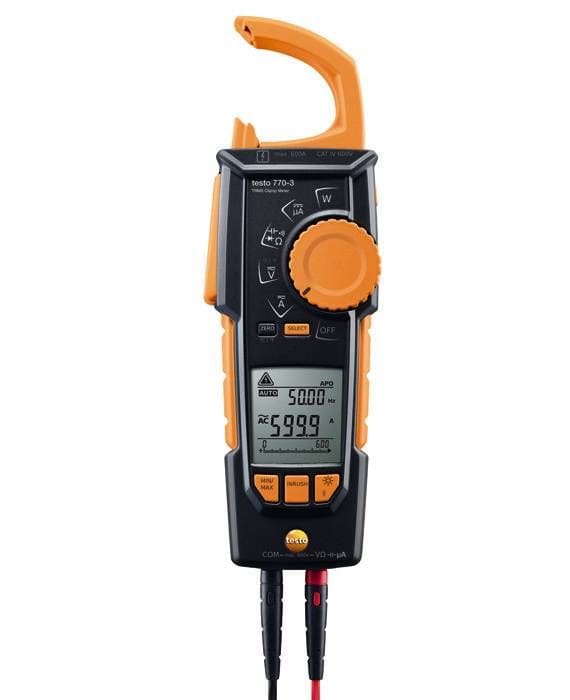

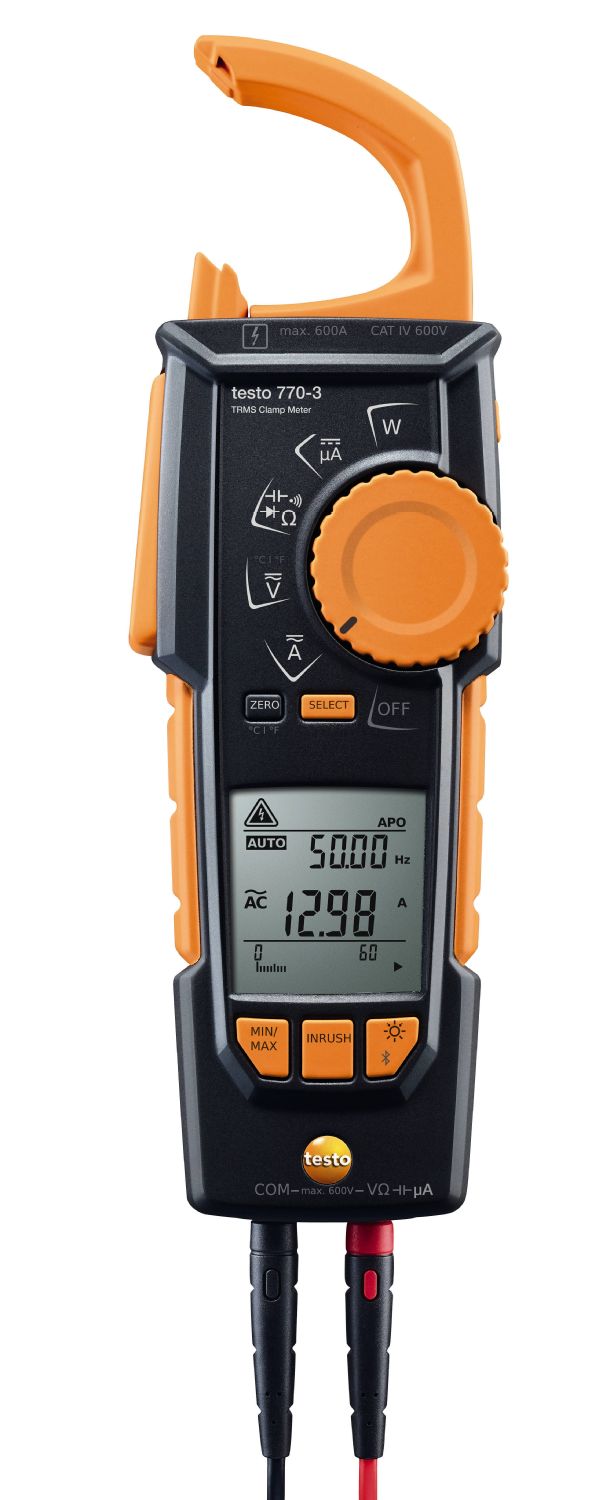

testo 770-3 - Clamp meter with Bluetooth®

Order-Nr. 0590 7703
  • Easy to operate thanks to the fully retractable pincer arm

  • Auto AC/DC and large two-line display

  • Improved TRMS method

  • Bluetooth connection to your smartphone (with the testo Smart Probes App)

Non-contact measurement on tightly packed cables is really easy and reliable with the testo 770-3 clamp meter. Its innovative grab mechanism will make your work easy. The most powerful model in the clamp meter series, it offers lots of additional functions for those challenging tasks that you are faced with on a daily basis, e.g. communication with the smartphone app via Bluetooth.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

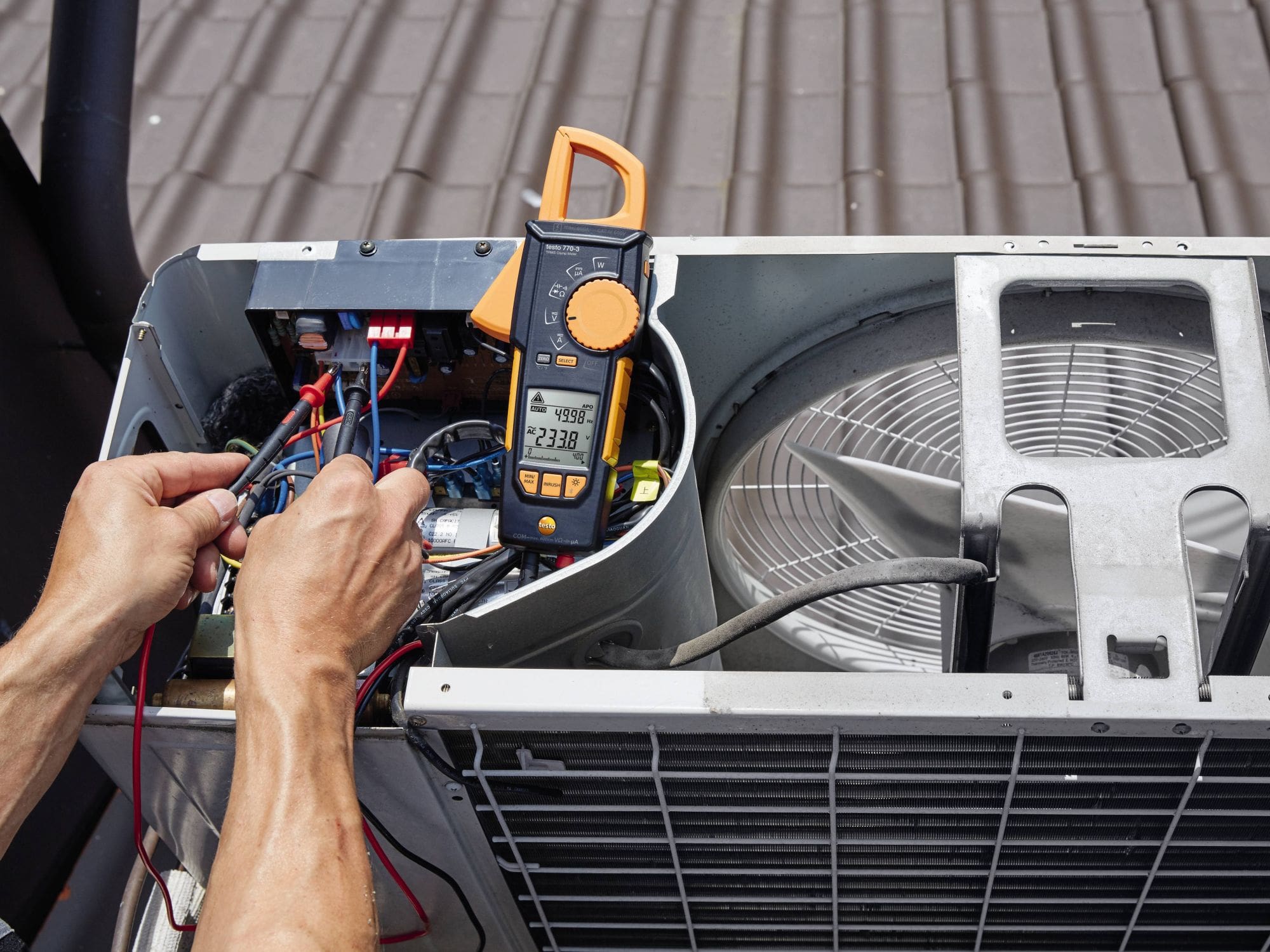

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way.

In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. The optionally available temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).

The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. In addition to this, the testo 770-3 offers a performance measurement function and can be connected via Bluetooth to the testo Smart Probes App. In the App, the measurement curve can be displayed as a graph on your smartphone/tablet and directly documented in the report.

Delivery Scope

testo 770-3 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), instruction manual.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0.2 °C



DC voltage

Measuring range

1.0 to 600.0 V

Resolution

max. 1 mV

Accuracy

± (0.8 % of mv + 3 Digit)



AC voltage

Measuring range

1.0 mV to 600.0 V

Resolution

max. 1 mV

Accuracy

± (1 % of mv + 3 Digit)



DC current

Measuring range

0.1 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution

0.1 (clamp)

0.1 (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (2 % of mv + 5 Digit) (measuring cables)



AC current

Measuring range

0.1 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution

0.1 A (clamp)

0.1 μA (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (1.5 % of mv + 5 Digit) (measuring cables)



Resistance

Resolution

max. 0.01 Ohm

Measuring range

0.01 to 60.0 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)



Capacitance

Resolution

max. 0.01 nF

Measuring range

2 nF to 60.00 mF

Accuracy

± (1.5 % of mv + 5 Digit)



Frequency

Resolution

max. 0.1 Hz

Measuring range

0.01 Hz to 9999 kHz

Accuracy

± (1 % of mv + 1 Digit)



Active Power

Measuring range

0.1 W to 600 kW

Accuracy

± (5 % of mv + 5 Digit)

Resolution

0.1 W



Reactive Power

Measuring range

0.1 to 600.0 kvar

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0.1 var



Apparent Power

Measuring range

0.1 VA to 600.0 kVA

Accuracy

± 1 Digit

Resolution

0.1 VA



Direct current DC Voltage

Measuring range

0.1 W to 600.0 kW

Accuracy

± 1 Digit

Resolution

max. 0.1 W



Power Factor

Measuring range

-1.00 to +1.00

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0.01



General technical data

Operating humidity

0 to 80.0 %RH

Weight

378 g

Dimensions

249 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Connectable probes

1 x temperature probe (adapter required for type K thermocouples)

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

Black

Standards

EN 61326-1; EN 61010-2-032; EN 61140

Battery type

3 AAA micro batteries

Display type

LCD (Liquid Crystal Display)

Display size

2 lines

Interface

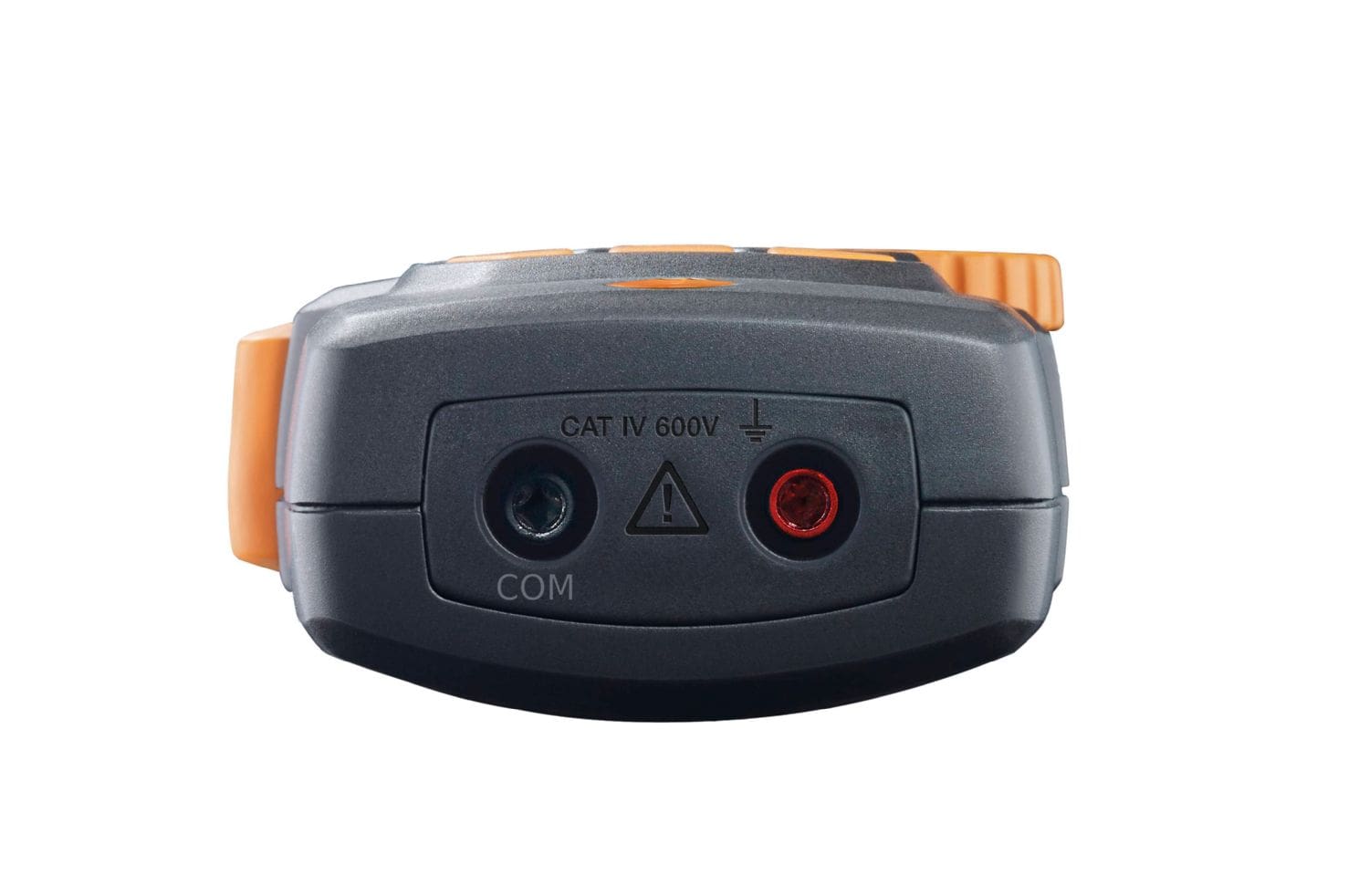

2 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)



Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Power Measurement

yes

Temperature measurement with adapter

yes

True RMS

yes

Inrush current measurement

yes

Bluetooth

yes

Display (counts)

6,000

μA current measuring range

yes

Autom. measurement parameter detection

yes

Adapter for type K thermocouples

Adapter for type K thermocouples, measuring range -20 to +500°C

Order Number: 0590 0021


Safety crocodile clips 0590 0008

Safety crocodile clips, 1 set, 10 A, CAT III 600 V

Order Number: 0590 0008


Crocodile clips 0590 0009

Crocodile clips, 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0009


4 mm standard measuring cables (angled plug) 0590 0011

Standard measuring cables (angled plug), 1 set, tip Ø: 4 mm, CAT II 1000 V

Order Number: 0590 0011


4 mm standard measuring cables (angled plug) 0590 0011

Standard measuring cables (straight plug), 1 set, tip Ø: 4 mm, CAT II 1000 V

Order Number: 0590 0012


Measuring cable extensions (straight plug) 0590 0013

Measuring cable extensions (straight plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0013


Measuring cable extensions (angled plug) 0590 0014

Measuring cable extensions (angled plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0014


2 mm standard measuring cables (angled plug) 0590 0010

Standard measuring cables (angled plug), 1 set, tip Ø: 2 mm, tip length: 3 mm, CAT III 1000 V

Order Number: 0590 0000


ISO calibration certificate for clamp meters

ISO calibration certificate for clamp meters with 57 measuring points

Order Number: 0520 0770


Calibration certificate

DAkkS calibration certificate for clamp meters with 57 measuring points

Order Number: 0520 0771


Transport bag 0590 0017

Transport bag, dimensions: 270 x 150 x 75 mm

Order Number: 0590 0017
