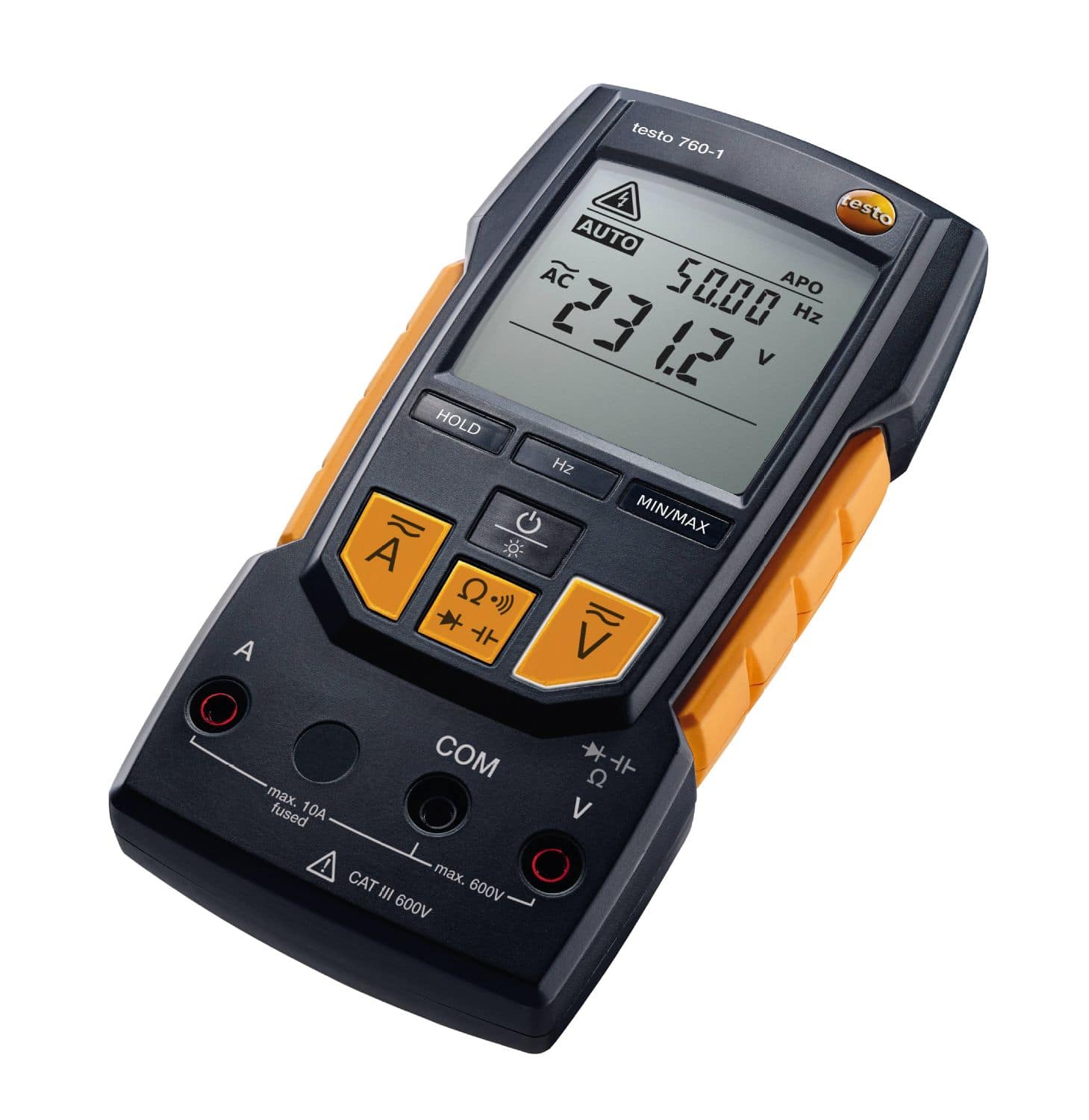

testo 760-1 - Digital multimeter

Order-Nr. 0590 7601

Easy, reliable operation through automatic measurement parameter detection
Prevents incorrect settings
Suitable for almost all electrical measuring tasks
Clear, illuminated display

No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.

Thông tin sản phẩm

Chi tiết sản phẩm
Thông số kỹ thuật
Phụ kiện
Download

Product Description

When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability.

In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.

The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.

Delivery Scope

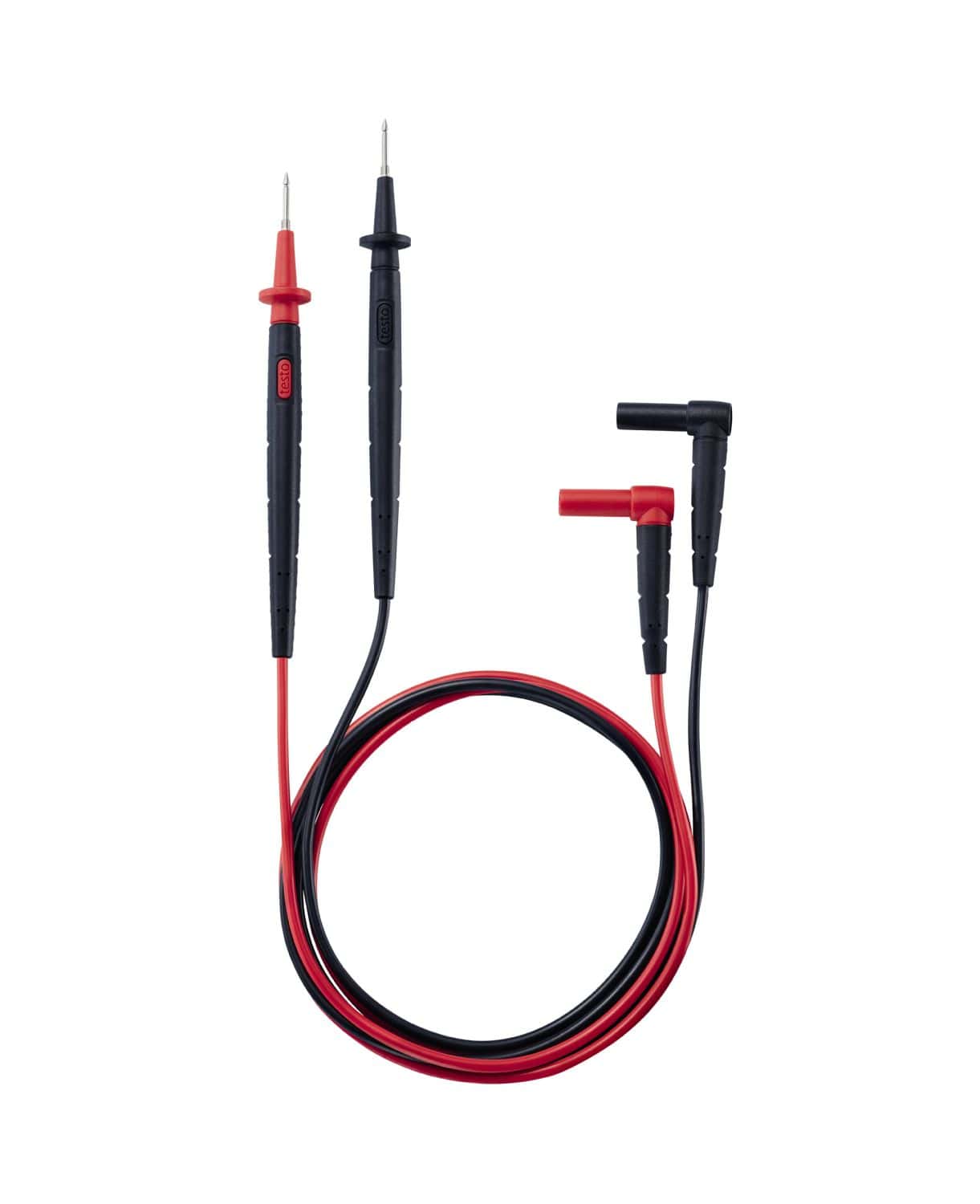

testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.

DC voltage
Measuring range	0.1 to 600 V
Resolution	max. 0.1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage
Measuring range	0.1 mV to 600 V
Resolution	max. 0.1 mV
Accuracy	± (1.0 % of mv + 3 Digit)

DC current
Measuring range	0.1 mA to 10 A
Resolution	max. 0.1
Accuracy	± (1.5 % of mv + 5 Digit)

AC current
Measuring range	0.1 mA to 10 A
Resolution	max. 0.1 mA
Accuracy	± (1.0 % of mv + 3 Digit)

Resistance
Resolution	max. 0.1 Ohm
Measuring range	0.1 to 40.00 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capacitance
Resolution	max. 0.01 nF
Measuring range	10 nF to 100 μF
Accuracy	± (1.5 % of mv + 5 Digit)

Frequency
Resolution	max. 0.001 Hz
Measuring range	2 Hz to 512.0 kHz
Accuracy	± (0.1 % of mv + 1 Digit)

General technical data
Operating humidity	0 to 80 %RH
Weight	340 g
Dimensions	167 x 85 x 45 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Protection class	IP64
Standards	EN 61326-1; EN 61010-2-033; EN 61140
Battery type	2 AAA micro batteries
Display type	LCD (Liquid Crystal Display)
Display size	2 lines
Interface	4 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT III 600V; CAT IV 300V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)
