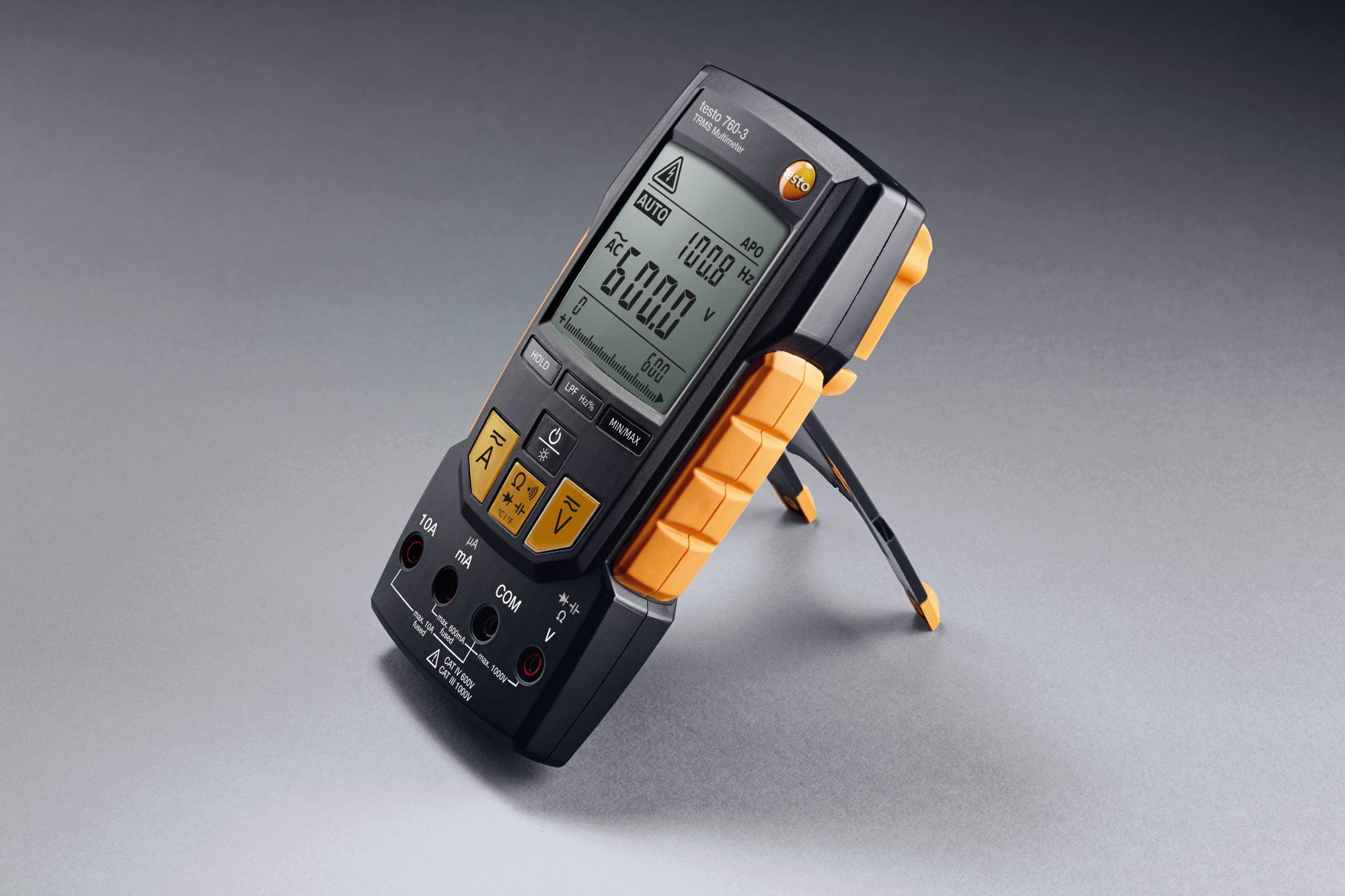

testo 760-3 - Digital multimeter

Order-Nr. 0590 7603

Easy, reliable work thanks to automatic measurement parameter detection
Comfortable, one-handed operation without any dial
Voltage range up to 1,000 V
Additional functions, such as true root mean square measurement - TRMS, low-pass filter and temperature adapter

The testo 760-3 is the most high-performance model in Testo's digital multimeter family. In addition to automatic detection of measurement parameters, it is characterized by a voltage measuring range of up to 1,000 V along with large measuring ranges for frequency and capacitance. The digital multimeter is therefore also suitable for industrial applications.

Thông tin sản phẩm

Chi tiết sản phẩm
Thông số kỹ thuật
Phụ kiện
Download

Product Description

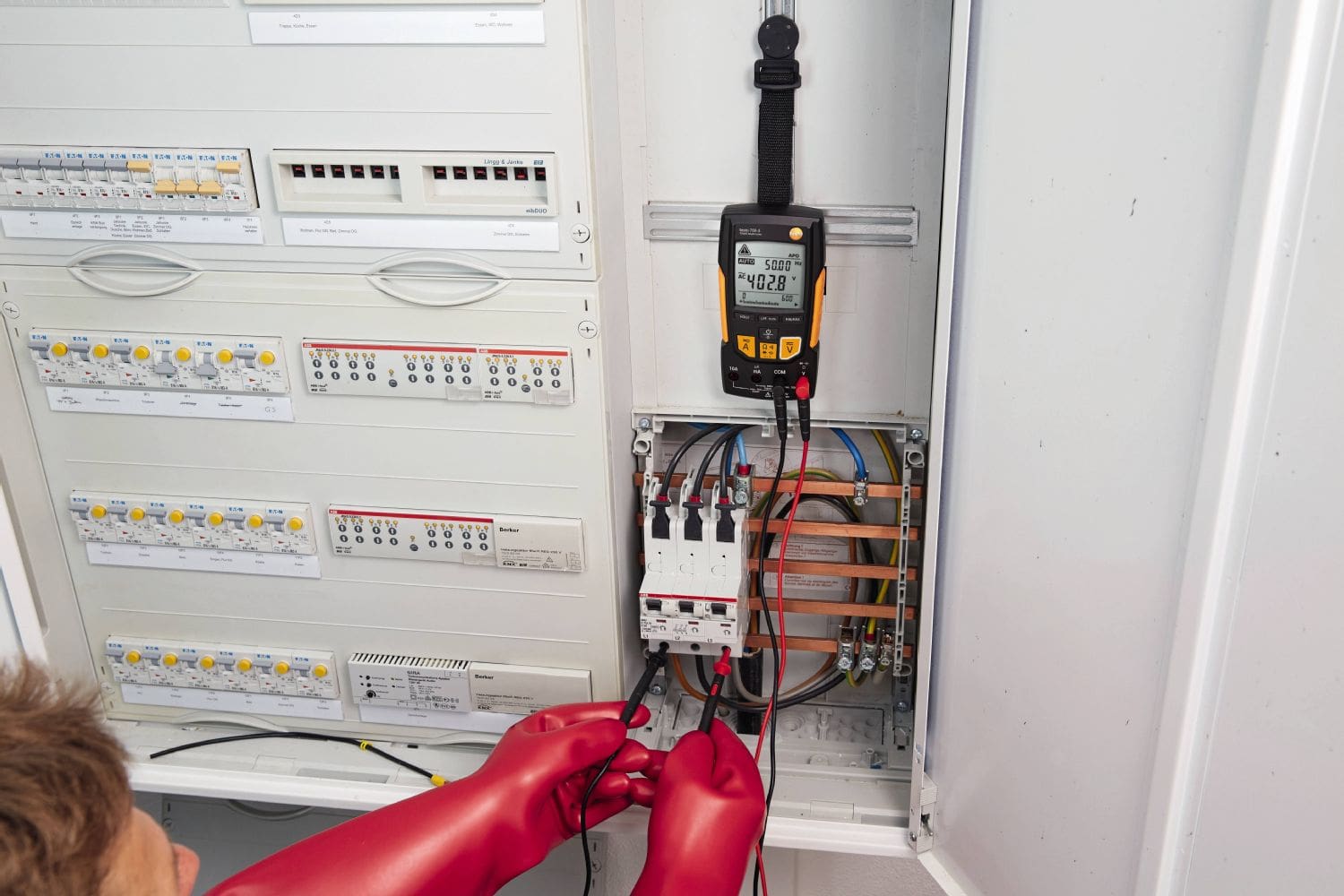

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.

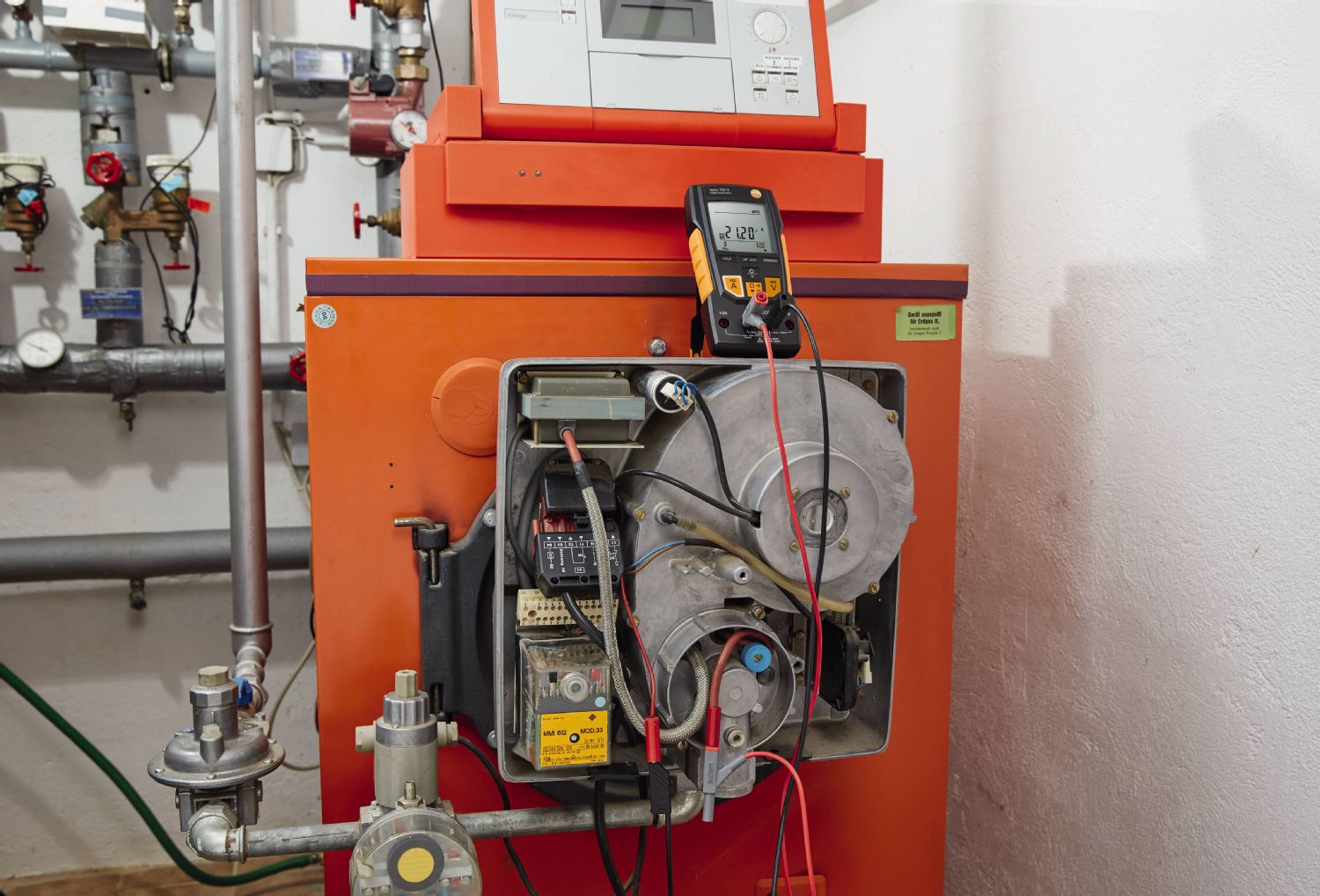

A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.

Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).

Delivery Scope

testo 760-3 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.

Temperature - TC Type K (NiCr-Ni)
Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C

DC voltage
Measuring range	0.1 to 1000 V
Resolution	max. 0.1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage
Measuring range	0.1 mV to 1000 V
Resolution	max. 0.1 mV
Accuracy	± (1.0 % of mv + 3 Digit)

DC current
Measuring range	0.1 μA to 10 A
Resolution	max. 0.1
Accuracy	± (1.5 % of mv + 5 Digit)

AC current
Measuring range	0.1 μA to 10 A
Resolution	max. 0.1 μA
Accuracy	± (1.5 % of mv + 5 Digit)

Resistance
Resolution	max. 0.01 Ohm
Measuring range	0.01 to 60.00 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capacitance
Resolution	max. 0.01 nF
Measuring range	2 nF to 30.00 mF
Accuracy	± (1.5 % of mv + 5 Digit)

Frequency
Resolution	max. 0.1 Hz
Measuring range	2 Hz to 60.00 MHz
Accuracy	± (0.1 % of mv + 1 Digit)

General technical data
Operating humidity	0 to 80 %RH
Weight	340 g
Dimensions	167 x 85 x 45 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Protection class	IP64
Standards	EN 61326-1; EN 61010-2-033; EN 61140
Battery type	3 AAA micro batteries
Display type	LCD (Liquid Crystal Display)
Display size	2 lines
Interface	4 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CE; CSA
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions
Diode test	yes
Continuity testing	yes
Current probe measurement with adapter	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Temperature measurement with adapter	yes
True RMS	yes
Low-pass filter	yes
Duty cycle measurement	yes
Display (counts)	6,000
μA current measuring range	yes
Autom. measurement parameter detection	yes

Magnetic hook 0590 0001

Magnetic suspension system for attaching the digital multimeter to systems

Order Number: 0590 0001

Thermocouple Adapter 0590 0002

Adapter for type K thermocouples, measuring range -20 to +500°C

Order Number: 0590 0002

Clamp meter adapter 0590 0003

Clamp meter adapter for non-contact current measurement, 400 A AC/DC, CAT IV 600 V

Order Number: 0590 0003

Spare fuses 10 A/1000 V 0590 0004

Spare 10 A/1000 V fuses, 5 items

Order Number: 0590 0004

Spare fuses 630 mA/1000 V 0590 0006

Spare 630 mA/1000 V fuses, 5 items

Order Number: 0590 0006

Safety crocodile clips 0590 0008

Safety crocodile clips, 1 set, 10 A, CAT III 600 V

Order Number: 0590 0008

Crocodile clips 0590 0009

Crocodile clips, 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0009

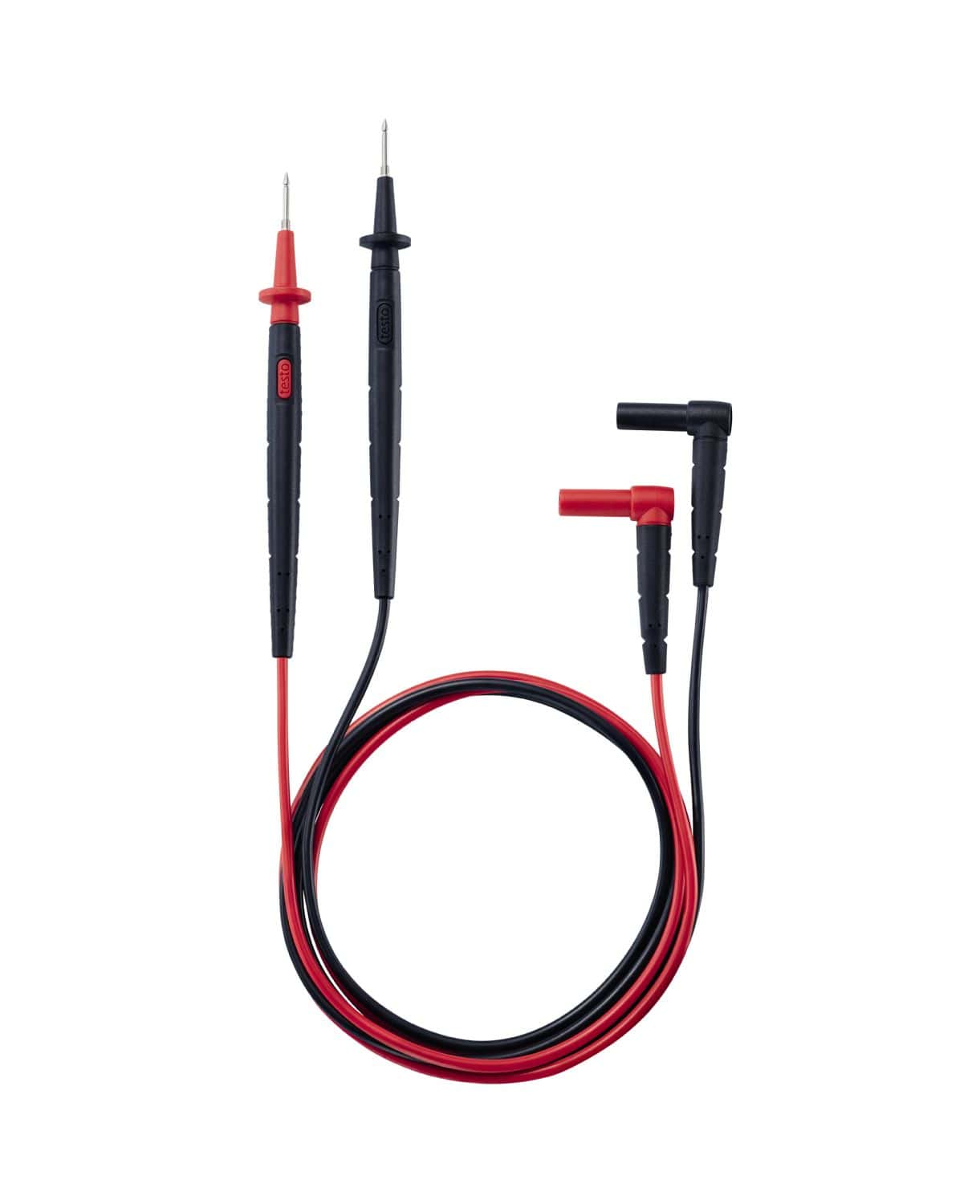

2 mm standard measuring cables (angled plug) 0590 0010

Standard measuring cables (angled plug), 1 set, tip Ø: 2 mm, CAT II 1000 V

Order Number: 0590 0010

2 mm standard measuring cables (angled plug) 0590 0010

Standard measuring cables (angled plug), 1 set, tip Ø: 4 mm, CAT II 1000 V

Order Number: 0590 0011

2 mm standard measuring cables (angled plug) 0590 0010

Standard measuring cables (straight plug), 1 set, tip Ø: 4 mm, CAT II 1000 V

Order Number: 0590 0012

Measuring cable extensions (straight plug) 0590 0013

Measuring cable extensions (straight plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0013

Measuring cable extensions (angled plug) 0590 0014

Measuring cable extensions (angled plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0014

standard measuring cables (angled plug)

Standard measuring cables (angled plug), 1 set, tip Ø: 2 mm, tip length: 3 mm, CAT III 1000 V

Order Number: 0590 0000

ISO calibration certificate for multimeters

ISO calibration certificate for multimeters with 64 measuring points

Order Number: 0520 0760

Calibration certificate

DAkkS calibration certificate for multimeters with 64 measuring points

Order Number: 0520 0761

Transport bag 0590 0016

Transport bag, dimensions: 240 x 180 x 100 mm

Order Number: 0590 0016
