testo Smart Probes heating kit

Order-Nr. 0563 0004 10

Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure
Measurement menu for pressure-drop test including alarm function
Display measurement data as a graph or table and analyze and send via testo Smart Probes App
In conjunction with your smartphone/tablet, measure and check all heating system temperatures and pressures

Product Information

Product Detail
Product Tech
Accessory
Download

Product Description

For heating engineers: Compact kit containing three measuring instruments for carrying out your most important measuring tasks involving heating systems. The testo Smart Probes App enables you to work more easily and efficiently: Use the measurement menus for pressure drop test with alarm function or for non-contact IR temperature measurement with image documentation including measuring value and measurement spot marking. Measurement data reports can be emailed directly as a PDF or Excel file.

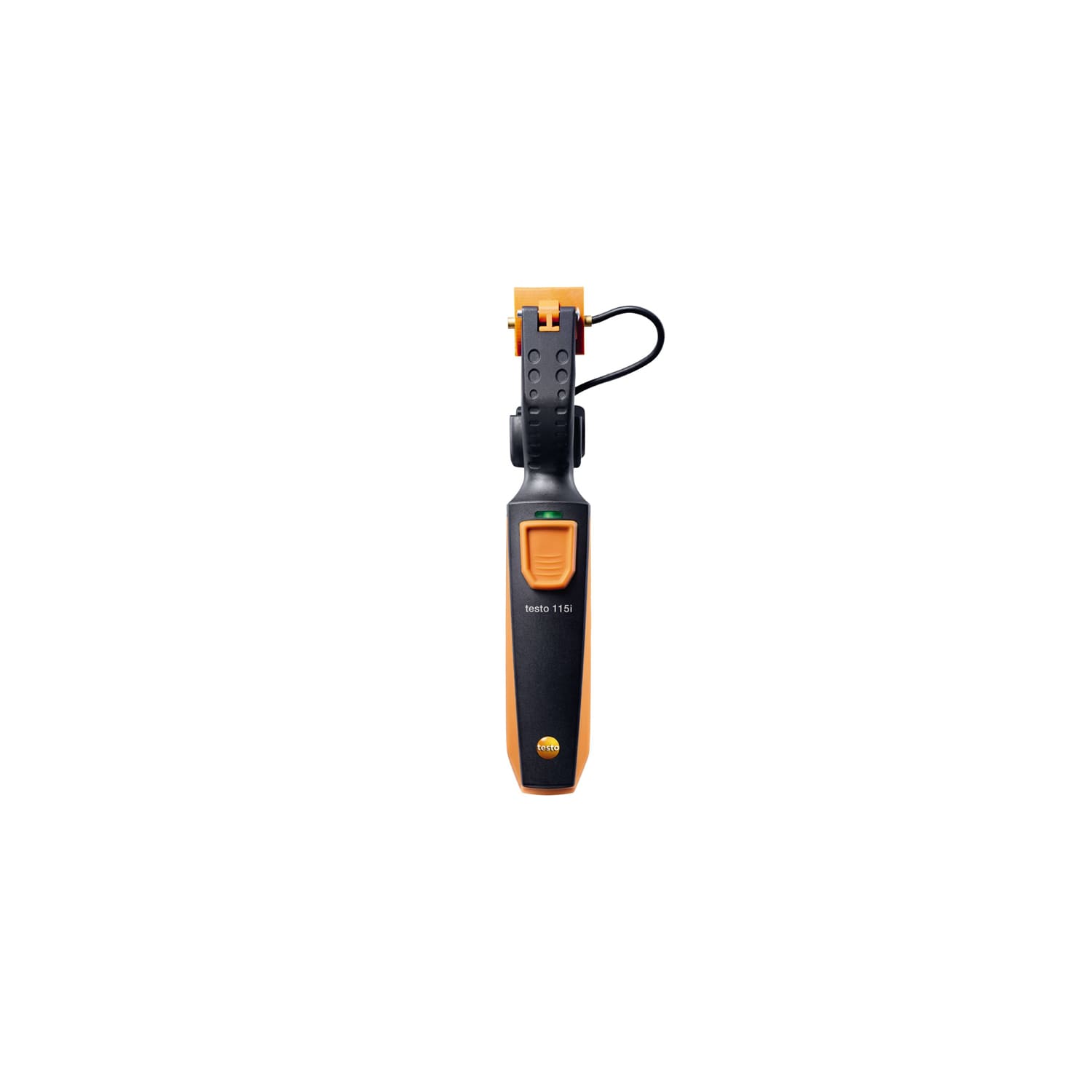

Temperature - NTC
Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data
Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Data transfer	Bluetooth®
Radio range	100 m
Storage temperature	-20 to +60 °C

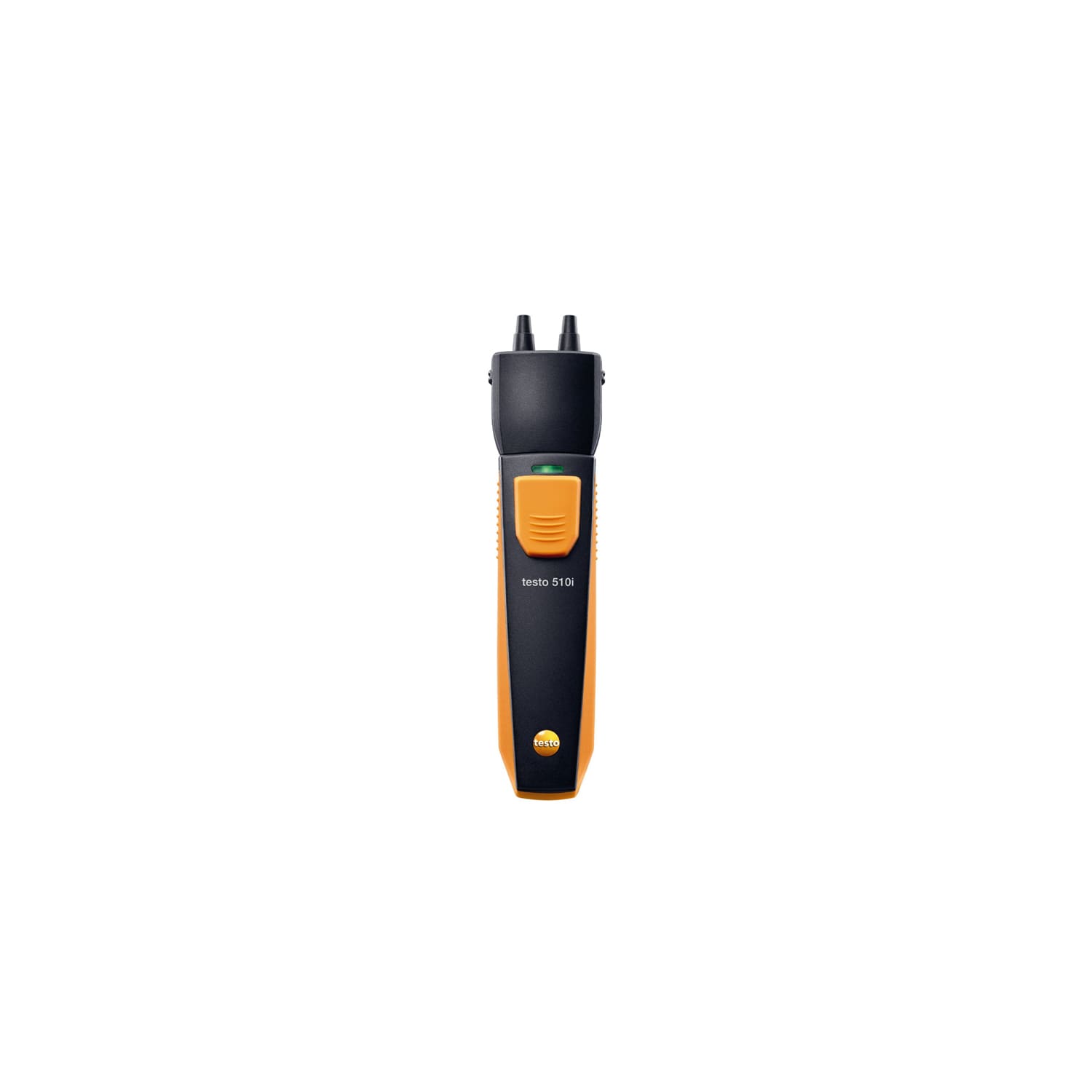

Differential pressure (internal sensor) - Piezoresistive
Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 hPa

Differential pressure (internal sensor) - Piezoresistive

Measuring range

-150 to +150 hPa

Accuracy

±0.05 hPa (0 to +1 hPa)

±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)

Resolution

0.01 hPa

General technical data
Weight	92 g
Dimensions	148 x 36 x 23 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Storage temperature	-20 to +60 °C

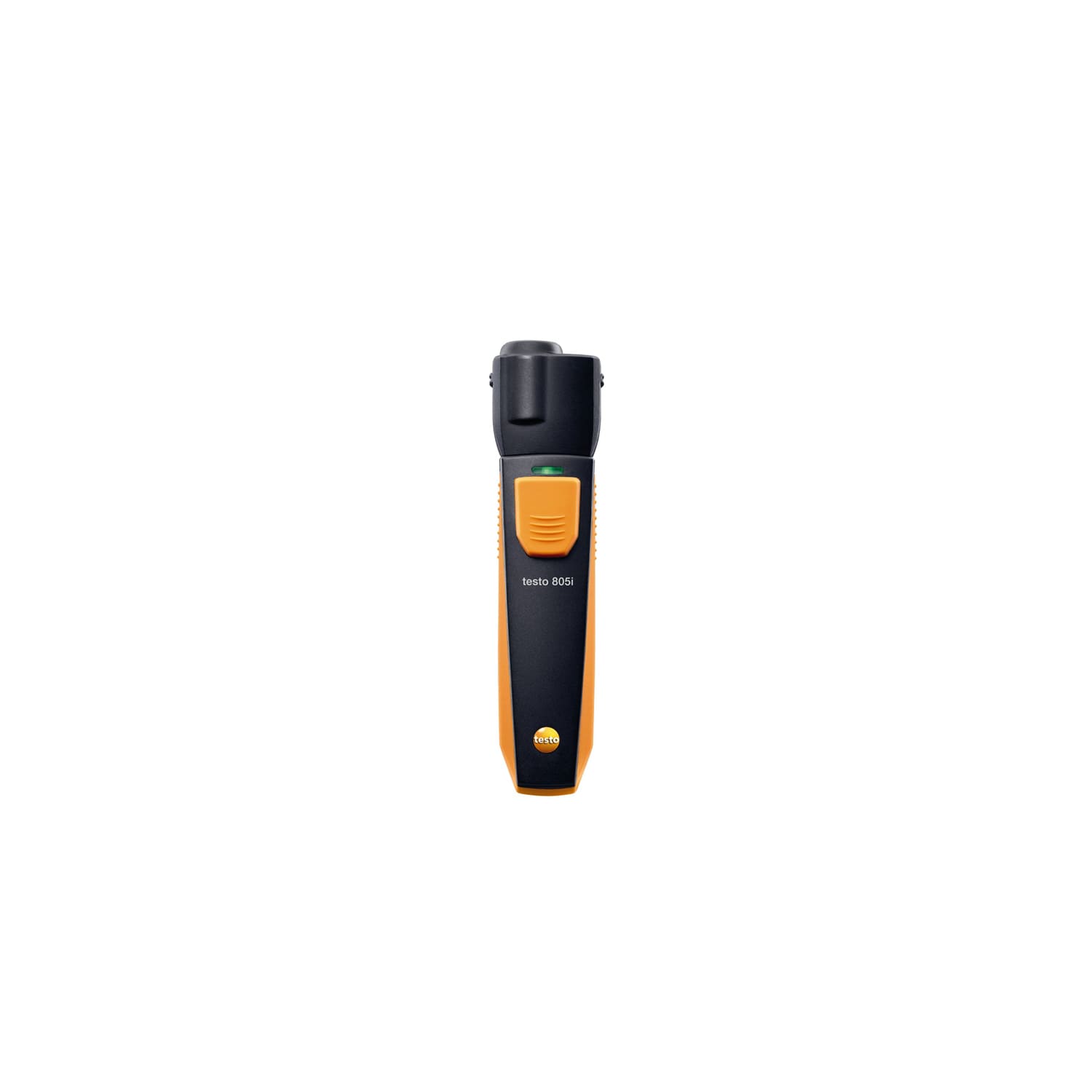

Temperature - Infrared
Measuring range	-30 to +250 °C
Accuracy	±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C)
Resolution	0.1 °C

Temperature - Infrared

Measuring range

-30 to +250 °C

Accuracy

±1.5 °C or ±1.5 % of mv (0 to +250 °C)

±2 °C (-20 to -0.1 °C)

±2.5 °C (-30 to -20.1 °C)

Resolution

0.1 °C

General technical data
Dimensions	140 x 36 x 25 mm
Operating temperature	-10 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	30 h
Storage temperature	-20 to +60 °C
Weight	97 g

General technical data
Dimensions	250 x 180 x 70 mm
Product colour	Black
Weight	249.8 g

Smart Case Refrigeration Set

testo Smart Case “Refrigeration” – storage case for Smart Probes measuring instruments

Order Number: 0516 0240

Smart Case Refrigeration Set

testo Smart Case “Heating” – storage case for Smart Probes measuring instruments

Order Number: 0516 0270

testo HVAC softcase storage case

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

Order Number: 0516 0283

Smart Case VAC Set

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Order Number: 0516 0260

Calibration certificate

ISO temperature calibration certificate for surface probes; with 1 measuring point: +60 °C

Order Number: 0520 0072

Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002
