testo Smart Probes HVAC/R Ultimate kit

Order-Nr. 0563 0002 31
  • For all measurements involving heating, air-conditioning, refrigeration and ventilation systems

  • All Smart Probes for temperature, pressure, humidity and flow in one kit

  • Display of measurement data progression as a graph or table

  • Transmission and analysis of measurement data via testo Smart Probes App

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

Ultimate kit for all-round engineers in the field of heating, air conditioning, refrigeration and ventilation: The kit contains all the testo Smart Probes and is ideal for carrying out functional checks or for plant maintenance, in conjunction with your smartphone/tablet. The testo Smart Probes App enables you to work more easily and efficiently: Automatically calculate numerous parameters such as superheating/subcooling, target superheat, cooling/heating power, differential temperature or mould indication. Measurement data reports can be emailed directly as a PDF or Excel file.

testo 115i - Clamp thermometer operated via smartphone

Order-Nr. 0560 2115 02

  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

  • Fast identification of temperature changes by graphic progression display

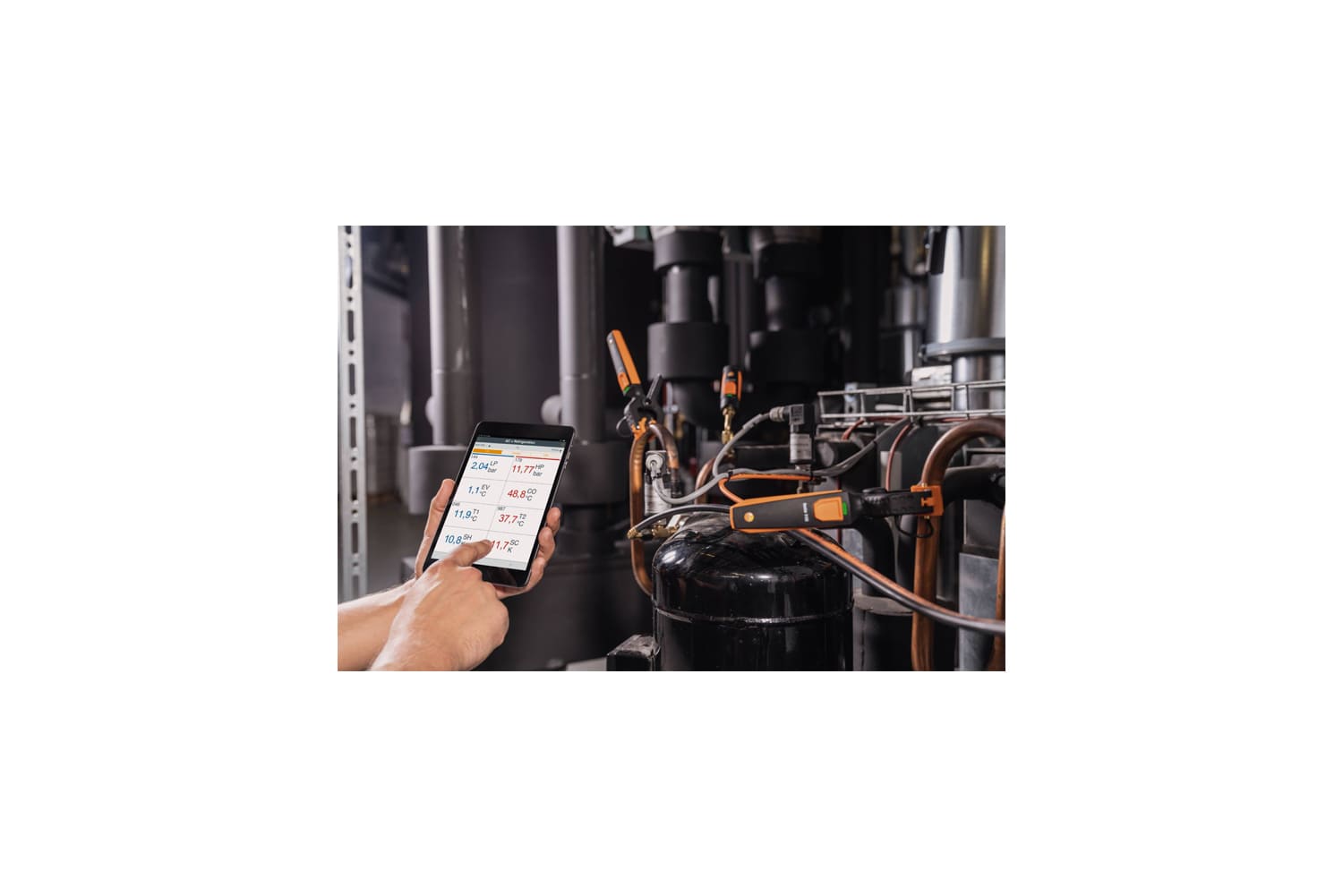

testo 549i - High-pressure gauge operated via smartphone

Order-Nr. 0560 2549 02

  • Measurement of high and low pressure

  • Low refrigerant loss – since no hoses are required for measurements

In addition, the testo 608-H2 can display both minimum and maximum values and has an LED visual alarm that is activated when a threshold has been exceeded. Both the upper and the lower threshold can be individually configured.

The high-precision, long-term stable humidity sensor ensures that your easy-to-use, easy-to-clean measuring device can provide you with reliable readings for years to come.

The testo 608-H2 thermo hygrometer has a battery life of approximately one year and a battery status indicator that shows you when the battery is running low.

Delivery Scope

testo 608-H2 thermo hygrometer, calibration certificate, batteries.

Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±1.3 °C (-20 to +85 °C)

Resolution

0.1 °C



General technical data

Weight

127.4 g

Dimensions

183 x 90 x 30 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

150 h

Data transfer

Bluetooth®

Radio range

100 m

Storage temperature

-20 to +60 °C




Pressure measurement

Measuring range

-1 to +60 bar

Accuracy

±0.5 % of fsv

Resolution

0.01 bar

Probe connection

7 / 16 " - UNF

Overload rel. (high pressure)

+65 bar



General technical data

Weight

156.6 g

Dimensions

125 x 32 x 31 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

130 h

Data transfer

Bluetooth®

Radio range

100 m

Pressure media

CFC, HFC, HCFC, N, H₂O, CO₂

Storage temperature

-20 to +60 °C




Temperature - NTC

Measuring range

-20 to +60 °C

Accuracy

±0.8 °C (-20 to 0 °C)

±0.5 °C (0 to +60 °C)

Resolution

0.1 °C



Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±3.0 %RH (10 to 35 %RH) (at +25°C)

±2.0 %RH (35 to 65 %RH) (at +25°C)

±3.0 %RH (65 to 90 %RH) (at +25°C)

±5 %RH (< 10 or > 90 %RH)

Resolution

0.1 %RH



General technical data

Weight

86.4 g

Dimensions

243 x 30 x 24 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

150 h

Length probe shaft

100 mm

Data transfer

Bluetooth®

Radio range

100

Storage temperature

-20 to +60 °C

Smart Case Refrigeration Set

testo Smart Case “Refrigeration” – storage case for Smart Probes measuring instruments

Order Number: 0516 0240


Smart Case Heating Set

testo Smart Case “Heating” – storage case for Smart Probes measuring instruments

Order Number: 0516 0270


testo HVAC softcase storage case

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

Order Number: 0516 0283


Smart Case VAC Set

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Order Number: 0516 0260


Calibration certificate

ISO temperature calibration certificate for surface probes; with 1 measuring point: +60 °C

Order Number: 0520 0072


Calibration certificate

ISO calibration certificate for pressure; calibration at 3 measuring points, distributed over the measuring range of the measuring instrument/probe – accuracy 0.1 to 0.6 % of f.v.

Order Number: 0520 0085


Calibration certificate

ISO humidity calibration certificate; with 2 measuring points: 11.3 and 75.3 %RH at +25°C

Order Number: 0520 0006


Calibration certificate

ISO calibration certificate for humidity; calibration at 1 measuring point: 75.3 %RH at +25 °C

Order Number: 0520 0096


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C

Order Number: 0520 0001


Calibration certificate

ISO calibration certificate for temperature for air/immersion probes; with 1 measuring point: -18 °C

Order Number: 0520 0061


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 1 measuring point: 0 °C

Order Number: 0520 0062


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 1 measuring point: +60 °C

Order Number: 0520 0063


Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002


Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 1 / 2 / 5 / 10 m/s

Order Number: 0520 0004


Calibration certificate

ISO calibration certificate for flow; calibration at selectable measuring points between 0.5 and 27 m/s

Order Number: 0520 0104


Calibration certificate

DAkkS calibration certificate for flow; calibration at selectable measuring points between 0.1 and 68 m/s

Order Number: 0520 0214
