testo Smart Probes mould kit

Order-Nr. 0563 0005 10
  • Identify mould risk at an early stage using the testo Smart Probes App

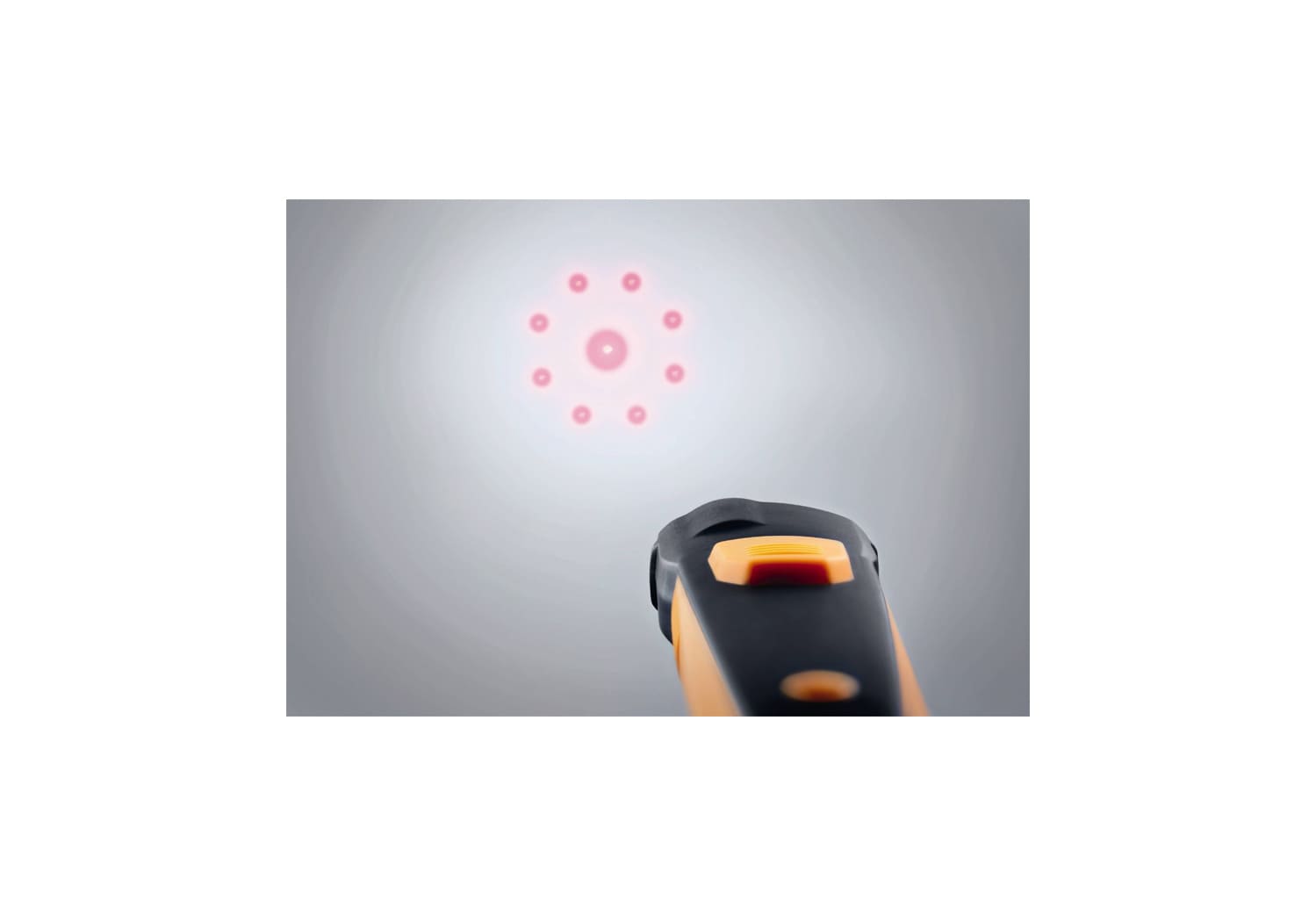

  • Measuring point marking with laser function

  • Display and evaluation of the mould risk with the aid of traffic light colours

  • Transmission and analysis of measurement data including photo documentation via testo Smart Probes App

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

Early identification of mould risk: Used in conjunction with your smartphone/tablet, the testo Smart Probes mould kit is ideal for detecting areas susceptible to mould at an early stage. Use the testo Smart Probes testo 605i and testo 805i to measure ambient temperature, relative humidity and surface temperature. Thanks to the testo Smart Probes App, you can work more easily and efficiently: Evaluate the results of the mould indication according to the traffic light principle (green, yellow, red), save measurement data as a PDF or Excel file at the touch of a button. Measurement data reports can be emailed directly - these contain photos of the affected areas for better illustration.

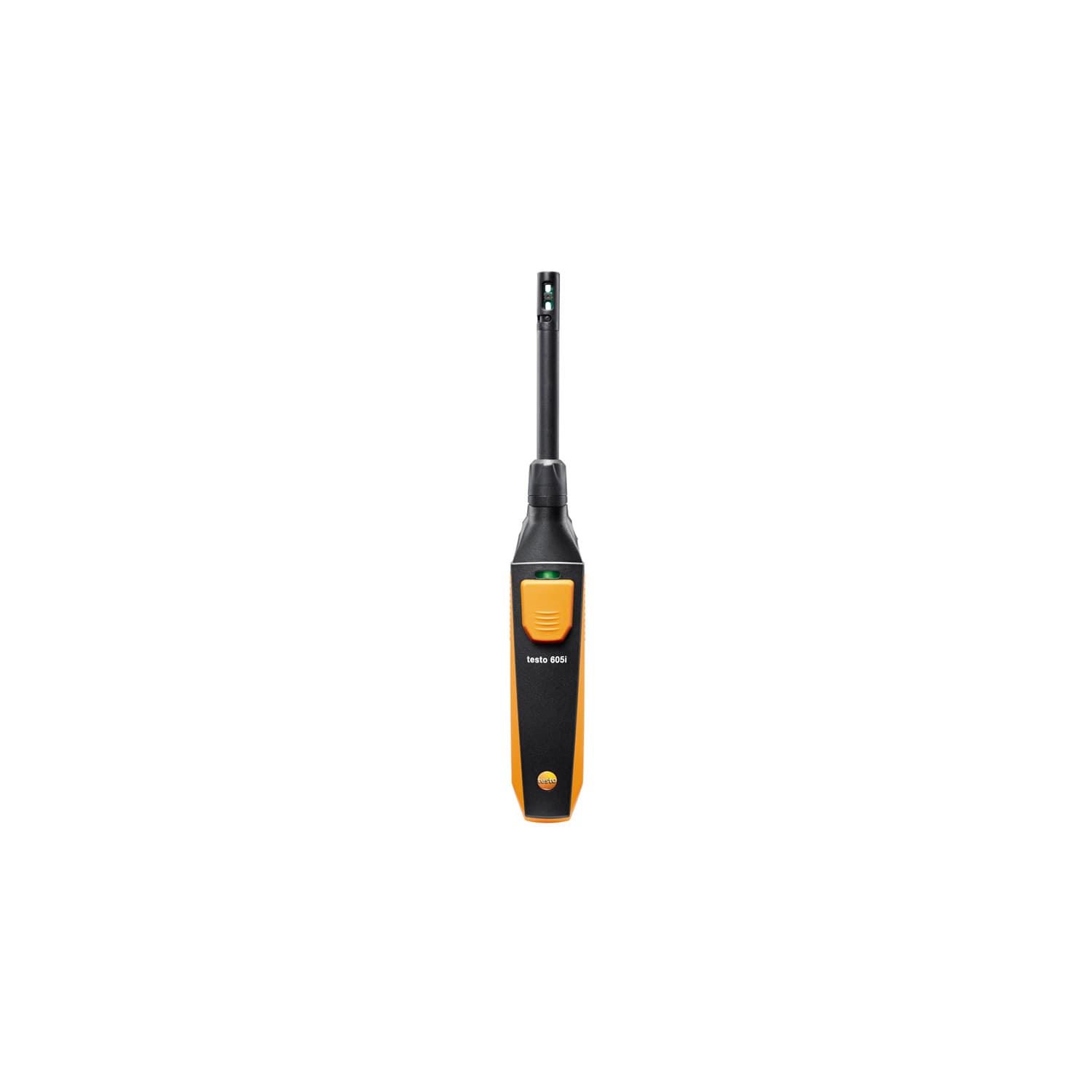

testo 605i - Thermohygrometer operated via smartphone

Order-Nr. 0560 2605 02

  • Measurement of air humidity and temperature in rooms and ducts

  • Automatic calculation of the dew point and wet bulb temperature via testo Smart Probes App

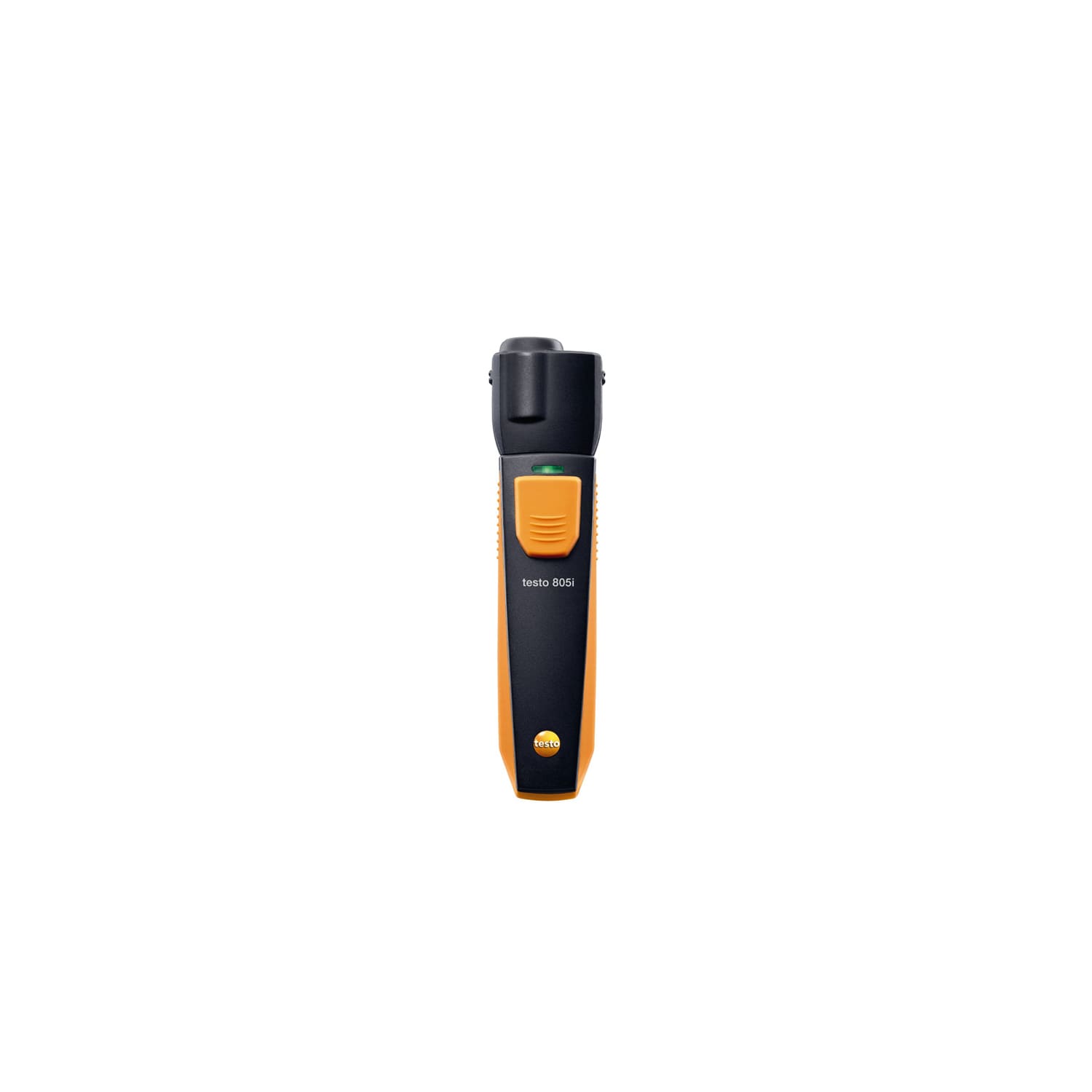

testo 805 i - infrared thermometer with smartphone operation

Order-Nr. 0560 1805

  • Non-contact infrared measurement of surface temperature

  • Easy selection of emission level via stored materials list

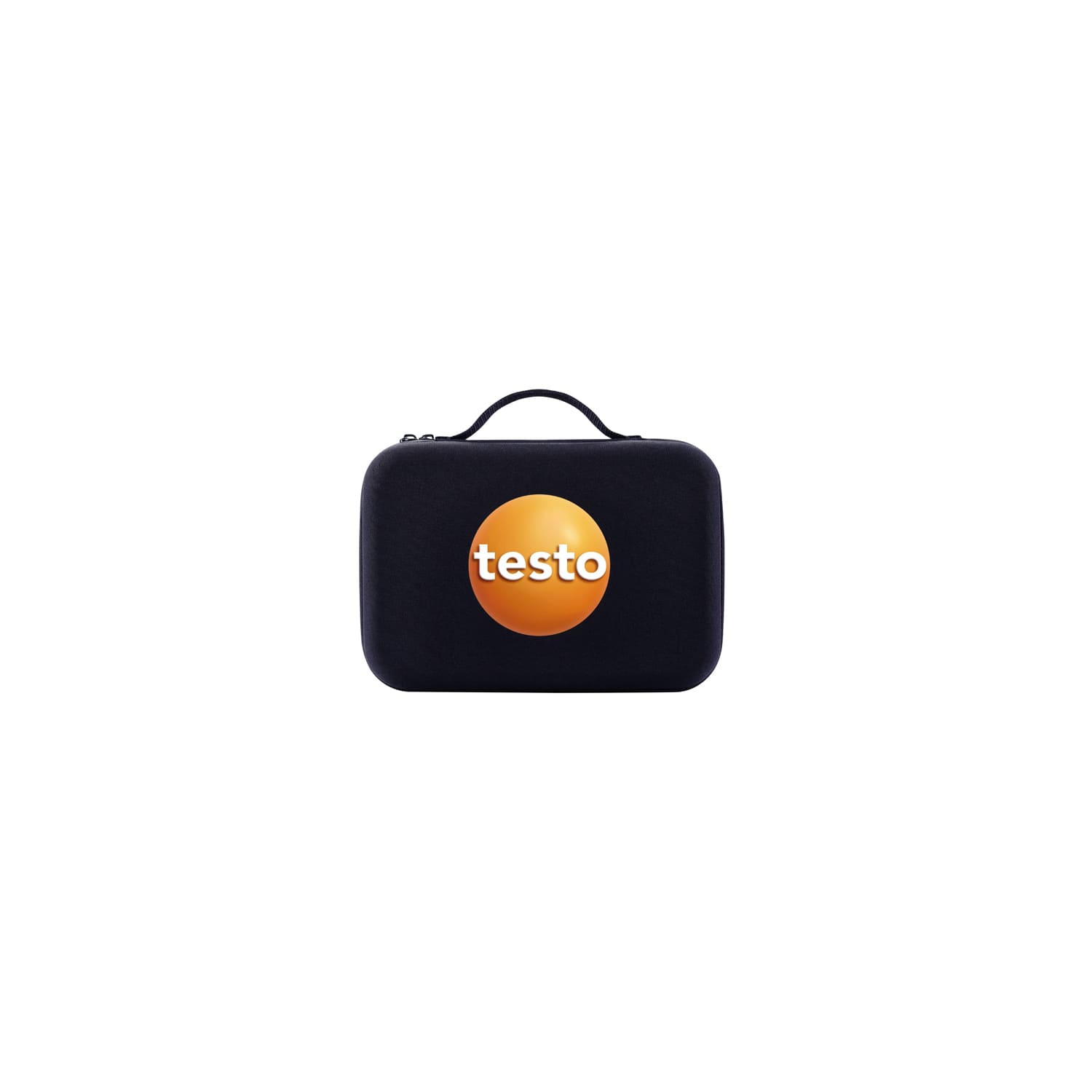

testo Smart Case (Climate) - storage case for Smart Probes measuring instruments

Order-Nr. 0516 0260

  • Practical storage case for Smart Probes testo 805i, testo 410i, testo 510i, testo 405i, testo 605i and testo 905i (available separately)

  • Outer: impact-resistant, flexible hard shell with zip

Delivery Scope

  • 1 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)

  • 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)

  • 1 x testo Smart Case “VAC”, including foam insert (0516 0260)

Temperature - NTC

Measuring range

-20 to +60 °C

Accuracy

±0.8 °C (-20 to 0 °C)

±0.5 °C (0 to +60 °C)

Resolution

0.1 °C



Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±3.0 %RH (10 to 35 %RH) (at +25°C)

±2.0 %RH (35 to 65 %RH) (at +25°C)

±3.0 %RH (65 to 90 %RH) (at +25°C)

±5 %RH (< 10 or > 90 %RH)

Resolution

0.1 %RH



General technical data

Weight

86.4 g

Dimensions

243 x 30 x 24 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

150 h

Length probe shaft

100 mm

Data transfer

Bluetooth®

Radio range

100

Storage temperature

-20 to +60 °C




Temperature - Infrared

Measuring range

-30 to +250 °C

Accuracy

±1.5 °C or ±1.5 % of mv (0 to +250 °C)

±2 °C (-20 to -0.1 °C)

±2.5 °C (-30 to -20.1 °C)

Resolution

0.1 °C



General technical data

Dimensions

140 x 36 x 25 mm

Operating temperature

-10 to +50 °C

Product-/housing material

ABS / TPE

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

30 h

Storage temperature

-20 to +60 °C

Weight

97 g




General technical data

Dimensions

270 x 190 x 60 mm

Product colour

Black

Weight

286 g

testo HVAC softcase storage case

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

Order Number: 0516 0283


Smart Case VAC Set

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Order Number: 0516 0260


Calibration certificate

ISO humidity calibration certificate; with 2 measuring points: 11.3 and 75.3 %RH at +25°C

Order Number: 0520 0006


Calibration certificate

ISO calibration certificate for humidity; calibration at 1 measuring point: 75.3 %RH at +25 °C

Order Number: 0520 0096


Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002


Calibration certificate

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range; accuracy > 0.6 % of f.v.

Order Number: 0520 0005
