testo Smart Probes VAC kit

Order-Nr. 0563 0003 10

Measurement of air and surface temperature, humidity, air velocity and volume flow
Measurement menus for volume flow measurement in ducts and at outlets, identification of mould risk, easy image documentation including IR temperature reading and measurement spot marking
Display measurement data as a graph or table and analyze and send via testo Smart Probes App

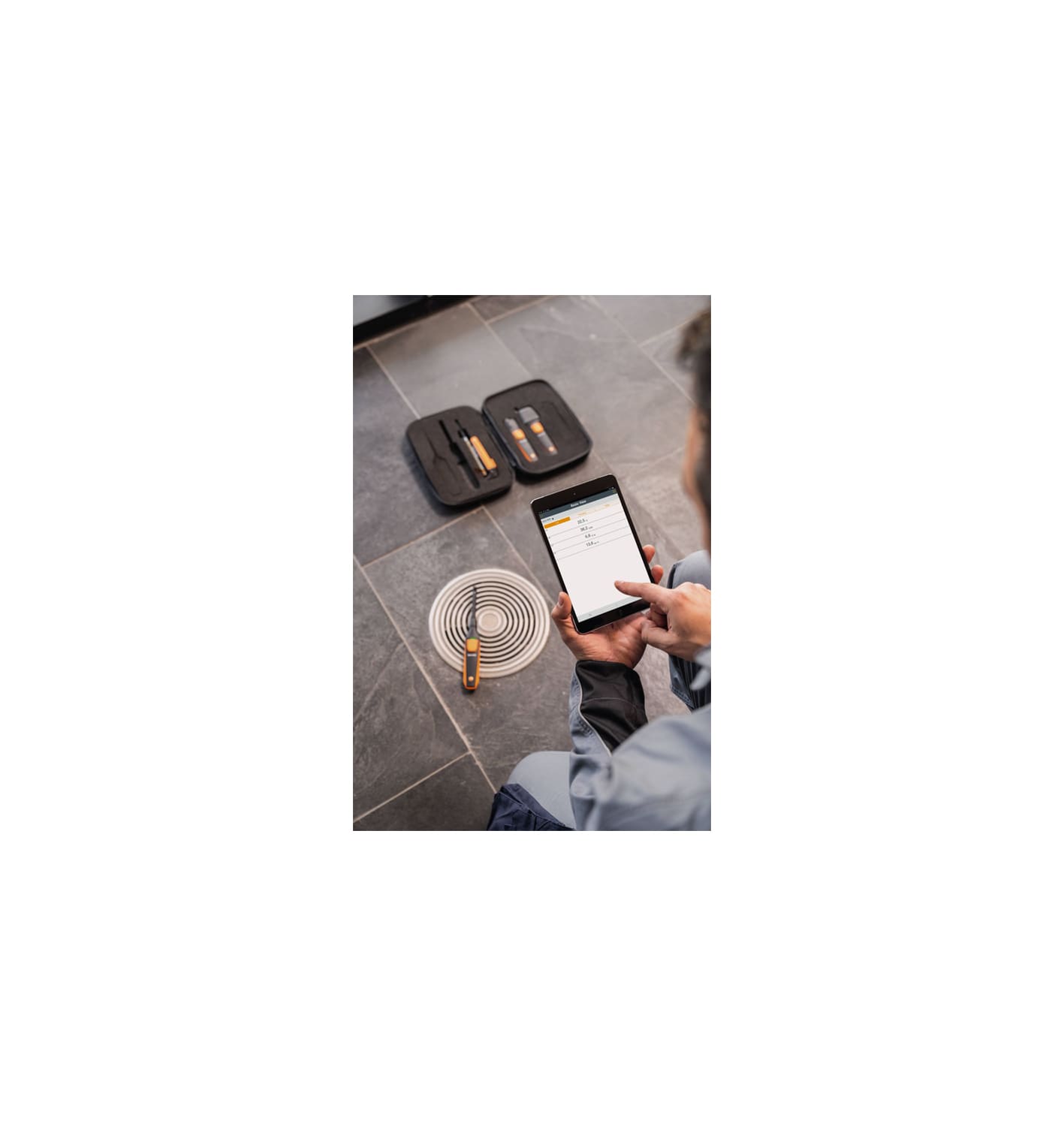

In conjunction with your smartphone/tablet, carry out the most important measurements involved in air conditioning systems

Thông tin sản phẩm

Chi tiết sản phẩm
Thông số kỹ thuật
Phụ kiện
Download

Product Description

For air-conditioning engineers: Compact kit containing four measuring instruments for your most important measuring tasks in, on and involving air conditioning systems. The testo Smart Probes App enables you to work more easily and efficiently: Use intuitive measurement menus for volume flow measurement, for automatic calculation of the dew point and wet bulb temperature or for detecting areas susceptible to mould according to the traffic light principle. Measurement data reports can be emailed directly as a PDF or Excel file.

testo 405 i - thermal anemometer with smartphone operation

Order-Nr. 0560 1405

for measuring volume flow, air velocity and temperature
Simple configuration of the dimension and geometry of the duct cross-section for determining the volume flow

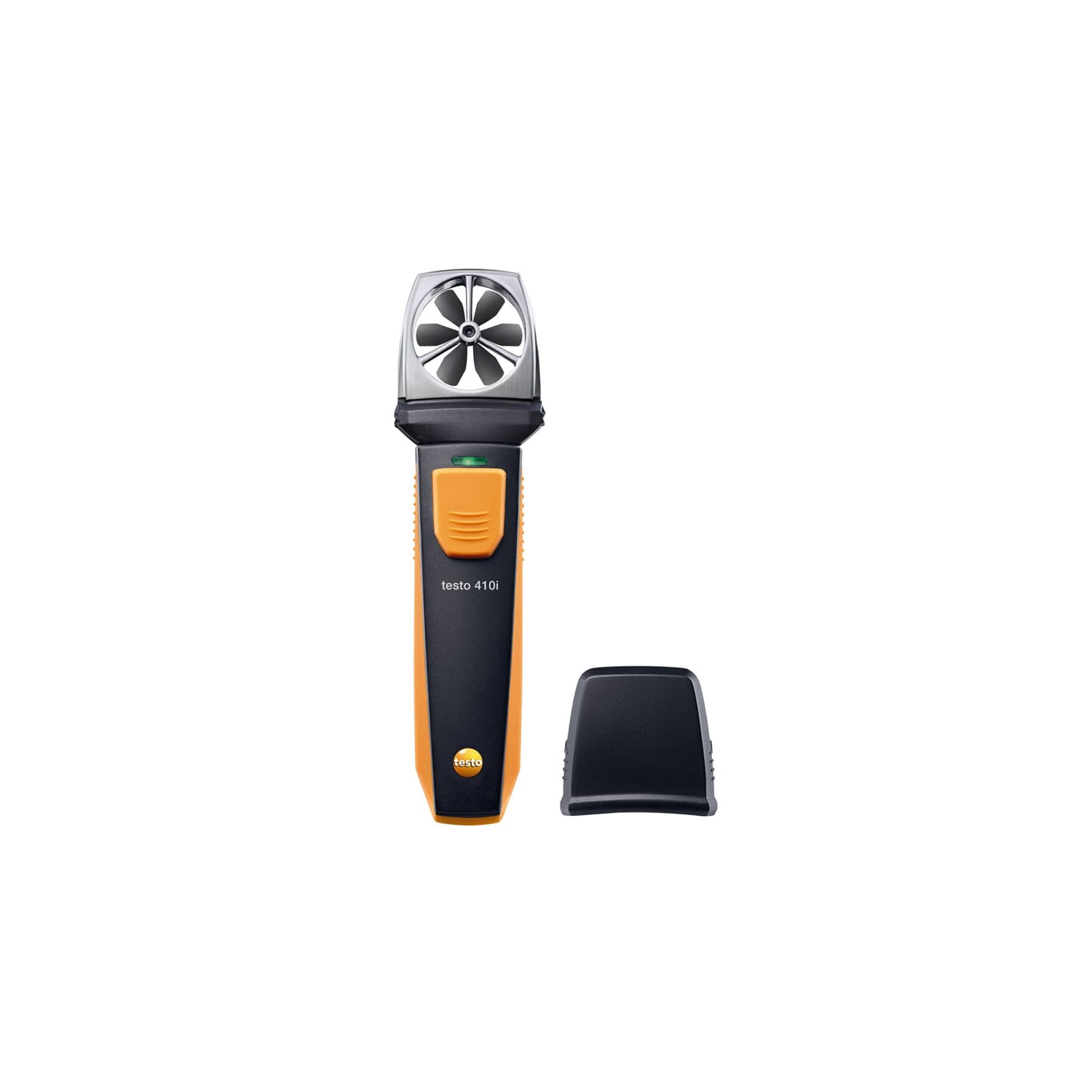

testo 410 i - vane anemometer with smartphone operation

Order-Nr. 0560 1410

Measurement of air velocity, volume flow and temperature
Display of the volume flow of multiple outlets in order to adjust systems

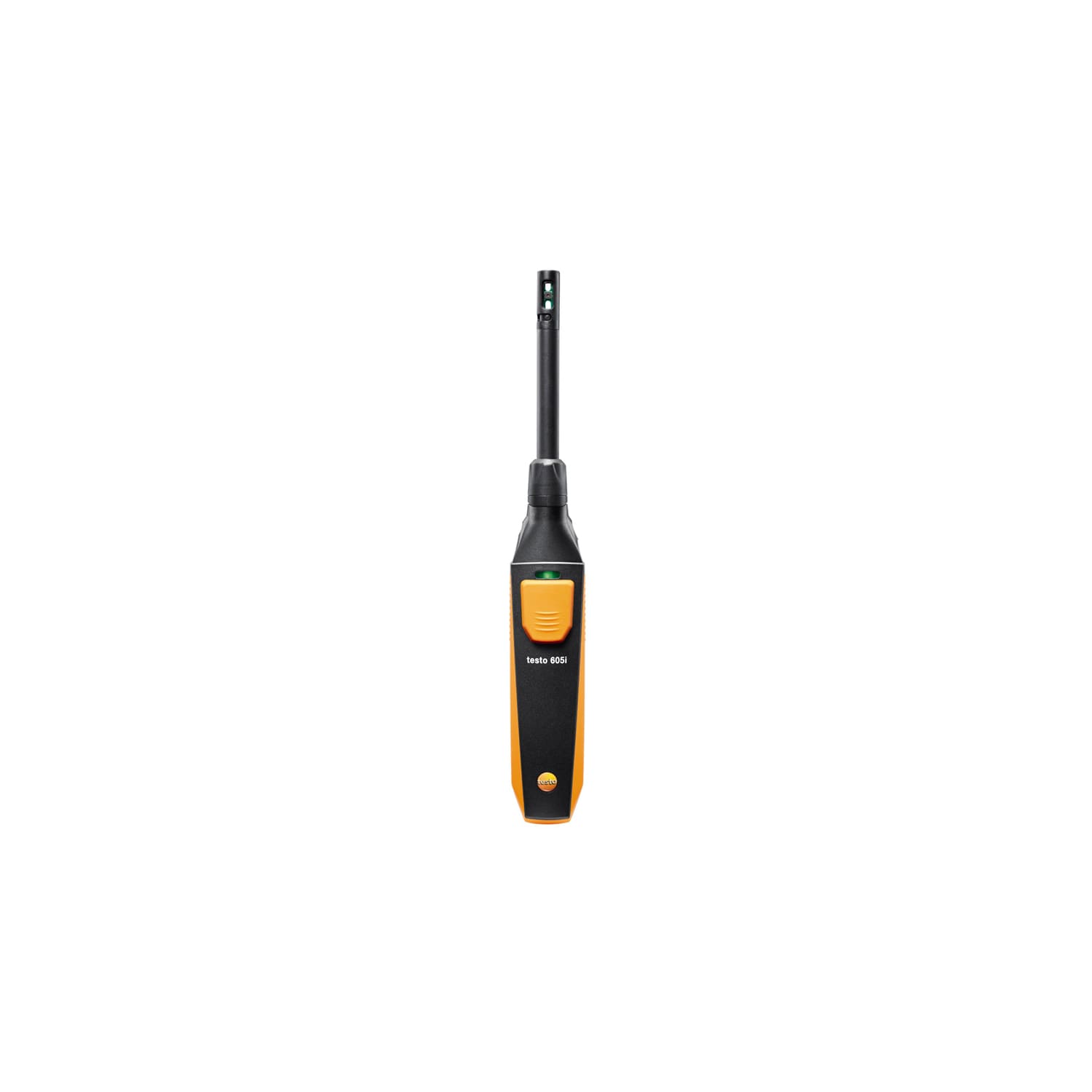

testo 605i - Thermohygrometer operated via smartphone

Order-Nr. 0560 2605 02

Measurement of air humidity and temperature in rooms and ducts
Automatic calculation of the dew point and wet bulb temperature via testo Smart Probes App

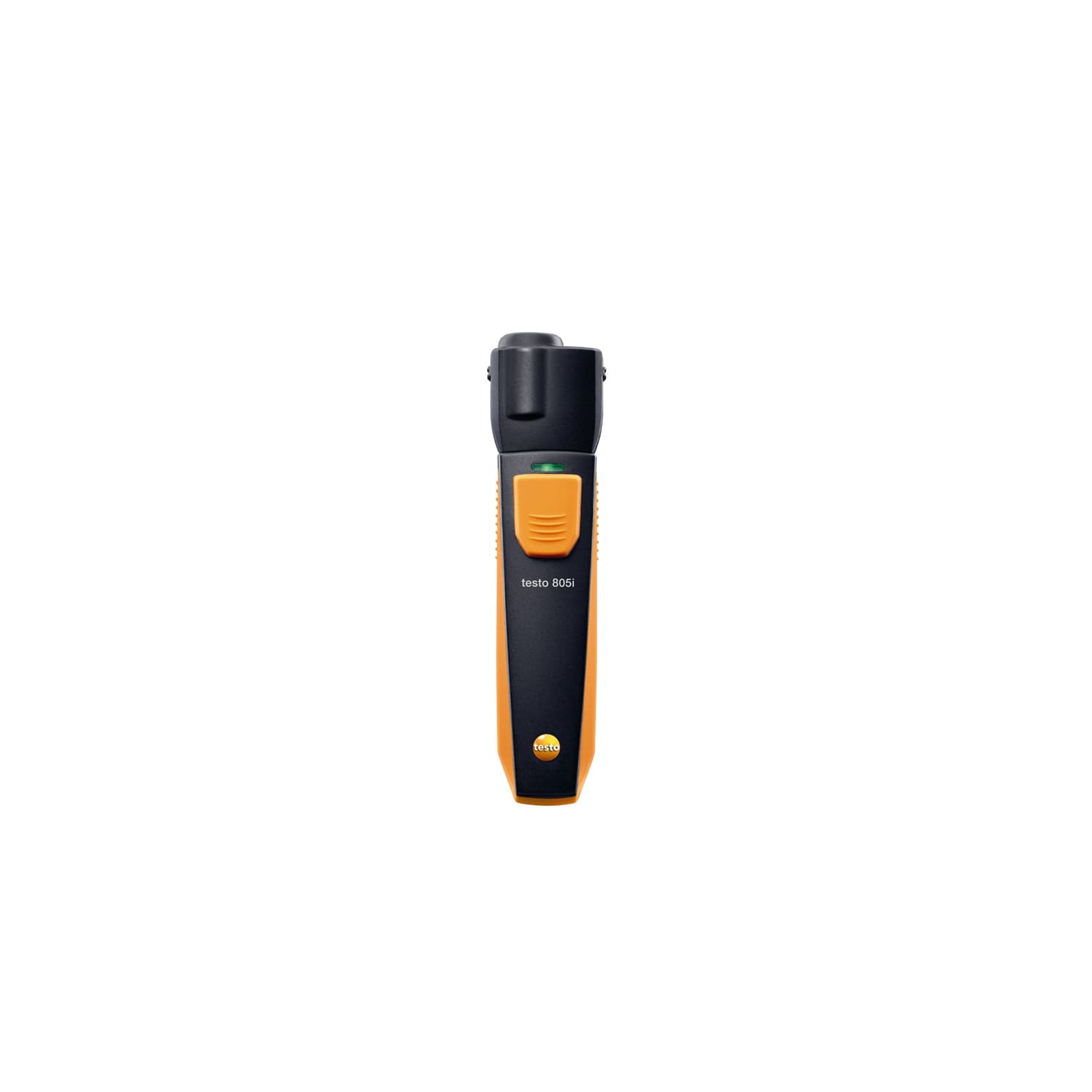

testo 805 i - infrared thermometer with smartphone operation

Order-Nr. 0560 1805

Non-contact infrared measurement of surface temperature
Easy selection of emission level via stored materials list

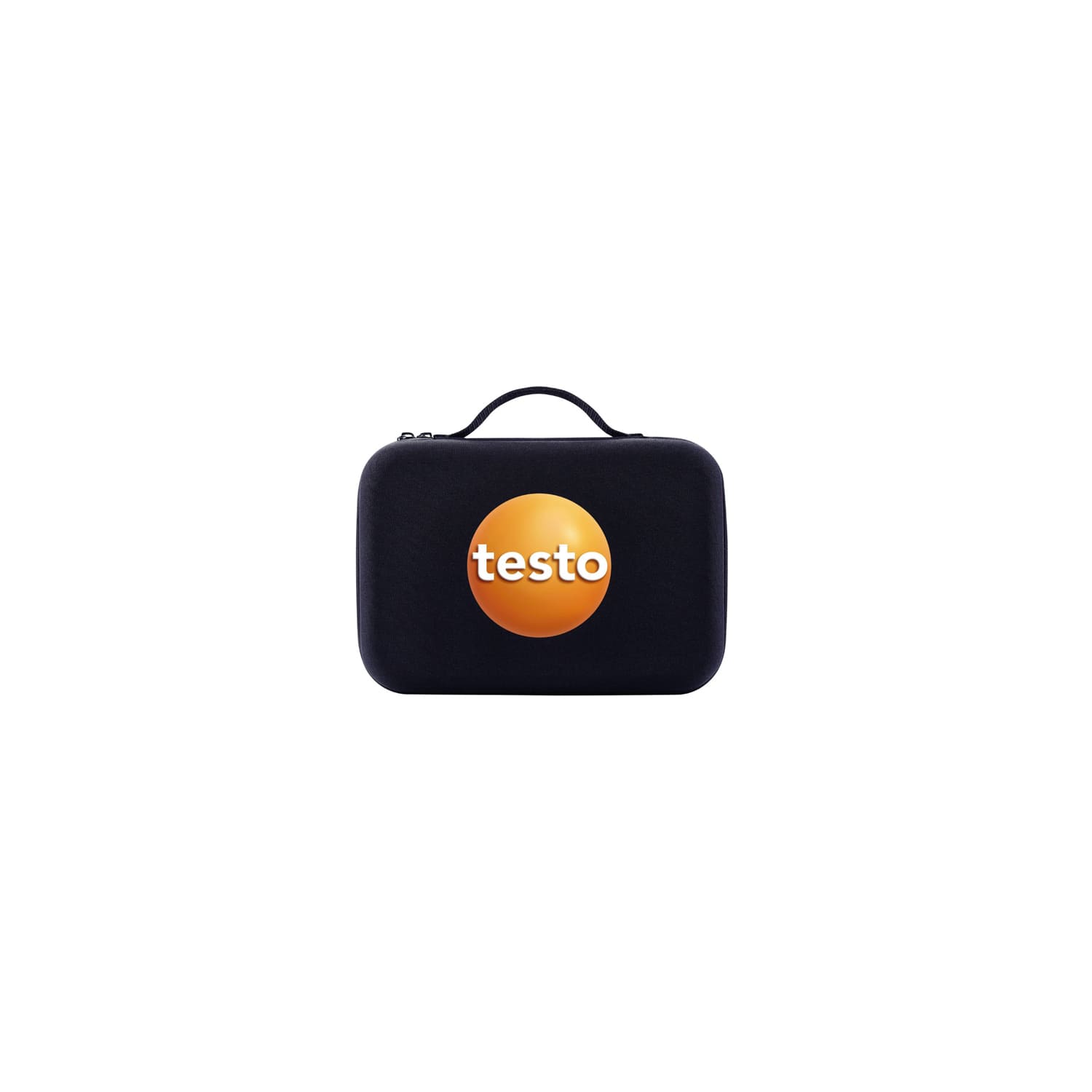

testo Smart Case (Climate) - storage case for Smart Probes measuring instruments

Order-Nr. 0516 0260

Practical storage case for Smart Probes testo 805i, testo 410i, testo 510i, testo 405i, testo 605i and testo 905i (available separately)
Outer: impact-resistant, flexible hard shell with zip

Delivery Scope

1 x testo 405i thermal anemometer operated via smartphone, including extendable (400 mm) telescope, batteries and calibration protocol (0560 1405)
1 x testo 410i vane anemometer operated via smartphone, including protective cap, batteries and calibration protocol (0560 1410)
1 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
1 x testo Smart Case “VAC”, including foam insert (0516 0260)

testo 405 i - thermal anemometer with smartphone operation

Order-Nr. 0560 1405

Temperature - NTC
Measuring range	-20 to +60 °C
Accuracy	±0.5 °C
Resolution	0.1 °C

Velocity - Hot wire
Measuring range	0 to 30 m/s
Accuracy	±(0.1 m/s + 5 % of mv) (0 to 2 m/s) ±(0.3 m/s + 5 % of mv) (2 to 15 m/s)
Resolution	0.01 m/s

Velocity - Hot wire

Measuring range

0 to 30 m/s

Accuracy

±(0.1 m/s + 5 % of mv) (0 to 2 m/s)

±(0.3 m/s + 5 % of mv) (2 to 15 m/s)

Resolution

0.01 m/s

General technical data
Weight	119.6 g
Dimensions	200 x 30 x 41 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	15 h
Length probe shaft	400 mm
Storage temperature	-20 to +60 °C

testo 410 i - vane anemometer with smartphone operation

Order-Nr. 0560 1410

Temperature - NTC
Measuring range	-20 to +60 °C
Accuracy	±0.5 °C
Resolution	0.1 °C

Velocity - Vane
Measuring range	0.4 to 30 m/s
Accuracy	±(0.2 m/s + 2 % of mv) (0.4 to 20 m/s)
Resolution	0.1 m/s

General technical data
Weight	117.8 g
Dimensions	154 x 43 x 21 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	130 h
Diameter vane	30 mm
Storage temperature	-20 to +60 °C

testo 605i - Thermohygrometer operated via smartphone

Order-Nr. 0560 2605 02

Temperature - NTC

Measuring range

-20 to +60 °C

Accuracy

±0.8 °C (-20 to 0 °C)

±0.5 °C (0 to +60 °C)

Resolution

0.1 °C

Humidity - Capacitive
Measuring range	0 to 100 %RH
Accuracy	±3.0 %RH (10 to 35 %RH) (at +25°C) ±2.0 %RH (35 to 65 %RH) (at +25°C) ±3.0 %RH (65 to 90 %RH) (at +25°C) ±5 %RH (< 10 or > 90 %RH)
Resolution	0.1 %RH

Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±3.0 %RH (10 to 35 %RH) (at +25°C)

±2.0 %RH (35 to 65 %RH) (at +25°C)

±3.0 %RH (65 to 90 %RH) (at +25°C)

±5 %RH (< 10 or > 90 %RH)

Resolution

0.1 %RH

General technical data
Weight	86.4 g
Dimensions	243 x 30 x 24 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Length probe shaft	100 mm
Data transfer	Bluetooth®
Radio range	100
Storage temperature	-20 to +60 °C

testo 805 i - infrared thermometer with smartphone operation

Order-Nr. 0560 1805

Temperature - Infrared
Measuring range	-30 to +250 °C
Accuracy	±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C)
Resolution	0.1 °C

Temperature - Infrared

Measuring range

-30 to +250 °C

Accuracy

±1.5 °C or ±1.5 % of mv (0 to +250 °C)

±2 °C (-20 to -0.1 °C)

±2.5 °C (-30 to -20.1 °C)

Resolution

0.1 °C

General technical data
Dimensions	140 x 36 x 25 mm
Operating temperature	-10 to +50 °C
Product-/housing material	ABS / TPE
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	30 h
Storage temperature	-20 to +60 °C
Weight	97 g

testo Smart Case (Climate) - storage case for Smart Probes measuring instruments

Order-Nr. 0516 0260

General technical data
Dimensions	270 x 190 x 60 mm
Product colour	Black
Weight	286 g

Smart Case VAC Set

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Order Number: 0516 0260

testo HVAC softcase storage case

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

Order Number: 0516 0283

Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 1 / 2 / 5 / 10 m/s

Order Number: 0520 0004

Calibration certificate

ISO calibration certificate for flow; calibration at selectable measuring points between 0.5 and 27 m/s

Order Number: 0520 0104

Calibration certificate

DAkkS calibration certificate for flow; calibration at selectable measuring points between 0.1 and 68 m/s

Order Number: 0520 0214

Calibration certificate

ISO calibration certificate for pressure; calibration at 3 measuring points, distributed over the measuring range of the measuring instrument/probe – accuracy 0.1 to 0.6 % of f.v.

Order Number: 0520 0085

Calibration certificate

ISO humidity calibration certificate; with 2 measuring points: 11.3 and 75.3 %RH at +25°C

Order Number: 0520 0006

Calibration certificate

ISO calibration certificate for humidity; calibration at 1 measuring point: 75.3 %RH at +25 °C

Order Number: 0520 0096

Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002

Calibration certificate

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range; accuracy > 0.6 % of f.v.

Order Number: 0520 0005
