Product Description

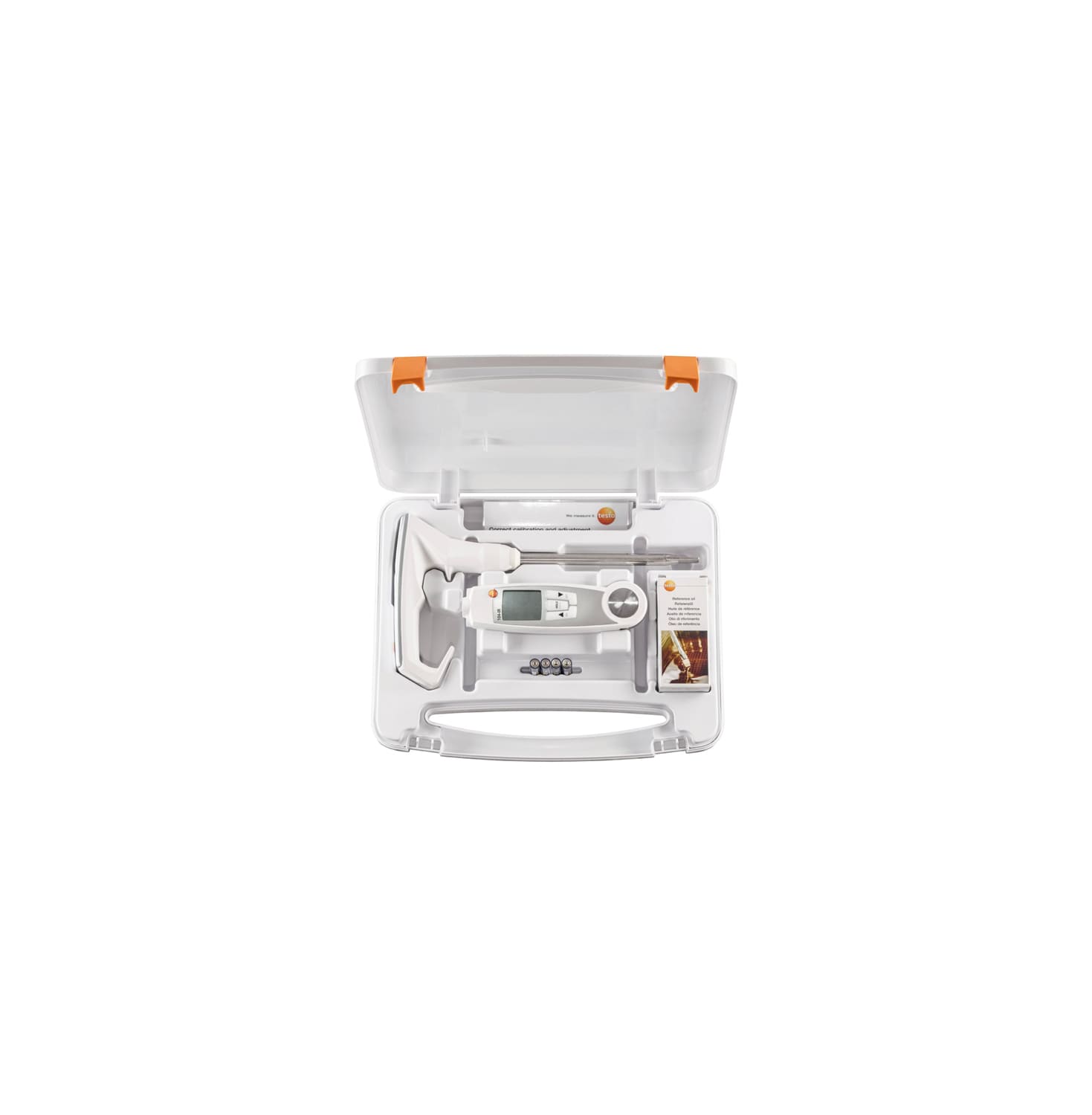

With this kit, you are excellently equipped to monitor cooking oil quality and temperature limit values. Thanks to their reliable measurement technology, the cooking oil tester testo 270 and the penetration/infrared thermometer testo 104-IR are competent partners for food inspection measurements.

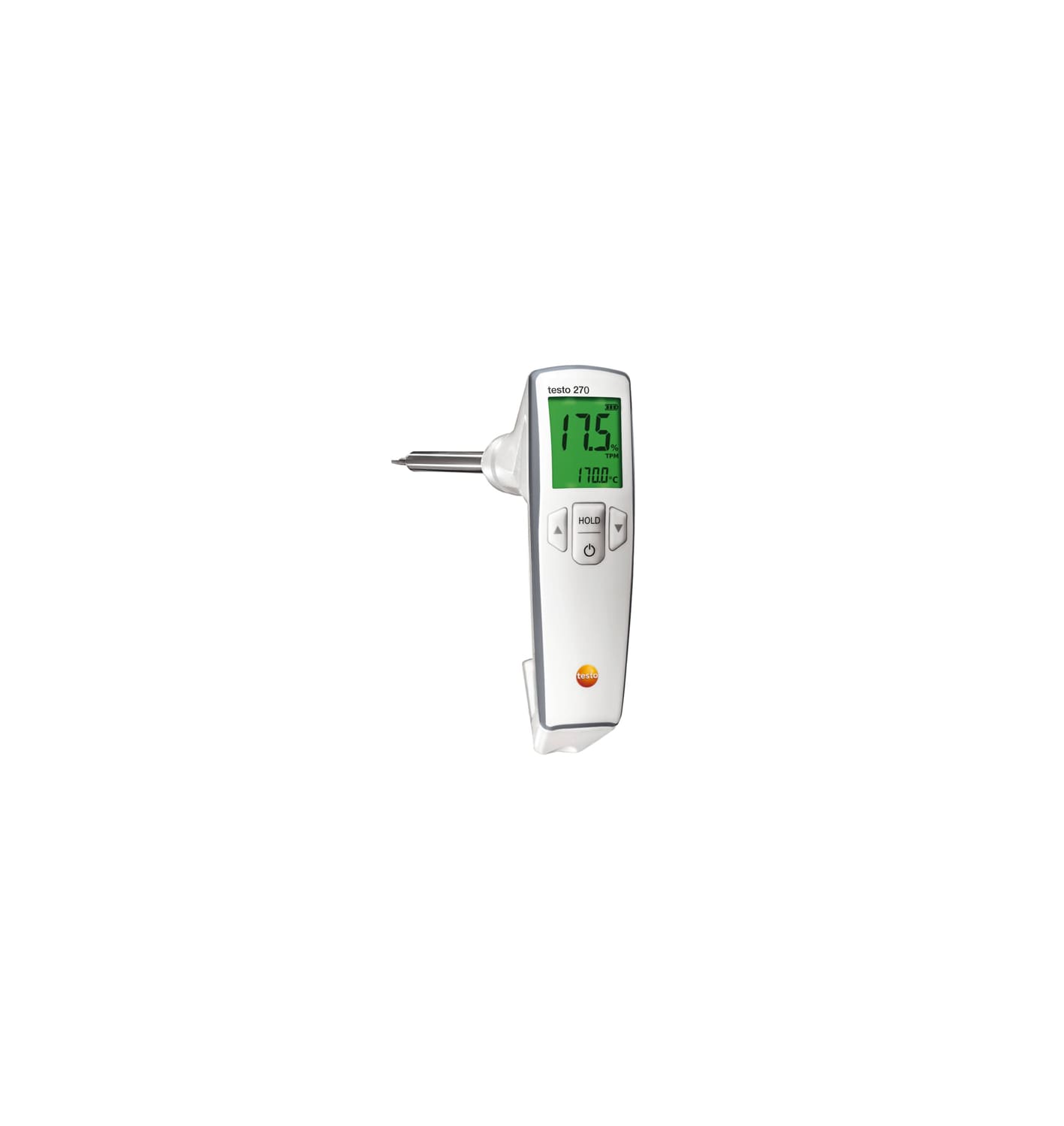

testo 270 - Cooking oil tester

Order-Nr. 0563 2750

Capacitive oil sensor from Testo, together with its needs-based design, make it possible to take measurements in hot oil (user is protected from the heat of the deep fat fryer)
IP 65: protected against water jets without a protective cover

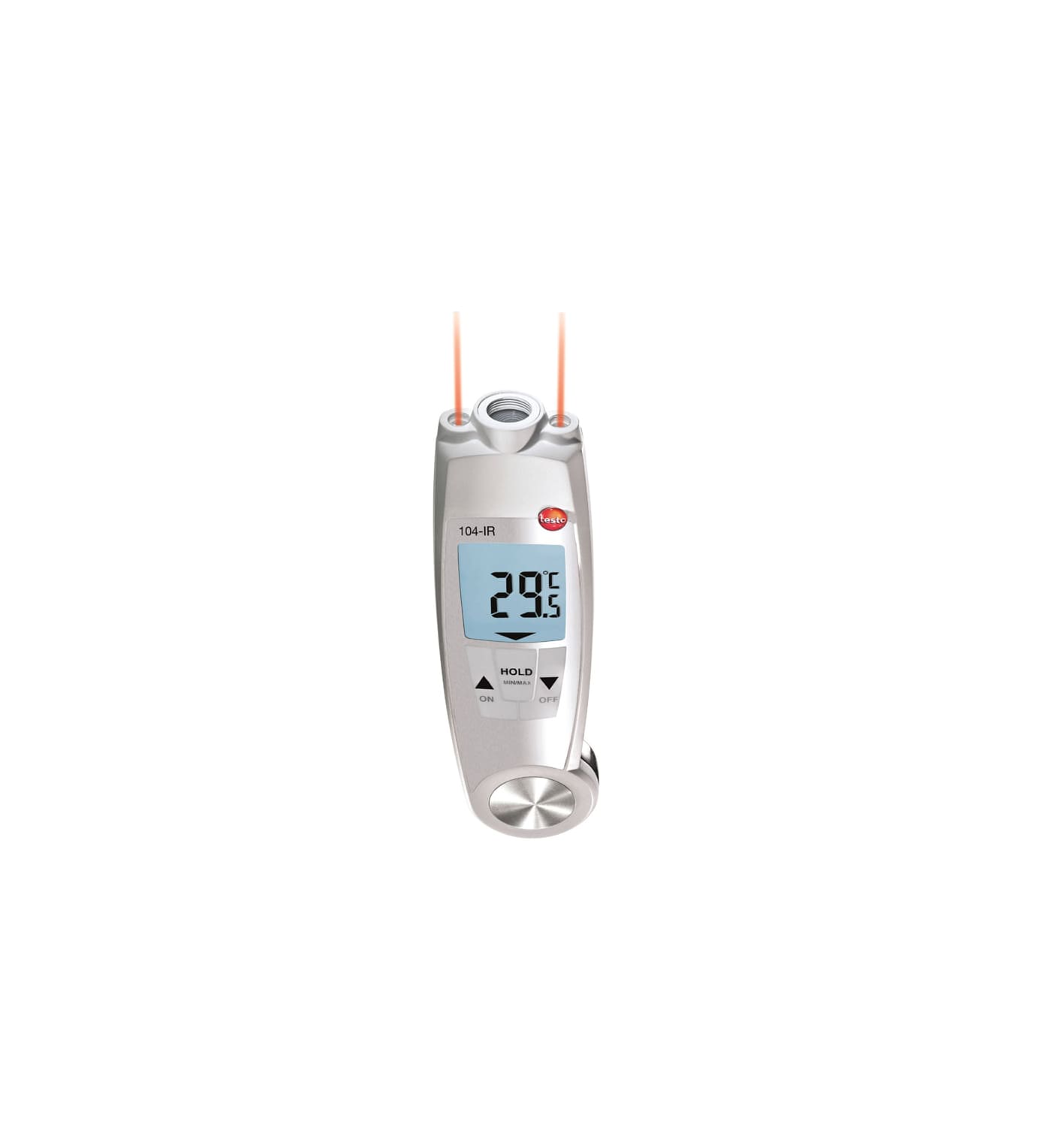

testo 104-IR - Food safety thermometer

Order-Nr. 0560 1040

For carrying out surface and core temperature measurements

Transport case food small

Order-Nr. 0516 7302

Robust plastic case
Provides space for measuring instruments and accessories

Delivery Scope

1 x testo 270 cooking oil tester incl. batteries, reference oil for cooking oil testers, testo 270 training card, calibration protocol and instruction manual
1 x testo 104-IR waterproof penetration/infrared thermometer incl. batteries, testo 104-IR training card and calibration protocol
1 x Transport case food small (0516 7302)

testo 270 - Cooking oil tester

Order-Nr. 0563 2750

Temperature - PTC
Measuring range	+40 to +200 °C
Accuracy	±1.5 °C
Resolution	0.1 °C

TPM - Capacitive
Measuring range	0.0 to 40.0 % TPM
Accuracy	±2 % TPM (+40 to +190 °C) *typically, based on Testo in-house reference, at an ambient temperature of 25 °C
Resolution	0.5 % TPM (+40 to +190 °C)

TPM - Capacitive

Measuring range

0.0 to 40.0 % TPM

Accuracy

±2 % TPM (+40 to +190 °C)

*typically, based on Testo in-house reference, at an ambient temperature of 25 °C

Resolution

0.5 % TPM (+40 to +190 °C)

General technical data
Operating humidity	0 to +90 %RH
Weight	255 g
Reaction time	Approx. 30 s
Dimensions	170 x 50 x 300 ((LxWxH))
Operating temperature	0 to +50 °C
Product-/housing material	TPE/PC + ABS/PC + ABS + 10% GF
Protection class	IP65
Product colour	white
Authorizations	CE 2014/30/EU
Length probe shaft	175 mm
Length probe shaft tip	35 mm
Diameter probe shaft	11 mm
Diameter probe shaft tip	10 mm
Alarm features	Upper and lower TPM limit value freely adjustable, visual alarm via 3-colour display backlighting (green, orange, red), values and illumination flash in the display until the measurement is ended (Auto Hold)
Battery type	2 batteries type micro AAA 1.5 V (LR03)
Battery life	at 20 °C approx. 25 h continuous operation (corresponds to approx. 500 measurements ), without display lighting
Display type	LCD (Liquid Crystal Display)
Display size	2 lines
Display ligthing	backlite
Storage temperature	-20 to +70 °C
Application temperature	+40 to +200 °C

testo 104-IR - Food safety thermometer

Order-Nr. 0560 1040

Temperature - NTC
Measuring range	-50 to +250 °C
Accuracy	±1 °C (-50.0 to -30.1 °C) ±0.5 °C (-30.0 to +99.9 °C) ±1 % of mv (Remaining Range)
Resolution	0.1 °C
Reaction time	t₉₉ = 10 s (measured in moving liquid)

Temperature - Infrared
Measuring range	-30 to +250 °C
Accuracy	±2.5 °C (-30 to -20.1 °C) ±2.0 °C (-20 to -0.1 °C) ±1.5 °C or ±1.5 % of mv (Remaining Range)
Measuring rate	0.5 s
Infrared resolution	0.1 °C

General technical data
Weight	198 g (incl. batteries)
Dimensions	281 x 48 x 23 mm (Probe folded out) 178 x 48 x 23 mm (probe folded away)
Operating temperature	-20 to +50 °C
Protection class	IP65
Length probe shaft	106 mm
Product-/housing material	ABS / TPE / PC, diecast zinc, stainless steel
Diameter probe shaft tip	2.5 mm
Diameter probe shaft	3 mm
Length probe shaft tip	32 mm
Product colour	white
Laser spot	on / off
Measurement value	Temperature °C / °F / °R
Measurement mode	Hold or auto hold (immersion probe)
Dimensions (probe folded out)	281 x 48 x 23 mm
Dimensions (probe not folded out)	178 x 48 x 23 mm
Standards	EN 13485
Battery type	2 AAA micro batteries
Battery life	10 h at 25°C typical
Display type	LCD (Liquid Crystal Display)
Display size	one-line
Display function	with status line (°C,°F,°R, battery, hold/auto hold, min, max, laser, measurement, emissivity)
Display ligthing	illuminated
Storage temperature	-30 to +70 °C

Transport case food small

Order-Nr. 0516 7302

General technical data
Dimensions	340 x 60 x 270 mm ((LxWxH))
Product-/housing material	Plastic
Product colour	white

Reference oil

Reference oil for calibrating and adjusting the cooking oil tester testo 270 (1 x 100 ml)

Order Number: 0554 2650

Case

Case for storing the cooking oil tester (330 x 260 x 65 mm)

Order Number: 0516 7301

Transport case food small

Transport case food small (340 x 60 x 270 mm)

Order Number: 0516 7302

Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C

Order Number: 0520 0001

Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002

Calibration certificate

ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0071

Calibration certificate

ISO calibration certificate for cooking oil tester: calibration at 2 measuring points, 4 and 24% TPM, at +50°C

Order Number: 0520 0028

Calibration certificate

ISO calibration certificate/temperature

Order Number: 0520 0043

Calibration certificate

ISO calibration certificate for temperature for air/immersion probes; with 1 measuring point: -18 °C

Order Number: 0520 0061

Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 1 measuring point: 0 °C

Order Number: 0520 0062

Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 1 measuring point: +60 °C

Order Number: 0520 0063

Calibration certificate

ISO temperature calibration certificate for surface probes; with 1 measuring point: +120 °C

Order Number: 0520 0073

Calibration certificate

ISO temperature calibration certificate for surface probes; with 1 measuring point: +60 °C

Order Number: 0520 0072

Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -8 / 0 / +40 °C

Order Number: 0520 0181

Calibration certificate

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0211

Calibration certificate

ISO calibration certificate for temperature for infrared measuring instruments/probes; calibration at 3 measuring points: -18 / 0 /+ 60 °C

Order Number: 0520 0401

Calibration certificate

ISO calibration certificate temperature

Order Number: 0520 0452
