testo 160 TH - WiFi data logger with integrated temperature and humidity sensor

Order-Nr. 0572 2021
  • Data logger with integrated temperature and humidity sensor, small dimensions and discreet design

  • Blends in perfectly with the surroundings thanks to an optional, customisable deco-cover

  • Perfectly networked: data storage in the Testo Cloud, real-time alarm via email or SMS (optional in conjunction with an Advanced licence)

  • Simple to install, integrate and operate

Protect your sensitive and valuable exhibits and archived material with WiFi data logger testo 160 TH with integrated temperature and humidity sensor. Air logger testo 160 TH ensures comprehensive monitoring of the ambient conditions in museums, storage depots and archives at all times.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

The testo 160 TH belongs to the testo 160 data logger range, which was developed especially for the particular requirements in museums. Thanks to versatile options for combinations of integrated sensors and probes, any monitoring situation, from exhibitions to storage, is covered.

Operation and programming of the data logger is simple and carried out directly via the Testo Cloud.

Monitoring temperature and humidity with WiFi data logger testo 160 TH

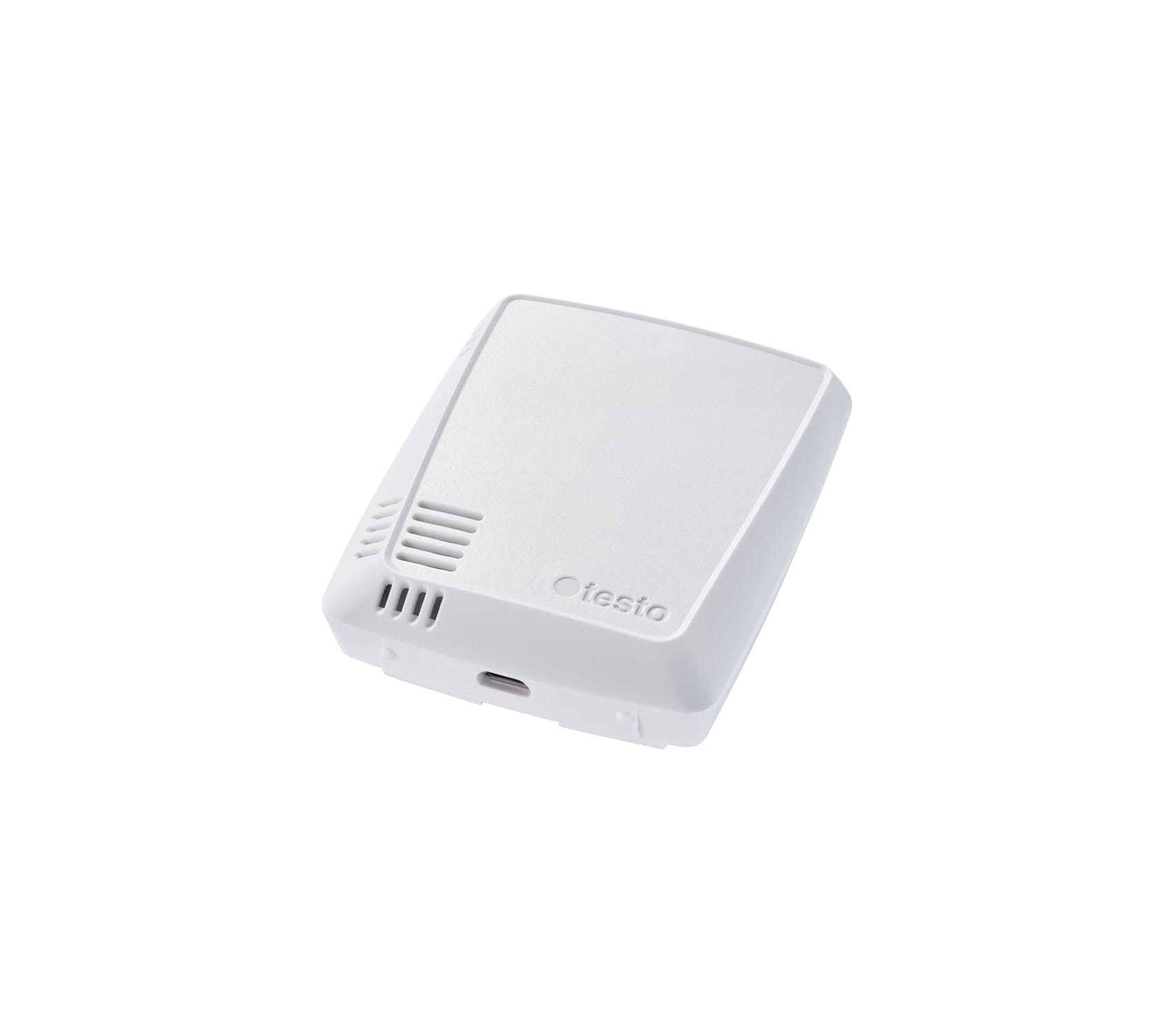

WiFi data logger testo 160 TH is an easy-to-use air logger for monitoring temperature and humidity with an integrated temperature and humidity sensor.

Measurement data is stored by the data logger via your WLAN directly to the Testo Cloud. If limit values are exceeded, you will be notified immediately by email or (optionally) SMS thanks to the alarm function. You can access all measuring values and analysis functions at any time and from anywhere with an internet-capable smartphone, tablet or PC.

The WiFi data logger testo 160 TH – adaptable and discreet

The small dimensions of the testo 160 TH (64 x 76 x 22 mm) and its simple design enable it to be positioned easily in an exhibition or display cabinet. In conjunction with the optionally available customisable deco-cover (see accessories), the data logger can be adapted to blend in with the surroundings and therefore remains inconspicuous. This means your exhibits will always be the focus.

Perfectly networked: with WiFi data logger testo 160 TH and the Testo Cloud

The Testo Cloud is the core operating element of the testo 160 data logger range. You can use the testo 160 TH to store your measurement data in the Testo Cloud via an available WLAN. Here you can configure your WiFi data loggers, set limit value alarms and analyze your measurement data. You must first register at www.museum.saveris.net to have access to the Testo Cloud.

Installing the system is simple and can be carried out via a browser.

Depending on the desired range of functions, you have a choice between the free Basic and more extensive Advanced functionality for use of the Testo Cloud. You can use the Advanced functionality, for example, to create up to 10 users per account or set an SMS alarm if limit values are exceeded.

Areas of application for the WiFi data logger testo 160 TH: museums, archives and storage depots

Measure the temperature and humidity in the display cabinet, exhibition room or storage depot constantly and reliably. The professional WiFi data logger testo 160 TH is optimised for applications relating to the monitoring of ambient conditions in museums, galleries or other exhibition venues. It can be used to reliably protect your sensitive and valuable exhibits against damage.

Further advantages of the WiFi data logger testo 160 TH

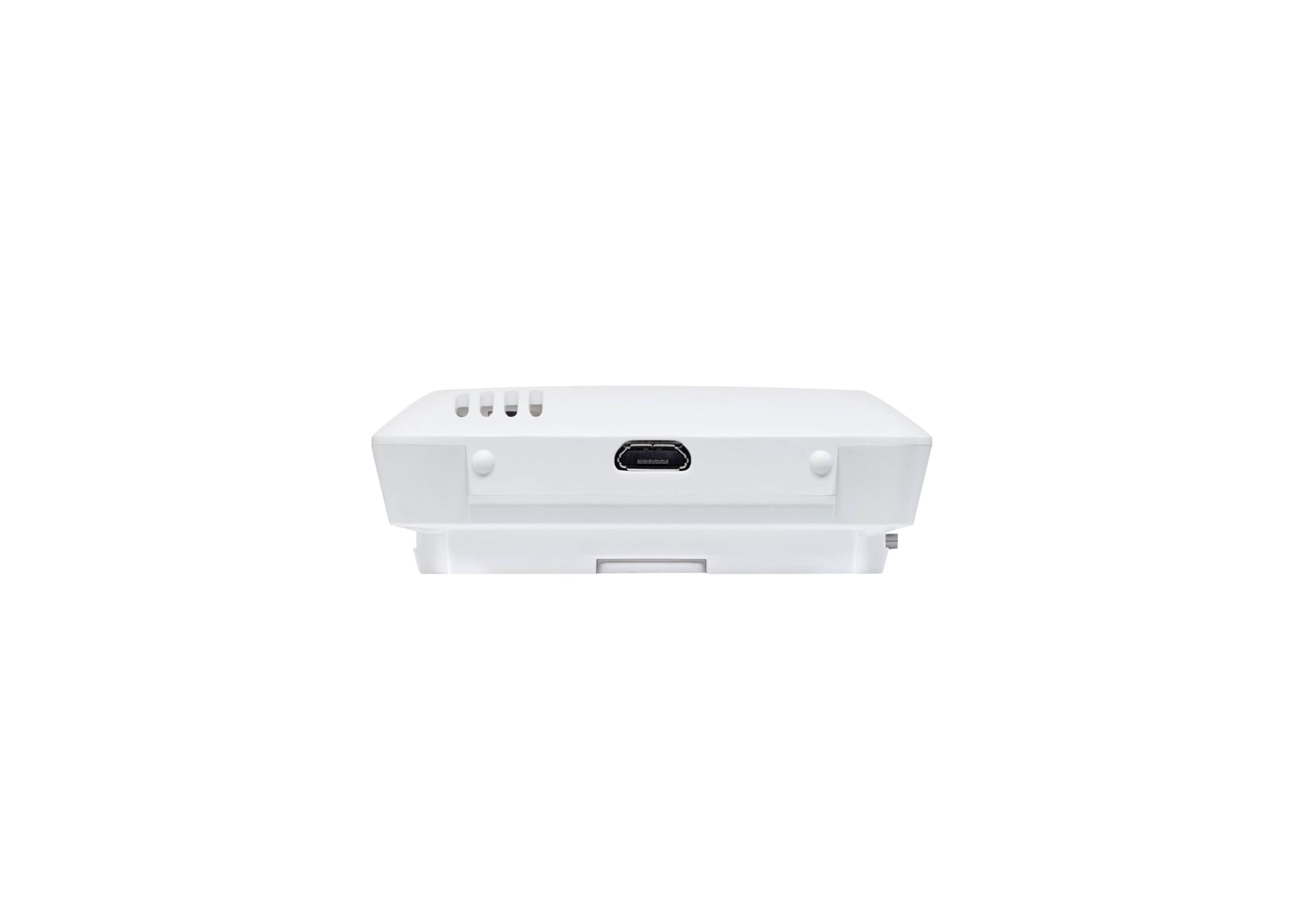

The internal data store capacity of the WiFi data logger is 40,000 measuring values, and the housing is protected according to IP20. The standard batteries have a lifetime of 12 months and can be replaced at any time by users. Alternatively, the data logger can also be operated without batteries using a mains unit (please order separately) via the USB interface provided.

Delivery Scope

  • WiFi data logger testo 160 TH

  • Including free Cloud access (Basic functionality)

  • Batteries (4 x AAA)

  • USB interface cable

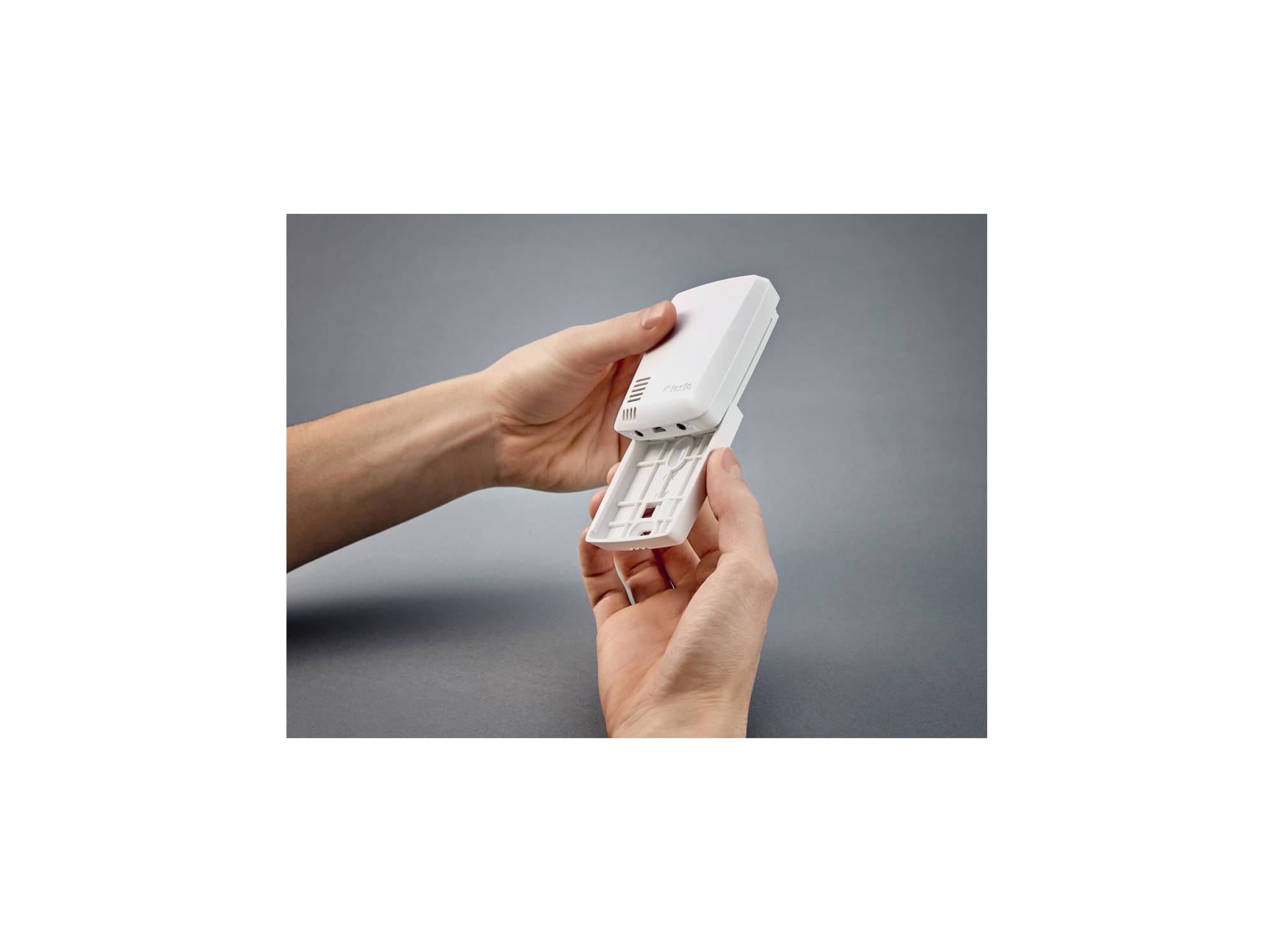

  • Wall bracket, including unlocking tool and adhesive strip

  • QR code sticker

  • Calibration protocol

  • Short instructions

Humidity - Capacitive

Measuring range

0 to 100 %RH (non-condensing)

Accuracy

±2.0 %RH at +25.0 and 20 to 80 %RH

±3.0 %RH at +25.0 and < 20 and > 80 %RH

±1.0 %RH hysteresis

±1.0 %RH / year drift

Resolution

0.1 %RH



Temperature

Measuring range

-10 to +50 °C

Accuracy

±0.5 °C

Resolution

0.1 °C



General technical data

Weight

94 g

Dimensions

76 x 64 x 22 mm

Operating temperature

-10 to +50 °C

Protection class

IP20

Measuring rate

Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

Communication rate

Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

WLAN Connectivity

supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP

Battery life

1.5 years

Power supply

4 x AAA batteries 1.5 V, alternatively mains unit via USB connection

Memory

32,000 Measuring values / Sum of all channels

Storage temperature

-20 to +50 °C

Accessories


Deco-cover

Deco-cover

Order Number: 0554 2006


0515-0009

Micro alkali-manganese battery (AAA) - 1 off

Order Number: 0515 0009


Mains unit testo Saveris 2

Mains unit for wireless LAN data logger

Order Number: 0572 2020


Wall bracket

Wall bracket

Order Number: 0554 2013


Certificates for humidity


Calibration certificate

ISO calibration certificate humidity

Order Number: 0520 0076


Certificates for temperature


Calibration certificate

ISO temperature calibration certificate for surface probes; with 3 measuring points: -8 / 0 / +40 °C

Order Number: 0520 0171


Instruments / options


testo Saveris 2

testo Saveris 2 Advanced Cloud licence for 12 months with SMS alarm (25 SMS per data logger)

Order Number: 0526 0735


testo Saveris 2

testo Saveris 2 Advanced Cloud licence for 24 months with SMS alarm (50 SMS per data logger)

Order Number: 0526 0732


testo Saveris 2

testo Saveris 2 Advanced Cloud licence for 36 months with SMS alarm (75 SMS per data logger)

Order Number: 0526 0733
