testo 175 T1 - Temperature data logger

Order-Nr. 0572 1751
  • Ideal for long-term measurements. Can save up to 1 000 000 readings. Battery life up to 3 years

  • Wall mount

  • HACCP and EN 12830 compliant, IP 65 protected

  • Data analysis on PC: three software options to choose from; Basic software as free download

The testo 175 T1 temperature data logger is ideal for monitoring storage temperatures and long-term monitoring. It is certified for use in food environments and measures and logs temperatures constantly and reliably.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

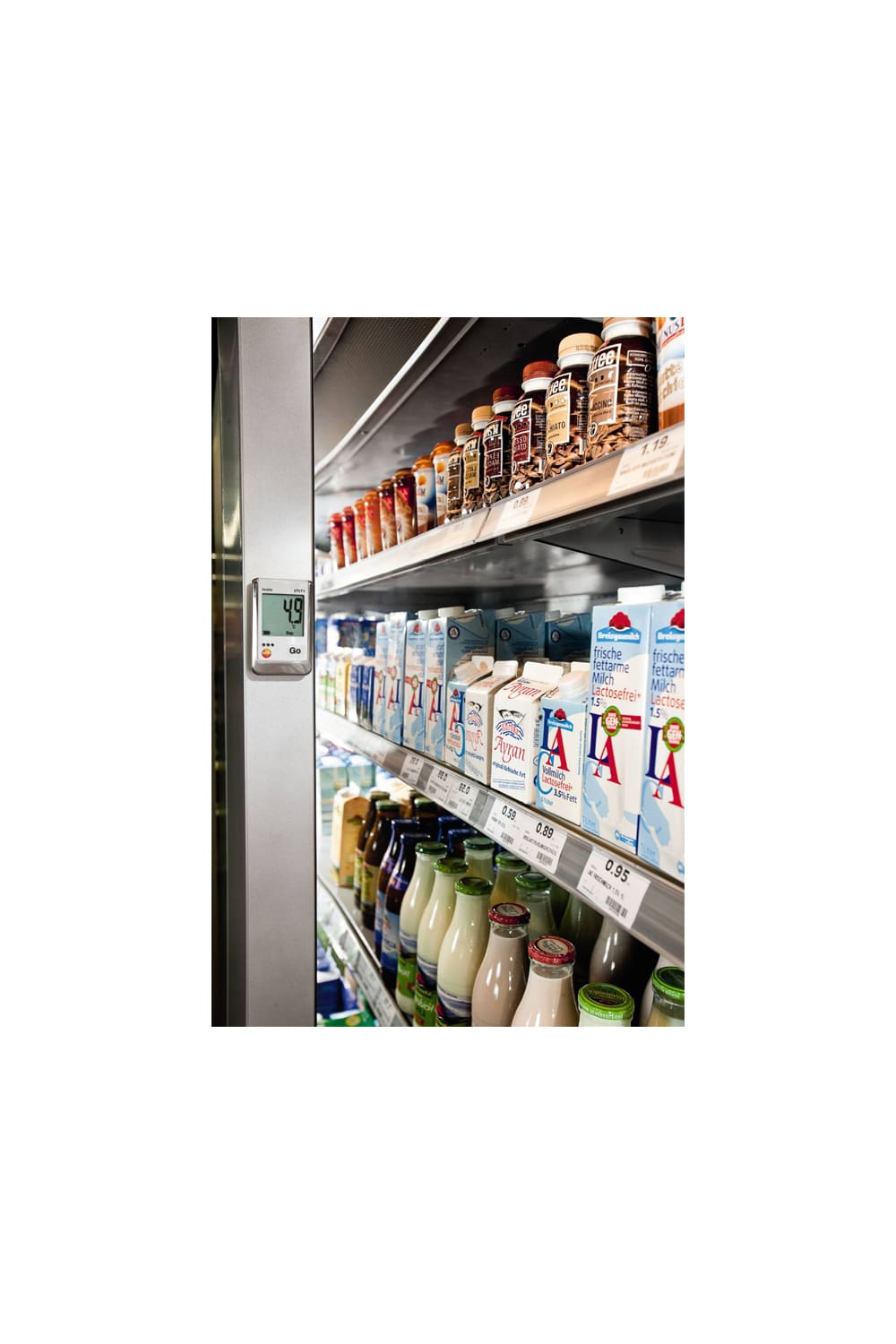

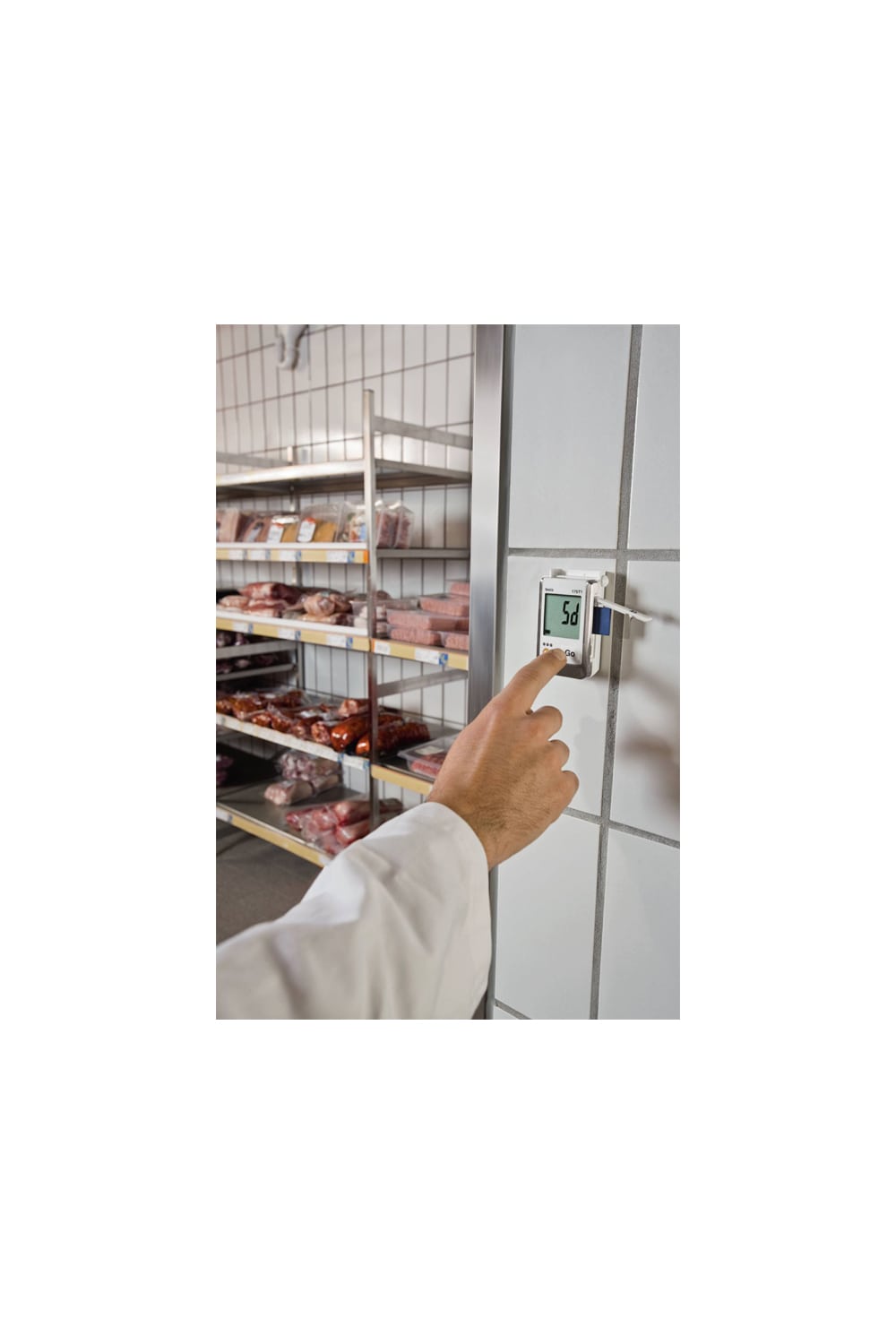

The testo 175 T1 data logger has a built-in temperature sensor and is ideal for monitoring and logging the temperature in cool and cold rooms as well as in storage facilities.

State-of-the-art technology. High level of data security

The logger’s display provides you with a wide range of valuable information including current measurement values, threshold values, points where these thresholds have been exceeded, min/max values and remaining battery power. And because all these values can be read off directly from the display, there is no need for you to boot up your PC. In addition to this nice little detail, the logger also has a super size memory, which can save up to 1 million measurements, and an exceptionally long battery life of up to 3 years. This gives you the freedom to read out the logger data at longer intervals, even when measuring cycles are shorter. The triple AAA batteries included in delivery can be replaced by the user.

Programming and analyzing your data logger

Choose one of three software versions to program or read out your logger or to analyze the measuring data you have obtained on your PC:

  • Software ComSoft Basic – available for free downloading – allows you to program your logger and analyze the data quickly and easily

  • Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature values

  • Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11

Checked and certified for use in the food sector

  • Tested according to DIN EN 12830

  • HACCP compliant and HACCP International certified

  • IP65 protection: the temperature data logger can remain in the storage or vehicle cargo area during cleaning

Delivery Scope

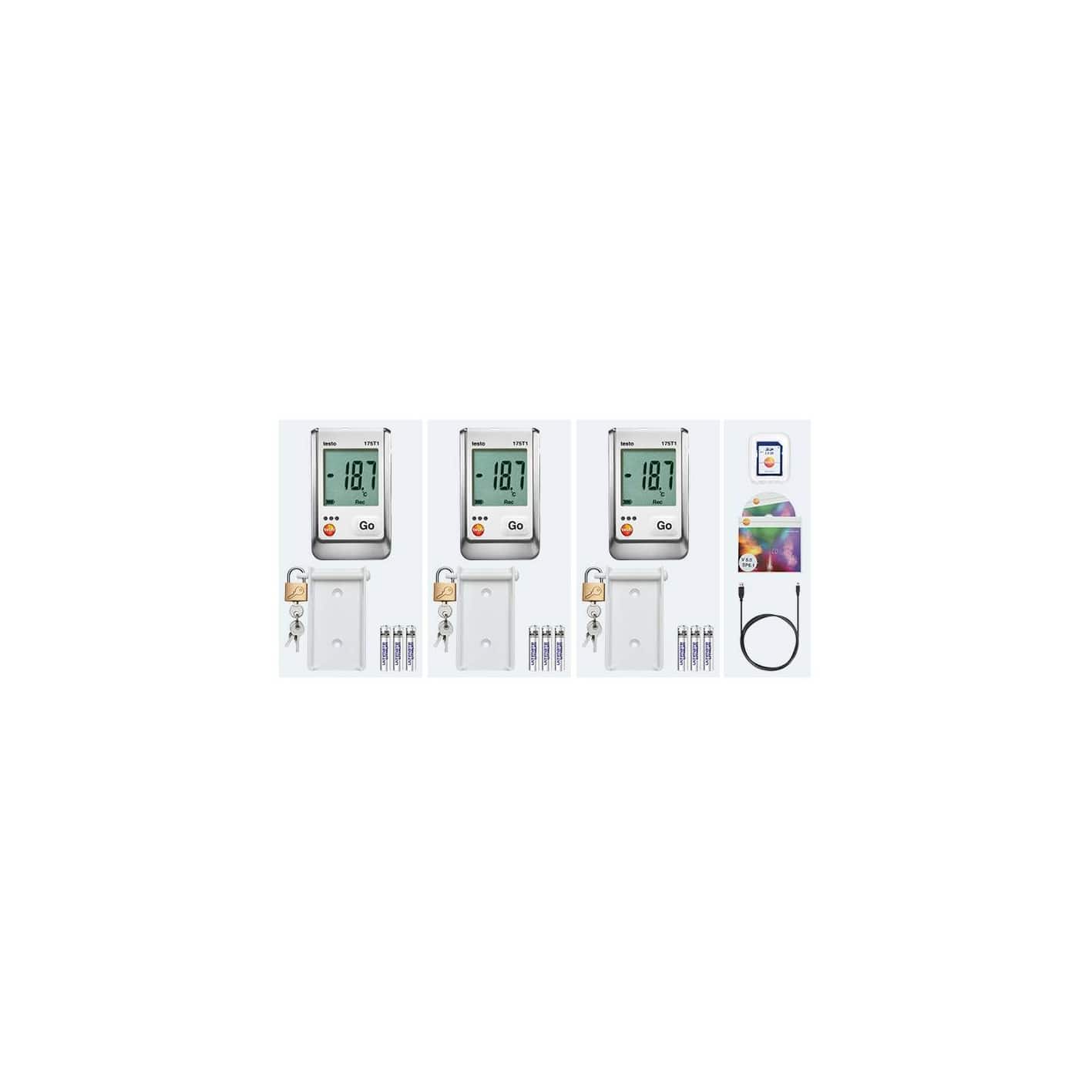

testo 175 T1 data logger with internal sensor (NTC), including wall bracket, lock, batteries and calibration protocol. Caution: To programme the data logger, you need a USB cable which is not included in the scope of delivery, but which you are welcome to order as well if required. Measurement data can also be transferred to the PC via the USB cable or an SD card (available as an option).

Temperature - NTC

Measuring range

-35 to +55 °C

Accuracy

±0.5 °C (-35 to +55 °C) ±1 Digit

Resolution

0.1 °C



General technical data

Weight

156 g

Dimensions

89 x 53 x 27 mm

Operating temperature

-35 to +55 °C

Product-/housing material

Plastic

Protection class

IP65

Channels

1 internal

Product colour

white

Standards

EU-guideline 2014/30/EU; DIN EN 12830; 2011/65/EU

Measuring rate

10 s - 24 h

Battery type

3 x AIMn type AAA or Energizer

Battery life

3 years (15 min. meas. rate, +25 °C)

Interface

mini usb, SD card slot

Memory

1,000,000 measuring values

Storage temperature

-35 to +55 °C

Connection cable

USB connection cable, instrument-PC

Order Number: 0449 0047


0515-0009

Micro alkali-manganese battery (AAA) - 1 off

Order Number: 0515 0009


Calibration certificate

DAkkS calibration certificate for temperature for data loggers and transmitters; calibration at 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0261


Wall holder

Wall bracket for data loggers with lock

Order Number: 0554 1702


ComSoft Professional

ComSoft Professional software for programming and readout of Testo data loggers and for archiving data

Order Number: 0554 1704


ComSoft CFR21

ComSoft 21 CFR Part 11 software – validatable software for programming and readout of Testo data loggers and for archiving data

Order Number: 0554 1705


No picture available

SD card - for collecting the measurement data from the data loggers testo 175 and testo 176; 2 GB; application range to -20 °C

Order Number: 0554 8803


ComSoft Basic Software

Free download: testo ComSoft Basic for programming and reading Testo data loggers

Order Number: 0572 0580


Batteries

Batteries (AAA) for the below -10 °C application range

Order Number: 0515 0042


Calibration certificate

ISO calibration certificate temperature

Order Number: 0520 0153


Mobile Printer 0572 0576

Mobile printer for data loggers

Order Number: 0572 0576
