testo 176 T4 - Temperature data logger

Order-Nr. 0572 1764
  • Extremely wide measuring range from -200 °C – 1 000 °C

  • Super size memory for up to 2 million readings, up to 8 years battery life

  • For measuring and logging the temperature at four different sites simultaneously

  • Carry out data analysis on your PC: three software options to choose from; Basic software as free download

The testo 176 T4 data logger can measure the temperature at up to four different measurement sites simultaneously. It also has a super size memory for up to 2 000 000 readings, an exceptionally wide measurement range and is compatible with a number of different thermocouple elements making it ideal for professional use in a variety of different fields.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

The testo 176 T4 temperature data logger can tell you at a glance if the temperature of the room or facility is within the prescribed thresholds. It can measure the temperature at up to four different sites simultaneously and has a super size memory that can save up to 2 000 000 readings. This gives you the freedom to read out the logger data at longer intervals, even when measuring cycles are shorter. You will need at least one temperature sensor to use your logger. There is a wide selection of thermocouple sensors ranging from type K, T or J sensors to air, surface or probe sensors available.

Technical features and benefits in the field

The logger’s display provides you with a wide range of valuable information including current measurement values, threshold values, points where these thresholds have been exceeded, min/max values as well as the remaining battery power. And because all these values can be read off directly from the display, there is no need for you to boot up your PC. In addition to this nice little detail, the logger also has a super size memory and an exceptionally long battery life of up to 8 years. This gives you the freedom to read out the logger data at longer intervals, even when measuring cycles are shorter. The testo 176 T4 data logger is IP 65 protected and can therefore also be used in dusty and dirty work environments. The standard AA batteries can be replaced by the user.

Possible areas of application

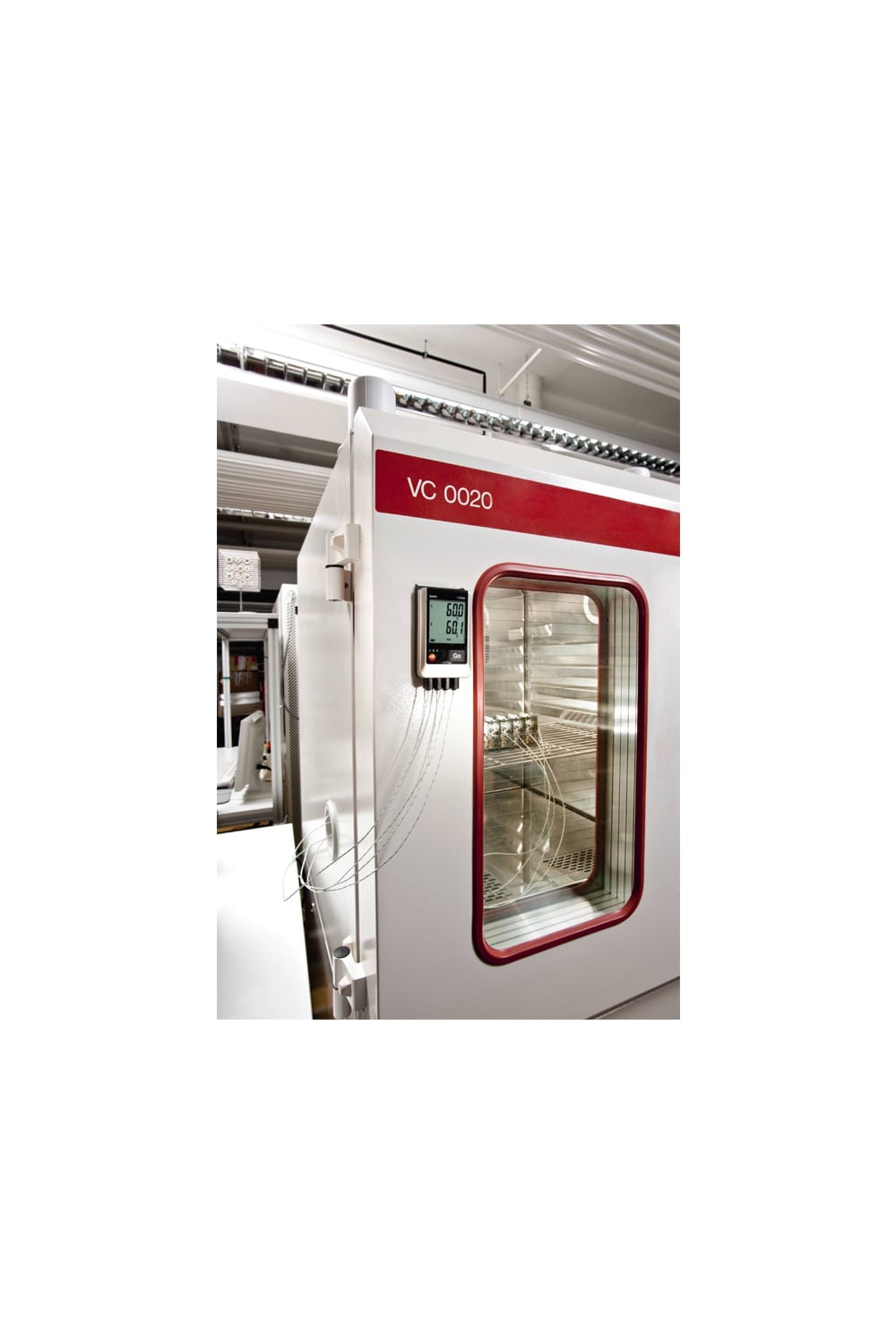

  • Checking the temperature in ultra-low temperature freezers or under cryo conditions

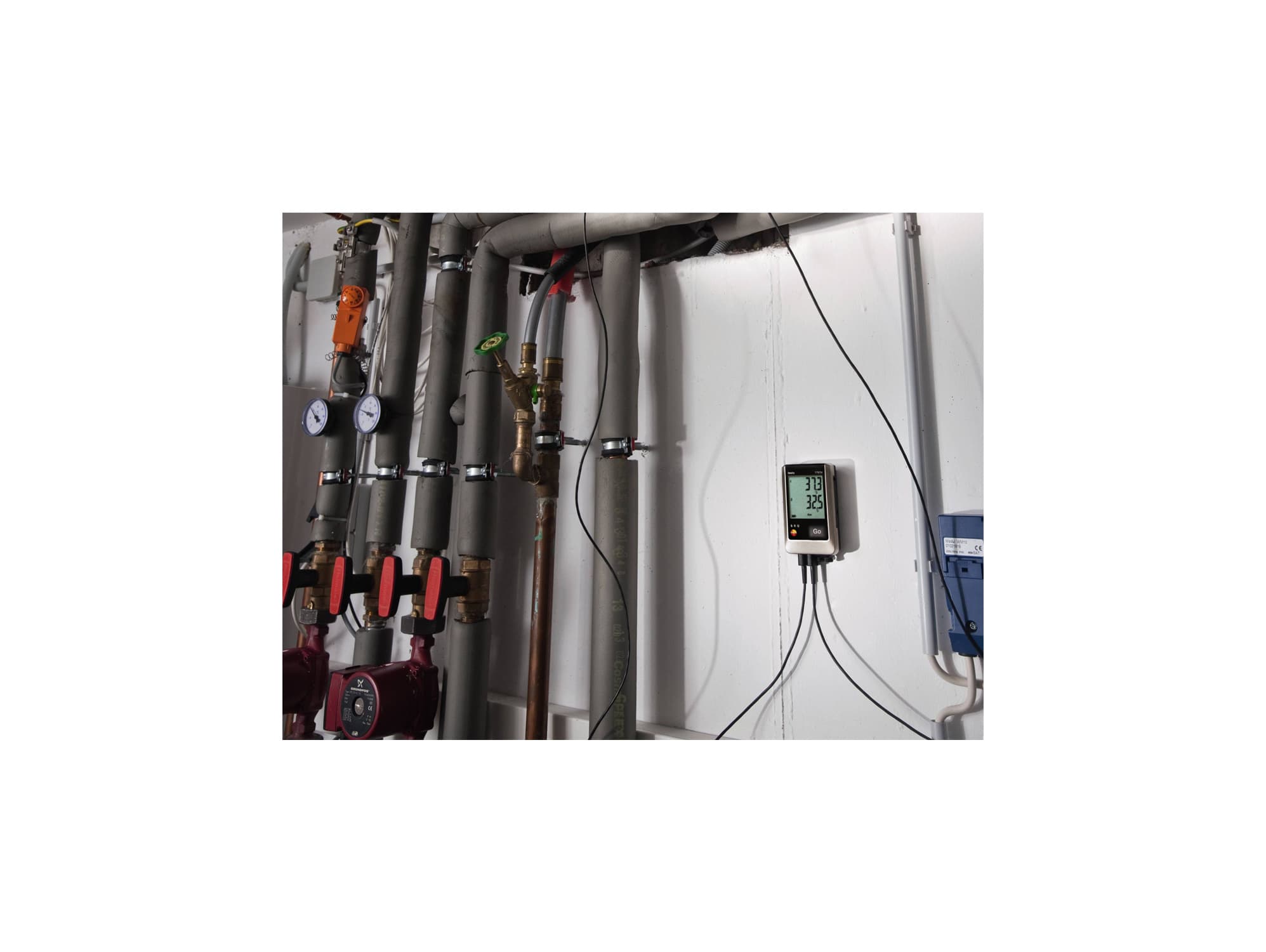

  • Measuring and logging flow and return temperatures at underfloor heating distributors in order to check that they are working properly

  • Checking process temperatures

  • Checking flow and return temperatures of heating systems

Programming and analyzing your data logger

Choose one of three software versions to program or read out your logger or to analyze the measuring data you have obtained on your PC:

  • Software ComSoft Basic – available for free downloading – allows you to program your logger and analyze the data quickly and easily

  • Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature values

  • Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11

You will need a USB cable (not included) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are available as accessories which can be ordered together with your testo 176 T4.

Delivery Scope

testo 176 T4 temperature data logger with external sensor ports (TC type T, K and J), wall mount, lock, battery, calibration certificate.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1000 °C

Accuracy

±1 % of mv (-200 to -100.1 °C) ±1 Digit

±0.3 °C (-100 to +70 °C) ±1 Digit

±0.5 % of mv (+70.1 to +1000 °C) ±1 Digit

Resolution

0.1 °C



Temperature - TC Type T (Cu-CuNi)

Measuring range

-200 to +400 °C

Accuracy

±1 % of mv (-200 to -100.1 °C) ±1 Digit

±0.3 °C (-100 to +70 °C) ±1 Digit

±0.5 % of mv (+70.1 to +400 °C) ±1 Digit

Resolution

0.1 °C



Temperature - TC Type J (Fe-CuNi)

Measuring range

-100 to +750 °C

Accuracy

±0.3 °C (-100 to +70 °C) ±1 Digit

±0.5 % of mv (+70.1 to +750 °C) ±1 Digit

Resolution

0.1 °C



General technical data

Weight

230 g

Dimensions

103 x 63 x 33 mm

Operating temperature

-20 to +70 °C

Product-/housing material

Plastic

Protection class

IP65

Channels

4 external

Connectable probes

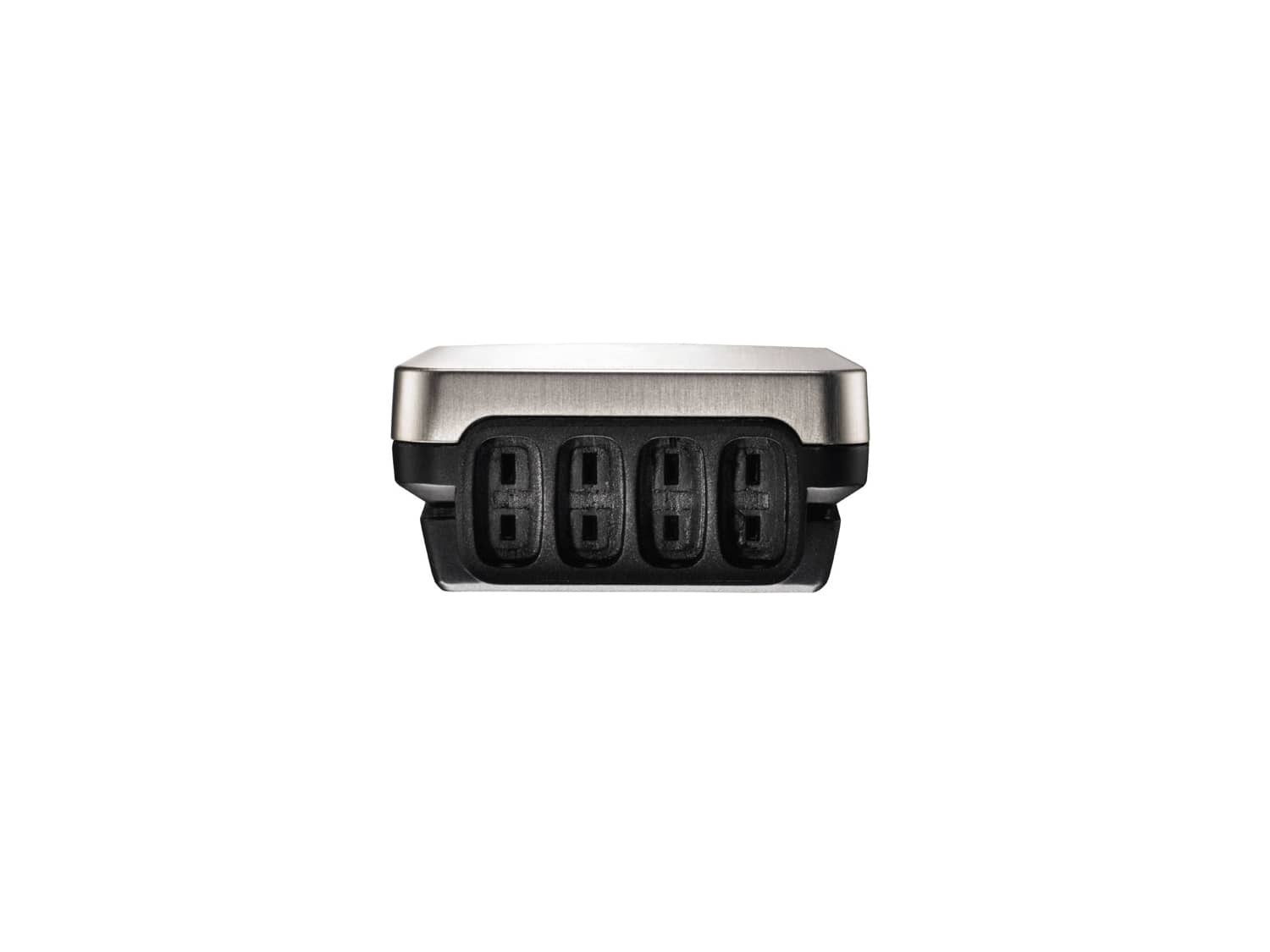

4 x thermocouple (type T, K and J)

Product colour

Black

Standards

EU-guideline 2014/30/EU; 2011/65/EU

Measuring rate

1 s to 24 h; 2 s to 24 h (online measurement)

Battery type

1 x Lithium (TL-5903)

Battery life

8 years (15 min. meas. rate, +25 °C)

Interface

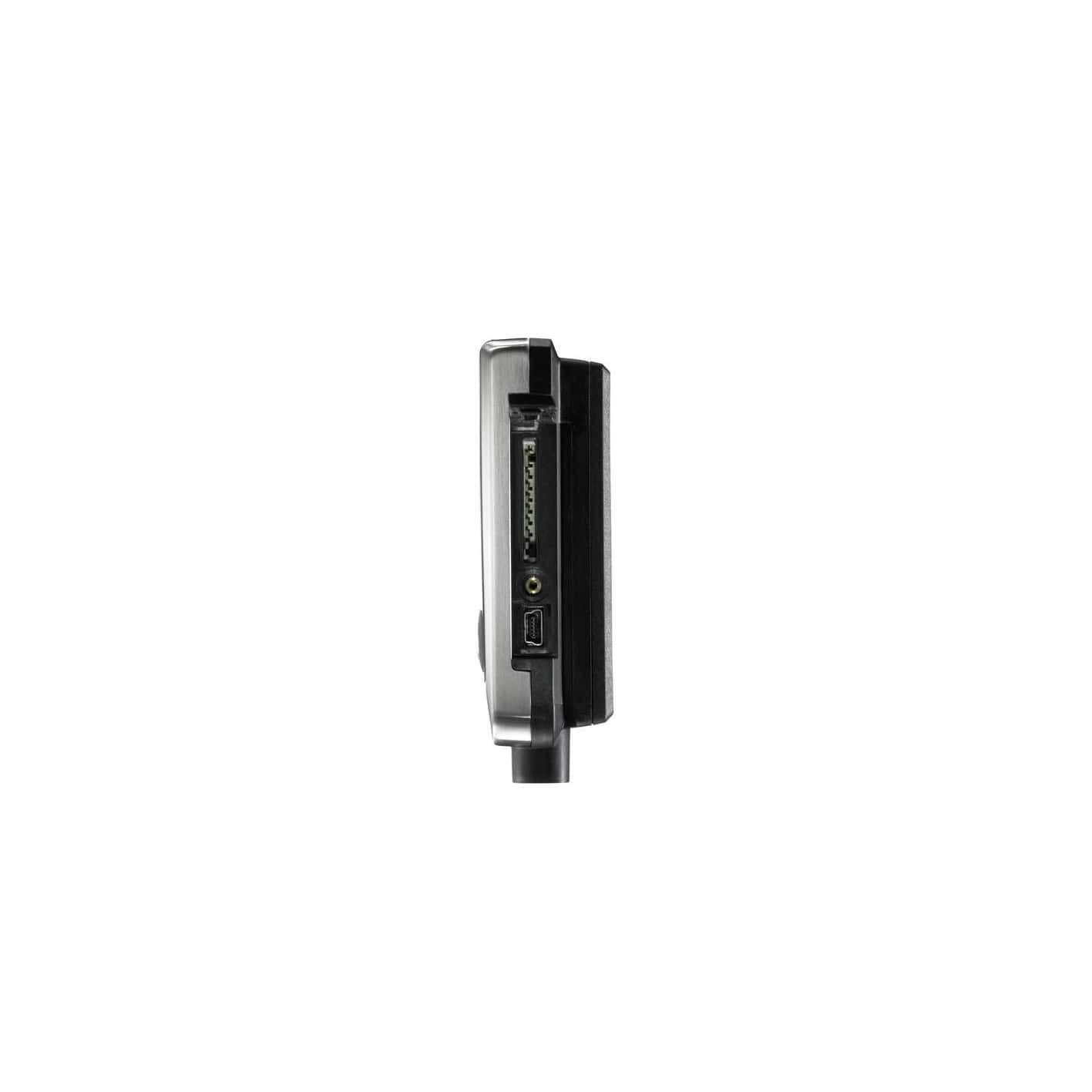

mini usb, SD card slot

Memory

2,000,000 measuring values

Storage temperature

-40 to +85 °C

Connection cable

USB connection cable, instrument-PC

Order Number: 0449 0047


Wall holder

Wall bracket for data loggers with lock

Order Number: 0554 1703


ComSoft Professional

ComSoft Professional software for programming and readout of Testo data loggers and for archiving data

Order Number: 0554 1704


ComSoft CFR21

ComSoft 21 CFR Part 11 software – validatable software for programming and readout of Testo data loggers and for archiving data

Order Number: 0554 1705


No picture available

SD card - for collecting the measurement data from the data loggers testo 175 and testo 176; 2 GB; application range to -20 °C

Order Number: 0554 8803


ComSoft Basic Software

Free download: testo ComSoft Basic for programming and reading Testo data loggers

Order Number: 0572 0580


Calibration certificate

ISO calibration certificate temperature

Order Number: 0520 0153


Calibration certificate

DAkkS calibration certificate for temperature for data loggers and transmitters; calibration at 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0261


Mobile Printer 0572 0576

Mobile printer for data loggers

Order Number: 0572 0576
