testo 184 T2 - Temperature data logger for transport monitoring

Order-Nr. 0572 1842
  • Operating time 150 days

  • All in one temperature data logger: PDF measurement data, configuration file, acceptance test certificate 3.1 according to DIN ISO 10204 and instruction manual

  • Immediate creation of a PDF report directly after connection to a computer

  • Monitoring transport in compliance with GxP, 21 CFR Part 11, HACCP and EN 12830

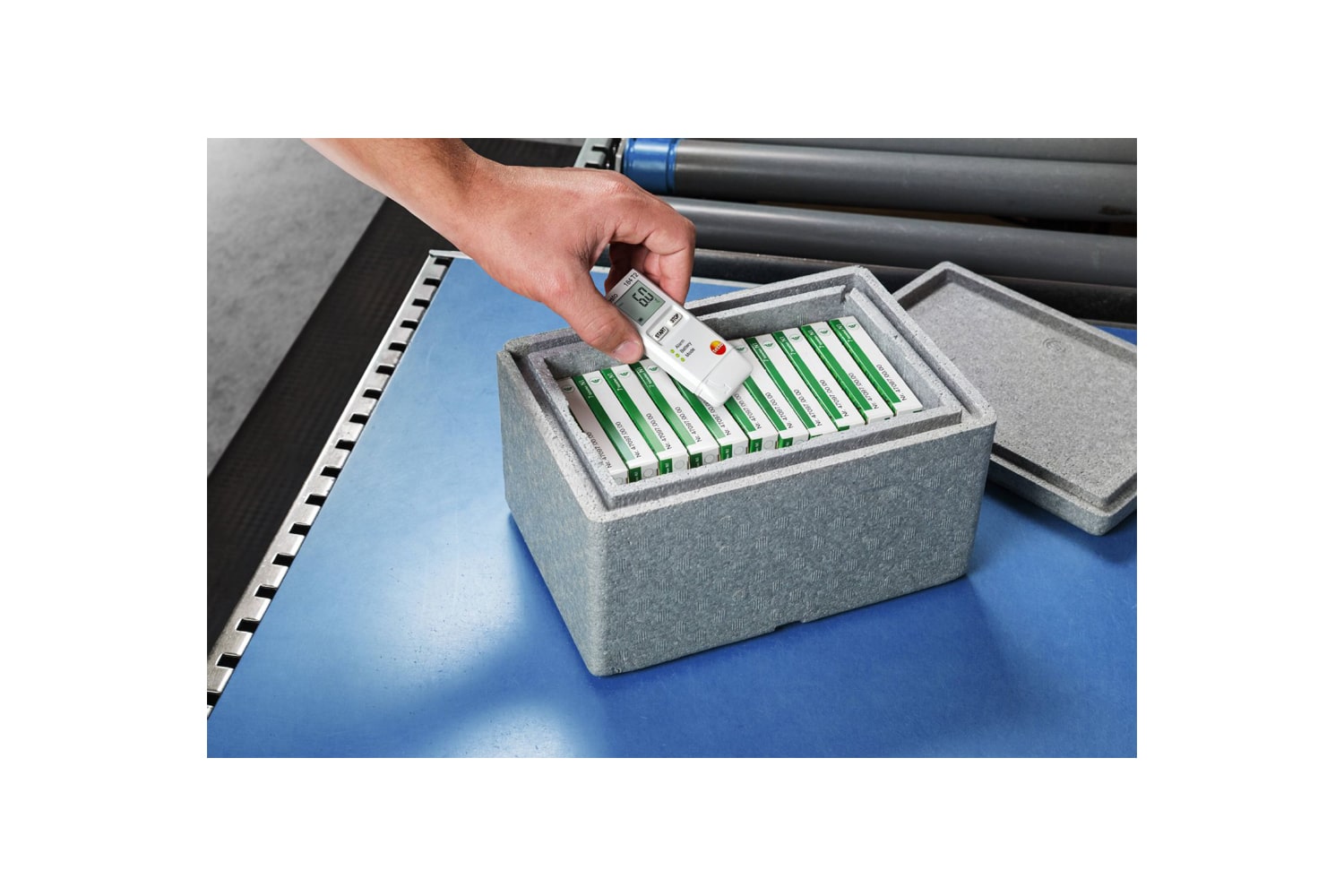

With the testo 184 T2 temperature logger, you can now monitor the transport of sensitive products, such as pharmaceuticals, food or electronic items, both safely and conveniently. A start and stop button means the temperature logger guarantees really easy operation for data recording. At the destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to during transport.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

With the temperature data loggers testo 184 T2, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics, over a maximum period of 150 days.

At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 T2: Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual and PDF report of your recorded data.

The measurement value store of the temperature data logger testo 184 T2 has a capacity of 40000 measurement values. The measurement rate is freely selectable from 1 min to 24 h.

testo 184 T2 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.

All advantages at a glance:

1. Clear alarm indication A glance at the the LEDs is enough to know whether limit values have been violated during transport.

2. Easiest operation testo 184 T2 is intuitively operated, and can be used without special training or previous knowledge: The "Start" button begins data recording. "Stop" ends it.

3. Easiest configurationIn each testo 184 T2, a configuration file is stored, with which the configuration of the testo 184 T2 is childsplay – no download, no installation, no user interface and no additional costs.

4. Convenient readout A PDF report with the transport data is created immediately on connection of the testo 184 T2 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.

5. Mobile readout/printout on site All testo 184 T2 data loggers can be read out on site with an NFC-capable Android smartphone. Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.

6. IT-safe The testo 184 T2 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.

Delivery Scope

Temperature data logger testo 184 T2, including acceptance test certificate 3.1 according to DIN ISO 10204 (stored in testo 184 T2 ), battery and 1 piece double-sided adhesive tape for easy attachment of the data logger.

Temperature - NTC

Measuring range

-35 to +70 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Reaction time

t₉₀ = 30 min

Measuring rate

1 min to 24 h



General technical data

Weight

44 g

Dimensions

97 x 12 x 40 mm (LxWxH)

Operating temperature

-35 to +70 °C

Product-/housing material

ABS

Protection class

IP67

System requirements

Adobe® Acrobat Reader

Product colour

white

Standards

EN 12830; DIN EN 50581:2013; CE 2014/30/EU; DIN EN 61326-1:2013; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)

Certificate type

Certified by HACCP International

Channels

1 internal

Operating time

150 days days from the first time the program is started (5-minute measuring cycle, -35 °C)

Authorizations

CE; RTCA/DO-160G

Alarm function

via LED and Display

Battery type

Lithium battery non exchangeable

Display type

segment LCD

Display size

one-line

Display ligthing

no

Interface

USB; NFC

Memory

40,000 measuring values

Storage temperature

-55 to +70 °C


Wall bracket for data loggers - for secure attachment to goods

Order Number: 0554 1841


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C

Order Number: 0520 0001


Mobile Printer 0572 0576

Mobile printer for data loggers

Order Number: 0572 0576


ComSoft Professional

ComSoft Professional software for programming and readout of Testo data loggers and for archiving data

Order Number: 0554 1704


ComSoft CFR21

ComSoft 21 CFR Part 11 software – validatable software for programming and readout of Testo data loggers and for archiving data

Order Number: 0554 1705
