Product Description

Pasteurization, sterilization and freeze-drying are key processes in food production when it comes to increasing the shelf life of foods. These processes place extremely high demands on the measuring technology used.

Our reliable and robust temperature HACCP data logger supports you in monitoring these processes efficiently.

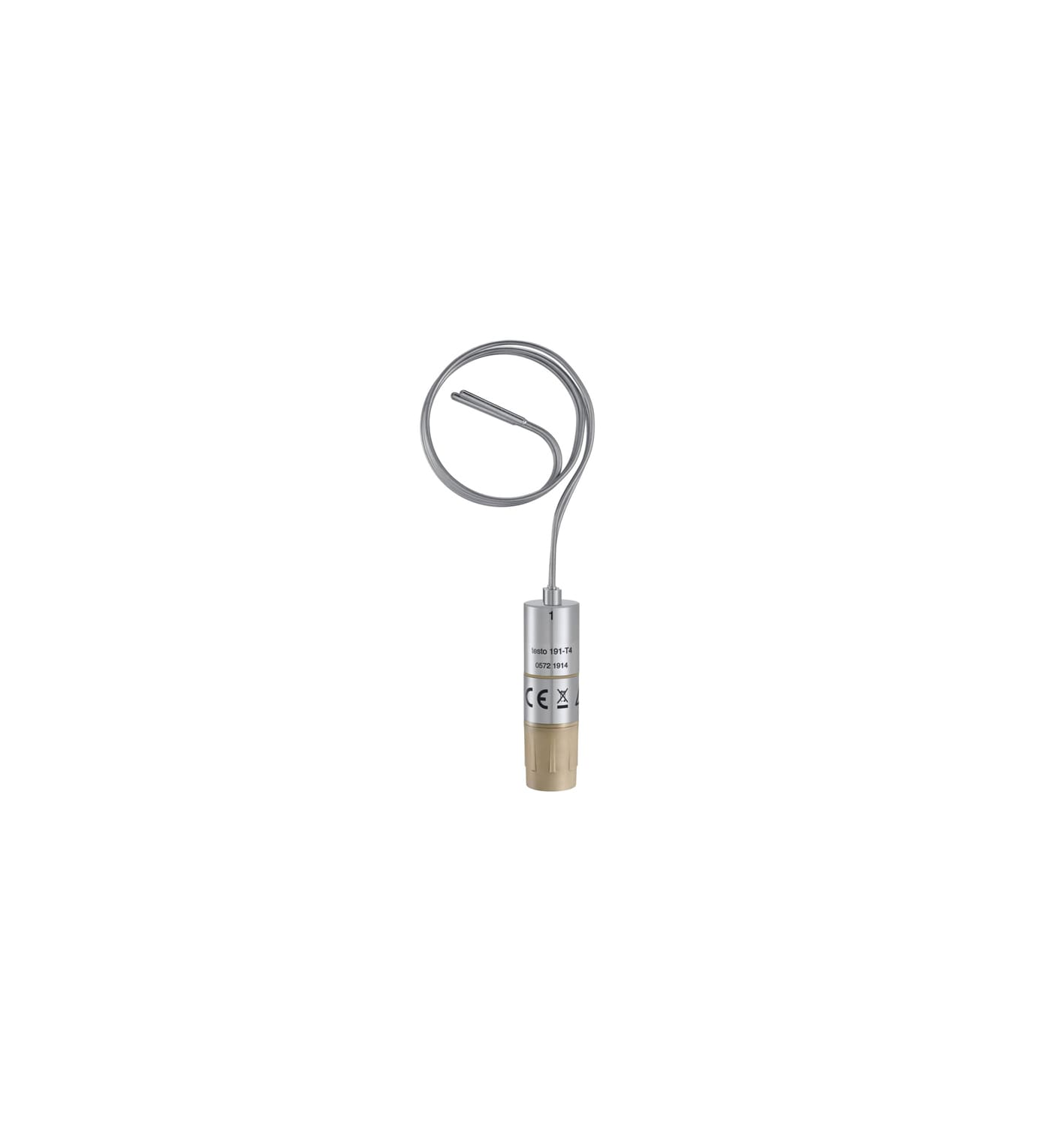

This is what the testo 191-T4 HACCP temperature data logger offers

• High-precision: precise HACCP data logger with two long, flexible probes (length 775 mm, Ø 1.5 mm), reading memory of 30,000 readings per channel

• Two long, flexible probes: ideal for sterilization applications in liquids or on surfaces of freeze-drying systems. In combination with the freeze dryer probe holder (please order separately), the surface temperature of freeze-drying systems can be accurately measured

• Slim design: with a diameter of 20 mm, the loggers are ideal for use in tight objects or cramped conditions

• Robust and durable: high-quality materials and innovative construction make the HACCP data logger particularly robust and durable. Thanks to hermetically sealed measuring technology in a separate stainless steel housing, the HACCP data logger impresses due to its reliability and maximum robustness

• Battery change in seconds: the practical thread enables the battery to be screwed onto the HACCP data logger and changed intuitively and securely without using any tools

• Reliably tight: the HACCP data logger remains 100% tight even after the batteries are changed. The battery housing is coated in highly temperature-proof polyether ether ketone (PEEK)

• Flexible height: the size of the HACCP data logger can vary with two different types of battery. The small battery makes the logger's dimensions particularly compact. The larger battery (included in the scope of delivery) is suitable for measurements at low temperatures, for example in freezer systems

Programming, readout and analysis of the data logger

Very practical to use: in addition to being used for storage, the multifunction case (available in two different sizes) can also be used for parallel programming and readout of up to 8 data loggers simultaneously. This means you do not need any additional readout unit and you also save time.

With the specially developed testo 191 professional software (please order separately) you can program and read out the data logger, as well as analyzing the measurement data, on the PC. The clear software structure guides you intuitively through the process step by step. During input, it provides help at critical points through warnings. The software thus enables even inexperienced users to carry out the measurement process easily.

Delivery Scope

1 x testo 191-T4 HACCP data logger, including battery large, distance adapter long for testo 191 programming and readout unit, thread extension, calibration protocol and instruction manual.

Battery small, field of application: -20 to +140 °C

Order Number: 0515 1900

Battery large, field of application: -50 to +140 °C

Order Number: 0515 1901

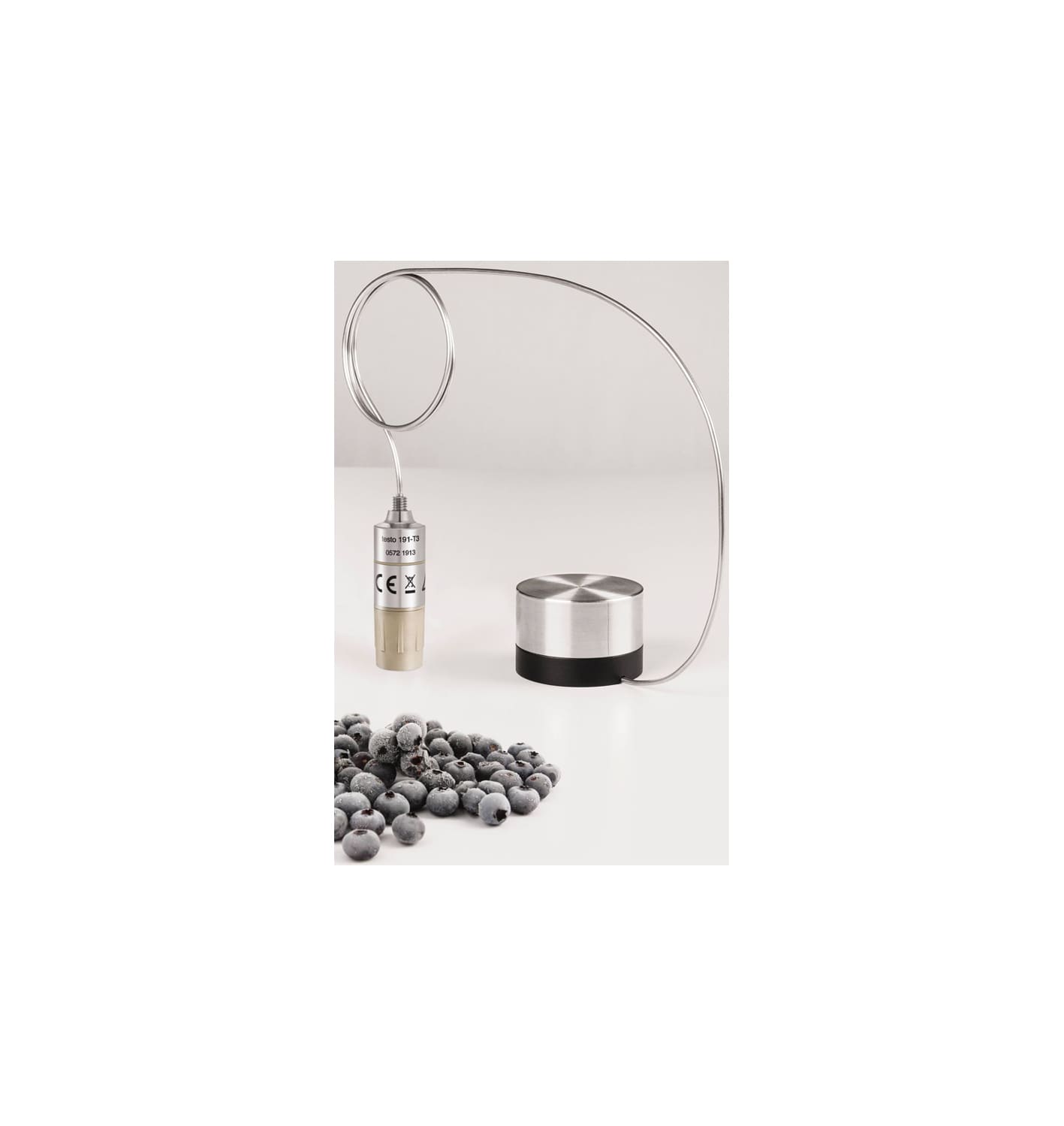

Freeze-drying probe holder (puck) for the precise measurement of the surface temperature

Order Number: 0554 1907

testo 191 professional software

Order Number: 0554 1911

Small multifunction case for up to 8 data loggers, for programming and readout of 8 data loggers simultaneously

Order Number: 0516 1901

Retaining clamp (10 off) for easy and safe securing of the data logger (e.g. in sterilization systems)

Order Number: 0554 0298

ISO calibration certificate for temperature; calibration at selectable measuring points between -196 and +1200 °C (external probes), -40 and +180 °C (internal probes)

Order Number: 0520 0141

DAkkS temperature calibration certificate, calibration at 5 measuring points: -50 °C, 0 °C, +90 °C, +121 °C and +140 °C

Order Number: 0520 0281
