testo 206-pH1 - pH/temperature measuring instrument for liquids

Order-Nr. 0563 2061
  • Ideal for measuring the pH value of liquids

  • The integrated temperature probe enables automatic temperature compensation

  • Maintenance-free gel electrolyte

  • Robust, waterproof and dishwasher-safe protective case (TopSafe, protection class IP68)

Perfectly equipped for pH measurement in liquids: the universal testo 206-pH1 pH/temperature measuring instrument features innovative probe technology. Particularly suitable for use in the food sector.

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

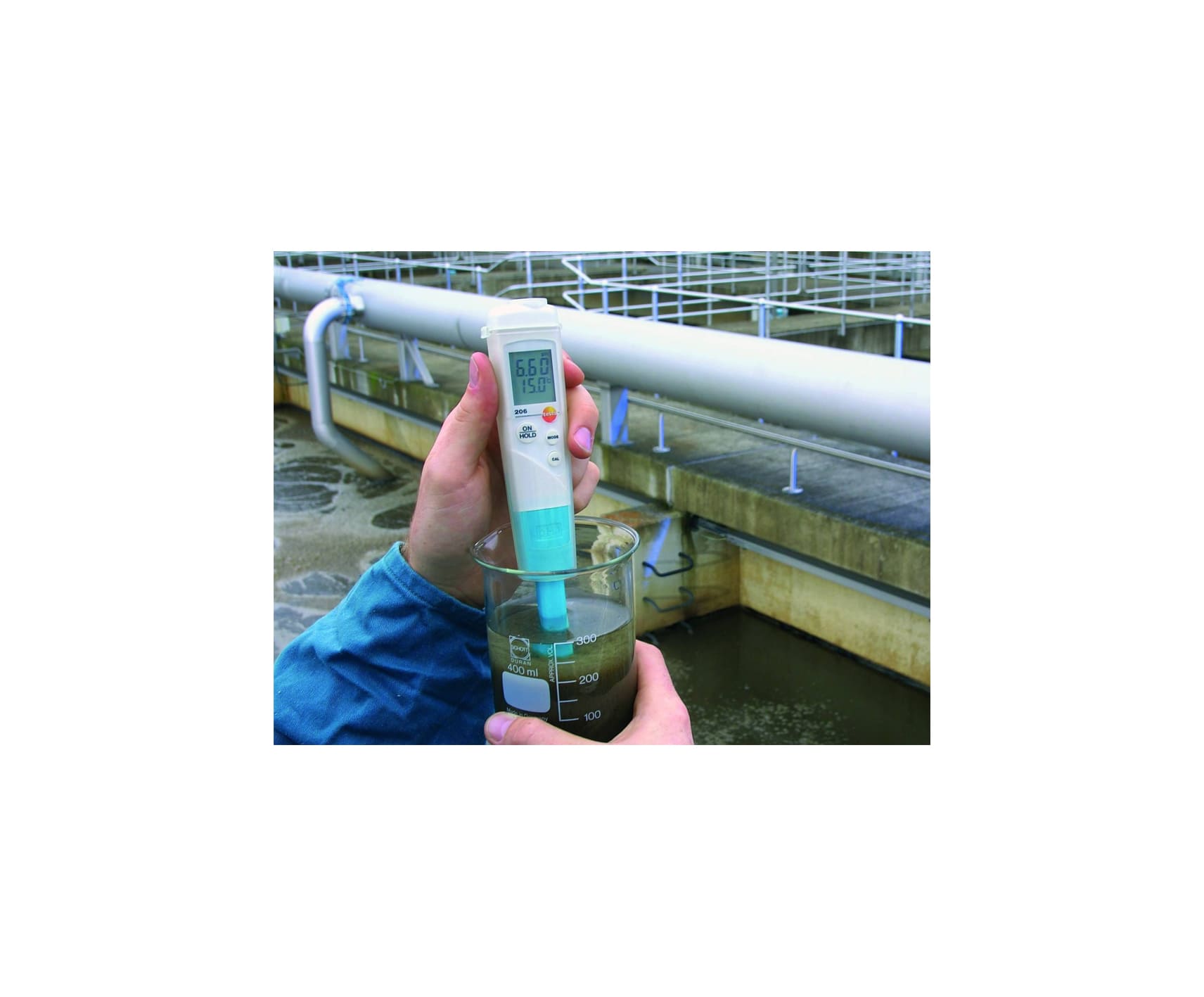

pH value and temperature are key parameters for guaranteeing the quality of products in the food sector, the cosmetics industry and the sanitary and HVAC sector, etc. With the testo 206-pH1 pH temperature measuring instrument, you can reliably measure the temperature and pH value in liquids (e.g. drinking or heating water) or even in viscoplastic media.

The advantages of the pH/temperature measuring instrument at a glance

The testo 206-pH1 temperature and pH measuring instrument boasts the following features:

  • the pH probe is ideal for measurements in liquids (and can even be used in viscoplastic media). The temperature sensor ensures precise, fast temperature compensation, and therefore accurate pH measurement

  • The pH probe is maintenance-free, leak-proof and insensitive to dirt thanks to the gel electrolyte in the probe

  • The dual wall diaphragm of the pH probe guarantees quick, reliable pH measurement

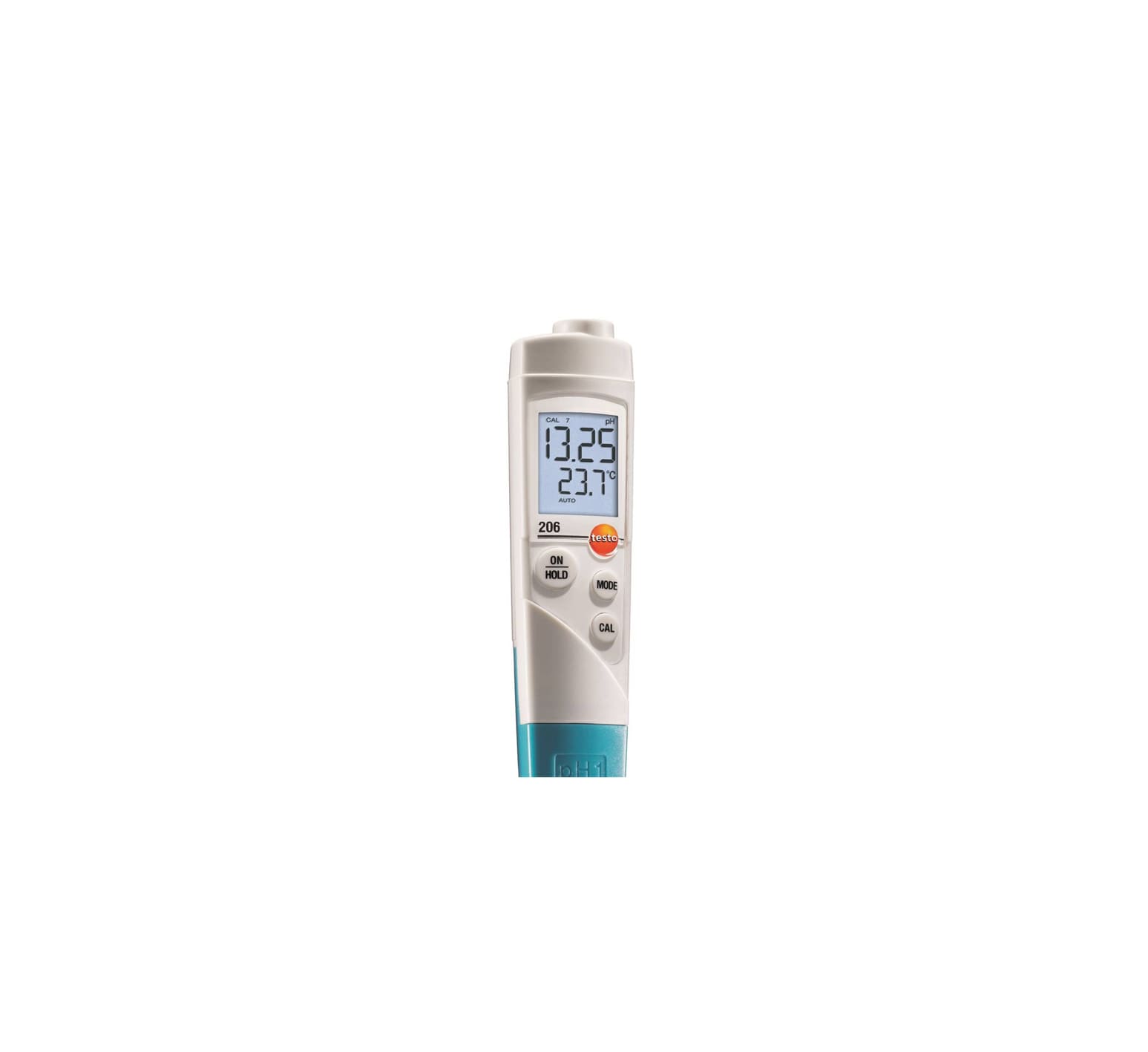

  • Simultaneous display of pH value and temperature on the clear display

  • Automatic final value recognition (auto hold): the reading is automatically held once it is stable

With the included accessories, you are ideally equipped for measuring pH:

  • TopSafe protective case: this is dishwasher-safe, hygienic and protects the measuring instrument from dirt, water and impact. Safely stored in the protective case, the pH measuring instrument is waterproof in accordance with protection class IP 68

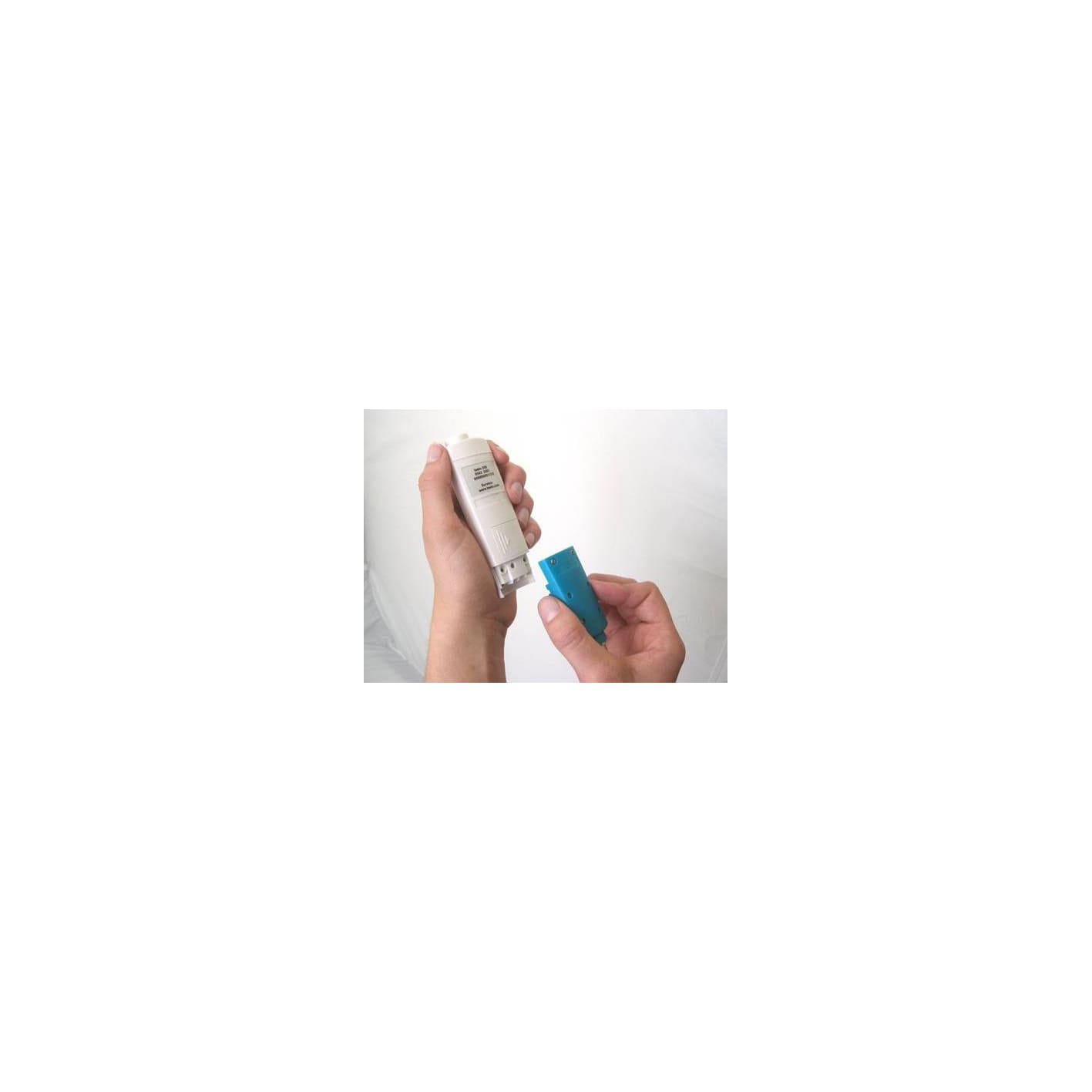

  • Storage cap with gel: the storage cap, which is filled with gel electrolyte and attached to the pH probe, is used to store the probe between measurements

  • Belt/wall bracket: used for storing the measuring instrument on the wall or on a belt

As optional accessories, we also recommend the calibration dosing bottles, which are used for calibrating the probe. Alternatively, you can order the testo 206-pH1 starter set, which includes calibration dosing bottles.

Delivery Scope

testo 206-pH1 pH temperature measuring instrument, pH1 probe head for liquids, incl. storage cap with gel, TopSafe and belt/wall bracket.

Temperature - NTC

Measuring range

0 to +60 °C (Short-term to +80 °C max. 5 min)

Accuracy

±0.4 °C

Resolution

0.1 °C



pH - Electrode

Measuring range

0 to 14 pH

Accuracy

±0.02 pH

Resolution

0.01 pH



General technical data

Weight

69 g

Dimensions

197 x 33 x 20 mm ((LxWxH))

110 x 33 x 20 (without probe and TopSafe)

Operating temperature

0 to +60 °C

Product-/housing material

ABS

Protection class

IP68

Product colour

white

Authorizations

CE 2014/30/EU

Length probe shaft

3.5 mm

35 mm

Diameter probe shaft

15 mm

Battery type

1 x CR2032

Battery life

80 h (Auto Off 10 min)

Display type

LCD (Liquid Crystal Display)

Display size

2 lines

Number of channels

2-channel

Measuring rate

2 measurements per second

Temperature compensation

automatic

Storage temperature

-20 to +70 °C

Lithium battery, button cell

Lithium battery, button cell, type CR 2032

Order Number: 0515 0028


ph buffer solution 4.01

pH buffer solution 4.01: for calibration and adjustment of pH measuring instruments

Order Number: 0554 2061


pH buffer solution 7.00

pH buffer solution 7.00: for calibration and adjustment of pH measuring instruments

Order Number: 0554 2063


Storage cap

Storage cap with KCL gel filling: to protect the pH probe from drying out

Order Number: 0554 2067


testo 206 pH1 measuring instrument

Spare pH probe pH1: for pH/temperature measuring instrument

Order Number: 0650 2061


Calibration certificate

ISO pH calibration certificate: calibration at one measuring point

Order Number: 0520 0007


Calibration certificate

ISO calibration certificate/water analysis

Order Number: 0520 0037
