Product Description

Truly smart flue gas measurement on heating systems with the testo 300 flue gas analyzer. High-quality sensors, intuitive operation with smart-touch technology and smart features, such as efficient documentation and e-mailing of reports, will make your day-to-day work easier.

testo 300 Longlife flue gas analyzer with smart-touch operation – Features

Impressive measuring technology and quality

• O₂ sensor and CO sensor up to 15,000 ppm thanks to integrated fresh air dilution

• NO sensor - can be retrofitted

• Longer sensor service life thanks to automatic sensor protection

• Integrated draught and gas zeroing without removing the probe – the flue gas probe can remain in the flue during zeroing

• For intensive daily use: high-quality Longlife sensors for O₂ and CO with a service life of up to 6 years. That means at least one sensor replacement is saved in the course of a normal working life

• TÜV-tested according to first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3

• Integrated fine pressure and 4 Pa measurement for legally prescribed measurements

• Manufacturer's warranty of up to 5 years on O₂ and CO sensor with product registration – without a maintenance contract

• Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can for instance use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points

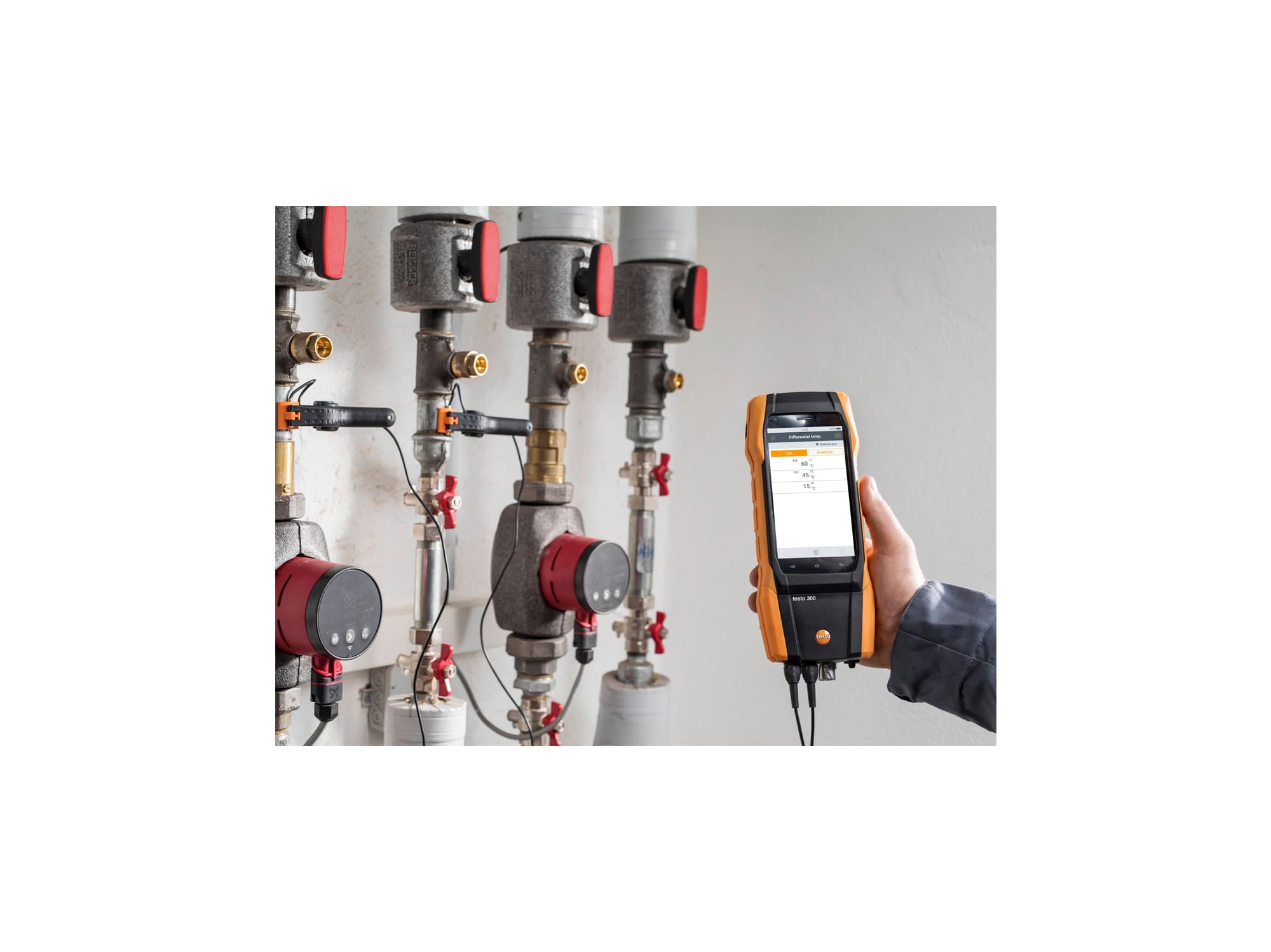

• Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement

Smart, intuitive, efficient: easy operation in day-to-day work

• Smart-touch display for intuitive operation of the flue gas analyzer: the display responds without delay – just as easy as on your smartphone

• Get the measurement result faster: clearly structured measurement menus for all relevant measurements

• Create documentation (including measuring value, measuring location, customer data) easily on site

• Save PDF measurement reports directly in the instrument and always have them available

• Signature function: your customer can sign measurement reports directly on the instrument

• E-mail measurement reports directly to the office or to customers via WLAN (hotspot)

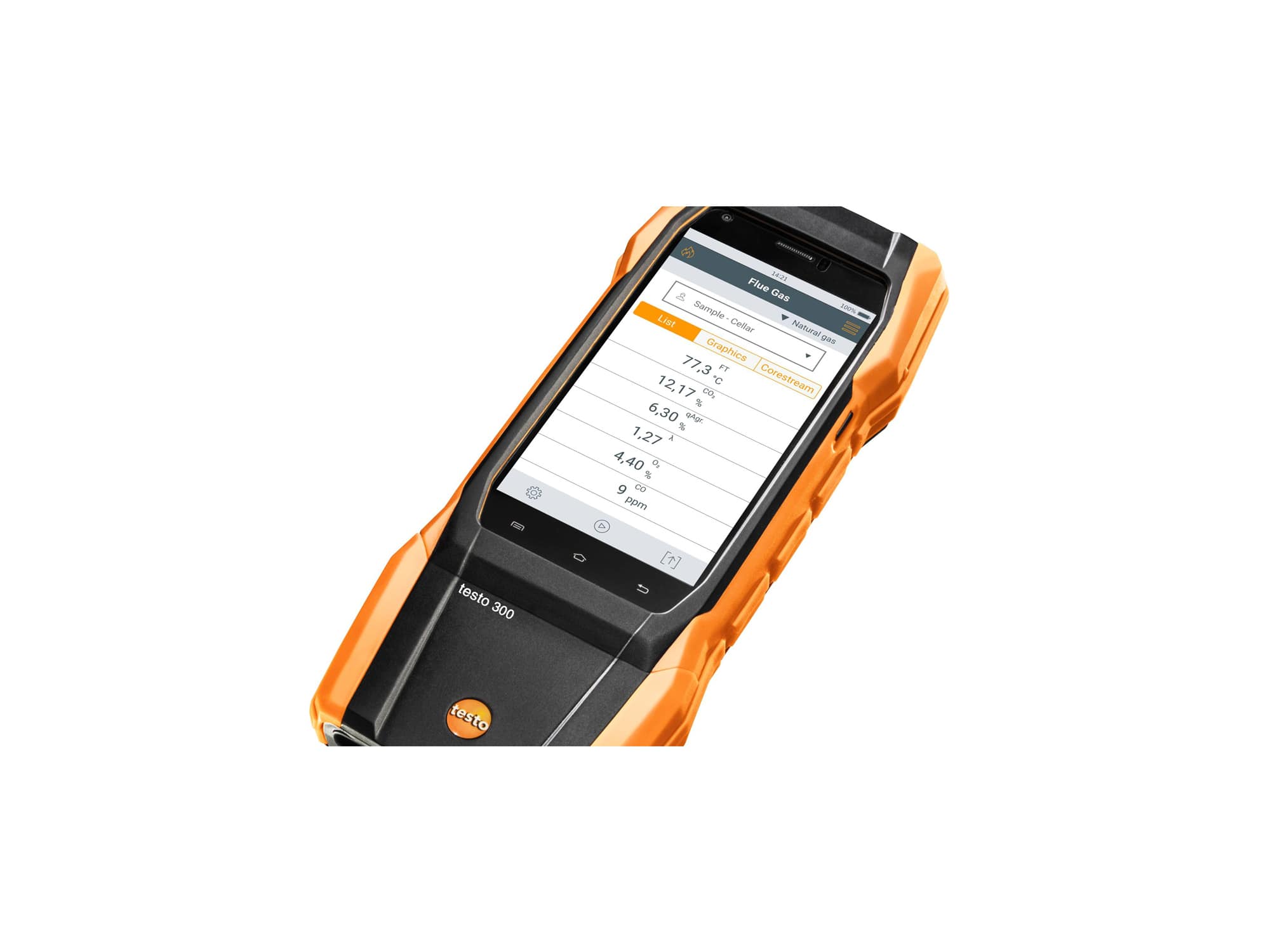

• Large 5-inch HD display – enables you to see all the system's parameters immediately

• Testo interface function for direct data transfer of measuring values to industry/customer-specific software*

• Ready to use straight away: in standby mode, the testo 300 is ready to measure at the touch of a button. Use it straight away with the next customer – because you no longer need to wait for the end of the zeroing phase

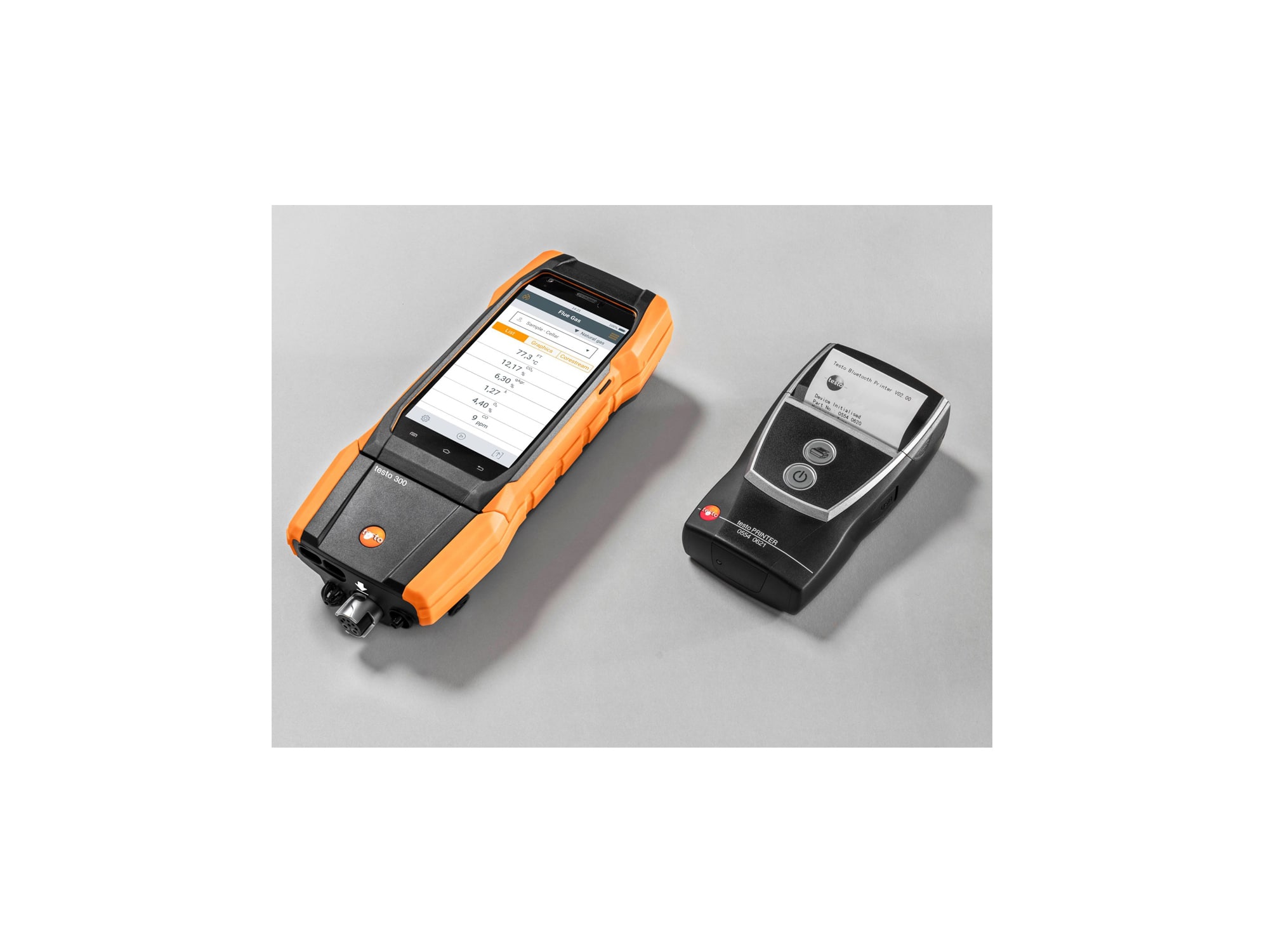

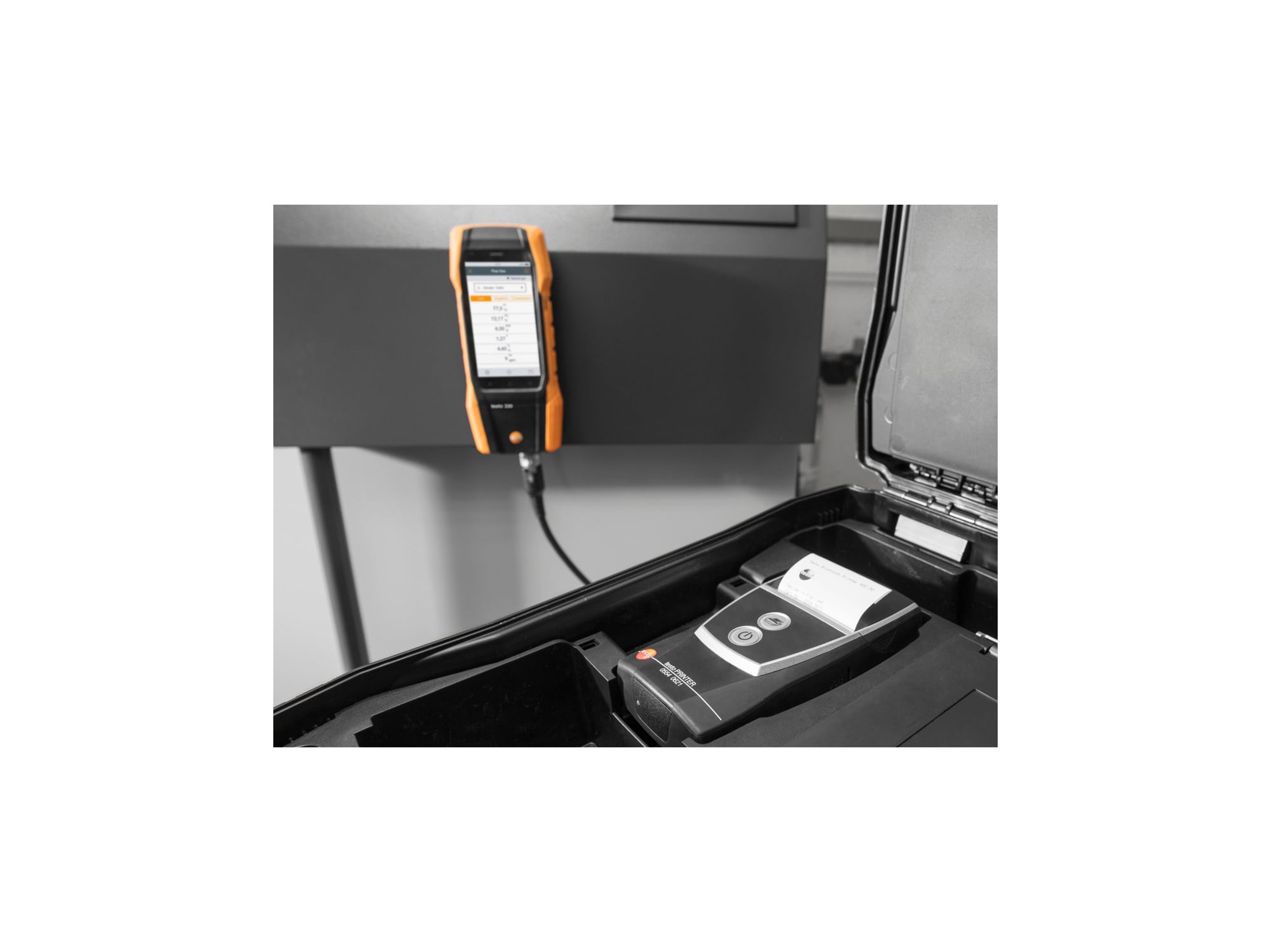

• Integrated Bluetooth^® interface: immediate printout of the measuring values on site with the appropriate printer

  *Note: the manufacturer has to integrate an interface into the industry software to use the function

Other advantages

• 10-hour rechargeable battery life: an average measurement period of 2 hours means the flue gas analyzer is capable of being used for one week

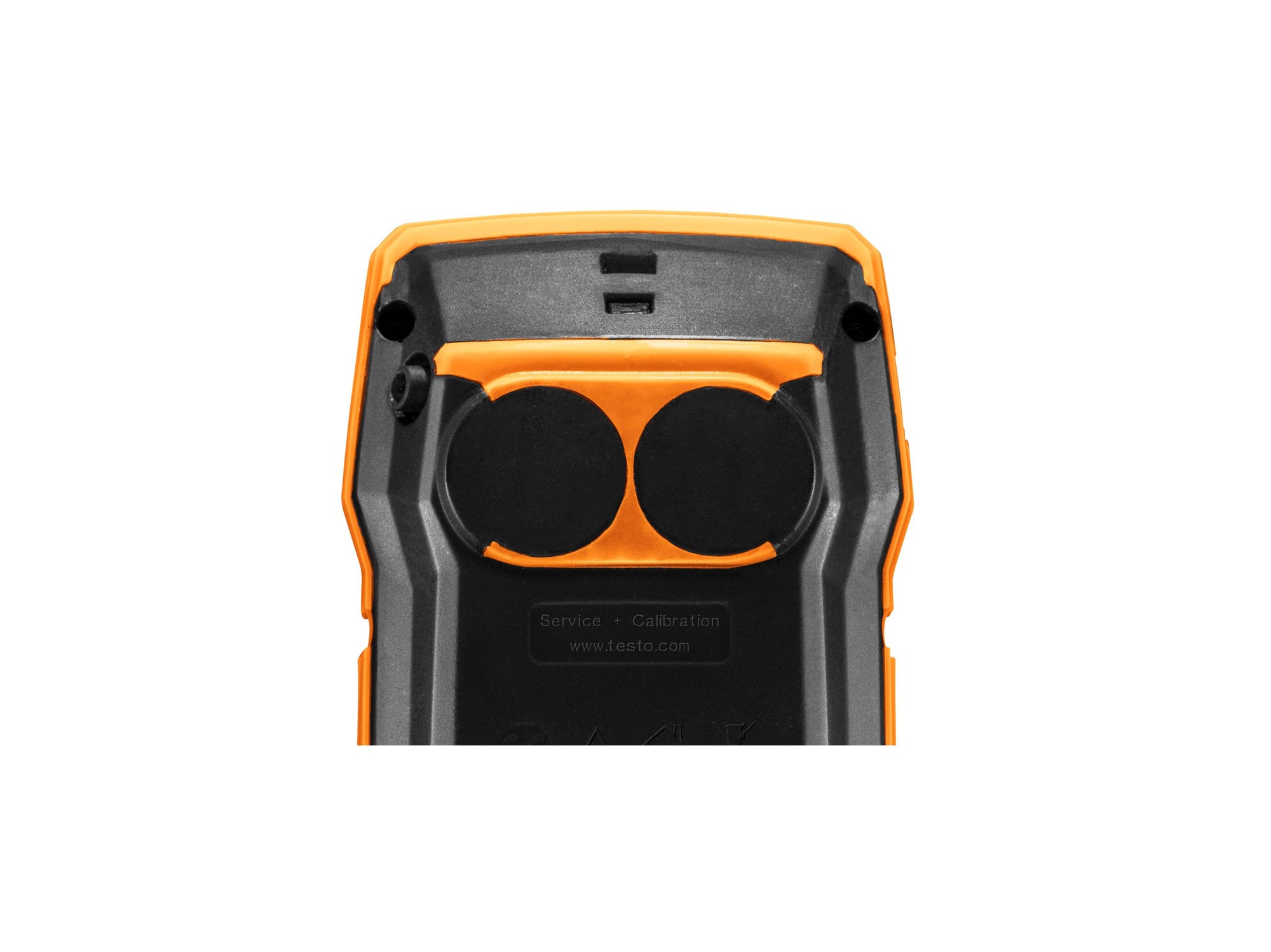

• Integrated, extra-strong magnets for easy fixing during the measuring process

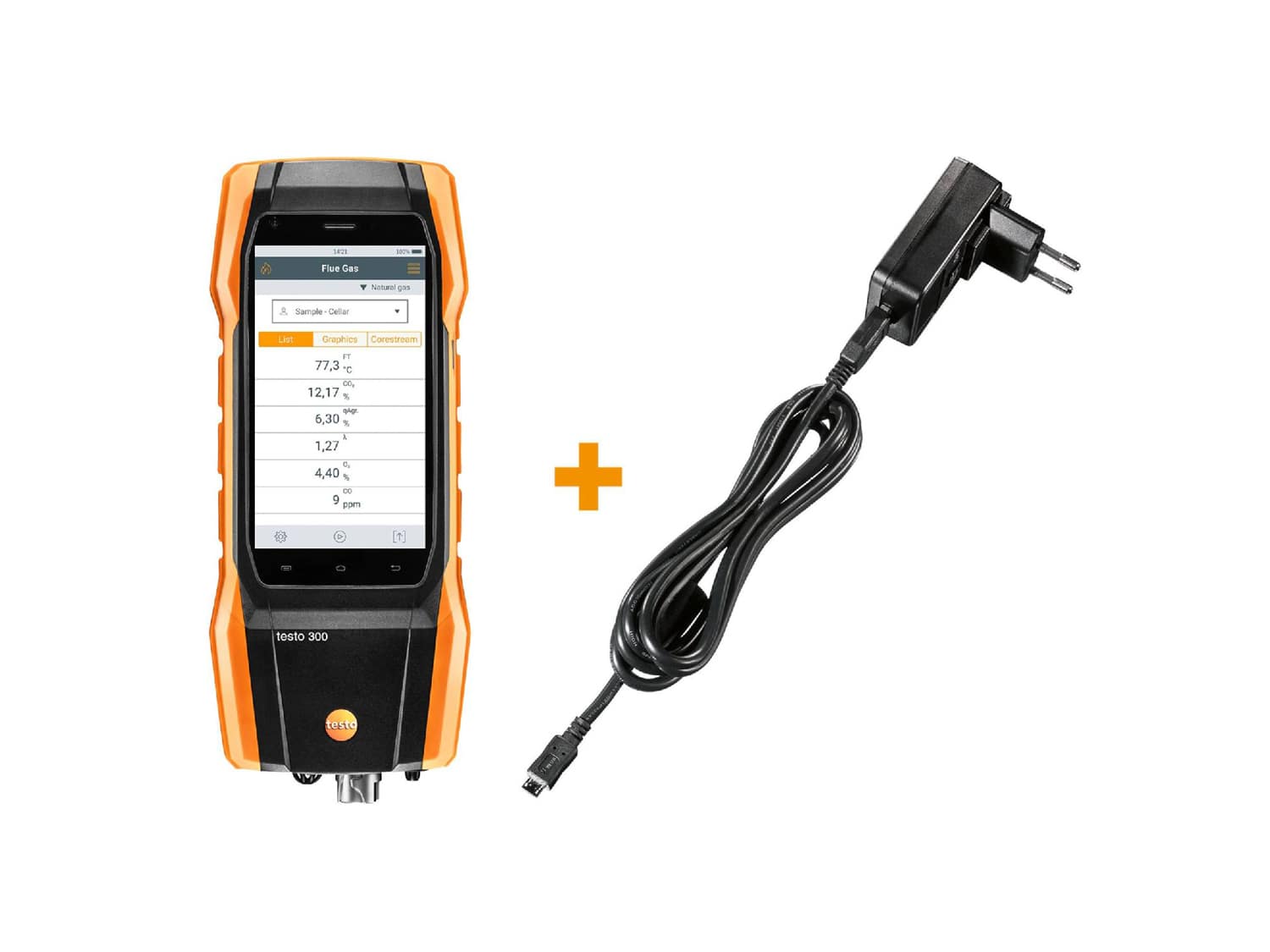

testo 300 Longlife flue gas analyzer with O₂ and CO sensor up to 15,000 ppm, NO sensor - can be retrofitted, USB mains unit.
