testo 310 - Entry-level flue gas analyzer

Order-Nr. 0563 3100
  • Direct O2, CO, flue gas and ambient temperature measurements

  • Integrated measurement menu for flue gas, draft, CO ambient air and pressure

  • Quick sensor zero in only 30 seconds

  • Large, backlit digital display, rechargeable lithium battery with up to 10 hours life

Being a systems mechanic you know only too well how tough things can get when you’re working out in the field. That’s why your measuring tools need to be rugged and reliable. Like the testo 310 flue gas analyzer. Designed especially for use in the field.

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

Accurate readings, rugged design, easy-to-use: That’s what you as a professional want from a measurement tool so that you can carry out quick and reliable checks on heating systems. And that’s exactly what you get with the testo 310 flue gas analyzer.

The testo 310 entry-level flue gas analyzer. For reliable heating system checks

The testo 310 has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.

But that is by no means all. The compact flue gas analyzer has a wide range of useful features that make it the ideal companion for plumbing and heating fitters. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.

To round things off, the readings can also be transferred directly to your testo turbo printer (optional) via the analyzer’s infrared interface, allowing you to print out on site.

What’s included

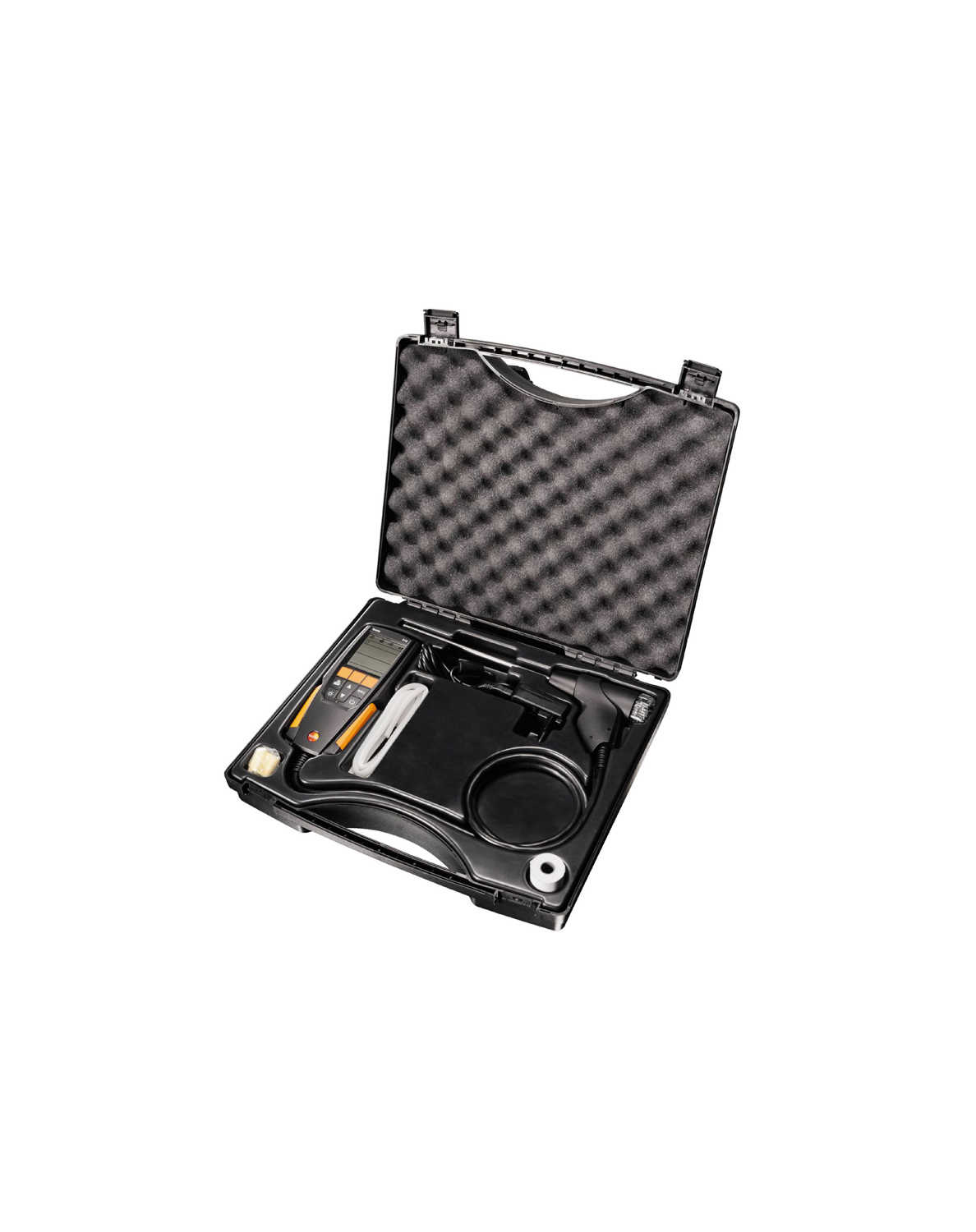

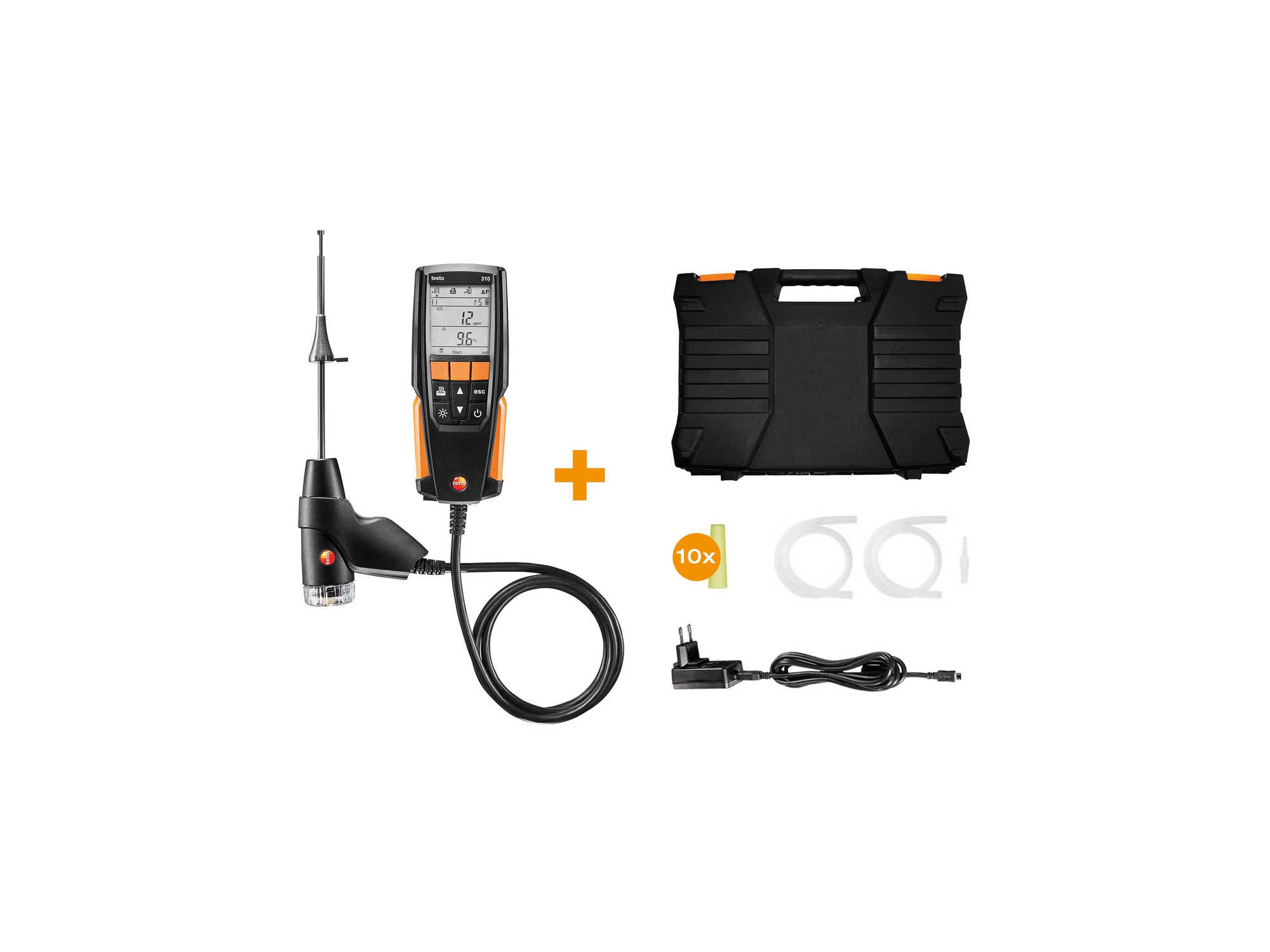

testo 310 flue gas analyzer, rechargeable battery, calibration certificate for O2, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 10x particle filters, case.

Delivery Scope

testo 310 flue gas analyzer, rechargeable battery, calibration certificate for O2, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 5x particle filters, case.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-20 to +100 °C

Accuracy

±1 °C

Resolution

0.1 °C

Reaction time

< 50 s



Temperature - TC Type J (Fe-CuNi)

Measuring range

0 to +400 °C

Accuracy

±1 °C (0 to +100 °C)

±1.5 % of mv (> 100 °C)

Resolution

0.1 °C

Reaction time

< 50 s



General technical data

Dimensions

201 x 83 x 44 mm

Operating temperature

-5 to +45 °C

Display type

LCD

Display function

Backlit 2-line display

Power supply

Battery: 1500 mAh, mains unit 5V/1A

Storage temperature

-20 to +50 °C

Weight

(with probe) Approx. 700 g

 Spare particle filter

Spare particle filter, compact probe; 10 off

Order Number: 0554 0040


 testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle

testo fast printer IRDA

Order Number: 0554 0549


 Spare thermal paper

Spare thermal paper for printer, permanent

Order Number: 0554 0568



USB mains unit incl. cable

Order Number: 0554 1105


testo IR Printer

Testo IR printer

Order Number: 0554 3100
