testo 317-2 - Gas leak detector for new users (DISCONTINUED)

Order-Nr. 0632 3172
  • Display of gas concentration via bar display

  • Self-test of sensor after switching on

  • Pitch of alarm rises along with gas concentration

  • Battery monitoring with optical display

Do you want to test quickly and efficiently whether there is a gas leak on gas pipe connections? Let the reliable testo 317-2 gas leak detector support you in your task. The handy gas detector for new users detects methane and propane.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

Leaky gas pipes not only lead to higher gas consumption, but can also trigger explosions and fires in the worst case scenario. Because leaks are often difficult to detect with the naked eye (for example with smallest hairline cracks), gas measuring technology is useful when it comes to testing gas pipes.

Gas pipe connections can be safely and efficiently tested with the testo 317-2 gas leak detector. The handy gas detector for new users detects two types of gas: methane and propane. The gas concentration is shown via a bar display. In addition, the gas leak detector indicates increasing gas concentrations via an acoustic alarm. The measuring instrument also confirms acoustically that it is ready for measuring.

Delivery Scope

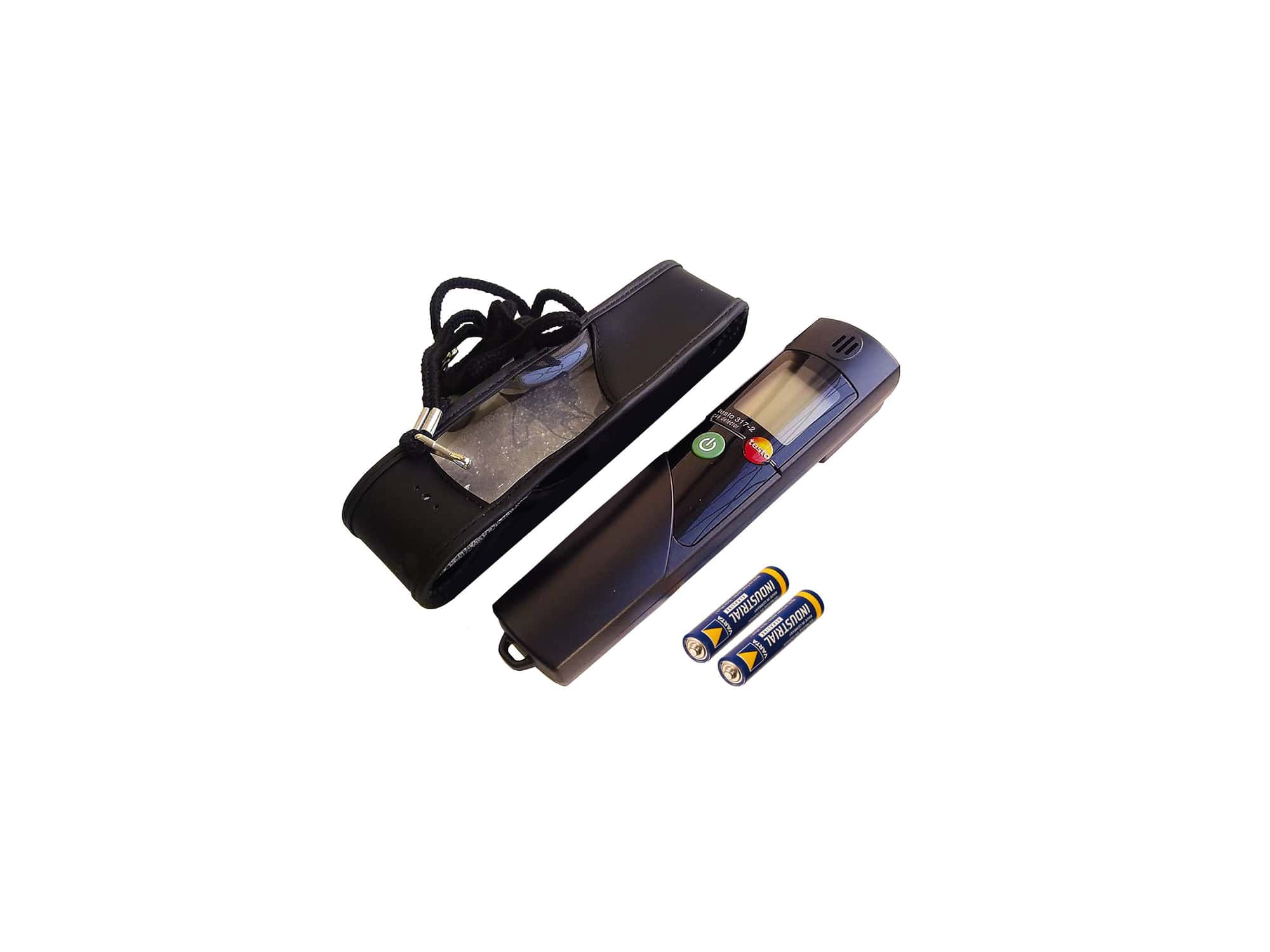

testo 317-2 gas leak detector, including carrying bag with belt clip, wrist strap and battery.

Methane (CH₄)

Measuring range

100 to 20000 ppm

Lower response threshold

100 ppm

1st alarm limit

10000 ppm (20% LEL)



Propane (C₃H₈)

Measuring range

50 to 10000 ppm

Lower response threshold

50 ppm

1st alarm limit

5000 ppm (20% LEL)



General technical data

Reaction time

t90 < 5 s

Operating temperature

-5 to +45 °C

Heat up time

60 s

Battery type

2 batteries type micro AAA 1.5 V (LR03)

Battery life

4 h (LR03)

Display type

8 segment trend display

Storage temperature

-20 to +50 °C

Weight

< 300 g
