testo 405 i - thermal anemometer with smartphone operation

Order-Nr. 0560 1405
  • for measuring volume flow, air velocity and temperature

  • Simple configuration of the dimension and geometry of the duct cross-section for determining the volume flow

  • Convenient for working in ventilation ducts thanks to its telescopic tube, which can be extended up to 400 mm

  • Really convenient to operate thanks to the testo Smart Probes App (e.g. easy viewing of readings, measurement data trend, log function)

With the testo 405i hot wire anemometer, you can measure air velocities, temperatures and volume flows. Via Bluetooth, the readings are transmitted wirelessly straight to the testo Smart Probes App on your smartphone or tablet. You can view the values conveniently and use numerous intelligent features:

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

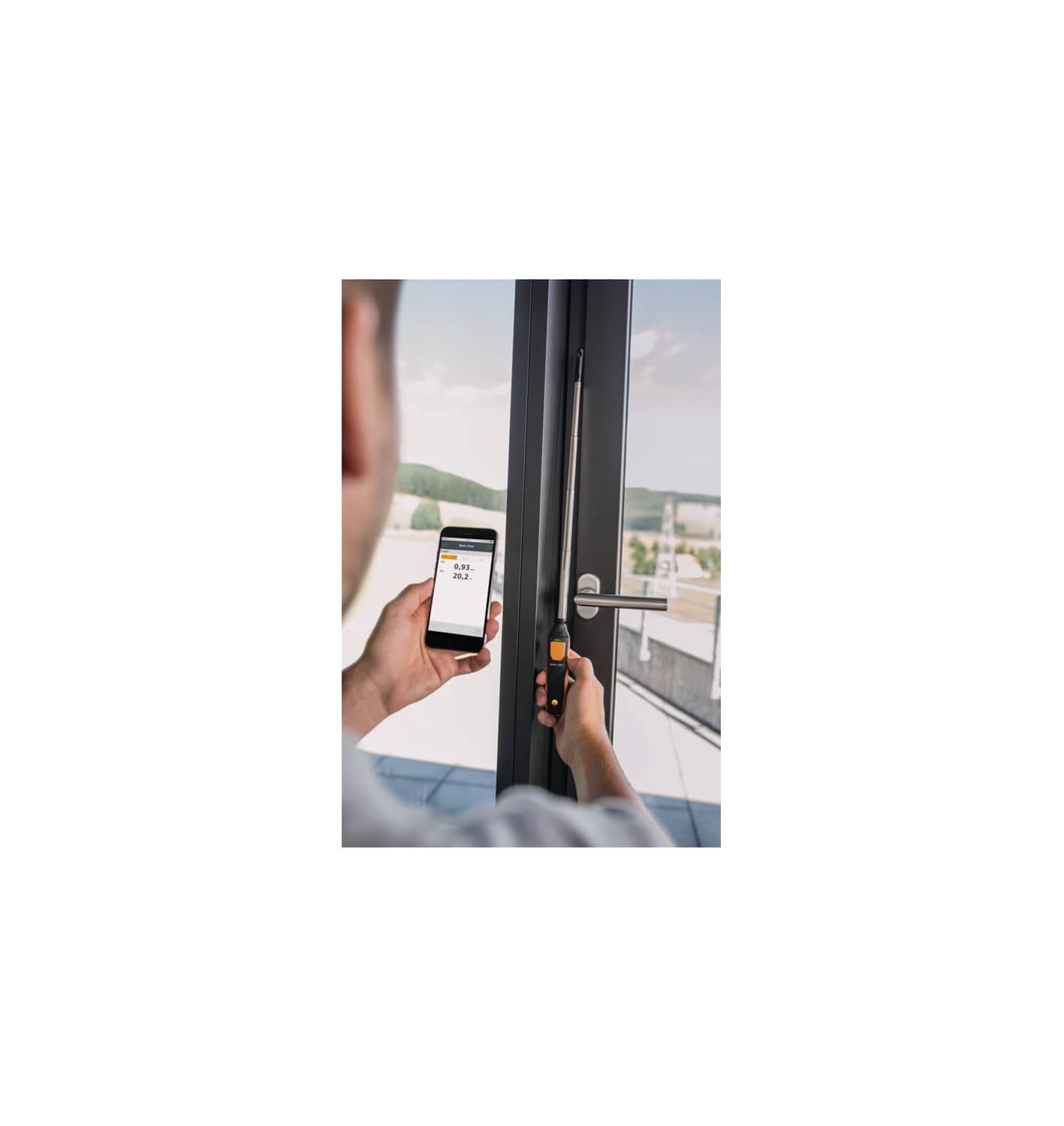

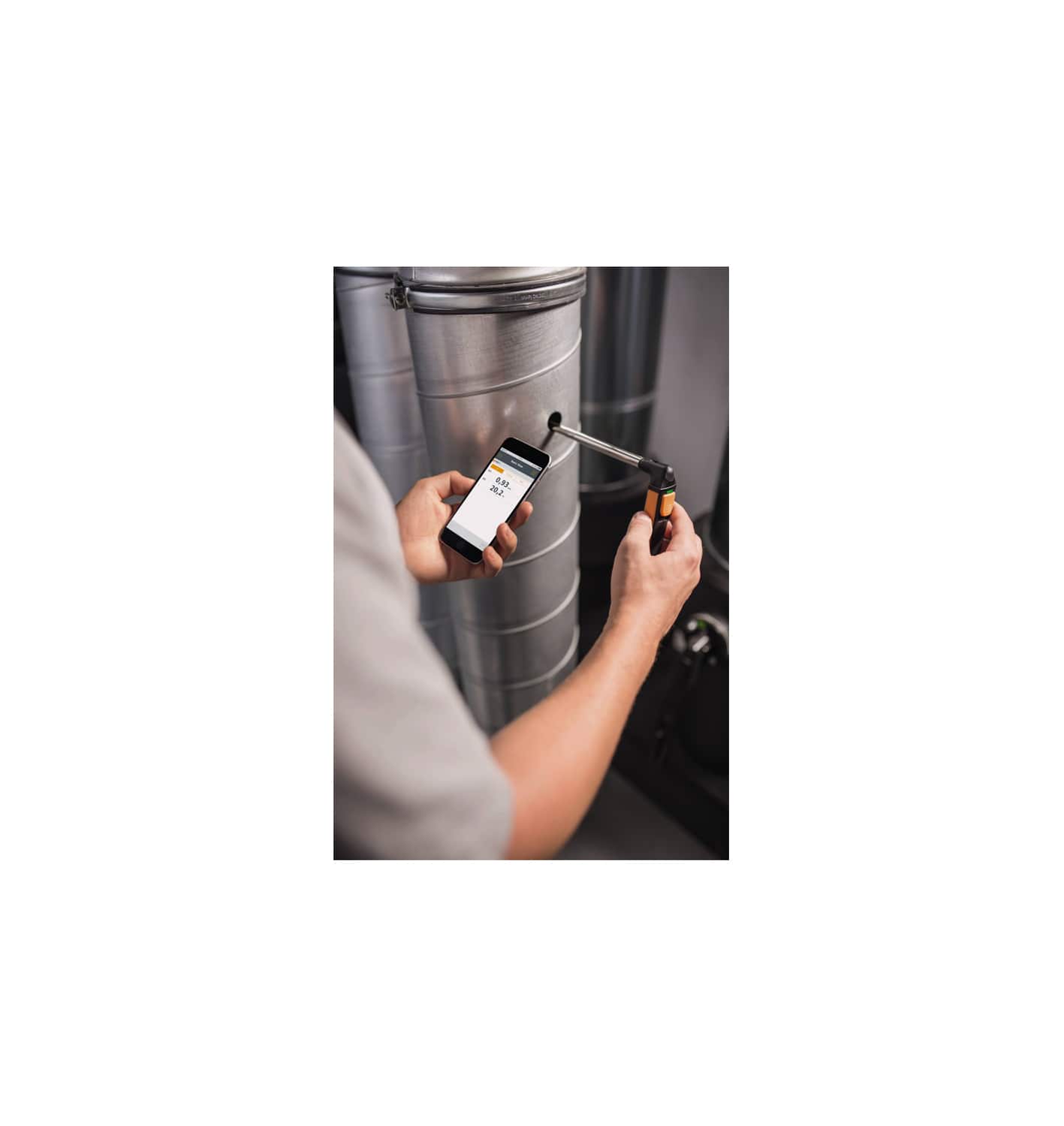

No more surprises: the testo 405i thermal anemometer with smartphone operation from the Testo Smart Probes series is ideal for carrying out measuring tasks in ventilation ducts. It is easy to use the anemometer to determine air velocity, temperature and volume flows. The testo 405i is also suitable for measuring indoor air velocity. Practical when, for example, you want to locate non-airtight windows. Cooling capacities and heating outputs can also be calculated when used in conjunction with the testo 605i thermohygrometer.

Operation independent of measuring location via your smartphone

The testo 405i hot wire anemometer combines professional Testo measuring technology with App-based operation. This means you benefit from numerous additional functions in your day-to-day work. With the testo Smart Probes App, you can view readings conveniently on your smartphone or tablet. You no longer have to spend ages trying to make out the display at poorly accessible points. Volume flow can also be measured easily using the App: following intuitive input of the duct cross-section, the App calculates this completely automatically.

The App opens up other practical options too: it not only displays measurement data, but also evaluates and documents it. It is easy to carry out a timed and multi-point mean calculation with the App. It also displays the measurement data curve at the press of a button. And sends the measurement data logs as PDF or Excel files.

System requirements:

  • iOS 8.3 or later

  • Android 4.3 or later

  • Bluetooth 4.0

Delivery Scope

testo 405i thermal anemometer with smartphone operation, including extendible (400 mm) telescope, batteries and calibration protocol.

Temperature - NTC

Measuring range

-20 to +60 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

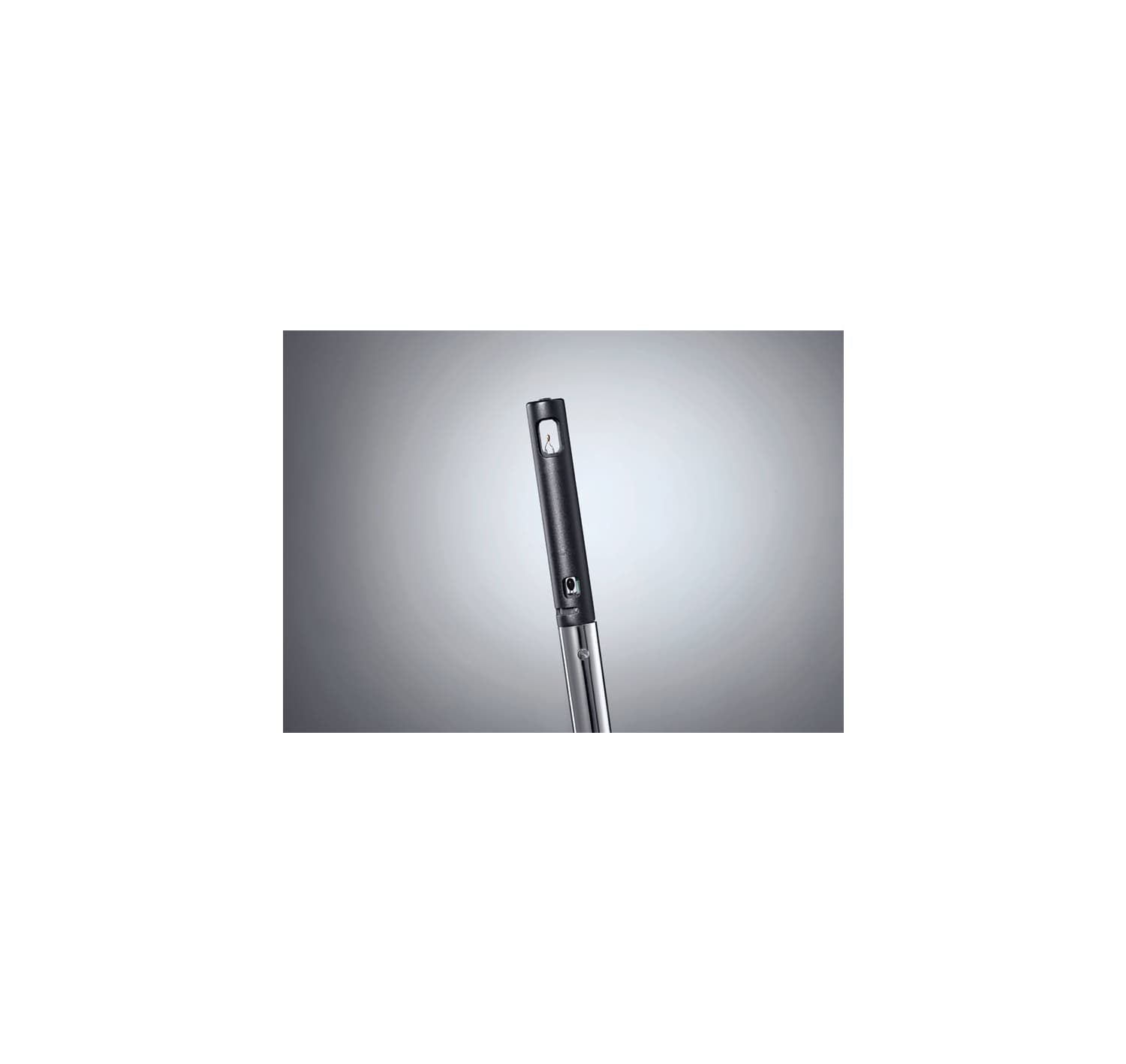

Velocity - Hot wire

Measuring range

0 to 30 m/s

Accuracy

±(0.1 m/s + 5 % of mv) (0 to 2 m/s)

±(0.3 m/s + 5 % of mv) (2 to 15 m/s)

Resolution

0.01 m/s



General technical data

Weight

119.6 g

Dimensions

200 x 30 x 41 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

15 h

Length probe shaft

400 mm

Storage temperature

-20 to +60 °C



Smart Case VAC Set

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

Order Number: 0516 0283


testo HVAC softcase storage case

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Order Number: 0516 0260


Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 1 / 2 / 5 / 10 m/s

Order Number: 0520 0004


Calibration certificate

ISO calibration certificate for flow; calibration at selectable measuring points between 0.5 and 27 m/s

Order Number: 0520 0104


Calibration certificate

DAkkS calibration certificate for flow; calibration at selectable measuring points between 0.1 and 68 m/s

Order Number: 0520 0214
