Product Description

The multifunction measuring instrument enables you to carry out a really wide range of measurements which help you to regulate and test ventilation and air conditioning systems and to assess indoor air quality.

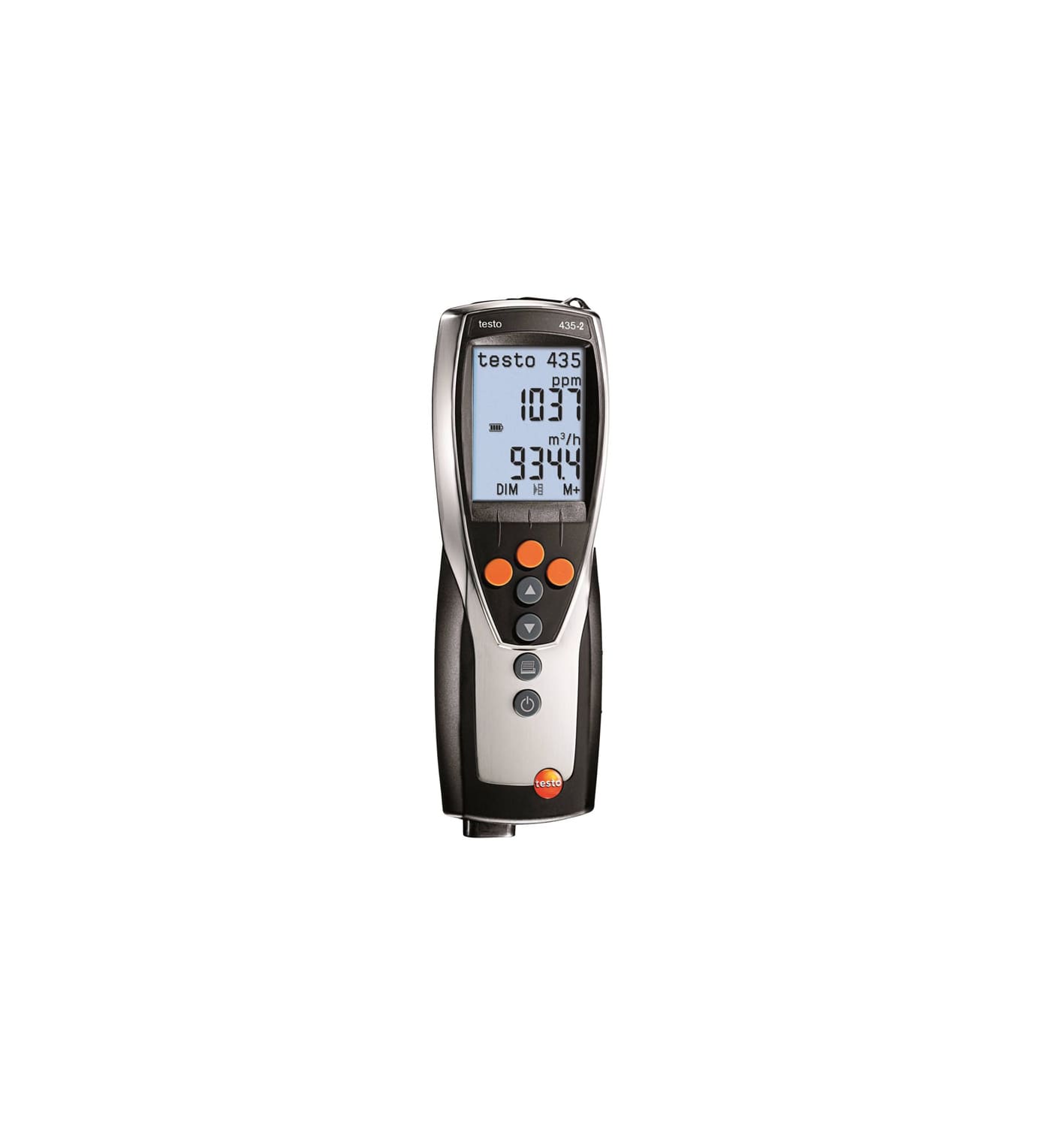

The testo 435-2 multifunction measuring instrument offers these advantages

In general, the testo 435-2 allrounder can handle a multitude of measurements – from air temperature through to lux and including flow, volume flow and humidity. However, only you know which measurements are necessary and which are not when it comes to your own job. And you are therefore also the one who decides how your measuring instrument should be equipped: you have the choice of a really wide variety of optional sensors and probes. In addition, the measuring instrument is not only compatible with attachable probes, but also with radio probes. If you equip the testo 435-2 with the radio module which is available as an option, the measuring instrument will receive values from up to three radio probes over a distance of up to 20 metres where there are no obstructions. This makes easy measurements possible even in inaccessible areas.

Advantage of the set: Delivery includes three probes and accessories

The set provides you with the testo 435-2 climate measuring instrument along with several probes and practical accessories. The 16 mm vane probe with telescope which is part of the set is ideal for use in flow and volume flow measurement in ventilation ducts. The 100 mm vane probe can be used for measurement at ventilation outlets. Combining the probe with a testovent 417 measurement funnel means you can carry out particularly efficient and accurate measurements at plate outlets and ventilation grilles (two testovent 417 measurement funnels included in the set). In addition, the set includes another humidity and temperature probe for measuring indoor air humidity or duct humidity, along with a service case for transporting the equipment and a mains unit.

Top equipment, top user-friendliness

The testo 435-2 multifunction measuring instrument works efficiently, without needing any complicated prior programming:
Probe-dependent menus and selectable user profiles for the standard applications of “duct measurement” and “IAQ measurement” ensure easy handling. The measuring instrument's internal memory records up to 10,000 readings. You can transfer the data really easily to a PC using the USB data cable which is also supplied. The PC software, which is also included in the scope of delivery, is available to you for archiving and documentation of the measurement data and measurement programs (e.g. “duct measurement”). Special measurement protocols present the data from duct, long-term and turbulence measurements to your customer. An added bonus is that you can produce a report printout directly on site if necessary – via the testo fast printer available as an option.
The large, illuminated display ensures easy reading of measuring values, even if visibility is poor. In addition, dew point distance, min., max. and mean values are displayed. The robust housing provides reliable protection against impacts for the testo 435-2 measuring instrument.

Delivery Scope

• testo 435-2 multifunction measuring instrument, including reading memory, PC software, USB cable, calibration protocol and batteries (0563 4352)

• Vane with telescope, Ø 16 mm (0635 9535)

• Vane, Ø 100 mm (0635 9435)

• testovent 417 funnel set: measurement funnel (Ø 200 mm) for plate outlets and measurement funnel (330 x 330 mm) for ventilation grilles (0563 4170)

• Humidity/temperature probe (0636 9735)

• 5 V DC 500 mA mains adapter (0554 0447)

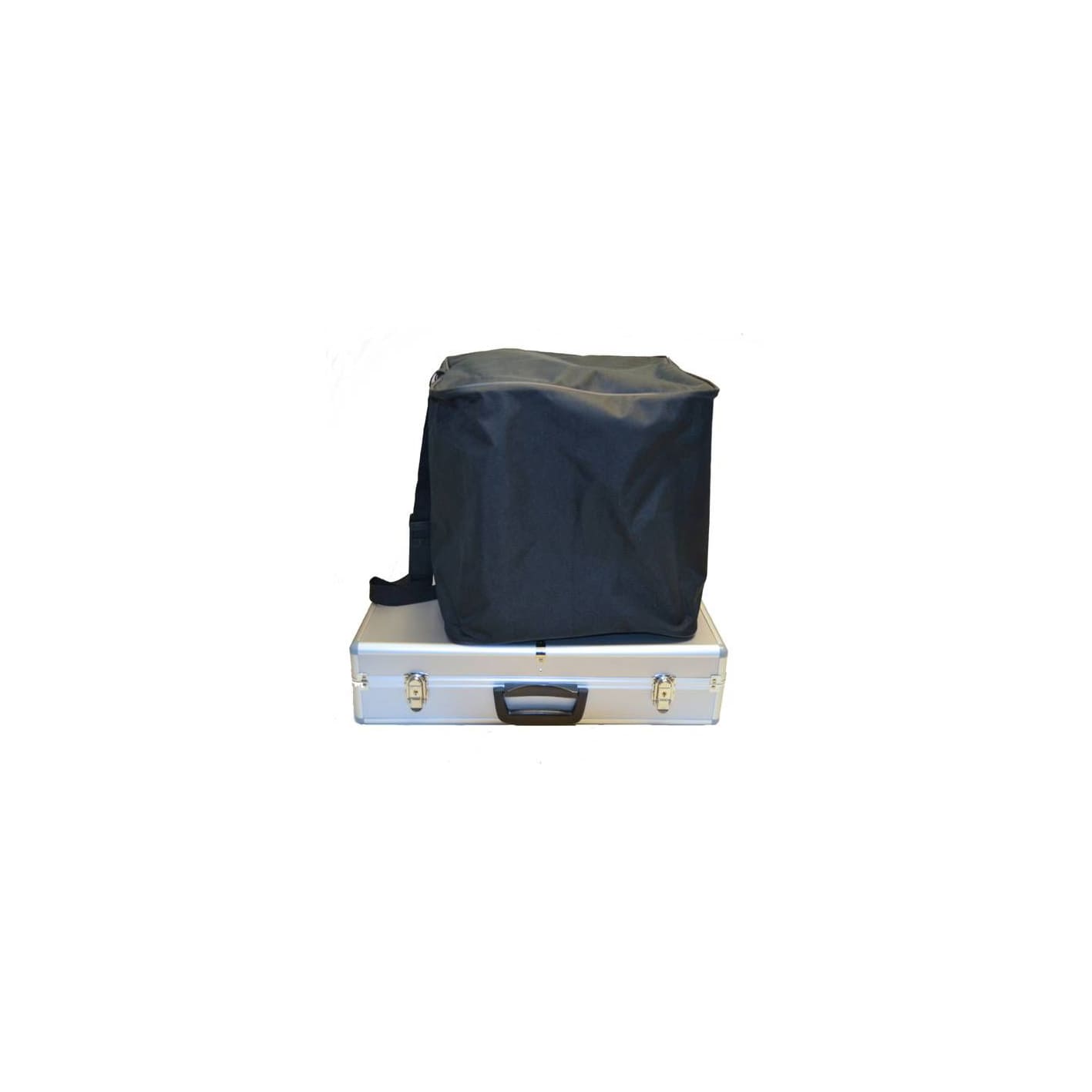

• Service case (0516 0435)

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz

Order Number: 0554 0447

Connection hose, silicone - max. load capacity up to 700 hPa (mbar)

Order Number: 0554 0440

Connection hose silicone-free for differential pressure measurement, length 5 m, load up to maximum 700 hPa, (mbar)

Order Number: 0554 0453

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Order Number: 0554 0188

Service case for measuring instrument, probe and accessories, dimensions 454 x 319 x 135 mm

Order Number: 0516 1035

Service case for measuring instrument, probe and accessories, dimensions 518 x 398 x 155 mm

Order Number: 0516 1435

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 1 / 2 / 5 / 10 m/s

Order Number: 0520 0004

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 5 / 10 / 15 / 20 m/s

Order Number: 0520 0034

ISO humidity calibration certificate; with 2 measuring points: 11.3 and 75.3 %RH at +25°C

Order Number: 0520 0006

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range; accuracy > 0.6 % of f.v.

Order Number: 0520 0005

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range, accuracy 0.1 to 0.6 % of f.v.

Order Number: 0520 0025

ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0071

ISO luminous intensity calibration certificate; with 5 measuring points: 0 / 500 / 1,000 / 2,000 / 4,000 lx

Order Number: 0520 0010

ISO CO2 calibration certificate; with 3 measuring points: 0 / 1,000 / 5,000 ppm

Order Number: 0520 0033

testo fast printer IRDA

Order Number: 0554 0549
