Product Description

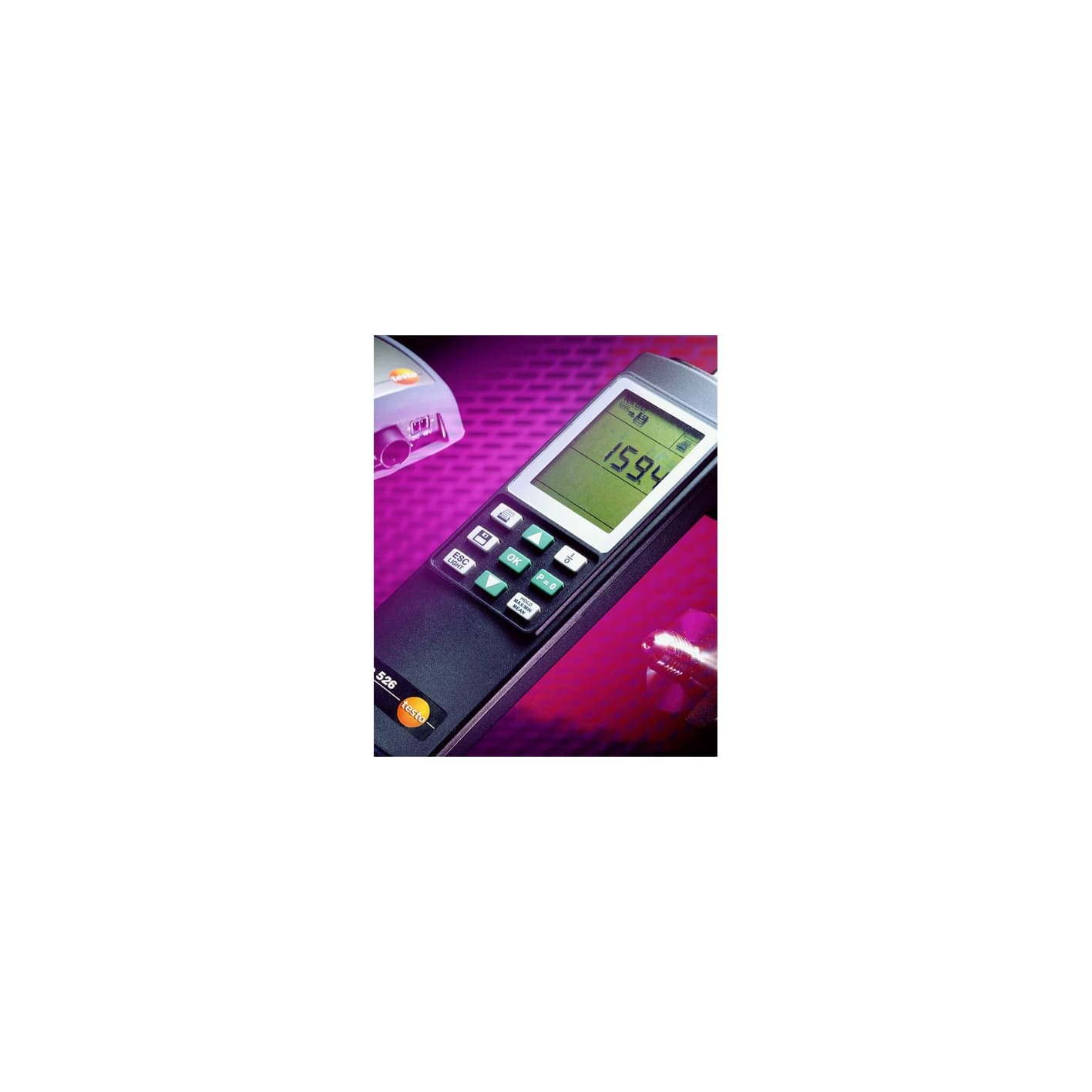

The testo 526-1 is a high-precision differential pressure measuring instrument with an internal sensor and a measuring range from 0 to +2,000 hPa. It can calculate the differential pressure to an accuracy of ± 0.1% of final value.

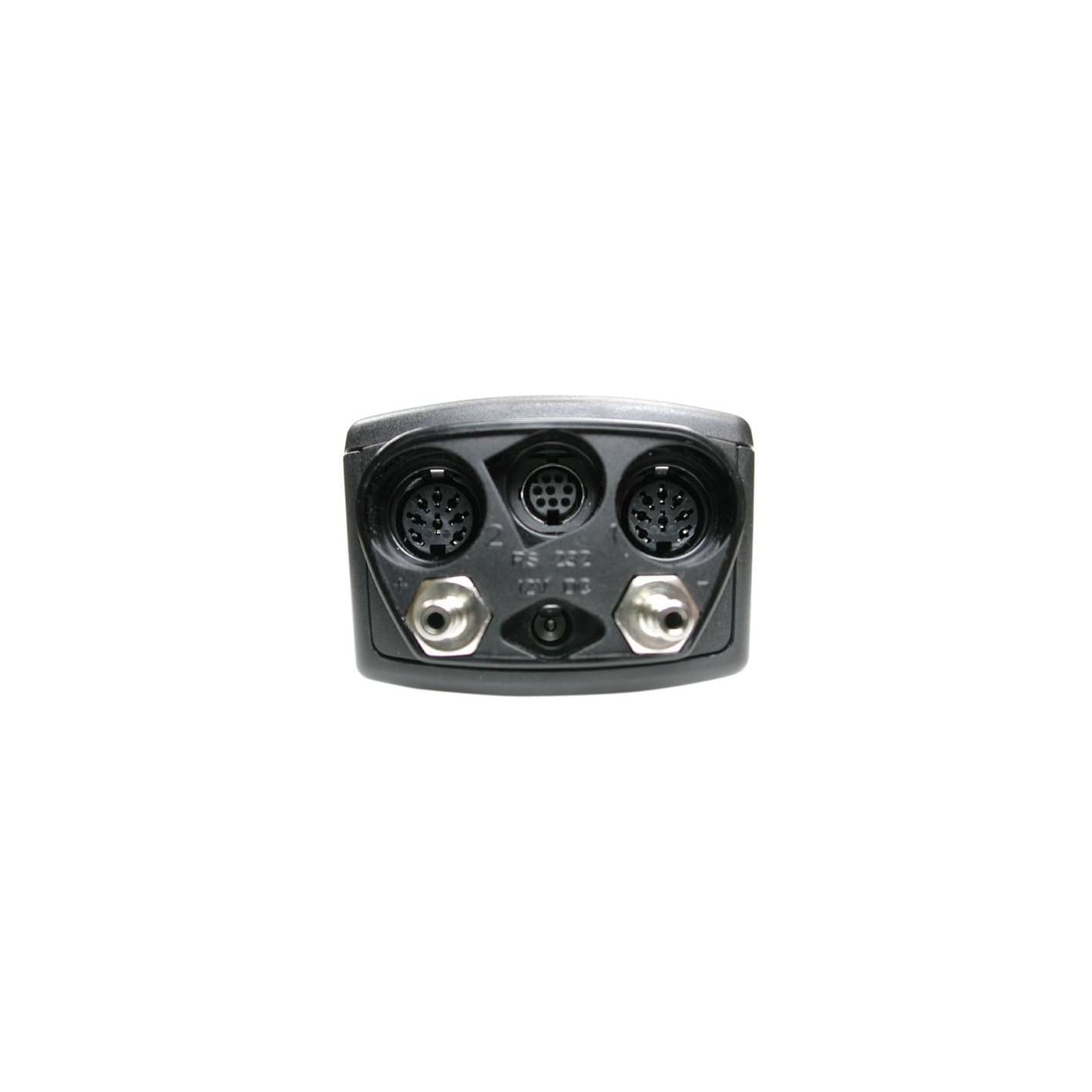

Additional probe inputs for versatile measurements with the differential pressure measuring instrument

Up to two probes (optional) can also be attached via freely assignable probe inputs. You have the choice of a comprehensive range of probes for this:

• Differential pressure probes

• Absolute pressure probes

• Relative pressure probes

• Temperature probes, such as surface, immersion and penetration probes

Further advantages of the testo 526-1 high-precision differential pressure measuring instrument

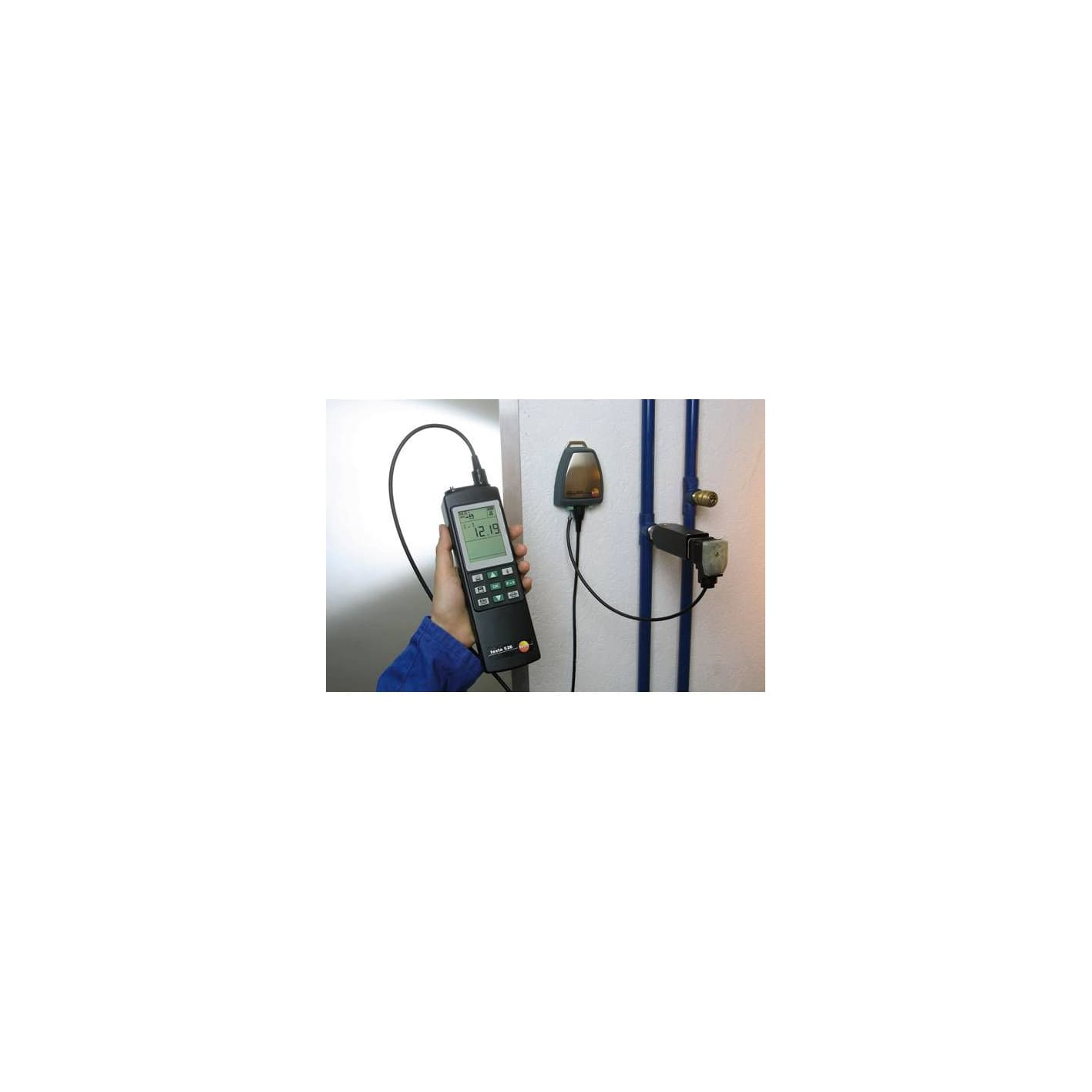

The integrated test menu in the testo 526 enables seamless recording, especially for tightness testing on containers. To document the pressure test, there is an option enabling the measurement data to be processed and archived using software and/or printed out via the testo fast printer directly on site (software and printer available to order separately).

The memory can record up to 25,000 readings. These are stored under their individually designated measuring locations (max. 99 measuring locations) which means they can be quickly found again. Measurement data can be saved individually or as a series of measurements. The measuring rate (0.04 seconds, 1 second to 24 hours) and the number of values to be stored can be freely selected.

Delivery Scope

testo 526-1 high-precision differential pressure measuring instrument, including quick-release connections, calibration protocol and batteries.

Connection cable, 2.5 m long, for pressure probes 0638 1741/1841/1941/2041/2141

Order Number: 0409 0202

Connection cable

Order Number: 0430 0143

Cable, 5 m long, connects probe with plug-in head to measuring instrument

Order Number: 0430 0145

Connection hose, silicone - max. load capacity up to 700 hPa (mbar)

Order Number: 0554 0440

Desktop mains unit with international connection option

Order Number: 0554 1143

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C

Order Number: 0520 0001

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: 0 / +150 / +300 °C

Order Number: 0520 0021

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range, accuracy 0.1 to 0.6 % of f.v.

Order Number: 0520 0025

ISO calibration certificate/Pressure

Order Number: 0520 0035

DAkkS calibration certificate/Pressure

Order Number: 0520 0205

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0211

DAkkS pressure calibration certificate; with 9 measuring points distributed over the measuring range, accuracy 0.1 to 0.6 % of f.v.

Order Number: 0520 0215

DAkkS pressure calibration certificate; with 5 measuring points distributed over the measuring range, accuracy > 0.6 % of f.v.

Order Number: 0520 0225

DAkkS temperature calibration certificate for surface probes; with 3 measuring points: +100 / +200 / +300 °C

Order Number: 0520 0271

ISO calibration certificate/Pressure

Order Number: 0520 0405

ISO calibration certificate/electrical

Order Number: 0520 1000

ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0071

testo fast printer IRDA

Order Number: 0554 0549

Spare thermal paper for printer, permanent

Order Number: 0554 0568

RS232 cable

Order Number: 0409 0178

TopSafe (protection case)

Order Number: 0516 0446

External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz

Order Number: 0554 0610
