testo 735-2 - Multichannel thermometer

Order-Nr. 0563 7352
  • Up to 3 connectable sensors and a further 3 temperature sensors which can be connected wirelessly to the meter

  • Super-size memory for up to 10 000 readings; PC software and USB cable included

  • Extremely accurate sensor (optional) for a system accuracy of up to 0.05 °C

  • Waterproof (IP65) and HACCP / EN 13485 compliant

Calibration of static temperature sensors, temperature measurements in the cosmetics industry, chemical laboratories, the field of cooling and refrigeration technology, the food industry: the testo 735-2 multichannel thermometer can master virtually any application thanks to a wide range of optionally available sensors, a super-size memory and wireless data transfer.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

The testo 735-2 digital multichannel thermometer is used in a wide variety of different fields. This hardly comes as a surprise really considering it can measure the surface, air and core temperature of a whole range of media with an accuracy up to 0.05 °C using high-precision Pt immersion/penetration sensors. And because it can be wirelessly connected to up to another three external temperature sensors, whose readings are then transmitted to the display, what you end up getting is not a 3 but a 6-channel meter!

Wide selection of sensors, precise measuring results on up to 6 channels

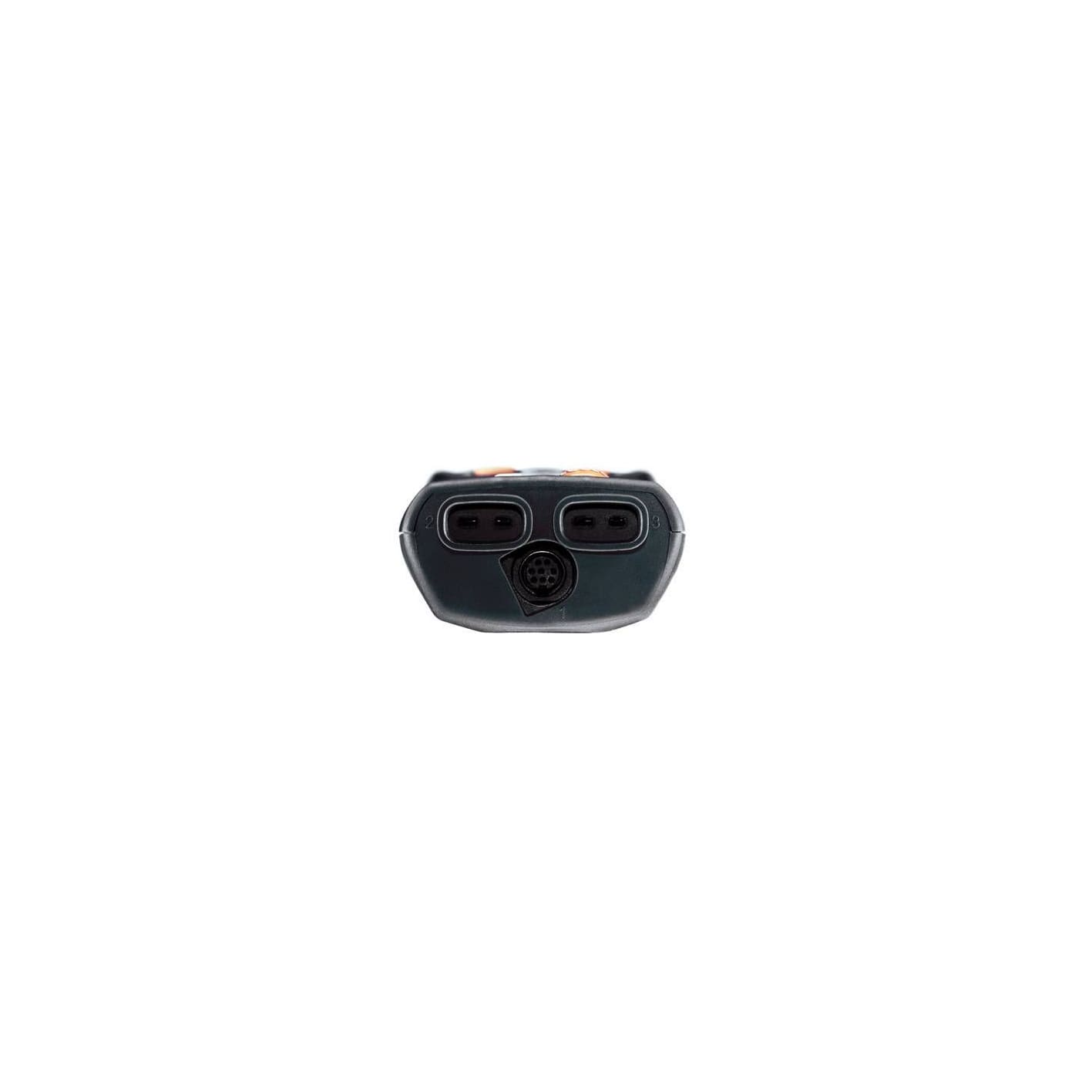

The testo 735-2 multichannel thermometer has a sensor connecting point for a highly-accurate Pt100 sensor and two connecting points for quick type K, T, J and S thermoelement sensors. All in all 6 sensors, 3 of them wireless temperature sensors, can be connected to the meter and shown on the display. There is a wide selection of immersion, penetration and surface sensors available to help you carry out quick and accurate temperature measurements on a variety of different surfaces and media.

The high-precision, optionally available Pt100 immersion/penetration sensor has a system accuracy of 0.05 °C and a resolution of 0.001 °C. The testo 735-2 temperature meter is therefore ideal for use as working standard.

Measure, save and analyze temperature measurements – for different user profiles

The testo 735-2 digital multichannel thermometer not only allows you to carry out quick and precise temperature measurements, it also allows you to save up to 10 000 readings, create as many as 99 measuring sites and provide multiple user profiles.

In addition, you can save individual protocols or measurement series for the each measuring site and select from a memory cycle of between 0.5 seconds and 24 hours. The PC software in the package allows you to save and analyze the measuring data as a table or graphic. And last but by no means least, the optionally available, wirelessly connected testo fast printer can be used to provide you and your customers with on-the-spot data print outs.

The testo 735-2 multichannel thermometer isn’t just precise, it’s practical too

The testo 735-2 can provide you with Delta T, minimum, maximum and mean values and present them on a backlit display which makes them easier to read in dark environments and poor lighting conditions. Furthermore, it has an acoustic alarm that is triggered when thresholds are exceeded and is not only waterproof and IP65 rated but also EN 13485 certified, HACCP compliant and HACCP International certified too.

Delivery Scope

testo 735-2 multichannel thermometer (3-channel), PC software, USB data cable, calibration protocol, batteries. PLEASE NOTE: a sensor (not in scope of supply) is required to use the meter.

Temperature - Pt100

Measuring range

-200 to +800 °C

Accuracy

±0.2 °C (-100 to +199.9 °C)

±0.2 % of mv (Remaining Range)

Resolution

0.05 °C



Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1370 °C

Accuracy

±0.3 °C (-60 to +60 °C)

±(0.2 °C + 0.3 % of mv) (Remaining Range)

Resolution

0.1 °C



Temperature - TC Type T (Cu-CuNi)

Measuring range

-200 to +400 °C

Accuracy

±0.3 °C (-60 to +60 °C)

±(0.2 °C + 0.3 % of mv) (Remaining Range)

Resolution

0.1 °C



Temperature - TC Type J (Fe-CuNi)

Measuring range

-200 to +1000 °C

Accuracy

±0.3 °C (-60 to +60 °C)

±(0.2 °C + 0.3 % of mv) (Remaining Range)

Resolution

0.1 °C



Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

0 to +1760 °C

Accuracy

±1 °C (0 to +1760 °C)

Resolution

1 °C



General technical data

Dimensions

220 x 74 x 46 mm

Operating temperature

-20 to +50 °C

Product-/housing material

ABS / TPE / Metal

Protection class

IP65

Standards

EN 13485

Battery type

Alkali manganese, mignon, type AA

Storage temperature

-30 to +70 °C

Weight

428 g

Plug-in Power supply

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz

Order Number: 0554 0447


Handle for attachable measurement tips

Handle for attachable measurement tips

Order Number: 0409 1092


Silicone heat paste

Silicone heat paste (14g), Tmax = +260°C

Order Number: 0554 0004


Extension cable

Extension cable, 5m, for thermocouple probe Type K

Order Number: 0554 0592


testo 0516 1035 case

Service case for measuring instrument, probe and accessories, dimensions 454 x 319 x 135 mm

Order Number: 0516 1035


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -18 / 0 / +60 °C

Order Number: 0520 0001


Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: 0 / +150 / +300 °C

Order Number: 0520 0021


No picture available

4-point adjustment

Order Number: 0520 0142


Calibration certificate

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0211


No picture available

4-point adjustment

Order Number: 0520 0241


Calibration certificate

DAkkS temperature calibration certificate for surface probes; with 3 measuring points: +100 / +200 / +300 °C

Order Number: 0520 0271


Calibration certificate

ISO temperature calibration certificate for surface probes; with 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0071


External fast charger

External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz

Order Number: 0554 0610


testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle

testo fast printer IRDA

Order Number: 0554 0549


Spare thermal paper

Spare thermal paper for printer, permanent

Order Number: 0554 0568


Radio Module for measuring instrument

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Order Number: 0554 0188
