testo 830-T1 - Infrared thermometer

Order-Nr. 0560 8311
  • Transmitter with selectable signal outputs: analog output, pulse output, 2 switching outputs

  • Interchangeable fitting: probe can be removed under pressure (enabling versatile use at multiple measuring points)

  • Flexible mounting with measuring block, pipe clamp or as a measurement fitting

  • Easy operation with a variety of options (signal outputs, physical unit, etc.)

Monitor your compressed air consumption: the testo 6447 compressed air meter is your ideal instrument for measuring compressed air in large-diameter pipes (DN65-250). The measurement helps you with leak detection, consumption-based allocation and, finally, with cost reduction. Thanks to the interchangeable fitting, the probe can also be removed under pressure.

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

The testo 830-T1 IR thermometer with laser measurement spot marker and 10:1 optics is suitable for non-contact surface temperature measurements in trade and industry.

Non-contact measurement of the surface temperature is accurate and fast with the testo 830-T1 infrared thermometer (2 measurements a second). To summarise the IR thermometer offers the following advantages:

The speed of the testo 830-T1 IR thermometer is impressive: it can take two measurements a second. This means you can undertake bigger measuring tasks fast and efficiently.

The infrared thermometer emission level can be individually set. This allows you to adjust it precisely to the material of the surface being measured to achieve the best possible measurement results. For untreated surfaces with a low emission level, we recommend using an emission tape (optional) which makes the IR measurement significantly easier.

  • High resolution processor for utmost accuracy (resolution 0.1 °C)

  • 10:1 optics for precise measurements even at medium distances

  • IR thermometer with 1 point laser measurement spot marker to target the measuring point

  • Visual and acoustic alarm if limit value exceeded

  • Min./max. value display and hold function (to record a measured value)

  • Convenient one-handed operation thanks to the ergonomic gun-style design

  • Clear, illuminated digital display

Delivery Scope

Testo 830-T1 infrared thermometer, including batteries and calibration certificate.

Temperature - Infrared

Measuring range

-30 to +400 °C

Accuracy

±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C)

±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies)



Measuring rate

0.5 s

Infrared resolution

0.1 °C



General technical data

Weight

200 g

Dimensions

190 x 75 x 38 mm

Operating temperature

-20 to +50 °C

Product-/housing material

ABS

Battery type

9V block battery

Battery life

15 h

Storage temperature

-40 to +70 °C

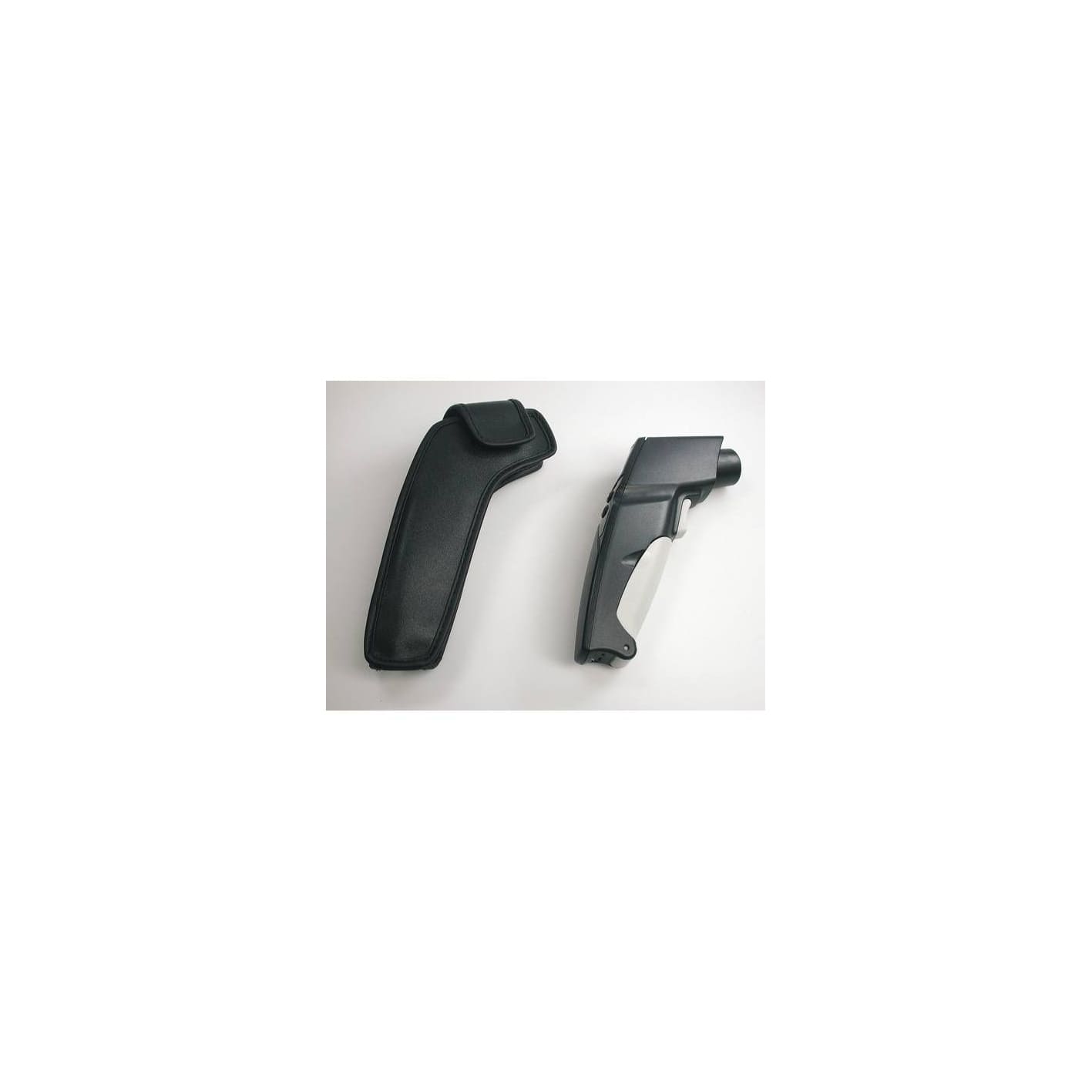

Leather pouch

Leather case to protect measuring instrument, including belt holder

Order Number: 0516 8302


Adhesive tape, e.g. for reflective surfaces

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051


Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002
