testo 875-2i kit - Thermal imager testo 875-2i with 2 lenses and accessories

Order-Nr. 0563 0875 V3
  • testo 875-2i professional thermal imaging camera: thermal sensitivity < 50 mK, built-in digital camera with power LEDs, optional moisture measurements possible

  • 9° x 7° telelens for the precise tracking of objects included in set

  • Extensive range of accessories included: rugged case, additional battery, quick charger, SD card, shoulder strap, lens cloth and much, much more

  • All the accessories you need just an arm’s length away

Get your testo 875-2i professional thermal imaging camera and telelens set now and the accessories you need are only an arm’s length away!

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

Get your practical testo 875-2i thermography set including a 9° x 7° telelens and a wide range of accessories now to make sure that you always have your professional equipment with you when and where you need it!

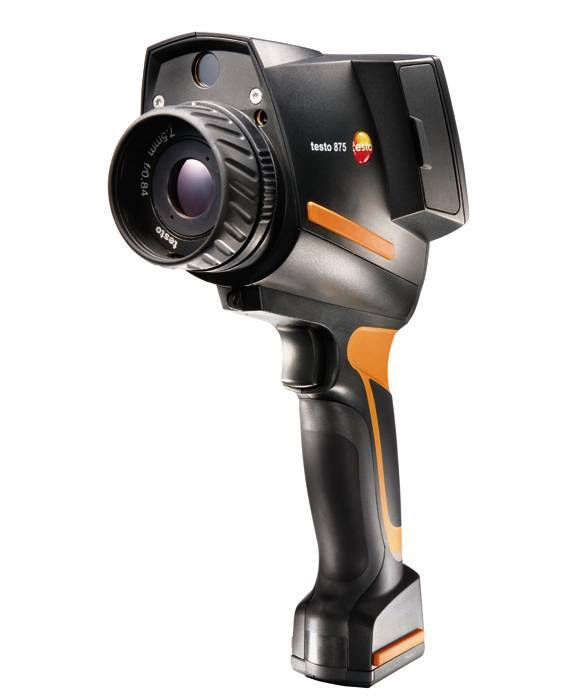

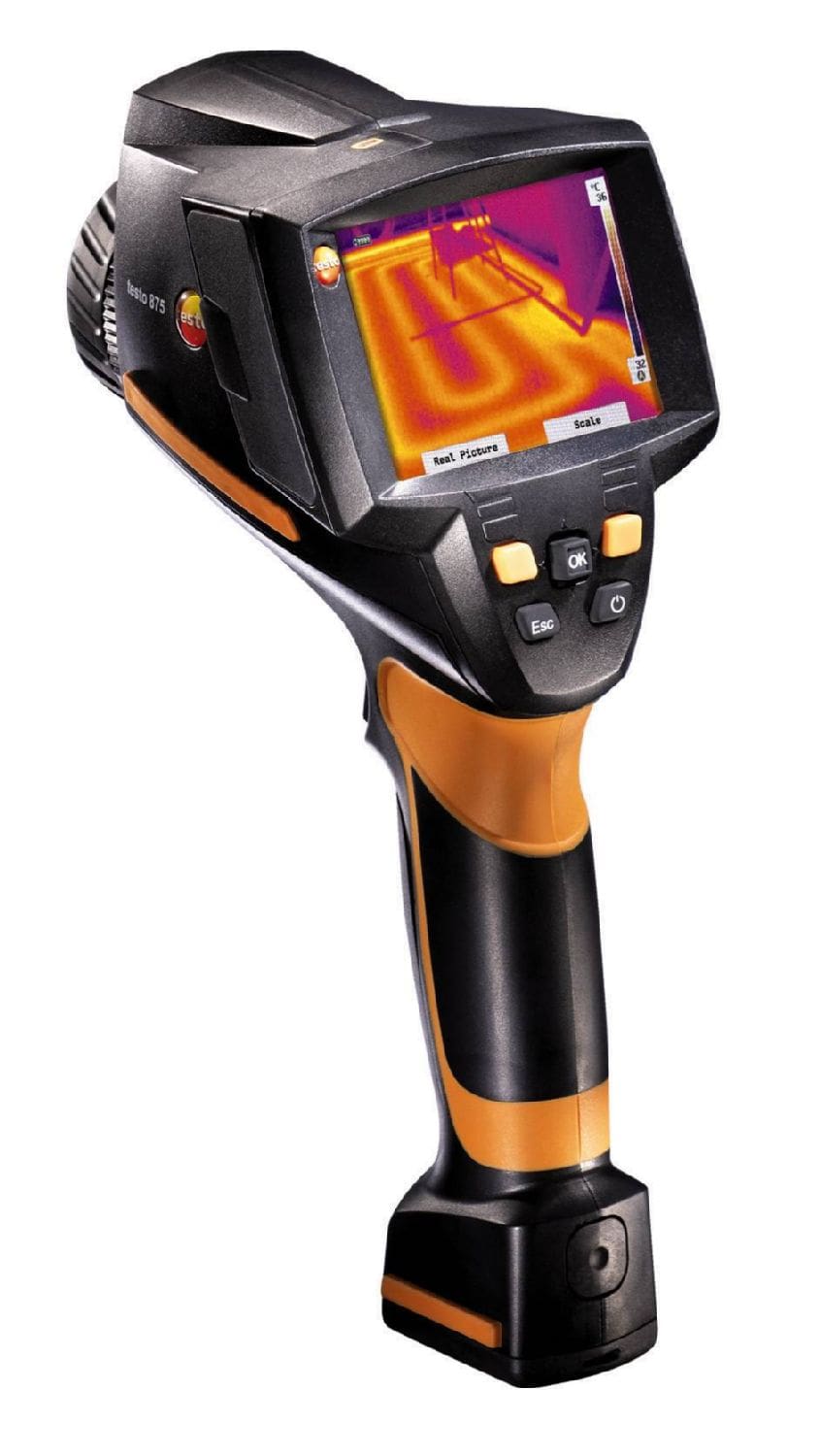

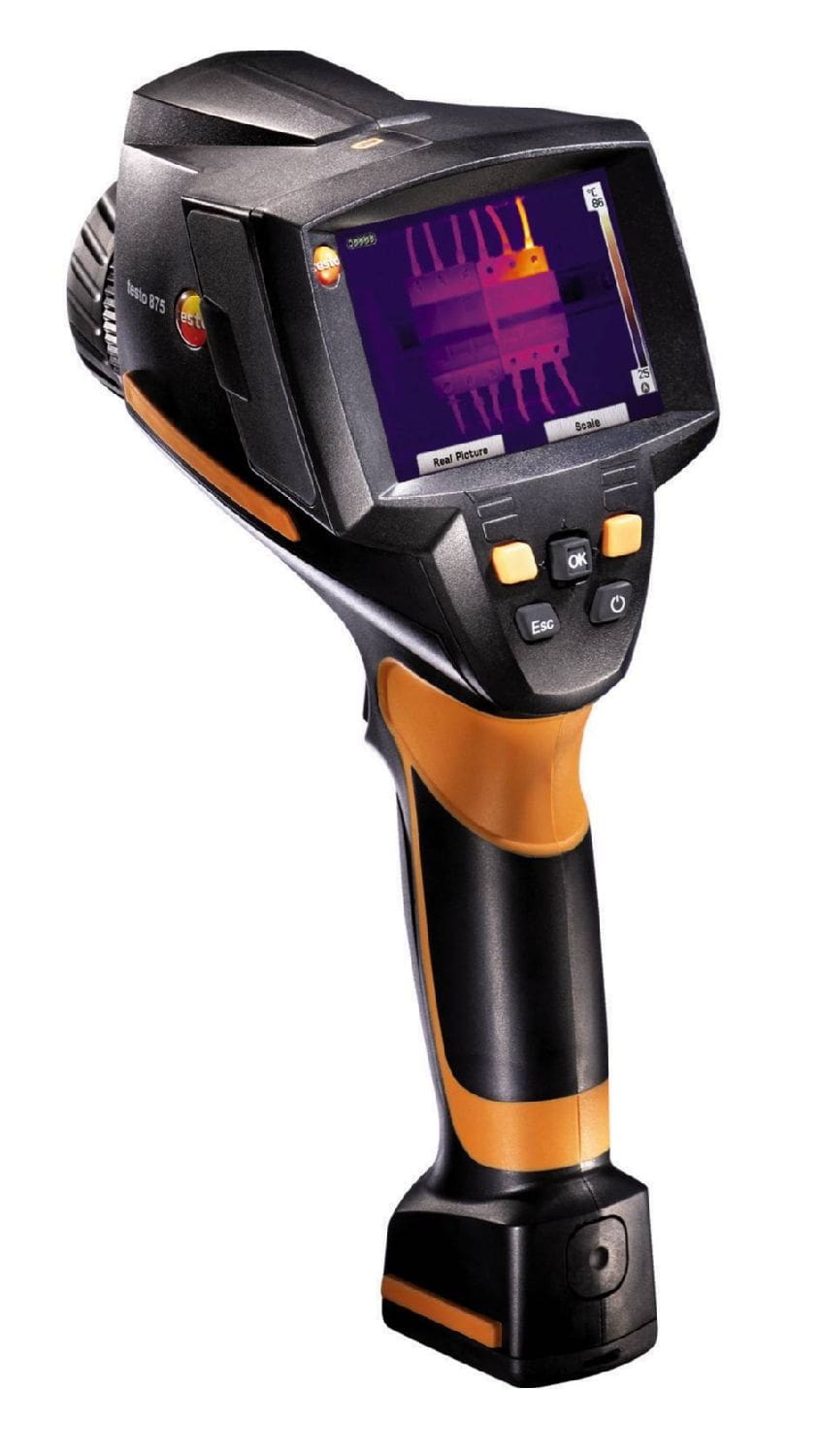

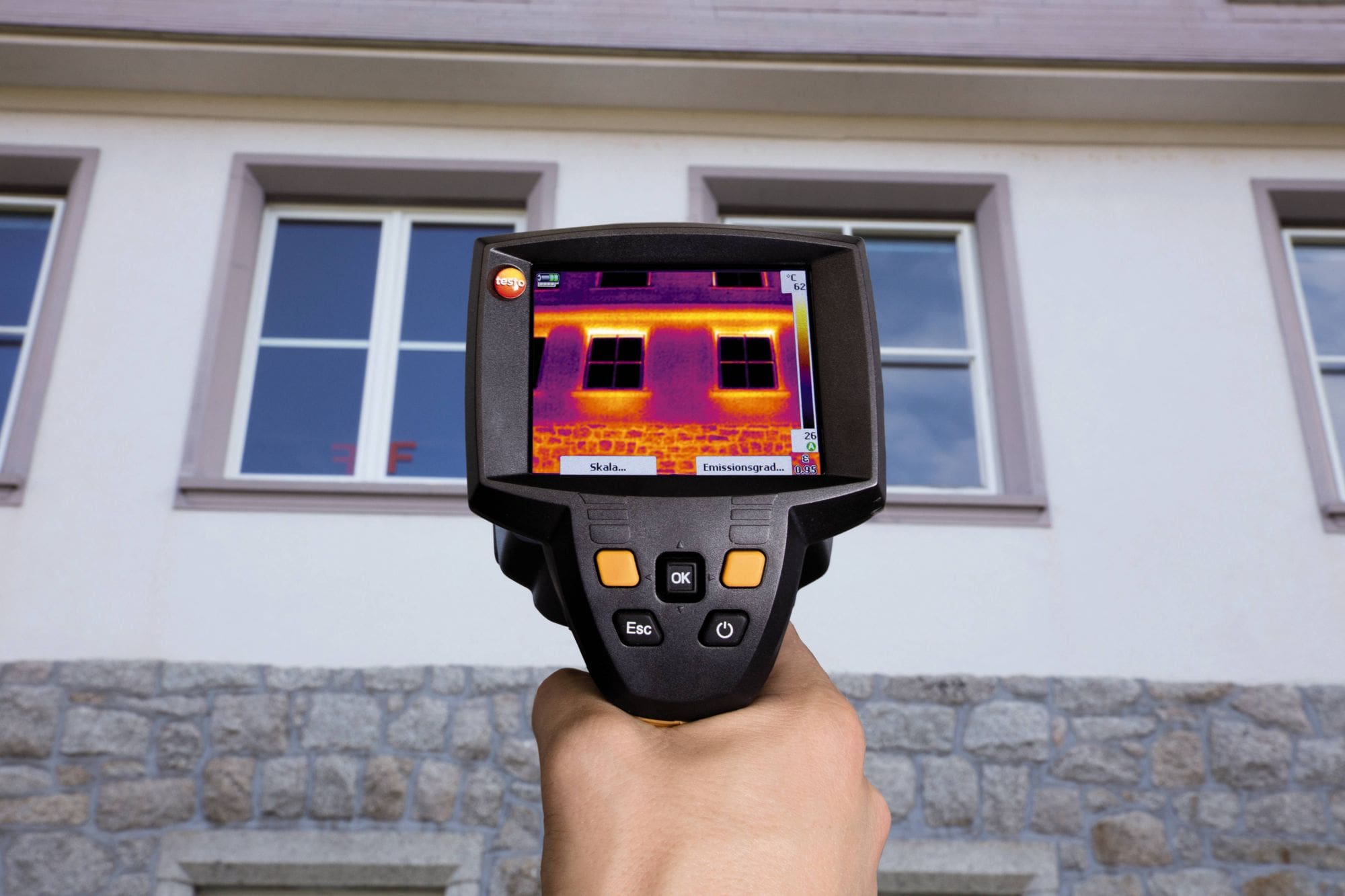

The testo 875-2i thermal imaging camera is a trusty partner for a wide range of thermography applications. It can be used in industry to carry out non-destructive checks on different materials and components in order to expose any weak points which could otherwise cause major problems or breakdowns, or constitute a fire hazard. The testo 875-2i can also be used in building thermography to locate leaks in the roof or walls and windows. This helps your customers to save energy and save on fuel bills and also helps them to decide what type of renovation work they may need to carry out.

testo 875-2i thermography kit – technical features

testo 875-2i thermal imaging camera:

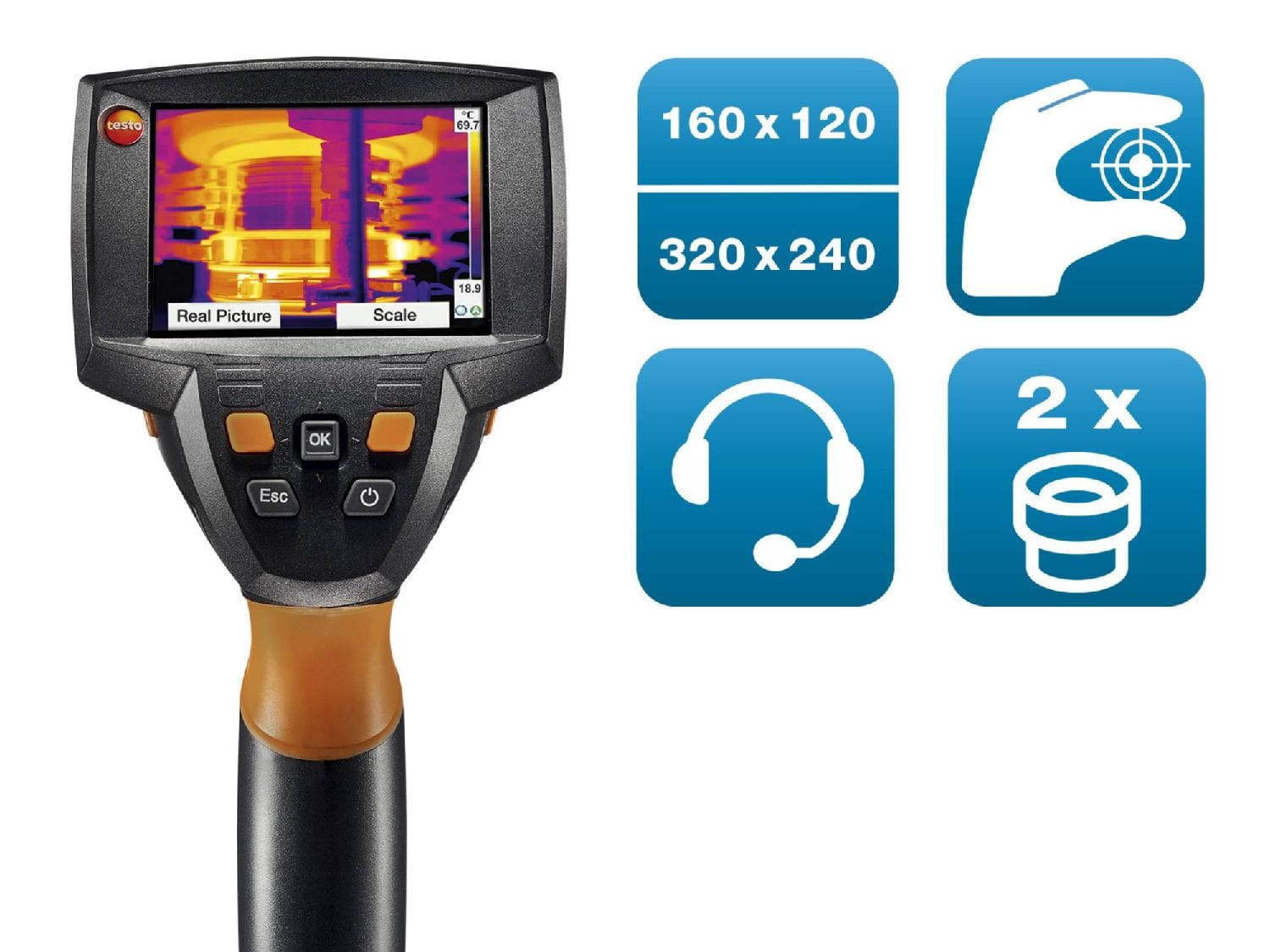

  • Resolution and image quality: detector size 160 x 120 pixels = 19 200 temperature measuring points, SuperResolution technology enhances image quality to 320 x 240 pixels

  • Thermal sensitivity: < 50 mK

  • Built-in digital camera with power LEDs: real time recording parallel to each thermal image – built-in power LEDs guarantee optimal illumination in dark areas

  • Automatic hot and cold spot tracking

  • Solar mode: enter and save sunlight value for each thermal image

  • Special measuring mode to determine where the risk of mold is especially high by entering the surrounding temperature and relative humidity, which you have previously measured using your testo 625 thermohygrometer for example. The testo 875-2i measures the surface temperature, calculates the moisture value and presents the results as a moisture image on the display

  • Optional: moisture measurements with additional wireless moisture sensors possible

  • Optional: Measuring range can be extended for high temperatures up to 550°C

  • Interchangeable lens

  • Voice annotations via headset

  • Intuitive, easy operation

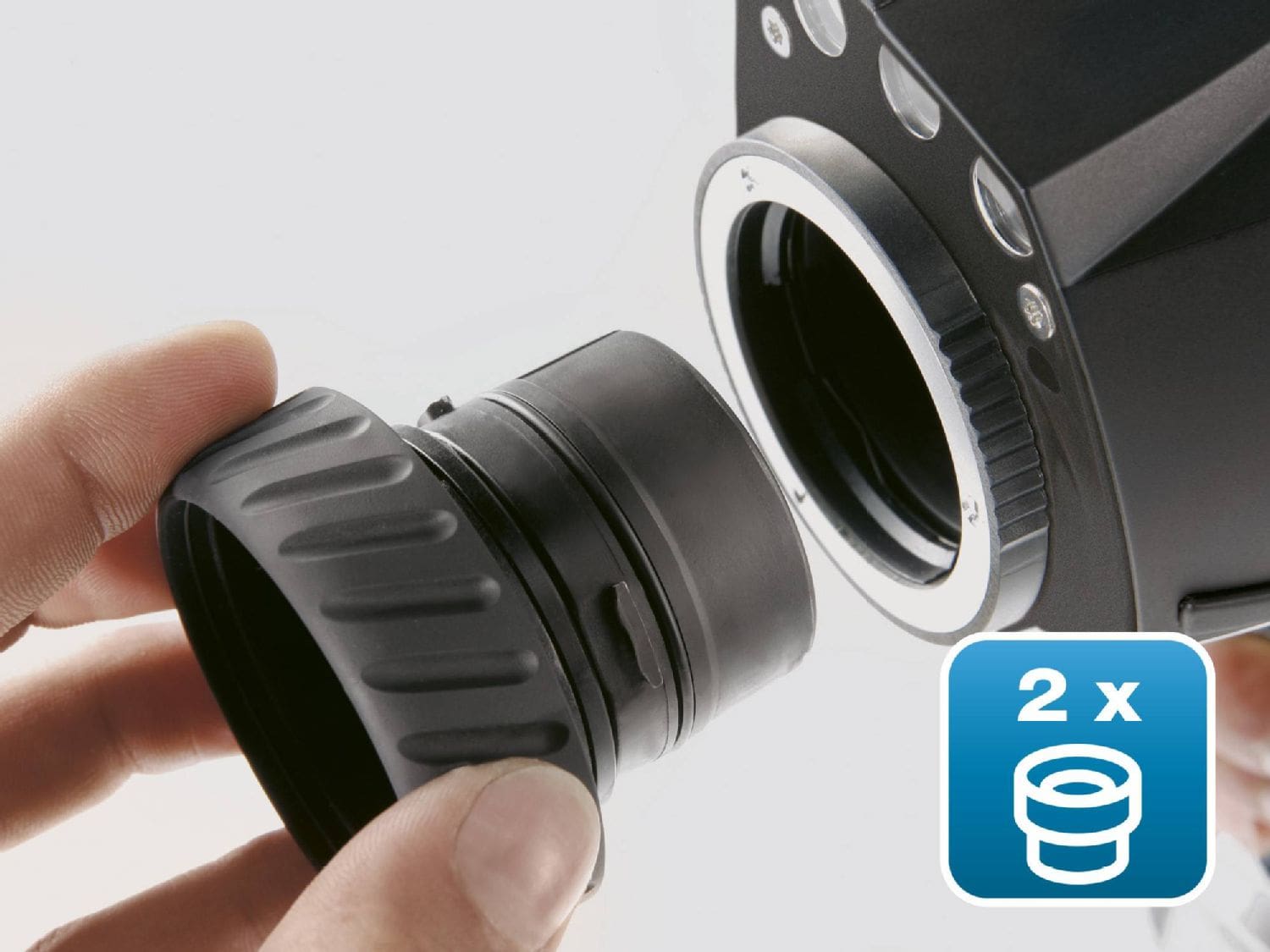

9° x 7° telelens:
  • Telelens part of testo 875-2i set (in addition to standard lens)

  • Allows you to measure distant objects

Delivery Scope

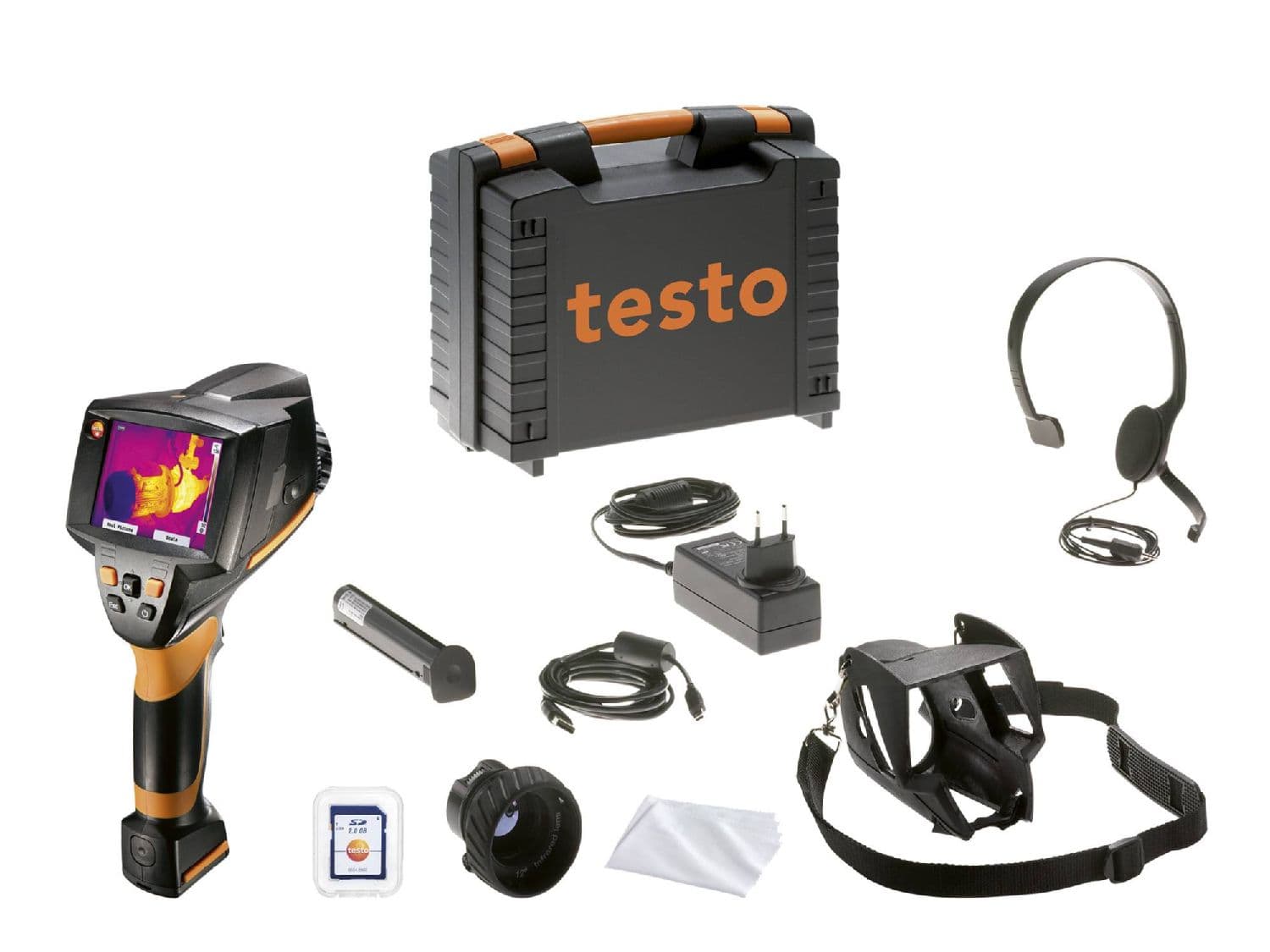

The set comprises a testo 875-2i thermal imaging camera with integrated SuperResolution, a 9° x 7° telelens and the following accessories:

  • Robust case

  • Pro software IRSoft (free download)

  • Soft case

  • Shoulder strap for your thermal camera

  • SD memory card

  • USB cable for data transfer to PC

  • Lens cloth

  • Power adaptor

  • Li-Ion battery

  • Adaptor for tripod mount

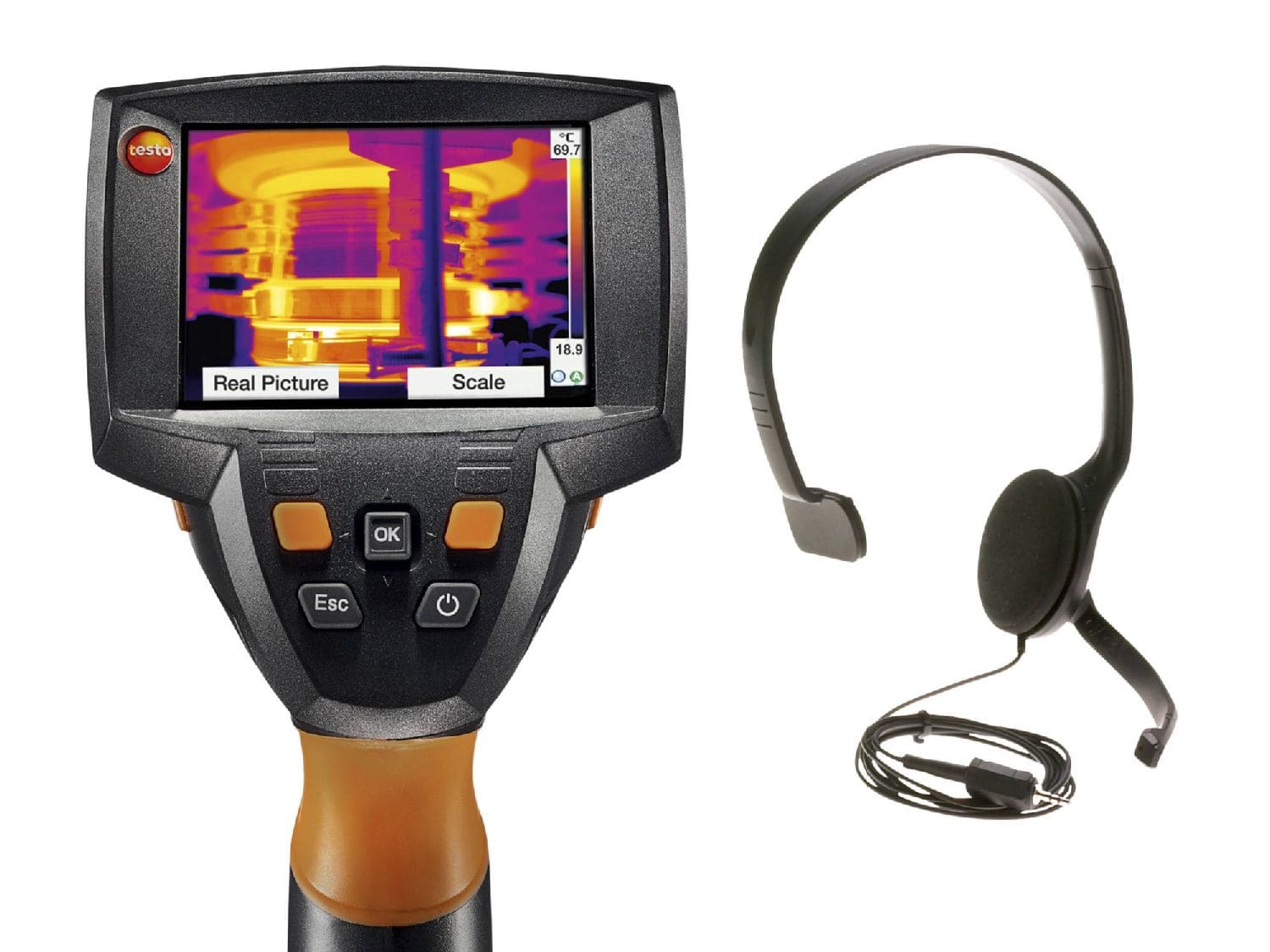

  • Headset for voice annotations

  • Lens protective glass

  • Additional battery

  • Quick charger

Infrared image output

Focus

manual

Infrared resolution

160 x 120 pixels

Image refresh rate

33 Hz

SuperResolution (IFOV)

2.1 mrad (Tele: 0.6 mrad)

SuperResolution (Pixel)

320 x 240 pixels

Geometric resolution (IFOV)

3.3 mrad (Tele: 1.0 mrad)

Minimum focus distance

0.1 m (Tele: 0.5 m)

Field of view

32° x 23°

Thermal sensitivity

˂ 50 mK at +30 °C



Image output visual

Minimum focus distance

0.4 m

Image size

640 x 480 pixels



Image presentation

Display option

IR image only; real image only; IR image / real image

Number of colours

10

Colours

10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

Display type

3.5" LCD with 320 x 240 pixels

Video output

USB 2.0



Measurement

Reflected temperature

manual

Measuring range

-30 to +100°C; 0 to +350 °C (switchable)

High temperature measuring

+350 to +550 °C

Accuracy

±2 °C, ±2 % of m.v. (±3 °C of m.v. at -30 to -22 °C)

Accuracy high temperature

±3 % of m.v. at +350 to +550 °C



Measuring function

Surface moisture distribution

Included

Humidity measurement

Optional

Solar mode – manual

Included

Analysis function

Up to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area)



Imager equipment

Digital camera

Included

Video streaming

Included

Voice recording

wired headset

Laser

Included

Exchangeable lenses

9° x 7°

Standard lens

32° x 23°

Power-LED

Included



Imager storage

File format image

.bmt; export option in .bmp; .jpg; .png; .csv; .xls

Storage device

SD card 2GB (approx. 2.000 images)



Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4 h

Charging options

In instrument / charger (optional)

Mains operation

yes

Additional storage battery

Li ion rechargeable battery exchangeable on site



Ambient Condition

Storage temperature

-30 °C; 60 °C

Operating temperature

-15 °C; 40 °C

Housing protection class

IP54

Vibration

2G

Air humidity

20 to 80 %RH non-condensing



Physical specification

Weight

900 g

Dimensions

152 x 108 x 262

Tripod mounting

M6

Housing

ABS



PC software

System requirements

Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0



Standards, tests, warrenty

EU-/EG-guidelines

2004/108/EG

Desktop charging station for two rechargeable batteries

Desktop charging station for two rechargeable batteries for the optimization of charging time

Order Number: 0554 8801


Additional lithium ion rechargeable battery

Additional lithium ion rechargeable battery for thermal imager

Order Number: 0554 8802


Special Germanium protective glass

Special Germanium protective glass for thermal imager

Order Number: 0554 8805


Adhesive tape, e.g. for reflective surfaces

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051


PC Software testo IRSoft

Free download: PC software testo IRSoft

Order Number: 0501 8809


ISO calibration certificate

ISO calibration certificate for thermal imager with measuring points at 0 / +25 / +50 °C

Order Number: 0520 0489


ISO calibration certificate

ISO calibration certificate for thermal imager with measuring points at 0 / +100 / +200 °C

Order Number: 0520 0490


ISO calibration certificate

ISO calibration certificate for thermal imager with selectable measuring points in the range -18 to +250 °C

Order Number: 0520 0495
