Product Description

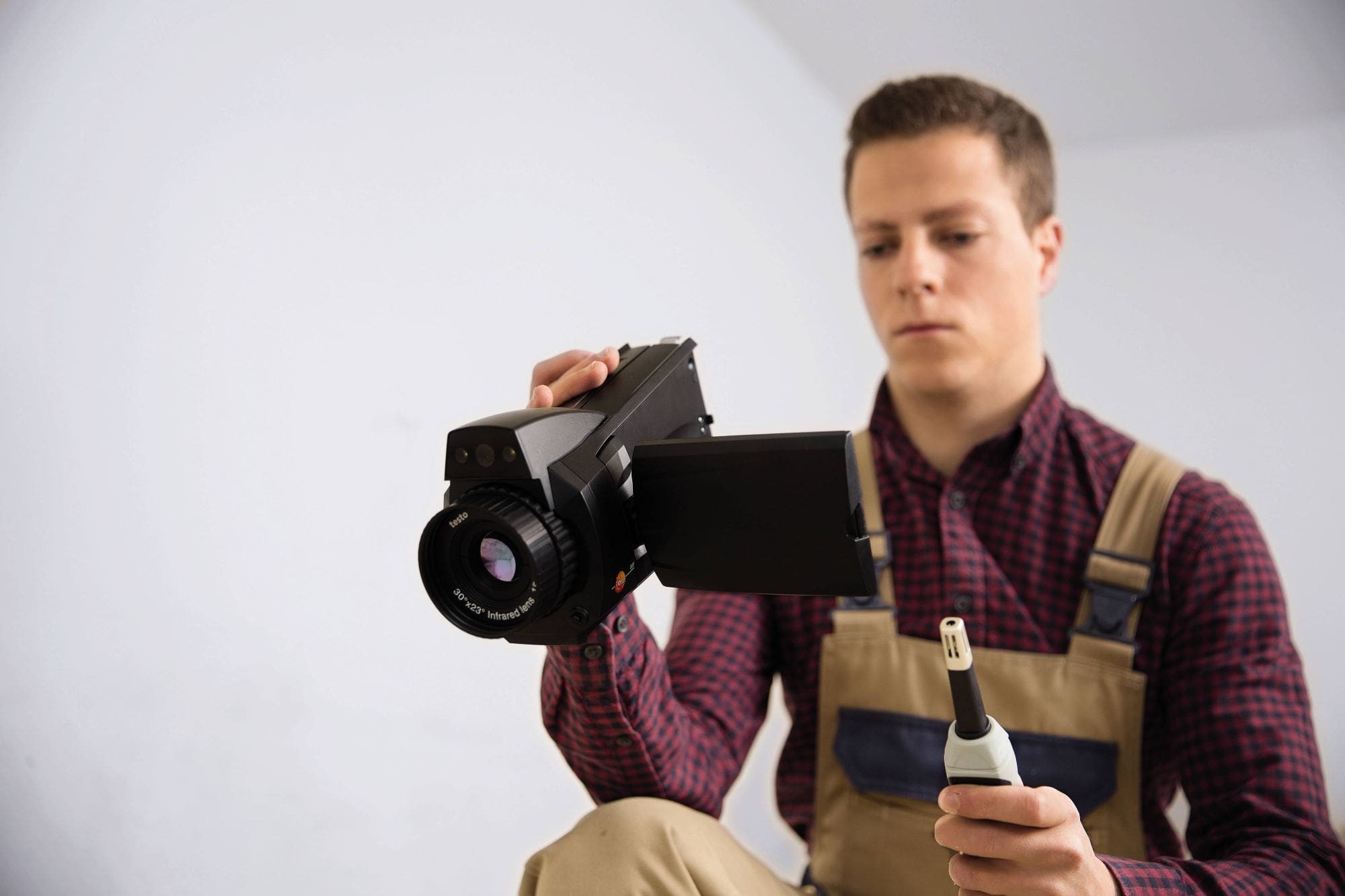

With the testo 885, Testo has developed a professional thermal imager which combines comprehensive functions for building thermography in an ergonomic housing.
Discover all the features of the testo 885 thermal imager
-
Detector size 320 x 240 pixels: with 76,800 temperature measuring points, measurement objects are clearly and accurately captured in outstanding image quality
-
SuperResolution Technology to 640 x 480 pixels: this feature takes the image quality to the next level – making the resolution of the thermal images four times higher
-
Integrated digital camera with power LEDs: ideal for assigning thermographic images to real images and thus for creating perfect documentation for customers
-
User-friendly operation: ergonomic rotating handle and rotatable, fold-out display
-
You can also choose to save thermal images as JPEGs

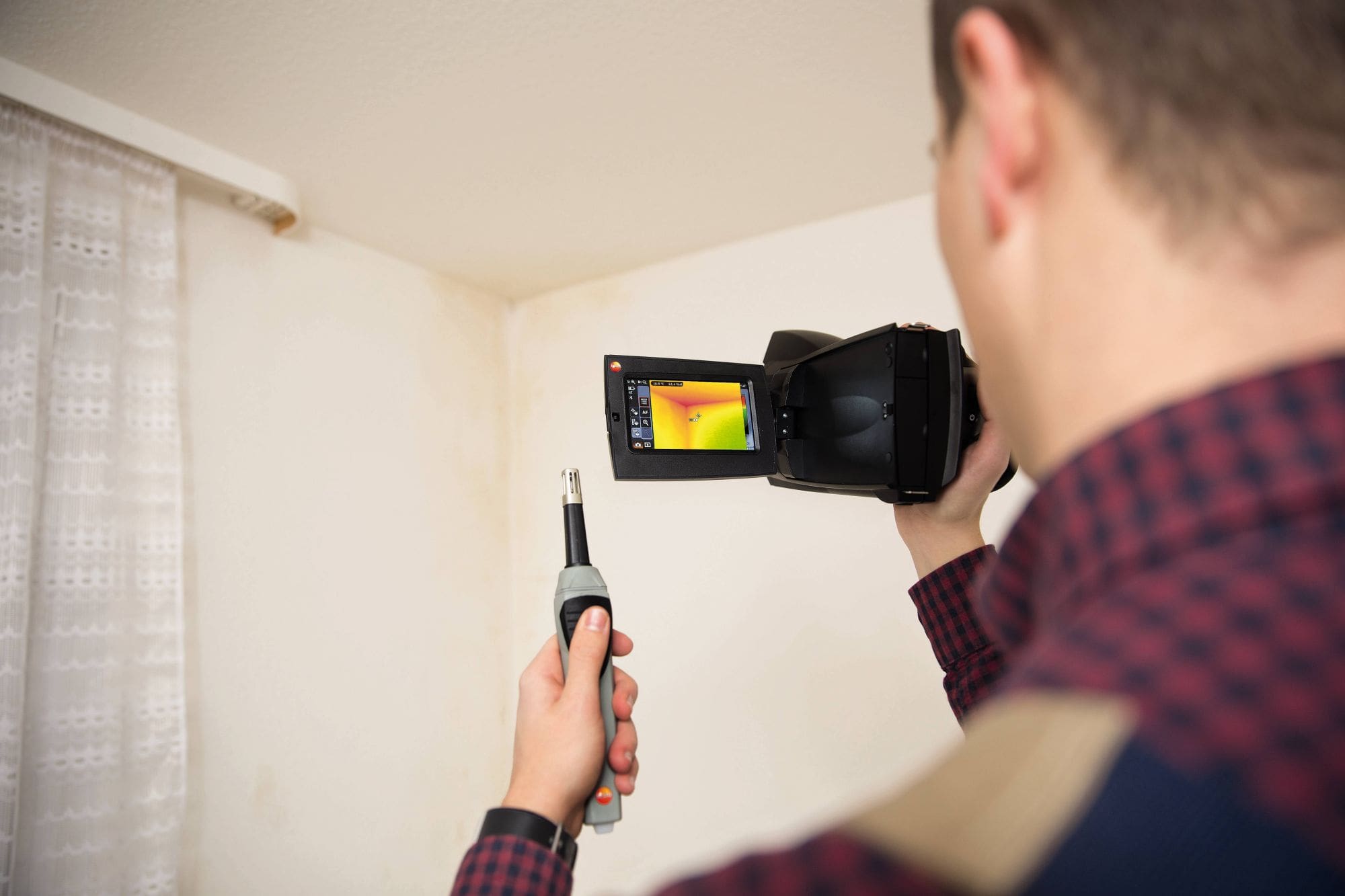

Practical features of the thermal imager specially for building thermography
-
Large field of view with selection of the standard lens (30°): with this wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance. (This kit gives you the choice between 3 lenses: standard, 25° or telephoto lens)
-
Panorama image assistant: in the case of large measurement objects, the panorama image assistant enables analysis and documentation of the measurement with an overall image compiled from multiple individual images. So there is no need to manage, view and compare a large number of images, which can be laborious. It enables images of entire building shells
-

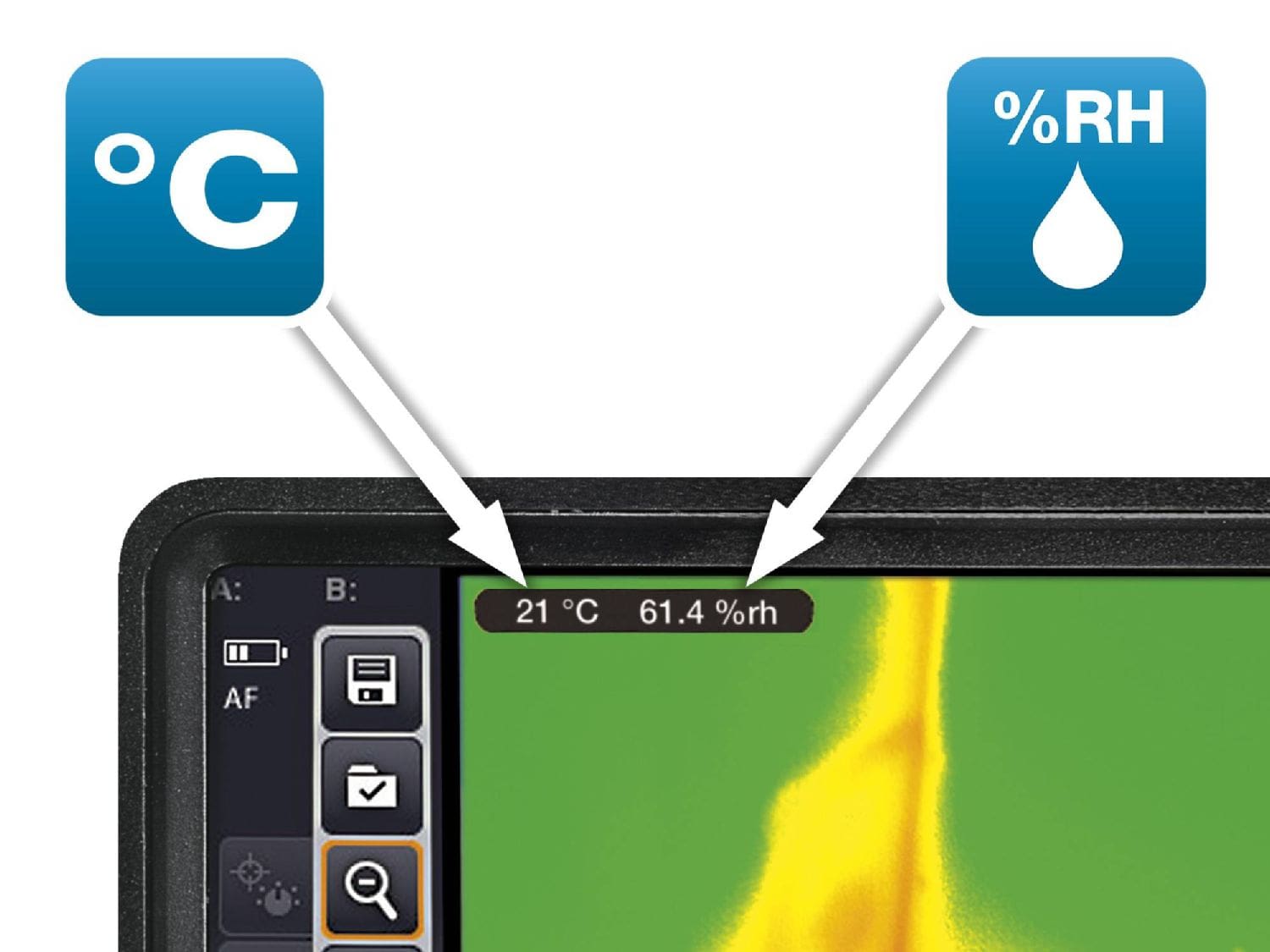

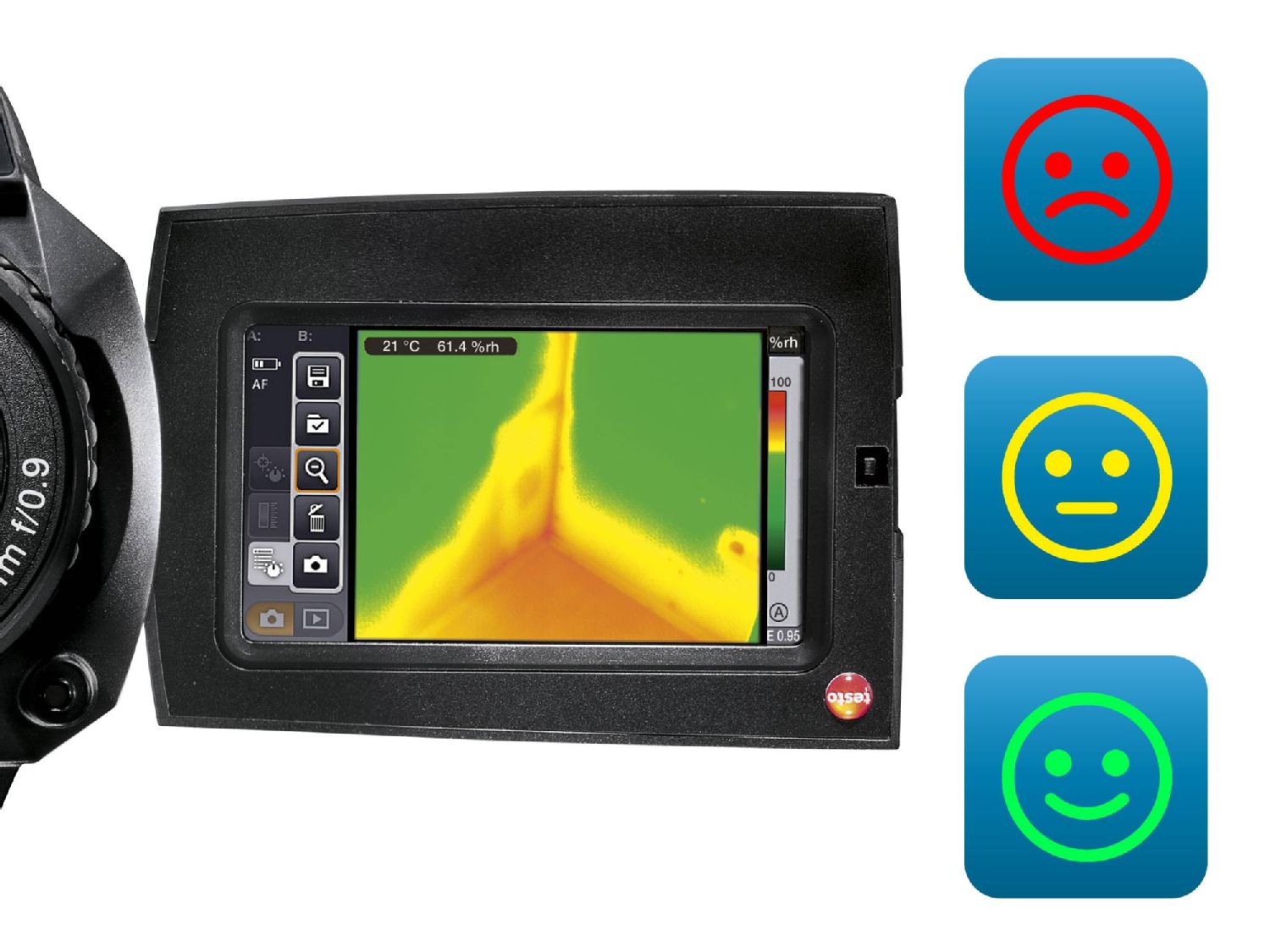

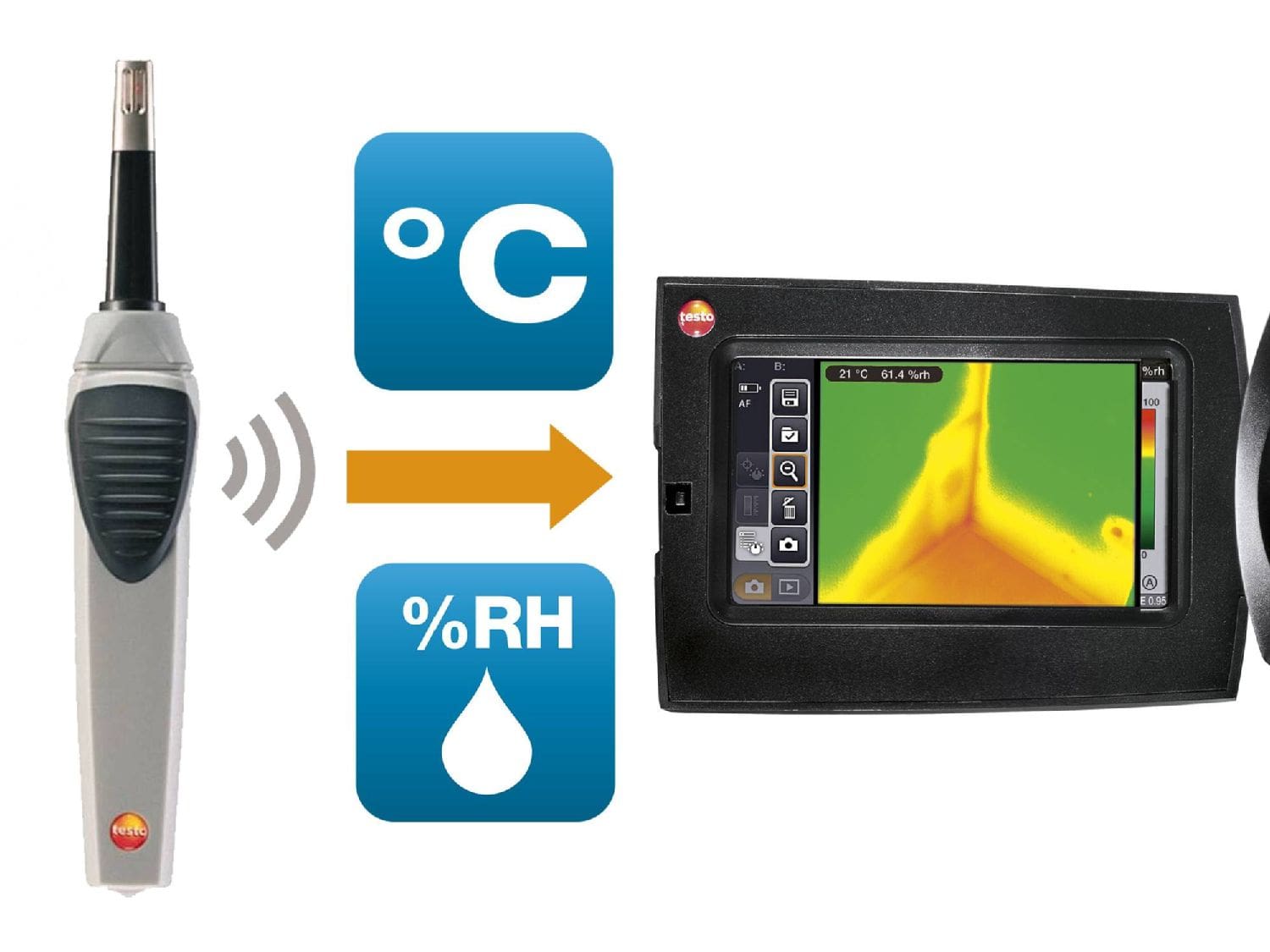

Special measuring mode for detecting areas susceptible to mould: the dewpoint in the room is calculated by manually entering the ambient temperature and humidity. The dewpoint is then compared with the surface temperature value measured by the camera. Traffic light colours shown on the display (red, yellow, green) then enable readout of the mould risk. The radio humidity probe included in the kit makes things easier: automatic transmission of readings means that manual input of humidity and ambient temperature is no longer needed
Further advantages of the thermal imager
-
Lens exchange possible (Additional lenses can be ordered as an option. Choice between standard, 25° and telephoto lens)
-
Lens protective glass (optional)
-
Auto-focus
-
Minimum focus distance 10 cm
-
Voice recording with headset
-
Analyze thermographic readings directly on the PC with the testo IRSoft professional software
Lenses
In addition to the super-telephoto lens, in this kit you are free to choose two additional lenses from a total of 3 that are available:
5° x 3.7° super-telephoto lens (included in the kit):
-
Small field of view (5° x 3.7°) for maximum resolution of particularly distant objects
-
Easy to handle: no additional lens holder needed
30° x 23° standard lens (optionally included in the kit as a second or third lens):
-
Ideal for inspecting closer measurement objects
-
Large field of view
25° x 19° lens (optionally included in the kit as a second or third lens):
-
Ideal for use in applications involving preventive maintenance
11° x 9° telephoto lens (optionally included in the kit as a second or third lens):
-
Makes it possible to take outstanding images of measurement objects at medium and longer distances

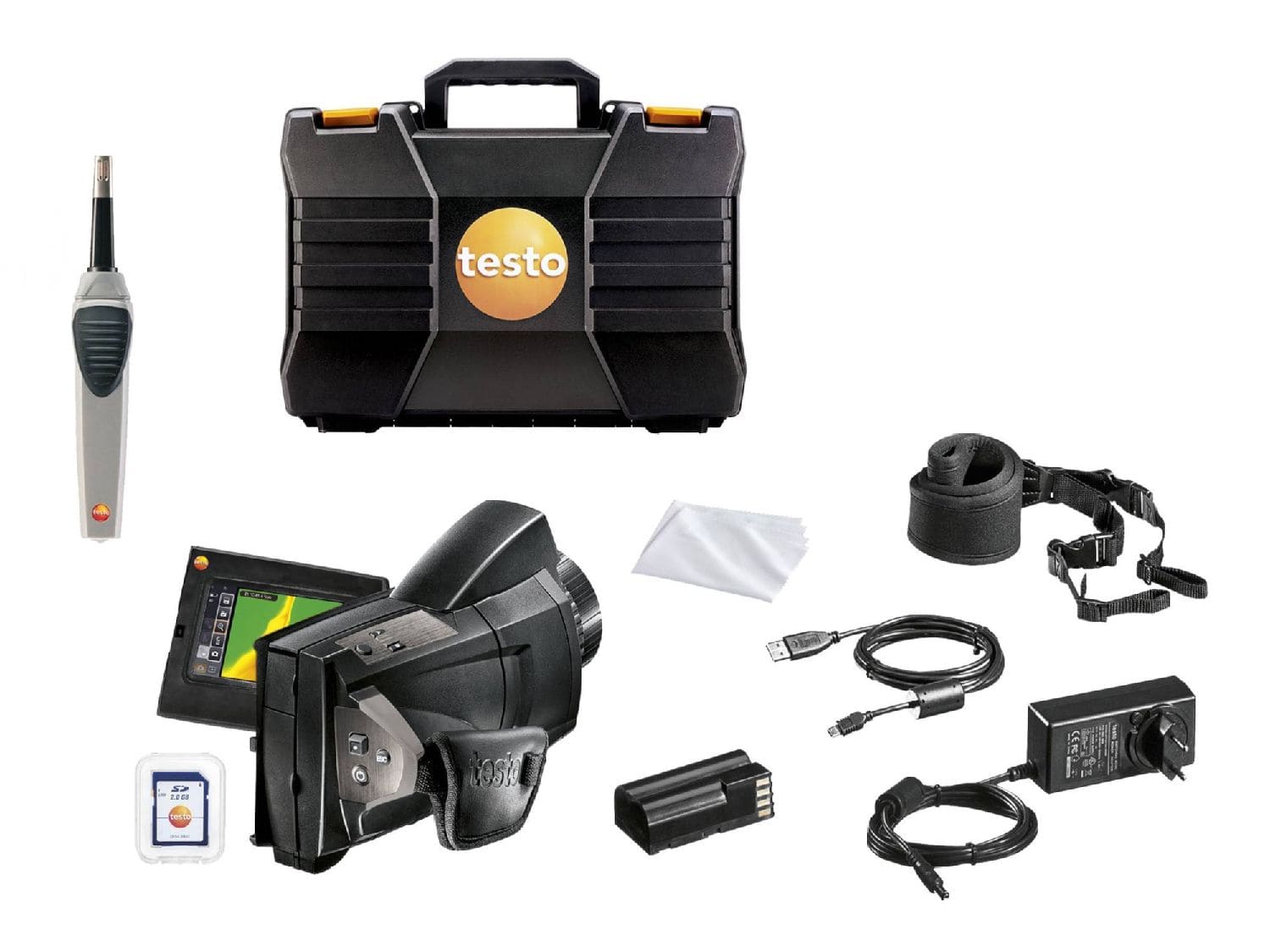

Delivery Scope
-
testo 885 thermal imager with SuperResolution
-
1 x lens (choice between 30° standard lens, 25° lens or 11° telephoto lens)
-
Radio humidity probe
-
Robust transport case
-
Pro software IRSoft (free download)
-
SD card
-
USB cable
-
Carrying strap
-
Lens cleaning cloth
-
Mains unit
-
Li-ion rechargeable battery
