Product Description

This professional thermal imager with super-telephoto lens and two additional lenses (free choice between standard, 25° and telephoto lens) can be used for the following measuring tasks:

• Inspecting high-voltage lines: the super-telephoto lens enables you to inspect even the smallest of connections from a long, safe distance

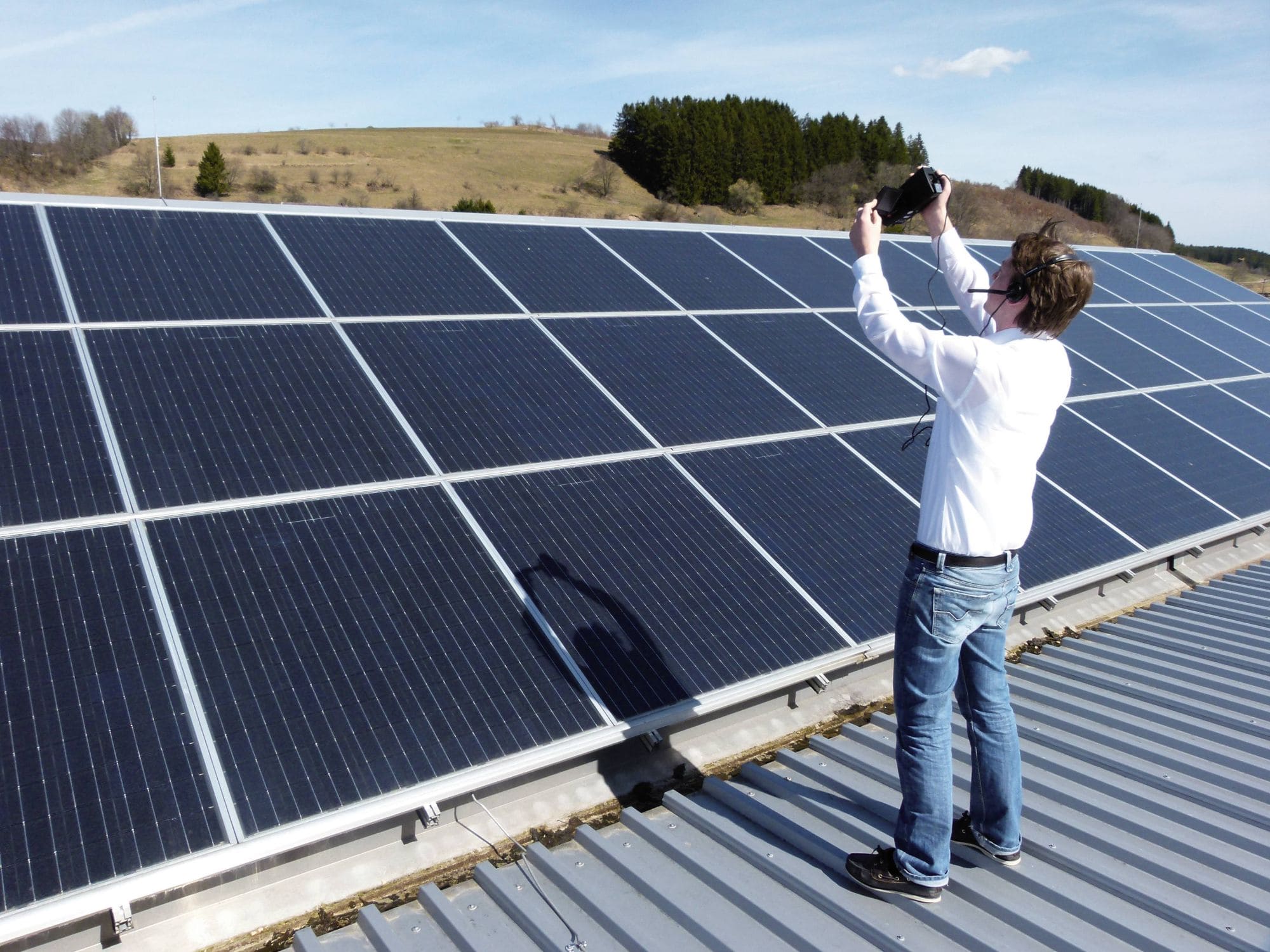

• Pinpointing hotspots in solar parks (to locate defective cells)

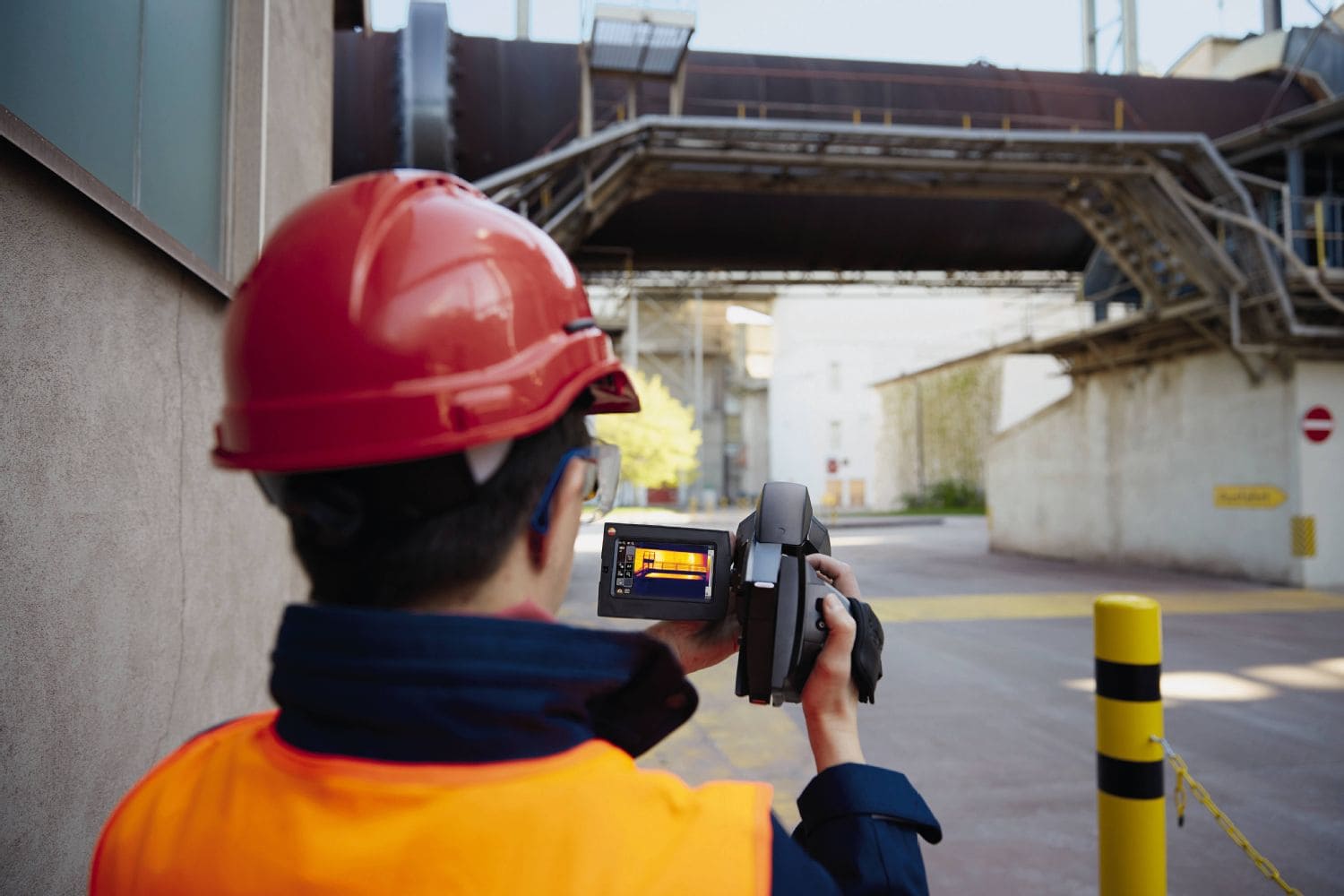

• Detecting irregularities in large industrial plants

• Safe high-temperature measurement

• Analysis of building shells at a glance

• Detecting critical temperatures on circuit boards

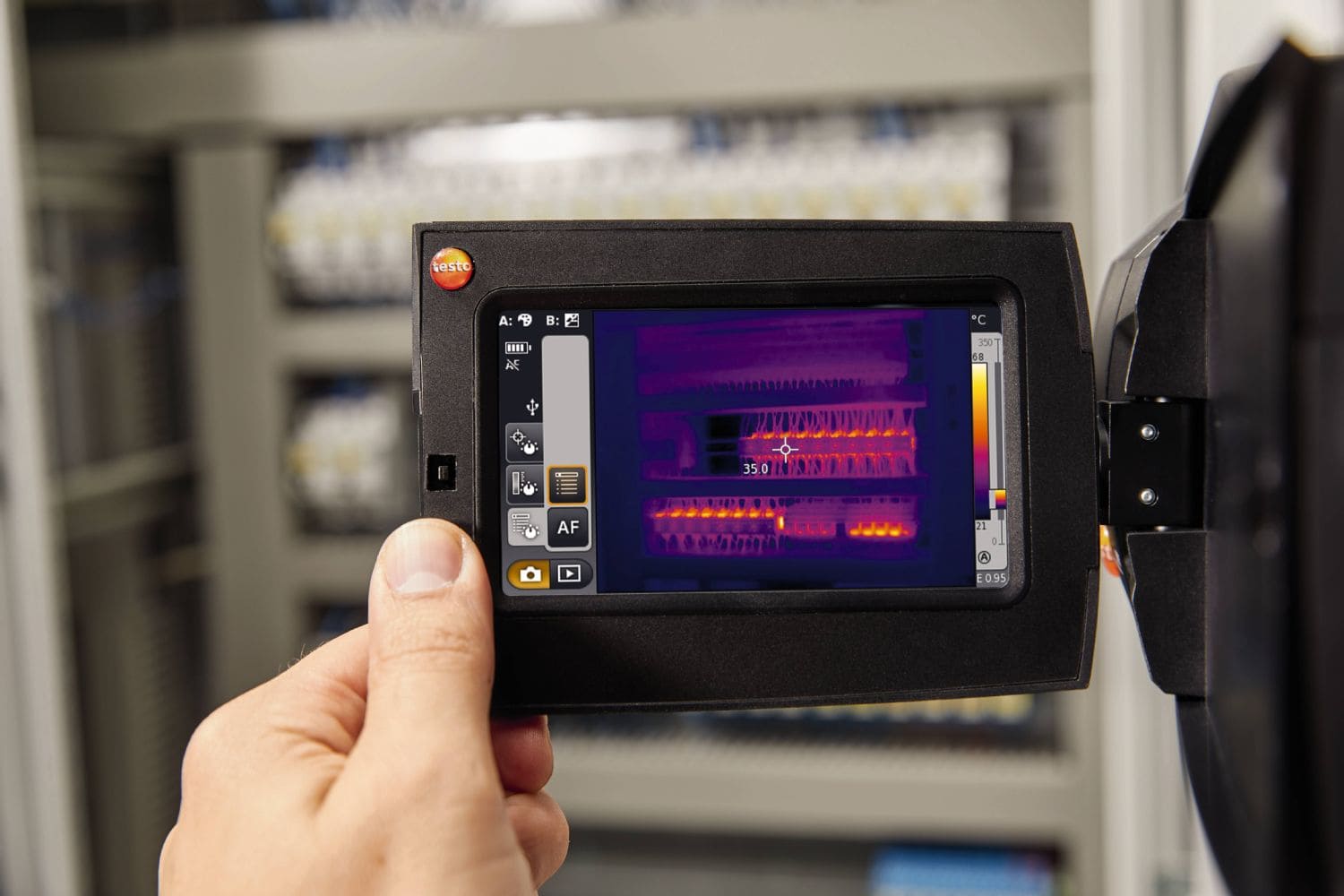

• Regular checks in electrical maintenance

• Analysis of energy distribution systems

• Carrying out detailed energy consultations

All the important information about the testo 890 thermal imager and its lenses

testo 890 thermal imager:

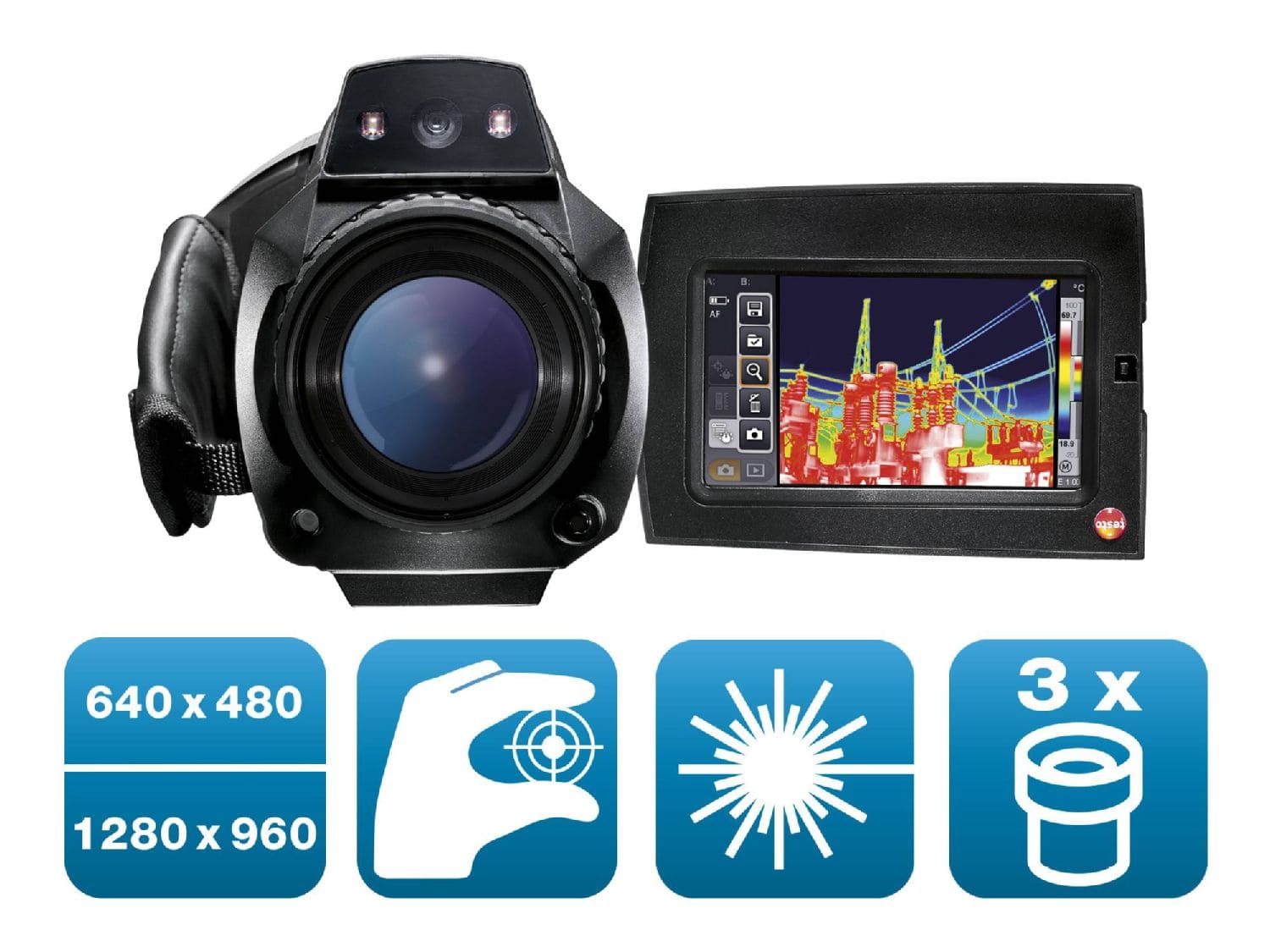

• Up to 307,200 temperature measuring points: a detector size of 640 x 480 pixels guarantees accurate detection. SuperResolution technology even boosts image quality to 1280 x 960 pixels

• Thermal sensitivity < 40 mK: even the smallest temperature differences can now be seen

• You can also choose to save thermal images as JPEGs

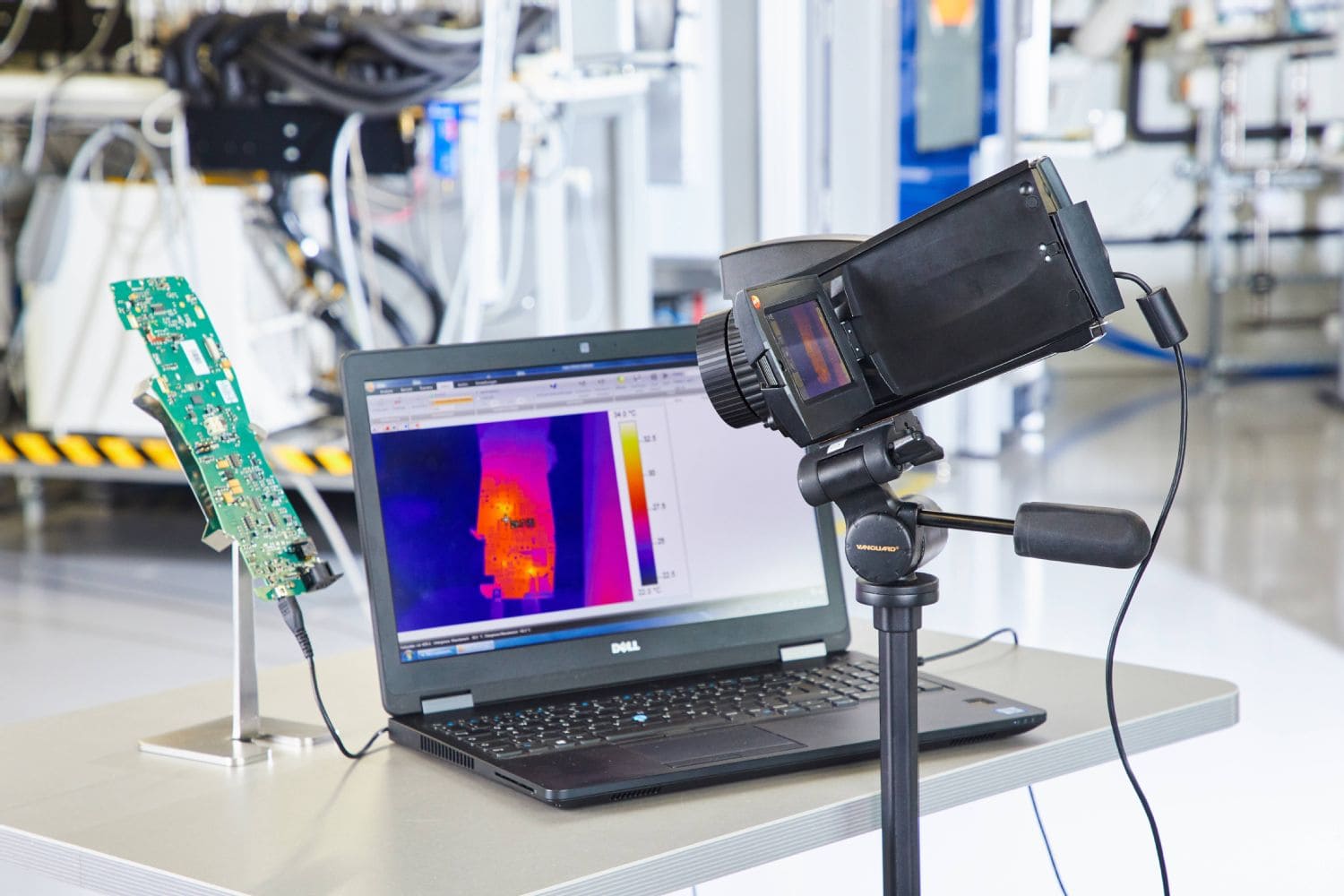

• Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the instrument enables wireless measurement and easier handling at the measuring location

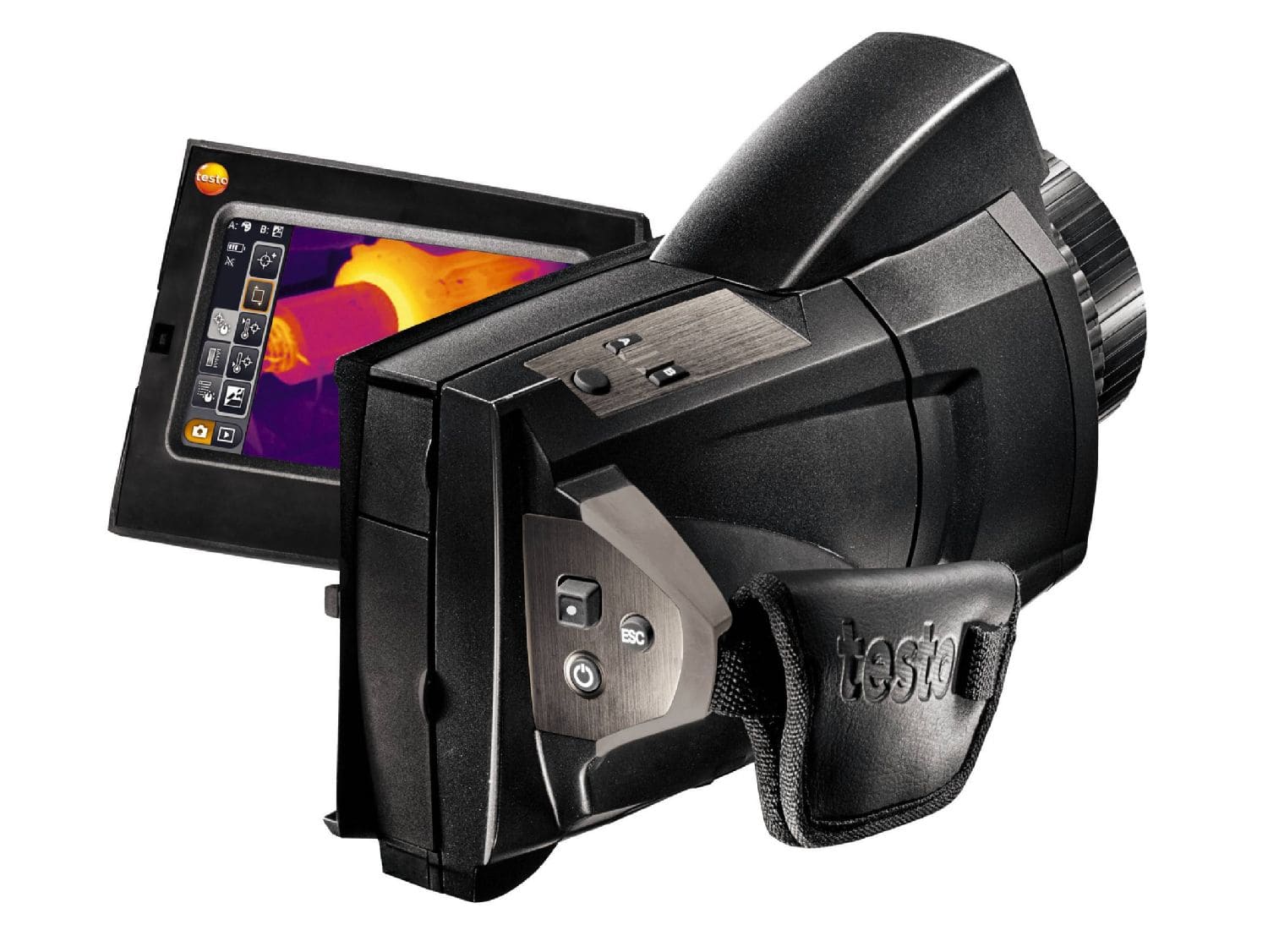

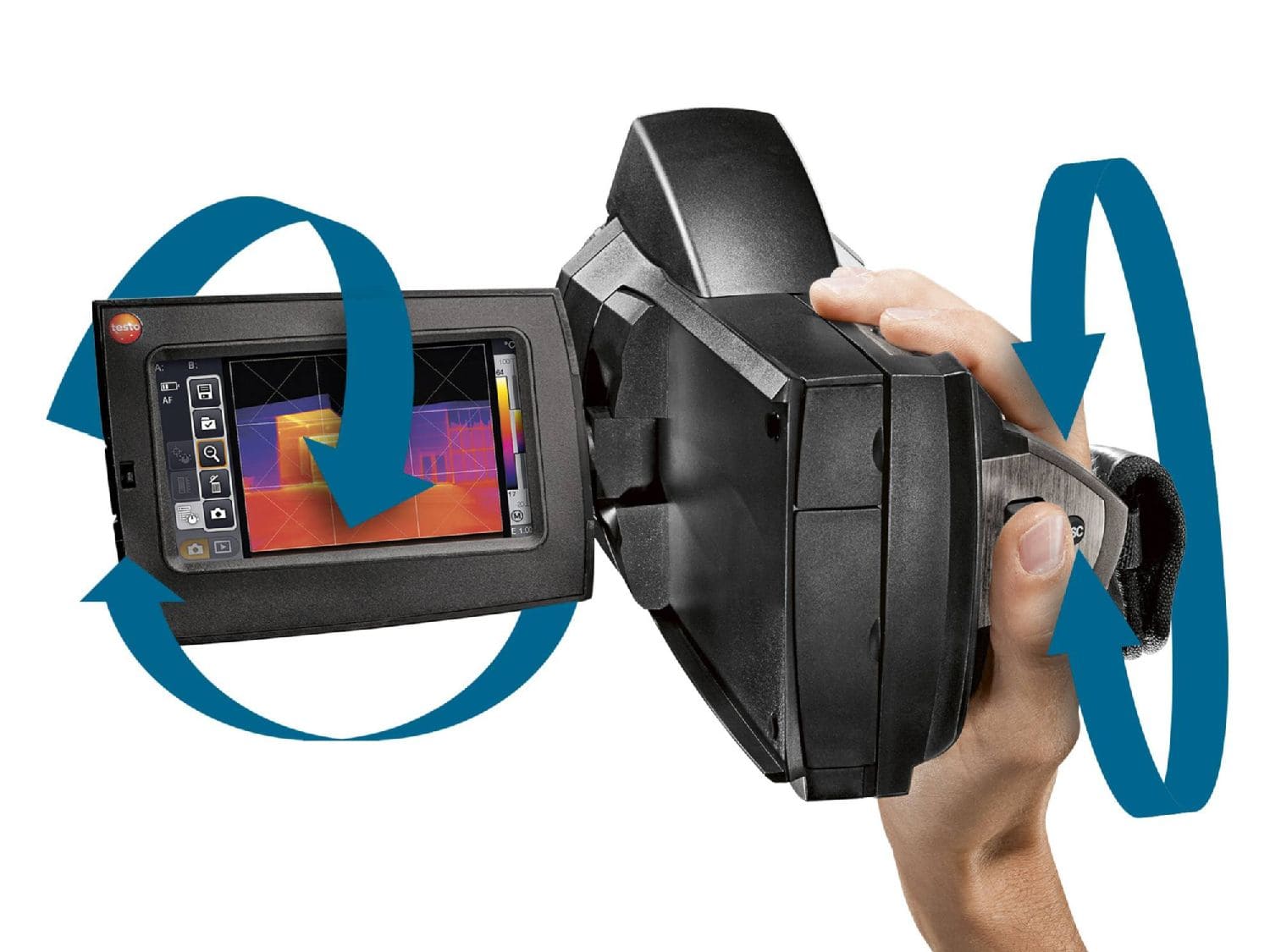

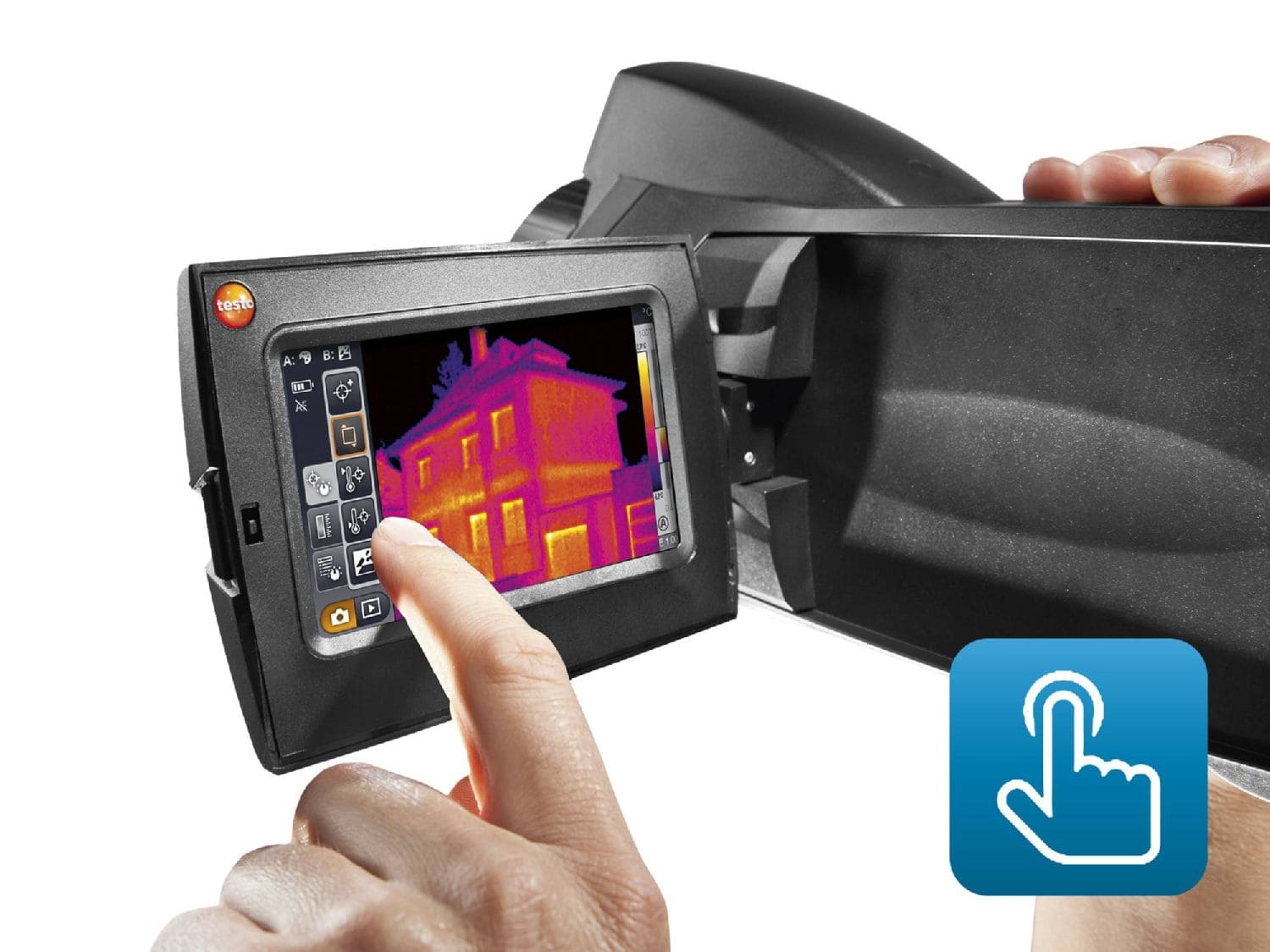

• The camcorder design with wrist strap, along with the rotatable, fold-out display, makes taking images considerably easier. This makes it possible for a wide variety of camera angles, as well as one-hand operation

• Panorama image assistant: individual images are combined into a panoramic image as soon as they are taken. This means, for instance, that you can take thermal images of entire building shells without having to laboriously compile them or assess them individually

• SiteRecognition technology: with similar measurement objects, the thermal imager identifies measuring locations immediately, assigns them automatically and archives them accordingly

• High-temperature option: the measuring range can be extended up to 1,200°C

• Special measuring mode for detecting areas susceptible to mould: the dewpoint in the room is calculated by manually entering the ambient temperature and humidity. The surface temperature value measured by the camera is then compared to the dewpoint. The display now shows the risk of mould in traffic light colours (red, yellow, green). The optional radio humidity probe makes things easier: automatic transmission of readings means that manual input of humidity and ambient temperature is no longer needed

• FeverDetection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection

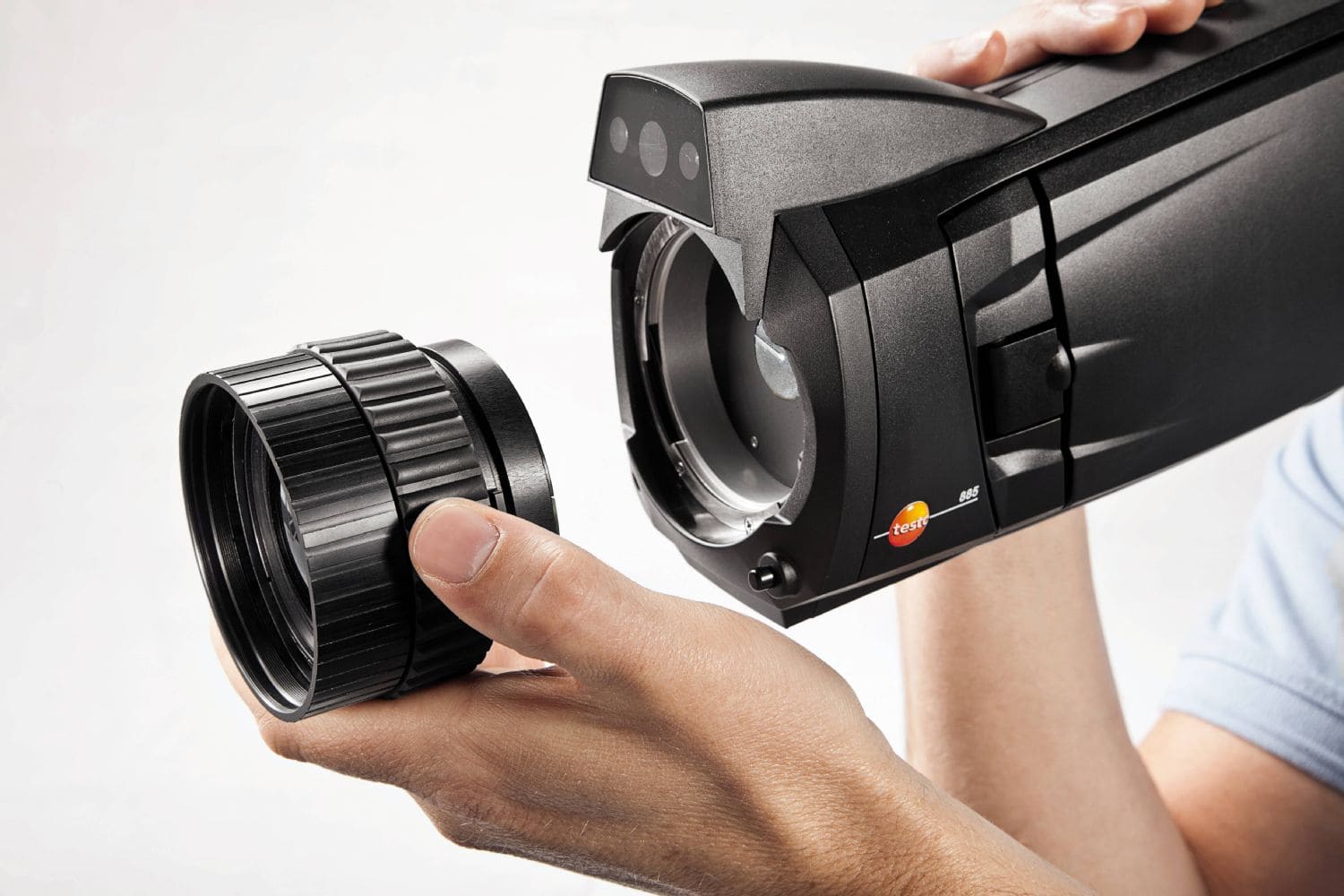

• Lens can be exchanged

• Voice recording (as comments on the images) possible with headset which is included in the scope of delivery

• Integrated digital camera with power LEDs: you can take well-lit, real images to go with every thermal image - making documentation and assignment easier

• Auto-focus for easy one-hand operation and less blurred images

• Minimum focus distance 10 cm

Lenses

In addition to the super-telephoto lens, in this kit you are free to choose one additional lens from a total of 3 that are available:

6.6° x 5° super-telephoto lens (included in the kit):

• Small field of view (5° x 3.7°) for maximum resolution of particularly distant objects

• Easy to handle: no additional lens holder needed

42° x 32° standard lens (optionally included in the kit as second lens):

• Ideal for inspecting closer measurement objects

• Large field of view

25° x 19° lens (optionally included in the kit as second lens):

• Ideal for use in applications involving preventive maintenance

15° x 11° telephoto lens (optionally included in the kit as second lens):

• Makes it possible to take outstanding images of measurement objects at medium and longer distances

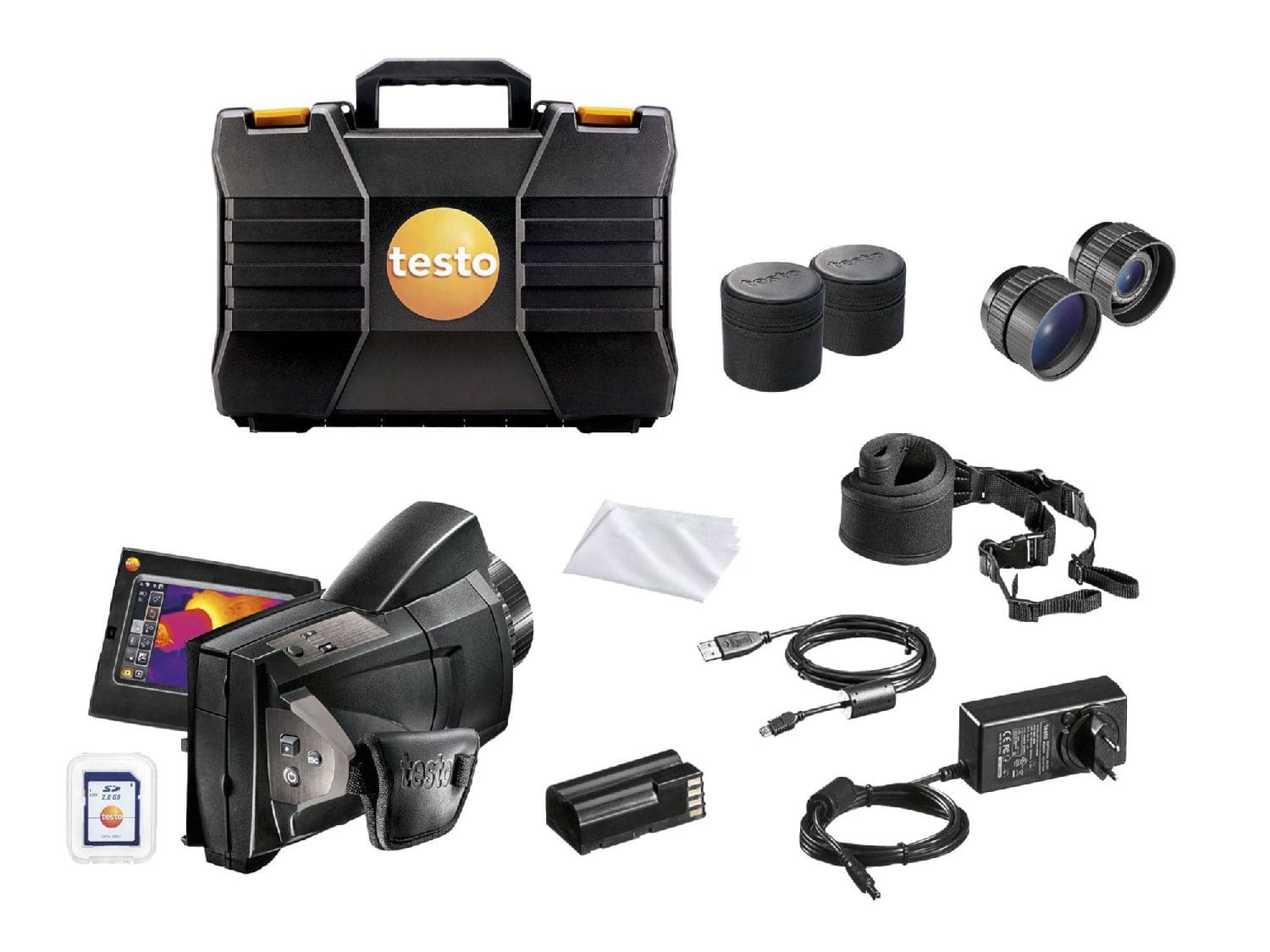

Delivery Scope

• testo 890 thermal imager with 6.6° super-telephoto lens and SuperResolution

• 2 x lenses (choice between standard, 25° and telephoto lens)

• Robust case for the thermal imager

• Pro software IRSoft (free download)

• SD memory card

• USB cable for data transfer to the PC

• Carrying strap for the thermal imager

• Lens cleaning cloth

• Mains unit

• Li-ion rechargeable battery

• Lens protective glass

• Spare rechargeable battery

• Fast battery charger

• Headset for voice recording

• Lens cases

Lens protection glass - for protection of the lens against dust and scratching

Order Number: 0554 0289

Additional battery. Additional lithium-ion rechargeable battery for extending the operating time.

Order Number: 0554 8852

Fast charging station - desktop fast charging station for two rechargeable batteries

Order Number: 0554 8851

Process analysis package - for the analysis of thermal processes

Order Number: 0554 8902

Emission tape for measurements on reflective surfaces (roll, length: 10 m, width: 25 mm)

Order Number: 0554 0051

Free download: PC software testo IRSoft

Order Number: 0501 8809

ISO calibration certificate for thermal imager with measuring points at 0 / +25 / +50 °C

Order Number: 0520 0489

ISO calibration certificate for thermal imager with measuring points at 0 / +100 / +200 °C

Order Number: 0520 0490

ISO calibration certificate for thermal imager with selectable measuring points in the range -18 to +250 °C

Order Number: 0520 0495
