testo 922 - Digital temperature meter

Order-Nr. 0560 9221
  • Temperature measurements and temperature difference display

  • Wide measuring range from -50 °C to 1 000 °C

  • Connecting points for two type K temperature sensors; wireless connectivity for a third temperature sensor

  • Wide range of optional sensors

Temperature measurements; measurements with up to three temperature sensors; direct display of temperature differences: the testo 922 digital temperature meter is ideal for professional use in the fields of heating, plumbing and air conditioning.

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

The testo 922 digital temperature meter measures temperatures and determines the temperature difference in a matter of seconds. The meter comes with connecting points for up to two temperature sensors and wireless connectivity for a third sensor.

At-a-glance look at all the features

  • Connecting points for 2 optional type K temperature sensors

  • Wireless connectivity for a third temperature sensor

  • Temperature values and temperature difference directly visible in display

  • Permanent display of min and max values

  • Hold function that freezes the last reading

The testo 922 digital temperature meter – accessories and sensors

  • There is a wide selection of optional temperature and wireless sensors to help you carry out your temperature measurements

  • The testo protocol printer allows you to print out on site; the cyclic printing can be used in adjustable (i.e. one-minute) intervals

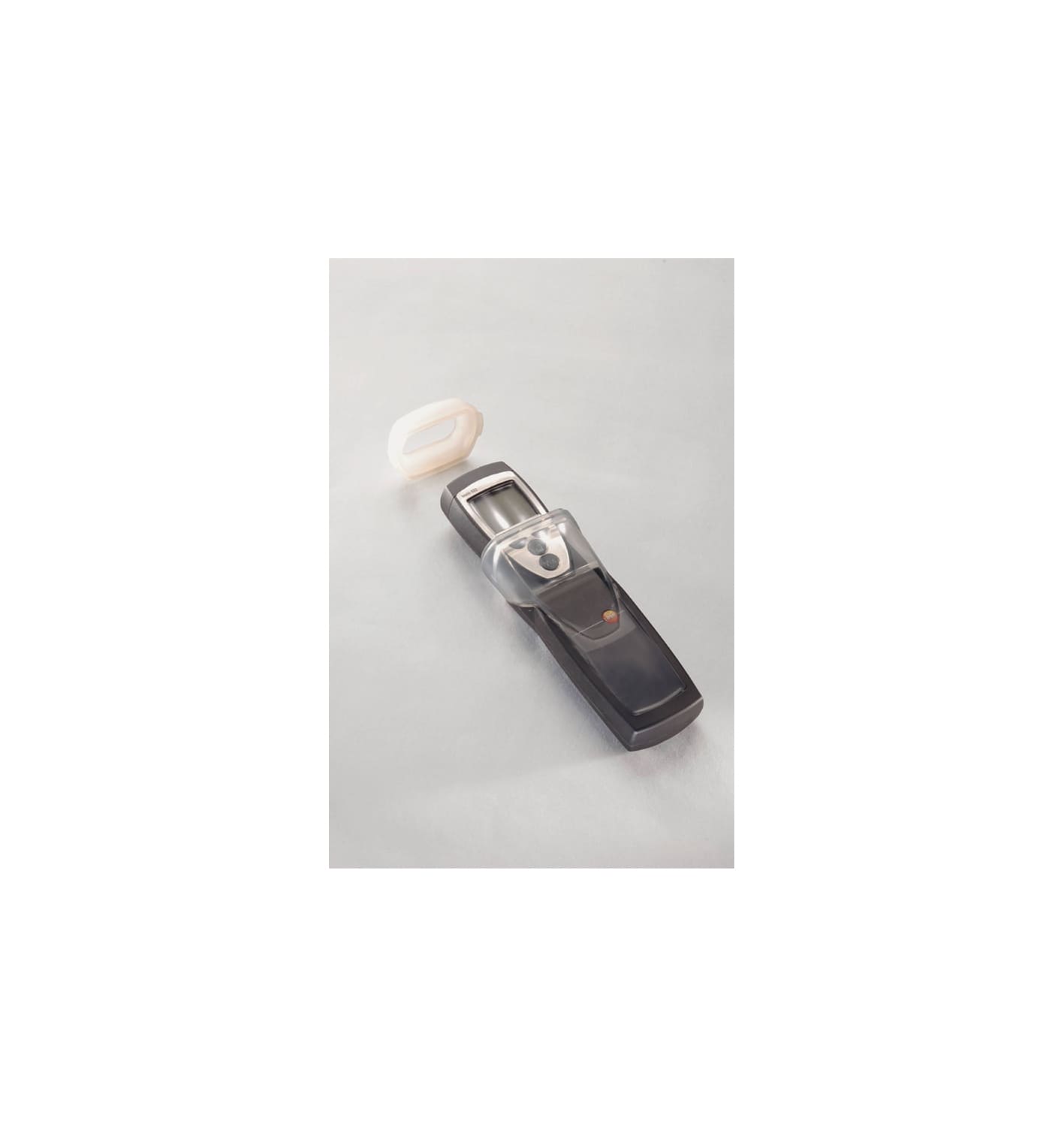

  • The durable, IP65 rated TopSafe protective case protects you digital temperature meter against impact and dirt and water ingress

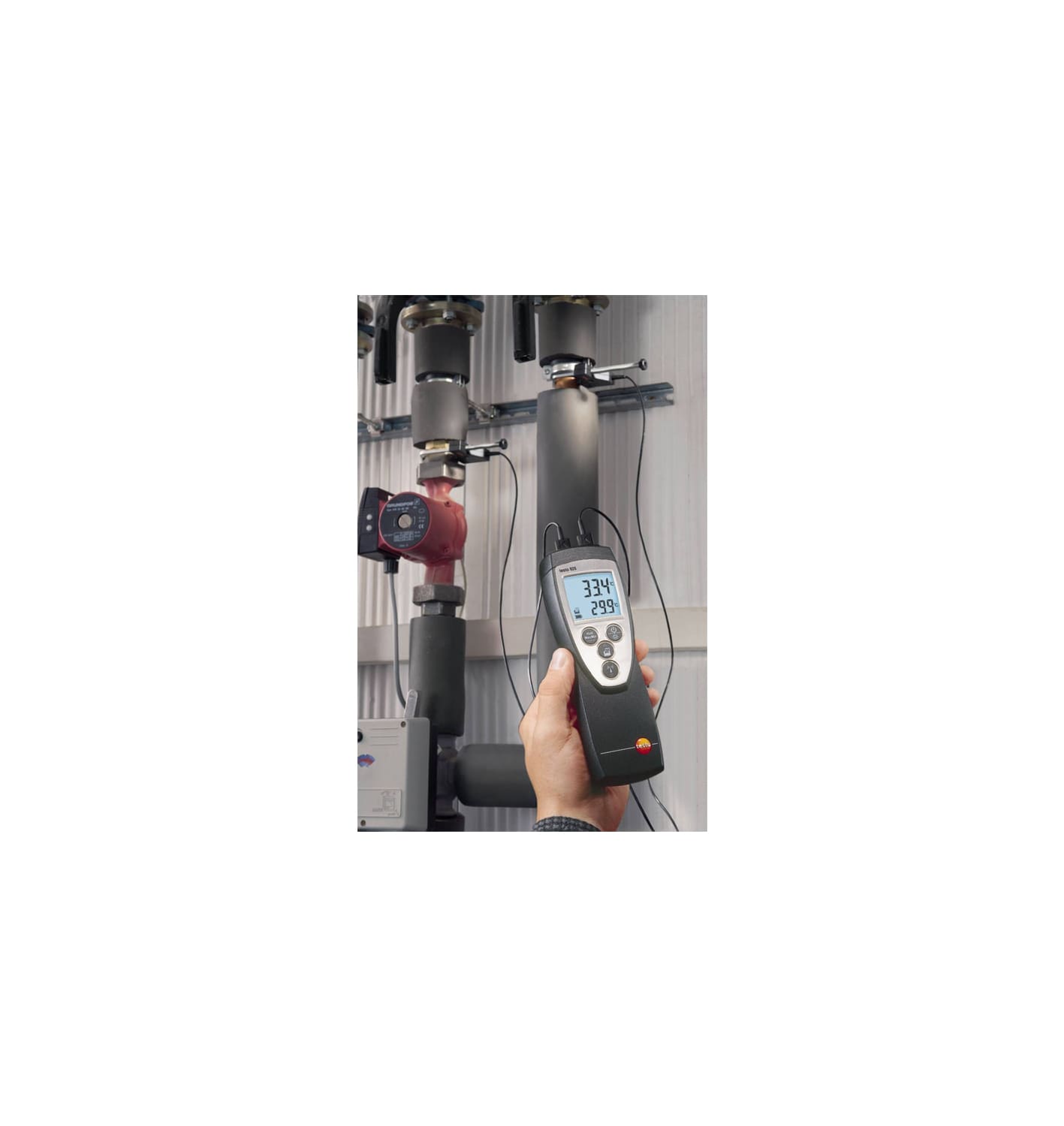

The testo 922 digital temperature meter – areas of application

Professionals in the fields of heating, plumbing and air conditioning are quick to appreciate the benefits which the compact, easy-to-use testo 922 digital temperature meter has to offer. The testo 922 measures temperatures quickly and accurately and determines the temperature difference directly. This allows you to carry out your inspections and checks quickly and efficiently. There’s also an optional testo turbo printer which allows you to print out on site.

Delivery Scope

testo 922 digital temperature meter, calibration certificate, batteries.



Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +1000 °C

Accuracy

±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)

±(0.7 °C + 0.5 % of mv) (Remaining Range)

Resolution

0.1 °C (-50 to +199.9 °C)

1 °C (Remaining Range)





General technical data

Dimensions

182 x 64 x 40 mm

Operating temperature

-20 to +50 °C

Housing

ABS

Number of channels

2-channel

Battery type

9V block battery, 6F22

Battery life

200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)

Storage temperature

-40 to +70 °C

Weight

171 g

testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle

testo fast printer IRDA

Order Number: 0554 0549


Radio Module for measuring instrument

Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Order Number: 0554 0188


Radio handle for plug-in probe heads

Radio handle for plug-in probe heads, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Order Number: 0554 0189


TopSave

TopSafe protective case for measuring instrument, waterproof

Order Number: 0516 0222


testo 0516 1200 case

Case

Order Number: 0516 1200


testo 0516 1200 case

Case

Order Number: 0516 1201


Handy bag

Handy bag for measuring instrument and probes – also suitable for longer probes up to 35 cm total length

Order Number: 0516 0212


Case for secure storage of measuring instrument

Case

Order Number: 0516 0191


Handle for attachable measurement tips

Handle for attachable measurement tips

Order Number: 0409 1092


Extension cable

Extension cable, 5m, for thermocouple probe Type K

Order Number: 0554 0592
