testo 330-1 LL

Order-Nr. 0632 3306 70

testo 330-1 LL flue gas analyzer with long-life gas sensors; BLUETOOTH and with H2-compensated CO-sensor, incl. rech. battery and calibration protocol; with graphic display; version 2010

Thông tin sản phẩm

Chi tiết sản phẩm
Thông số kỹ thuật
Phụ kiện
Download

Product Description

Thanks to the new instrument functions, the Testo flue gas analyzers of the new testo 330-LL series now offer you even more professional and reliable support. These are the main features:

High-resolution colour display for the graphic representation of your measurement data

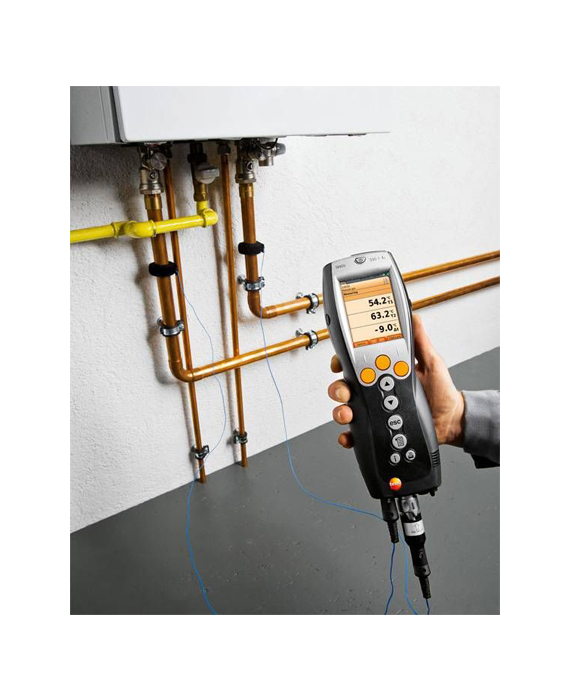

Extended measurement menus – such as gas pipe testing – for a comprehensive analysis of your heating system
Logger function for easy long-term recording of the measurement curve

Differential Pressure - Piezoresistive
Measuring range	0 to +300 hPa
Accuracy	±0.5 hPa (0.0 to 50.0 hPa) ±1 % of mv (50.1 to 100.0 hPa) ±1.5 % of mv (Remaining Range)
Resolution	0.1 hPa

Differential Pressure - Piezoresistive

Measuring range

0 to +300 hPa

Accuracy

±0.5 hPa (0.0 to 50.0 hPa)

±1 % of mv (50.1 to 100.0 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.1 hPa

Flue gas O₂
Measuring range	0 to 21 Vol.%
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t₉₀	< 20 s

Flue gas CO (with H₂-compensation)
Measuring range	0 to 8000 ppm
Accuracy	±10 ppm or ±10 % of mv (0 to 200 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) ±10 % of mv (2001 to 8000 ppm)
Resolution	1 ppm
Reaction time t₉₀	< 60 s
Measuring rate	0 to 500 ppm

Flue gas COlow
Measuring range	0 to 500 ppm
Accuracy	±2 ppm (0 to 39.9 ppm) ±5 % of mv (40 to 500 ppm)
Resolution	0.1 ppm
Reaction time t₉₀	< 40 s

Flue gas NO
Measuring range	0 to 3000 ppm
Accuracy	±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm)
Resolution	1 ppm
Reaction time t₉₀	< 30 s

Flue gas Nolow
Measuring range	0 to 300 ppm
Accuracy	±2 ppm (0 to 39.9 ppm) ±5 % of mv (40 to 300 ppm)
Resolution	0.1 ppm
Reaction time t₉₀	< 30 s

Flue gas Draught
Measuring range	-9.99 to +40 hPa
Accuracy	±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40.00 hPa)
Resolution	0.01 hPa

Flue gas Draught

Measuring range

-9.99 to +40 hPa

Accuracy

±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)

±0.03 hPa (+0.61 to +3.00 hPa)

±1.5 % of mv (+3.01 to +40.00 hPa)

Resolution

0.01 hPa

Temperature
Measuring range	-40 to +1200 °C *
Accuracy	±0.5 °C (0 to +100.0 °C) ±0.5 % of mv (Remaining Range)
Resolution	0.1 °C (-40 to +999.9 °C) 1 °C (> +1000 °C)

Temperature

Measuring range

-40 to +1200 °C *

Accuracy

±0.5 °C (0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C (-40 to +999.9 °C)

1 °C (> +1000 °C)

* Measuring range depends on the connected flue gas probe

Flue gas degree of effectivity, Eta (calculated)
Measuring range	0 to 120 %
Resolution	0.1 %

Flue gas loss (calculated)
Measuring range	0 to 99.9 %
Resolution	0.1 %

Flue gas CO₂ calculation (calculated from O₂)
Measuring range	0 to CO₂ max (Display range)
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%
Reaction time t₉₀	< 40 s

Pressure measurement
Measuring range	0 to +300 hPa
Accuracy	±0.5 hPa (0.0 to 50.0 hPa) ±1 % of mv (50.1 to 100.0 hPa) ±1.5 % of mv Remaining Range
Resolution	0.1 hPa

Pressure measurement

Measuring range

0 to +300 hPa

Accuracy

±0.5 hPa (0.0 to 50.0 hPa)

±1 % of mv (50.1 to 100.0 hPa)

±1.5 % of mv Remaining Range

Resolution

0.1 hPa

Flue gas CO (without H₂-compensation)
Measuring range	0 to 4000 ppm
Accuracy	±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm)
Resolution	1 ppm
Reaction time t₉₀	< 60 s

Ambient CO
Measuring range	0 to 500 ppm
Accuracy	±5 ppm (0 to 100 ppm) ±5 % of mv (> 100 ppm)
Resolution	1 ppm
Reaction time	Approx. 35 s

with CO probe 0632 3331

Ambient CO₂
Measuring range	0 to 1 Vol.% 0 to 10000 ppm
Accuracy	±75 ppm or ±3 % of mv (0 to 5000 ppm) ±150 ppm or ±5 % of mv (5001 to 10000 ppm)
Reaction time	Approx. 35 s

Ambient CO₂

Measuring range

0 to 1 Vol.%

0 to 10000 ppm

Accuracy

±75 ppm or ±3 % of mv (0 to 5000 ppm)

±150 ppm or ±5 % of mv (5001 to 10000 ppm)

Reaction time

Approx. 35 s

with ambient CO₂ probe 0632 1240

Gas leak measurement for combustible gases (via gas leak detection probe)
Measuring range	0 to 10000 ppm CH₄ / C₃H₈; Display range
Accuracy	Signal optical display (LED) audible signal via buzzer
Reaction time t₉₀	< 2 s

with gas leak detection probe 0632 3330

General technical data
Dimensions	270 x 90 x 65 mm
Operating temperature	-5 to +45 °C
Protection class	IP40
Display size	240 x 320 pixels
Display function	Colour graphic display
Power supply	Rechargeable battery pack 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A
Maximum memory	500,000 readings
Storage temperature	-20 to +50 °C
Weight	600 g (without rechargeable battery)
