Product Description
The testo 330-1 LL flue gas analyzer makes customer service and maintenance pleasingly uncomplicated and so also more efficient. The high-quality instrument impresses with the successful combination of outstanding sensor technology, longevity and reliability.
testo 330-1 LL flue gas analysis set with Bluetooth in detail
testo 330-1 LL flue gas analyzer, TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 to 3:
-
High-quality long-life measuring cells: sensors for O2 and CO are included in the scope of delivery – the CO cell is H2-compensated
-
Free flue gas App for iOS and Android devices (available as a download)
-
The sensors have a service life of up to 6 years. This means at least one sensor replacement is saved in the course of a normal operating life
-
4-year warranty without maintenance contract on the instrument and O2 and CO sensor
-
Logger function for easy long-term recording of the measurement profile, large memory for up to 500,000 readings
-
Pressure measurement up to 300 mbar
-

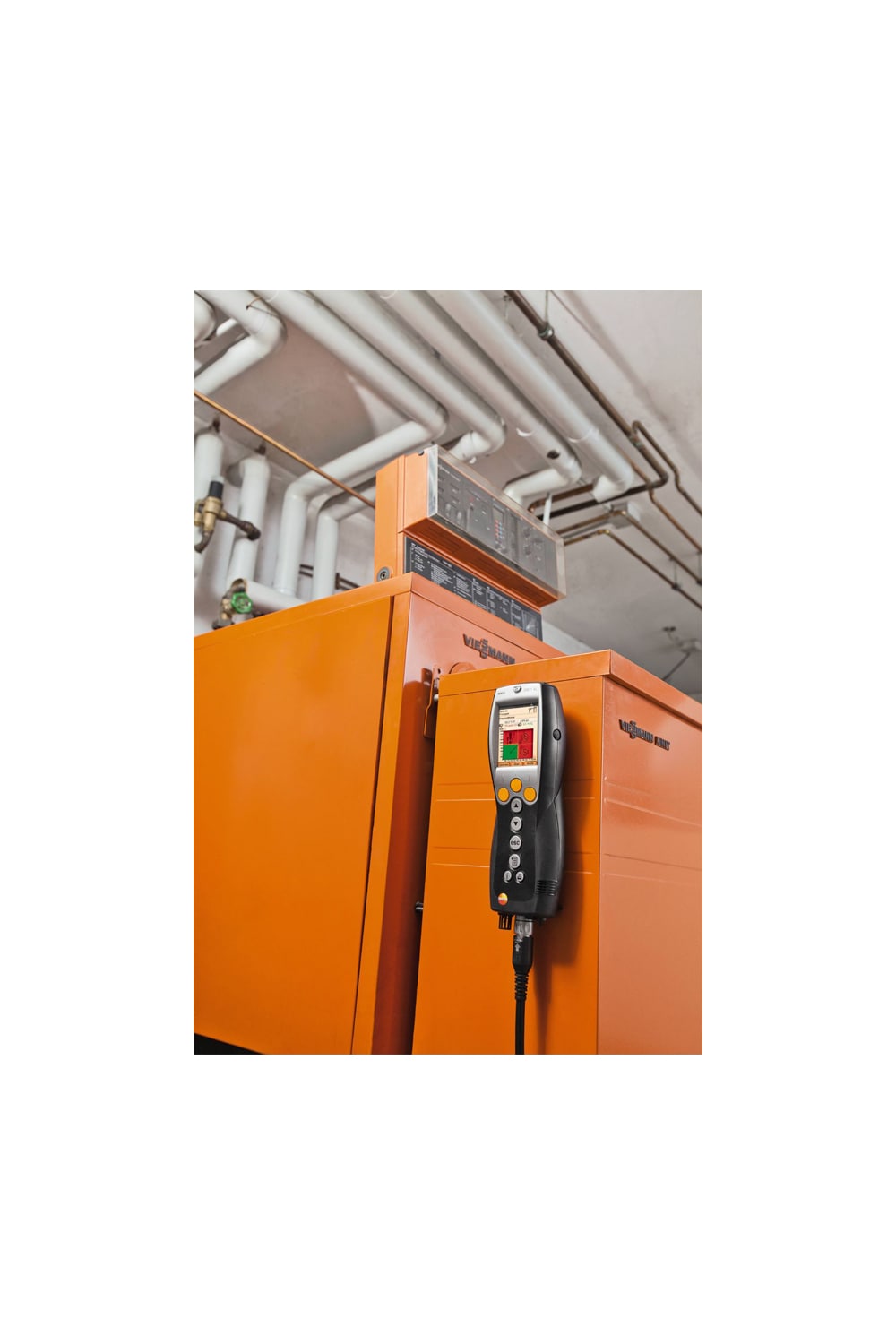

Integrated magnets for easy fixing during the measuring process
-

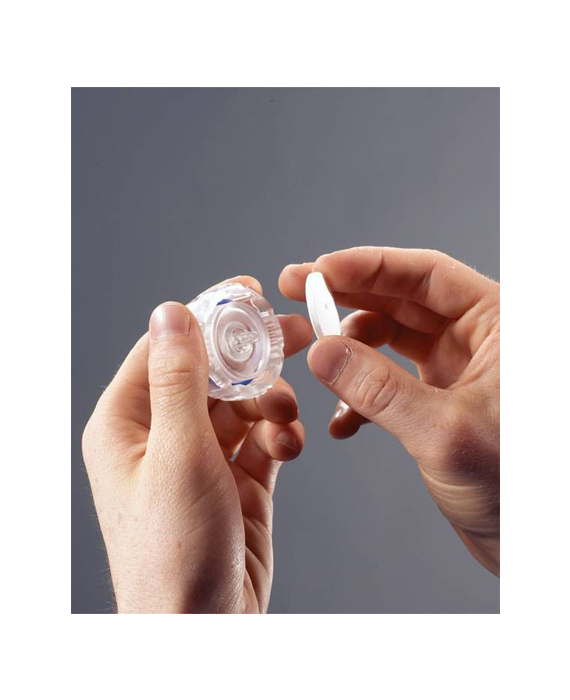

Condensate trap: easy-to-empty collection vessel in the instrument
-
User-defined fuels
-
IrDa/Bluetooth interface for data transfer to pocket PC/laptop/printer
-
ZIV driver for standard industry software
-
Integrated customer data memory
Modular flue gas probe, TÜV-tested:
-
On the TÜV-tested modular flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can easily be connected to the measuring instrument via a practical bayonet lock
-
The probe shaft is really easy to replace, thanks to the quick-change click system on the handle
-
The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500°C
Combustion air temperature probe:
-
The combustion air temperature probe can be positioned flexibly, as it has a probe shaft length of 190 mm and a cable length of 2.2 m
-

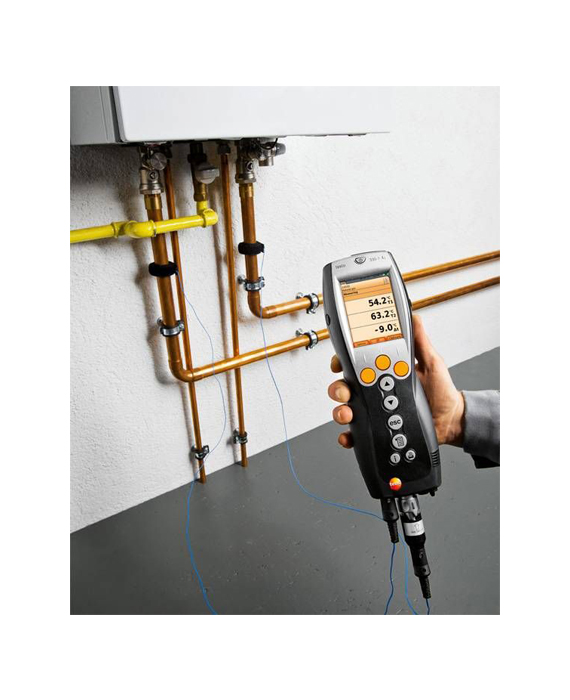

Pressure connection set: The pressure connection set enables the measuring instrument to be used to measure gas or air pressure. To do this, the hoses are attached to the test nipple of the measuring point and connected to the flue gas analyzer via the measuring instrument adapter
testo BLUETOOTH® printer:
Delivery Scope
-
testo 330-1 LL flue gas analyzer with O2 and CO H2-compensated sensors, Bluetooth interface, rechargeable battery and calibration protocol (0632 3306 70)
-
Mains unit for connection to the testo 330-1 LL flue gas analyzer (0554 1096) Modular flue gas probe 180 mm; Ø 8 mm; Tmax 500°C; TÜV-tested; hose 2.2 m (0600 9760)
-
Pressure connection set with 2 silicone hoses (Ø 6 mm and Ø 4 mm, each 1 m long) and measuring instrument adapter (0554 1203)
-
Combustion air temperature probe, length 190 mm, including cone for attachment (0600 9787)
-
esto BLUETOOTH® printer with wireless Bluetooth interface, 1 roll of thermal paper and 4 mignon batteries (0554 0620)
-
Professional instrument case for instrument, probes and accessories; height 130 mm (0516 3300)
| Differential Pressure - Piezoresistive |
|
Measuring range
|
0 to +300 hPa
|
|
Accuracy
|
±0.5 hPa (0.0 to 50.0 hPa)
±1 % of mv (50.1 to 100.0 hPa)
±1.5 % of mv (Remaining Range)
|
|
Resolution
|
0.1 hPa
|
| Flue gas O₂ |
|
Measuring range
|
0 to 21 Vol.%
|
|
Accuracy
|
±0.2 Vol.%
|
|
Resolution
|
0.1 Vol.%
|
|
Reaction time t₉₀
|
< 20 s
|
| Flue gas CO (with H₂-compensation) |
|
Measuring range
|
0 to 8000 ppm
|
|
Accuracy
|
±10 ppm or ±10 % of mv (0 to 200 ppm)
±20 ppm or ±5 % of mv (201 to 2000 ppm)
±10 % of mv (2001 to 8000 ppm)
|
|
Resolution
|
1 ppm
|
|
Reaction time t₉₀
|
< 60 s
|
| Flue gas COlow |
|
Measuring range
|
0 to 500 ppm
|
|
Accuracy
|
±2 ppm (0 to 39.9 ppm)
±5 % of mv (40 to 500 ppm)
|
|
Resolution
|
0.1 ppm
|
|
Reaction time t₉₀
|
< 40 s
|
| Flue gas NO |
|
Measuring range
|
0 to 3000 ppm
|
|
Accuracy
|
±5 ppm (0 to 100 ppm)
±5 % of mv (101 to 2000 ppm)
±10 % of mv (2001 to 3000 ppm)
|
|
Resolution
|
1 ppm
|
|
Reaction time t₉₀
|
< 30 s
|
| Flue gas Nolow |
|
Measuring range
|
0 to 300 ppm
|
|
Accuracy
|
±2 ppm (0 to 39.9 ppm)
±5 % of mv (40 to 300 ppm)
|
|
Resolution
|
0.1 ppm
|
|
Reaction time t₉₀
|
< 30 s
|
| Flue gas Draught |
|
Measuring range
|
-9.99 to +40 hPa
|
|
Accuracy
|
±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)
±0.03 hPa (+0.61 to +3.00 hPa)
±1.5 % of mv (+3.01 to +40.00 hPa)
|
|
Resolution
|
0.01 hPa
|
| Temperature |
|
Measuring range
|
-40 to +1200 °C *
|
|
Accuracy
|
±0.5 °C (0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
|
|
Resolution
|
0.1 °C (-40 to +999.9 °C)
1 °C (> +1000 °C)
|
* Measuring range depends on the connected flue gas probe
| Flue gas degree of effectivity, Eta (calculated) |
|
Measuring range
|
0 to 120 %
|
|
Resolution
|
0.1 %
|
| Flue gas loss (calculated) |
|
Measuring range
|
0 to 99.9 %
|
|
Resolution
|
0.1 %
|
| Flue gas CO₂ calculation (calculated from O₂) |
|
Measuring range
|
0 to CO₂ max (Display range)
|
|
Accuracy
|
±0.2 Vol.%
|
|
Resolution
|
0.1 Vol.%
|
|
Reaction time t₉₀
|
< 40 s
|
| Pressure measurement |
|
Measuring range
|
0 to +300 hPa
|
|
Accuracy
|
±0.5 hPa (0.0 to 50.0 hPa)
±1 % of mv (50.1 to 100.0 hPa)
±1.5 % of mv (Remaining Range)
|
|
Resolution
|
0.1 hPa
|
| Flue gas CO (without H₂-compensation) |
|
Measuring range
|
0 to 4000 ppm
|
|
Accuracy
|
±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
|
|
Resolution
|
1 ppm
|
|
Reaction time t₉₀
|
< 60 s
|
| Ambient CO |
|
Measuring range
|
0 to 500 ppm
|
|
Accuracy
|
±5 ppm (0 to 100 ppm)
±5 % of mv (> 100 ppm)
|
|
Resolution
|
1 ppm
|
|
Reaction time
|
Approx. 35 s
|
with CO probe 0632 3331
| Ambient CO₂ |
|
Measuring range
|
0 to 1 Vol.%
0 to 10000 ppm
|
|
Accuracy
|
±75 ppm or ±3 % of mv (0 to 5000 ppm)
±150 ppm or ±5 % of mv (5001 to 10000 ppm)
|
|
Reaction time
|
Approx. 35 s
|
with ambient CO₂ probe 0632 1240
| Gas leak measurement for combustible gases (via gas leak detection probe) |
|
Measuring range
|
0 to 10000 ppm CH₄ / C₃H₈; Display range
|
|
Accuracy
|
Signal optical display (LED) audible signal via buzzer
|
|
Reaction time t₉₀
|
< 2 s
|
with gas leak detection probe 0632 3330
| General technical data |
|
Dimensions
|
270 x 90 x 65 mm
|
|
Operating temperature
|
-5 to +45 °C
|
|
Protection class
|
IP40
|
|
Display size
|
240 x 320 pixels
|
|
Display function
|
Colour graphic display
|
|
Power supply
|
Rechargeable battery pack 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A
|
|
Maximum memory
|
500,000 readings
|
|
Storage temperature
|
-20 to +50 °C
|
|
Weight
|
600 g (without rechargeable battery)
|
