testo 400 air flow kit with hot wire probe

Order-Nr. 0563 0400 71

  • Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111

  • Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor

  • Smart, intuitive measurement programs, complete your measurement with full documentation on site at the customer’s premises or carry out further analysis using the testo DataControl measurement data management and analysis software

  • In the kit: testo 400 universal IAQ instrument, hot wire probe (with Bluetooth® handle and telescope), vane probe head (Ø 100 mm), high-precision humidity/temperature probe head, 90° angle, case

Product Information
  • Product Detail
  • Product Tech
  • Accessory
  • Download

Product Description

Ideal kit for IAQ professionals, with a focus on air flow measurement. You will receive the testo 400 universal IAQ measuring instrument with intuitive measurement menus, one hot wire probe head (including temperature and humidity sensor), one vane probe head (Ø 100 mm) and one high-precision humidity/temperature probe head – all three can be attached to the Bluetooth® handle supplied. For measurements at ceiling outlets, simply combine the 100 mm vane probe with the telescope (can be extended up to 1.0 m) and the 90° angle.

Products in set

  •

    testo 400 Universal IAQ instrument

    testo 400 - Universal IAQ instrument

    Order-Nr. 0560 0400

    • Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55

    • High-precision, location-independent and integrated differential pressure sensor

  •

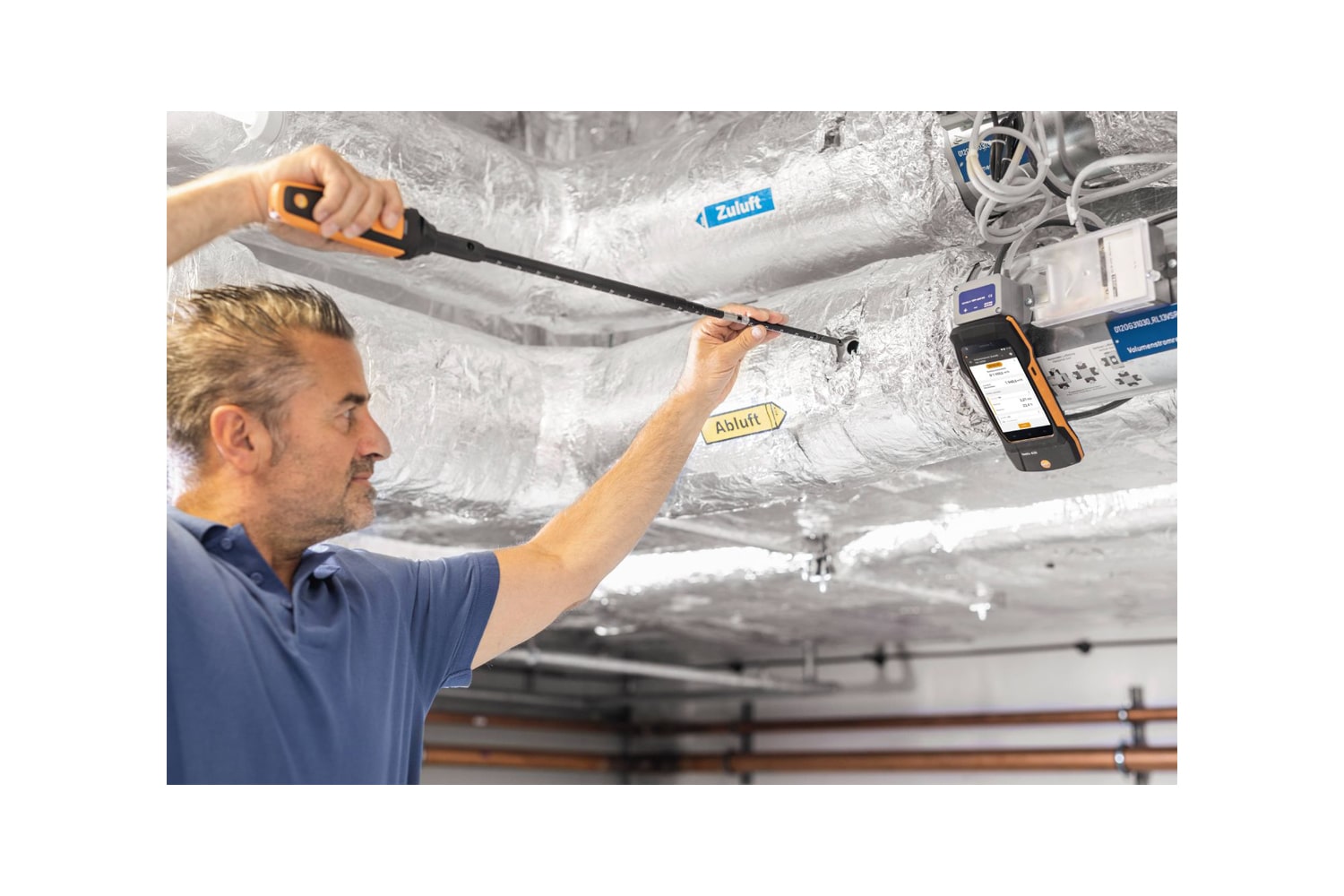

    Hot wire probe (digital) with Bluetooth® including temperature and humidity sensor

    Hot wire probe (digital) - with Bluetooth® including temperature and humidity sensor

    Order-Nr. 0635 1571

    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow, air temperature and humidity

    • Precise: accurate measurement results from 0 to +50 m/s and automatic absolute pressure compensation

  •

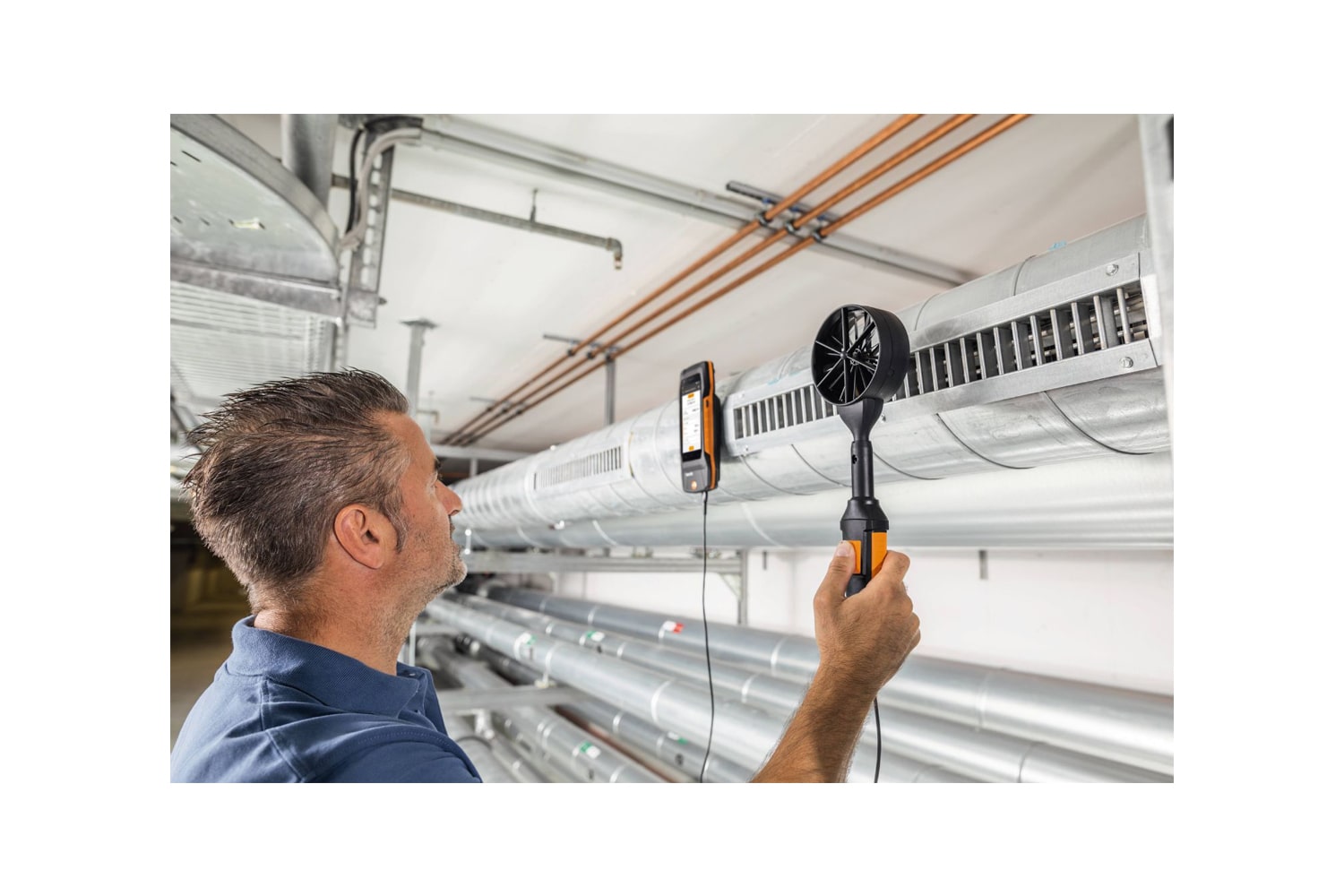

    100 mm vane probe head

    100 mm vane probe head

    Order-Nr. 0635 9430

    • Intuitive: parallel determination of air velocity, volume flow and air temperature

    • Convenient: probe head is easy to attach to the universal Bluetooth or cable handle or to the extendable telescope (all available to order separately) using the adapter

  •

    High-precision humidity/temperature probe head

    High-precision humidity/temperature probe head

    Order-Nr. 0636 9770

    • Intuitive: parallel determination of relative humidity and air temperature in indoor areas, including long-term measurement

    • Precise: carry out humidity measurements with an accuracy of ± (0.6% RH + 0.7 % of m.v.) in the range between 0 and 90% RH, calculation of wet bulb temperature, dew point and absolute humidity

  •

    90° angle for the attachment of vane probes (Ø 100 mm) with universal handle

    90° angle for connecting vane probes (Ø 100 mm)

    Order-Nr. 0554 0991

    • Position 100 mm vane probes with universal handle correctly at ceiling outlets

    • Simply connect it to the extendable telescope for air velocity probes with universal handle

  •

    Transport case for air flow measurements

    Transport case for air flow measurements

    Order-Nr. 0516 1400

    • Sturdy plastic case

    • Offers sufficient space for measuring instrument, flow probes (e.g. hot wire probes) and accessories

Delivery Scope

  • testo 400 universal IAQ instrument, silicone hoses, mains unit with USB cable, calibration protocol, instruction manual (0560 0400)

  • Hot wire probe with Bluetooth® including temperature and humidity sensor (consisting of hot wire probe head, handle adapter and Bluetooth® handle), 4 x AA batteries, telescope (can be extended up to 1.0 m) and calibration protocol (0635 1571)

  • Vane probe head (Ø 100 mm) including temperature sensor, bracket for testovent measurement funnel and calibration protocol (0635 9430)

  • High-precision humidity/temperature probe head including calibration protocol (0636 9770)
      Please do not use the probe head in condensing atmospheres. For continuous application in high-humidity ranges
      > 80% RH at ≤ 30 °C for > 12 h
      > 60% RH at > 30 °C for > 12 h
      please get in touch with Testo Service or contact us via the Testo website

  • 90° angle for connecting vane probes (Ø 100 mm) (0554 0991)

  • Transport case for air flow measurements (0516 1400)

  • Temperature - NTC

    Measuring range

    -40 to +150 °C

    Accuracy

    ±0.2 °C ±1 Digit (-25 to +74.9 °C)

    ±0.4 °C ±1 Digit (-40 to -25.1 °C)

    ±0.4 °C ±1 Digit (+75 to +99.9 °C)

    ±0.5 % of mv ±1 Digit (Remaining Range)

    Resolution

    0.1 °C



    Temperature - TC Type K (NiCr-Ni)

    Measuring range

    -200 to +1370 °C

    Accuracy

    ±(0.3 °C + 0.1 % of mv) ±1 Digit

    Resolution

    0.1 °C



    Differential pressure (internal sensor) - Piezoresistive

    Measuring range

    -100 to +200 hPa

    Accuracy

    ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa)

    ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)

    Resolution

    0.001 hPa



    Absolute Pressure (internal sensor and external probe)

    Measuring range

    700 to 1100 hPa

    Accuracy

    ±3 hPa

    Resolution

    0.1 hPa



    General technical data

    Weight

    510 g (instrument)

    Dimensions

    210 x 95 x 39 mm ((LxWxH))

    Operating temperature

    -5 to +45 °C

    Product-/housing material

    Plastic

    Protection class

    IP40

    Connectable probes

    4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable

    Product colour

    black/orange

    Camera image size

    Main camera: 8.0 MP; Front camera: 5.0 MP

    Battery life

    approx. 10 hrs continuous operation

    Display type

    5.0" touch display, HD 1280*720 pixels, IPS (160 k)

    Power supply

    Rechargeable li-ion battery (5550 mAh)

    Interface

    Bluetooth®; USB; WLAN

    Memory

    2 GB; 1,000,000 measuring values

    Storage temperature

    -20 to +60 °C

    *TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.





  • Temperature - NTC

    Measuring range

    -20 to +70 °C

    Accuracy

    ±0.5 °C (0 to +70 °C)

    ±0.8 °C (-20 to 0 °C)

    Resolution

    0.1 °C



    Humidity - Capacitive

    Measuring range

    5 to 95 %RH

    Accuracy

    ±3 %RH (10 to 35 %RH)

    ±2 %RH (35 to 65 %RH)

    ±3 %RH (65 to 90 %RH)

    ±5 %RH (Remaining Range)

    ±0.06 %RH/K (k=1)

    Resolution

    0.1 %RH

    Please see the additional accuracy information for humidity in the instruction manual.

    Absolute Pressure

    Measuring range

    +700 to +1100 hPa

    Accuracy

    ±3.0 hPa

    Resolution

    0.1 hPa



    Velocity - Hot wire

    Measuring range

    0 to 50 m/s

    Accuracy

    ±(0.03 m/s + 4 % of mv)

    (0 to 20 m/s)

    ±(0.5 m/s + 5 % of mv)

    (20.01 to 30 m/s)

    Resolution

    0.01 m/s



    General technical data

    Storage temperature

    -20 to +60 °C

    Weight

    400 g

    Dimensions

    780 x 50 x 40 mm

    Operating temperature

    -5 to +50 °C

    Length telescope

    1,000 mm

    Probe head diameter

    9 mm

    Diameter telescope

    16 mm

    Product colour

    black/orange

    Length probe shaft

    230 mm

    Diameter probe shaft

    9 mm

    Battery type

    4 x type AA batteries

    Battery life

    21.5 h

    Data transfer

    Bluetooth®

    Radio range

    20 m





Accessories

IAQ data logger for long-term measurements

IAQ data logger for long-term measurements

Order Number: 0577 0400

Measuring tripod for IAQ and comfort level measurements

Measuring tripod for IAQ and comfort level measurements, to ensure standard-compliant, secure positioning of measuring instrument and probes including transport bag

Order Number: 0554 1591

Transport case for air flow measurements

Transport case for air flow measurements

Order Number: 0516 1400

Transport case for IAQ and comfort level measurements

Transport case for IAQ and comfort level measurements

Order Number: 0516 2400

Universal Bluetooth® handle for connecting probe heads

Bluetooth® handle for connecting probe heads: transmits readings conveniently via Bluetooth

Order Number:  0554 1111

Universal cable handle for connecting probe heads

Cable handle for connecting probe heads: transmits readings via cable

Order Number: 0554 2222

USB mains unit

USB mains unit, including cable

Order Number: 0554 1106

Connection hose, silicone - max. load capacity up to 700 hPa (mbar)

Order Number: 0554 0440

Connection hose

Connection hose silicone-free for differential pressure measurement, length 5 m, load up to maximum 700 hPa, (mbar)

Order Number:  0554 0453

Telescope extension (length 0.4 to 0.9 m) for flow probes with universal handle

Telescope extension for flow probes, length 0.4 to 0.9 m

Order Number: 0554 0990

Handle adapter for connection to flow probes with universal handle

Handle adapter: for connection to flow probes or extendable telescope for flow probes

Order Number: 0554 2160

Extendable telescope (up to 1 m in length) for flow probes with universal handle

Extendable telescope (up to 1 m in length) for flow probes

Order Number: 0554 0960

90° angle for the attachment of vane probes (Ø 100 mm) with universal handle

90° angle: for connecting vane probes (Ø 100 mm): for correct positioning at ceiling outlets

Order Number: 0554 0991

Teleskop testo 480

Extendable telescope with ball head joint - for slanted ceiling outlets

Order Number: 0430 0946

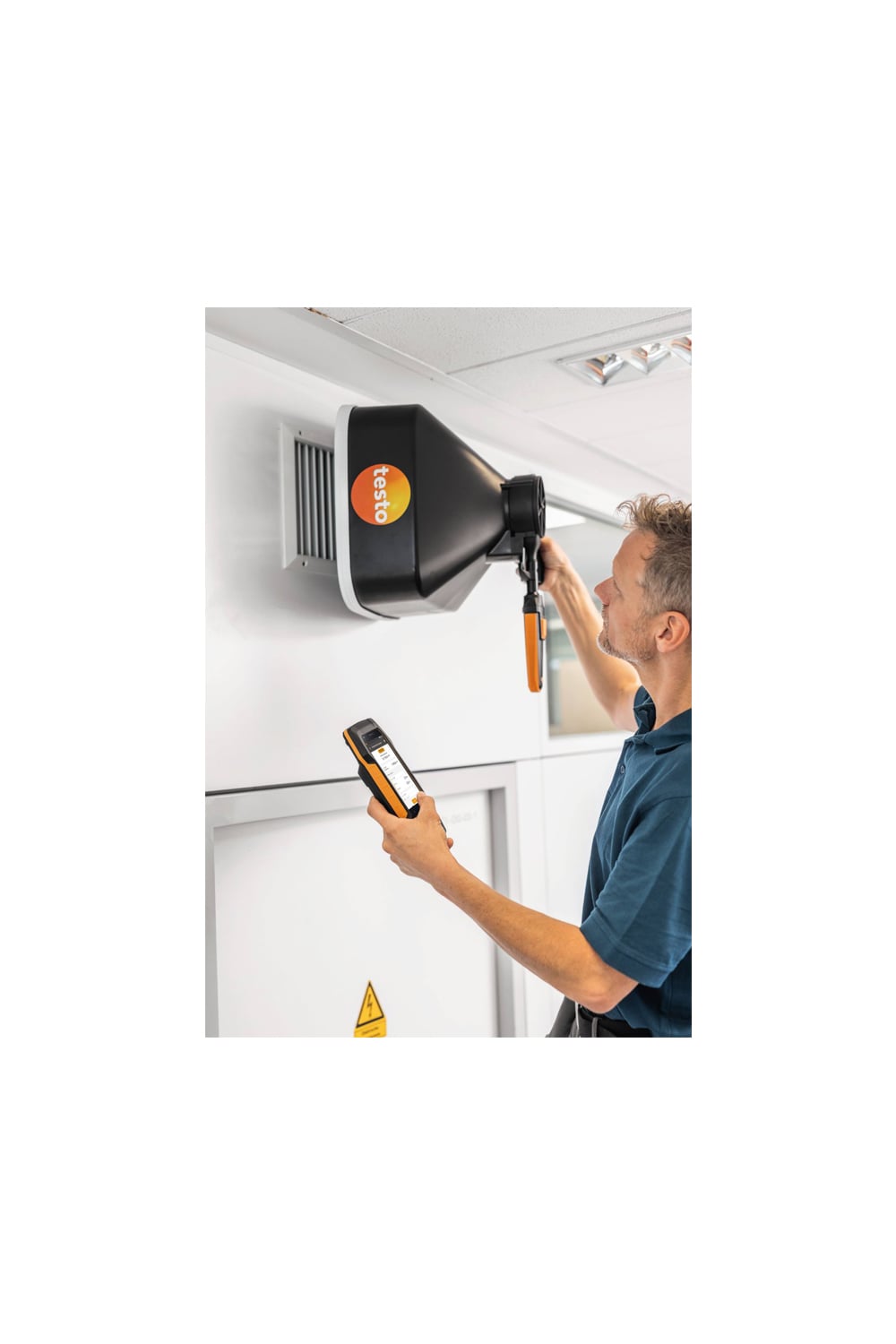

testovent 417 funnel set

testovent 417 funnel set for volume flow measurement, consisting of a funnel for plate outlets (Ø 200 mm) and a funnel for ventilation grilles (330 x 330 mm), used with 100 mm vane

Order Number: 0563 4170

testovent 417 volume flow straightener

Flow straightener testovent 417

Order Number: 0554 4172

testovent 417 volume flow straightener set

testovent 417 volume flow straightener settestovent 417 flow straightener set for volume flow measurement, consisting of the testovent 417 volume flow straightener and the testovent 417 funnel set

Order Number: 0554 4173

Control and adjustment set for Testo humidity probes

Control and adjustment set for Testo humidity probes, salt solution with 11.3% RH and 75.3% RH, incl. adapter for Testo humidity probes

Order Number: 0554 0660

Certificates

Calibration certificate

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range; accuracy > 0.6 % of f.v.

Order Number: 0520 0005

Calibration certificate

ISO pressure calibration certificate; with 5 measuring points distributed over the measuring range, accuracy 0.1 to 0.6 % of f.v.

Order Number: 0520 0025

Calibration certificate

DAkkS pressure calibration certificate; with 5 measuring points distributed over the measuring range, accuracy > 0.6 % of f.v.

Order Number: 0520 0225

Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 1 / 2 / 5 / 10 m/s

Order Number: 0520 0004

Calibration certificate

ISO temperature calibration certificate for air/immersion probes; with 3 measuring points: -8 / 0 / +40 °C

Order Number: 0520 0181

Calibration certificate

DAkkS flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 5 measuring points: 0.5 / 1 / 2 / 5 / 10 m/s

Order Number: 0520 0244

Calibration certificate

DAkkS temperature calibration certificate for air/immersion probes; with 3 measuring points: -20 / 0 / +60 °C

Order Number: 0520 0211

Calibration certificate

DAkkS humidity calibration certificate; with 3 measuring points: 11.3 / 50 / 75.3 %RH at +25 °C

Order Number: 0520 0266

Calibration certificate

ISO humidity calibration certificate; with 2 measuring points: 11.3 and 75.3 %RH at +25°C

Order Number: 0520 0006

Calibration certificate

ISO calibration certificate for flow; calibration at selectable measuring points between 0.5 and 27 m/s

Order Number: 0520 0104

Calibration certificate

DAkkS calibration certificate for flow; calibration at selectable measuring points between 0.1 and 68 m/s

Order Number: 0520 0214

Calibration certificate

ISO flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 4 measuring points: 5 / 10 / 15 / 20 m/s

Order Number: 0520 0034

Calibration certificate

DAkkS flow calibration certificate for hot wire anemometers, vane anemometers and Pitot tubes; with 5 measuring points: 0.5 / 1 / 2 / 5 / 10 m/s

Order Number: 0520 0204

Calibration certificate

DAkkS calibration certificate for flow for anemometers and Pitot tubes; calibration at 3 measuring points: 2.5 / 5 / 10 m/s

Order Number: 0520 0254

Calibration certificate

DAkkS humidity calibration certificate; with 2 measuring points: 11.3 and 75.3 %RH at +25 °C

Order Number: 0520 0206

Sensor heads

16 mm vane probe head including temperature sensor

16 mm vane probe head including temperature sensor; for attachment to extendable telescope for air velocity probes with universal handle – measuring range +0.6 to +50 m/s, -10 to +70 °C

Order Number: 0635 9570

High-precision 100 mm vane probe head including temperature sensor

High-precision 100 mm vane probe head including temperature sensor: for attachment to extendable telescope for air velocity probes with universal handle or to a universal Bluetooth® or cable handle – measuring range +0.1 to +15 m/s, -20 to +70 °C

Order Number: 0635 9370

100 mm vane probe head

100 mm vane probe head: for attachment to extendable telescope for air velocity probes with universal handle or to universal Bluetooth® or cable handle – measuring range +0.3 to +35 m/s, -20 to +70 °C

Order Number: 0635 9430

Hot wire probe head including temperature and humidity sensor

Hot wire probe head including temperature and humidity sensor: for attachment to extendable telescope for air velocity probes with universal handle – measuring range 0 to +50 m/s, -20 to +70 °C, 5 to 95% RH

Order Number: 0635 1570

Humidity/temperature probe head

Humidity/temperature probe head: for attachment to universal Bluetooth® or cable handle – accuracy ±2% RH / ±0.5 °C, measuring range 0 to 100% RH / -20 to +70 °C

Order Number: 0636 9730

High-precision humidity/temperature probe head

High-precision humidity/temperature probe head: for attachment to a universal Bluetooth® or cable handle – accuracy: ±(0.6% RH + 0.7 % of m.v.) (0 to 90% RH) / ±0.3 °C (+15 to +30 °C)

Order Number: 0636 9770

CO2 probe head including temperature and humidity sensor

CO₂ probe head including temperature and humidity sensor: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH

Order Number: 0632 1550

CO probe head

CO probe head: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 500 ppm

Order Number: 0632 1270

Product Brochures

Manuals

Manuals

Manuals

Manuals

Software

Other Product

testo 440 Indoor Comfort ComboKit with Bluetooth®

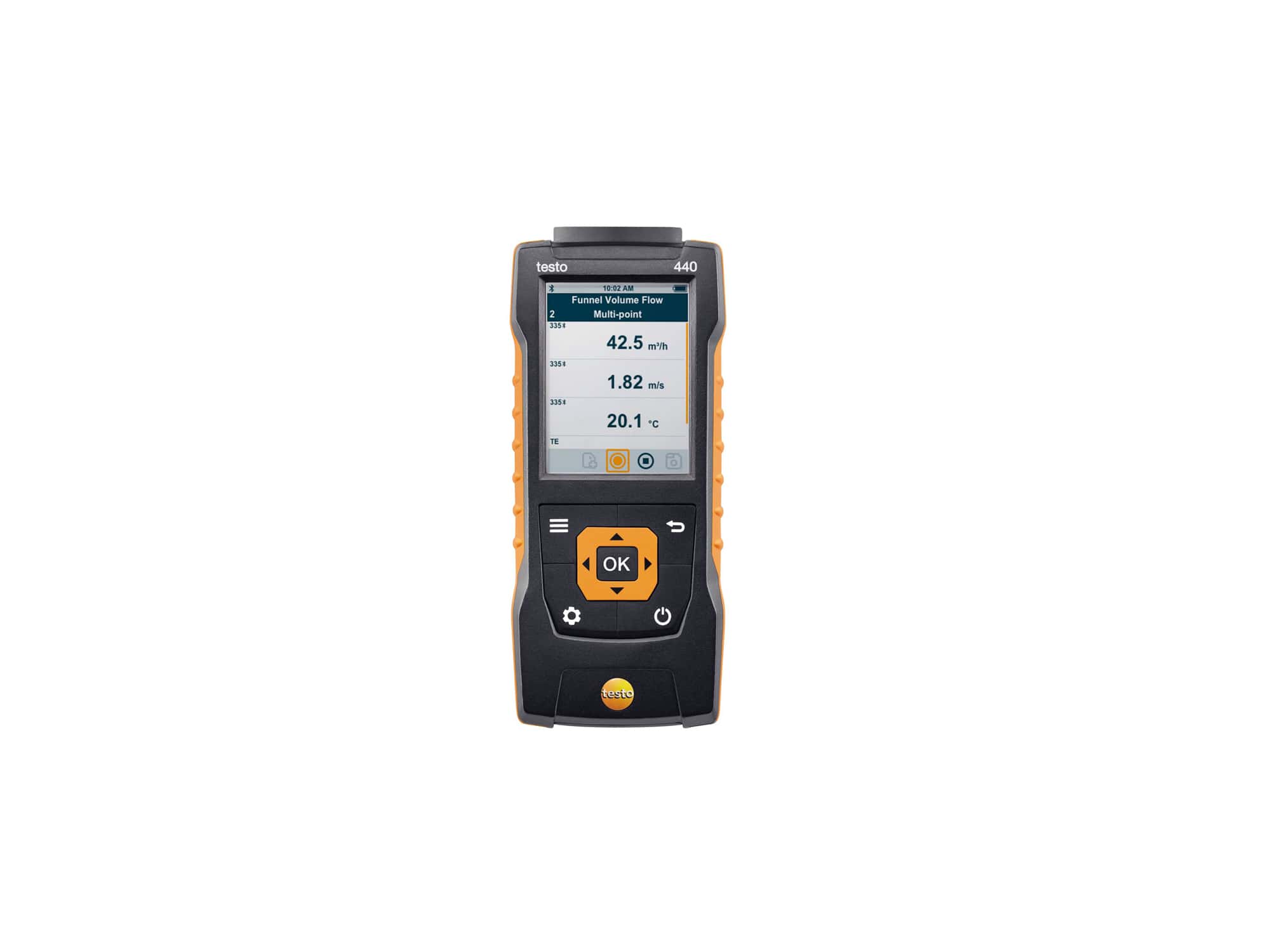

testo 440 - Air velocity and IAQ measuring instrument

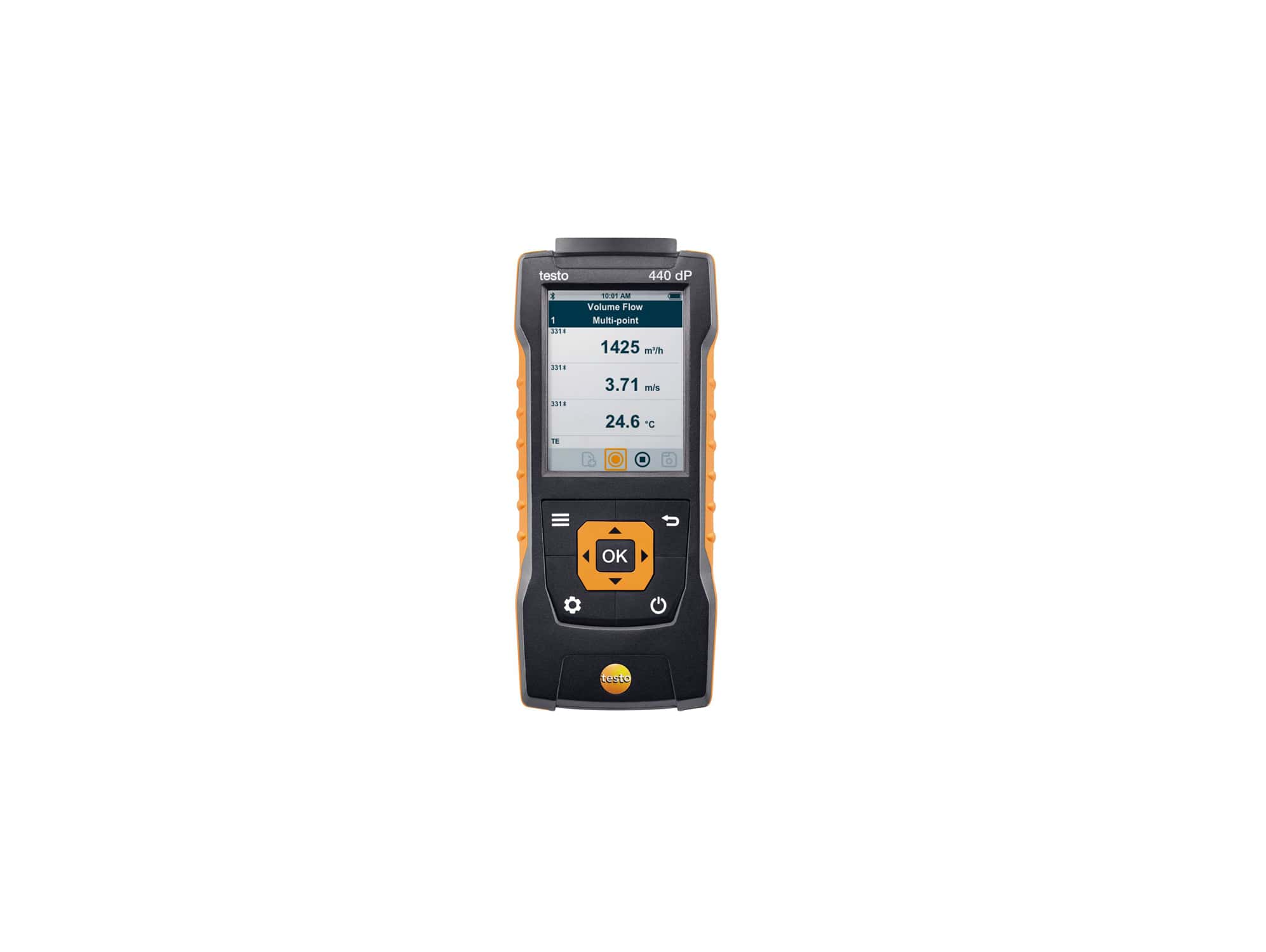

testo 440 dP - Air velocity and IAQ measuring instrument including differential pressure sensor

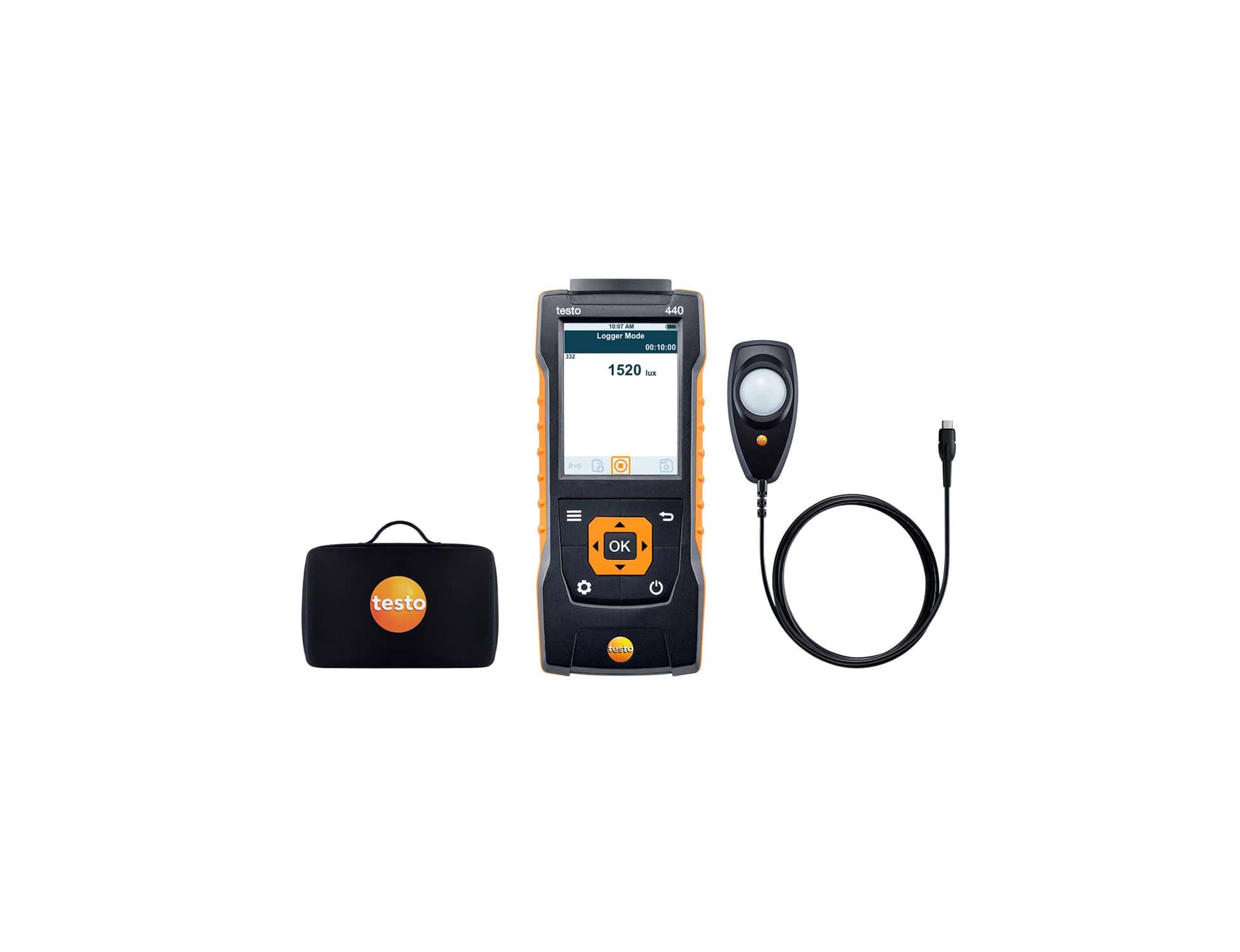

testo 440 Lux Kit
