testo 440 delta P Air Flow ComboKit 1 with Bluetooth®

Order-Nr. 0563 4409

Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets
Space-saving: simply combine the universal Bluetooth handle with the 100 mm vane or hot wire probe head and the extendable telescope (1.0 m)
Convenient: wireless probes, internal data storage and USB port for data export
As multifaceted as your challenges themselves: the testo 440 dP has an integrated differential pressure sensor and can be expanded with a large portfolio of digital probes

Product Information

Product Detail
Product Tech
Accessory
Download

Product Description

Carry out measurements without any annoying cables: use the kit to handle all relevant measurements in ventilation ducts and at air/ceiling outlets. You will receive the testo 440 dP air velocity and IAQ measuring instrument including differential pressure sensor and the 100 mm vane probe head and hot wire probe head (Ø 9 mm) for attachment to the universal Bluetooth^® handle supplied. To make measurements more convenient, both probe heads can be combined with the telescope included in the kit. The equipment can be transported safely and conveniently in the robust case.

Products in set

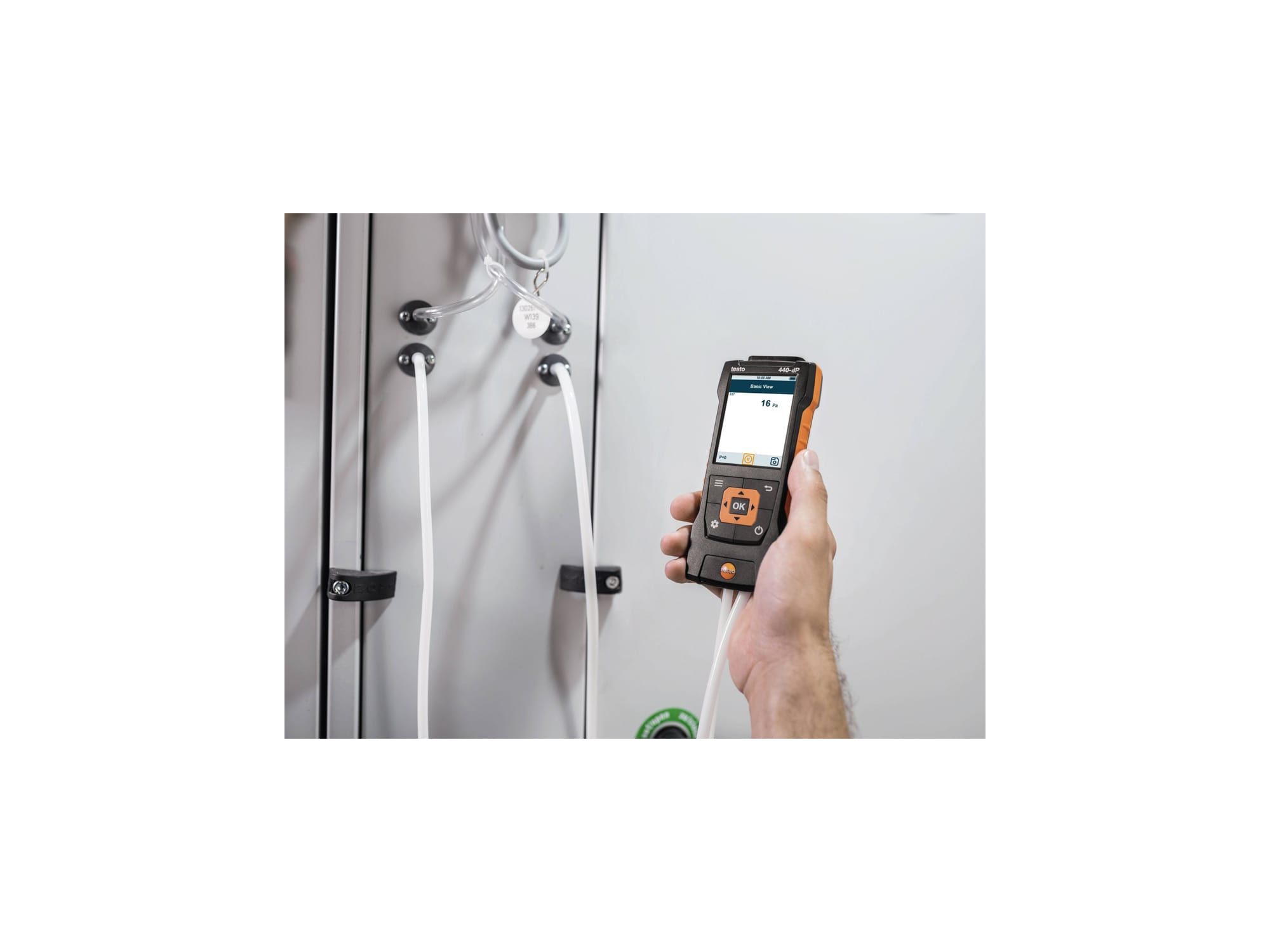

testo 440 dP - Air velocity and IAQ measuring instrument including differential pressure sensor

Order-Nr. 0560 4402
- Intuitive: clearly structured measurement menus for volume flow, K-factor, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂
- Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately)

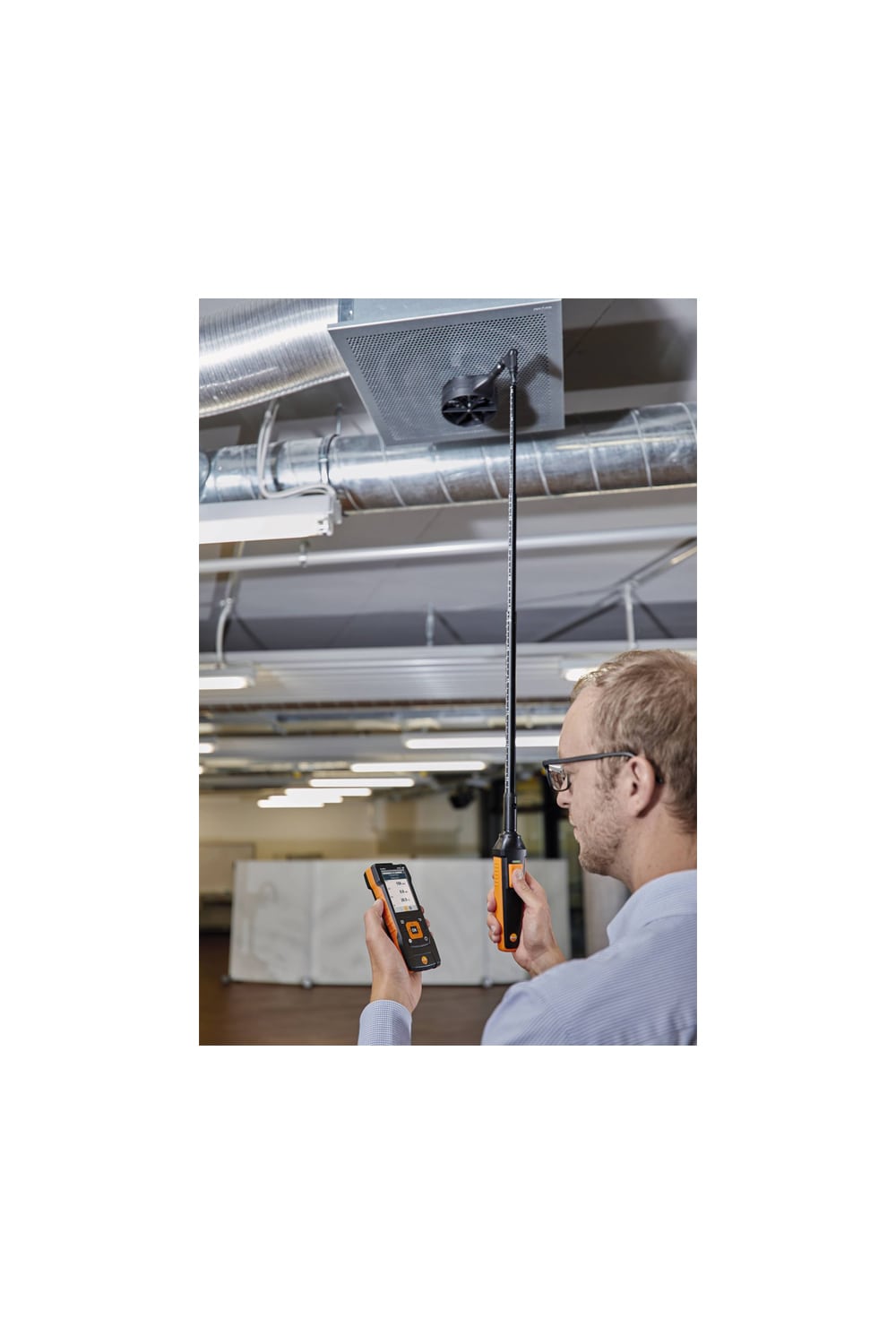

Vane probe (Ø 100 mm, digital) - with Bluetooth^® including temperature sensor

Order-Nr. 0635 9431
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
- Precise: get the right results in next to no time, even in turbulent air flow – using the optionally available funnel set and volume flow straightener

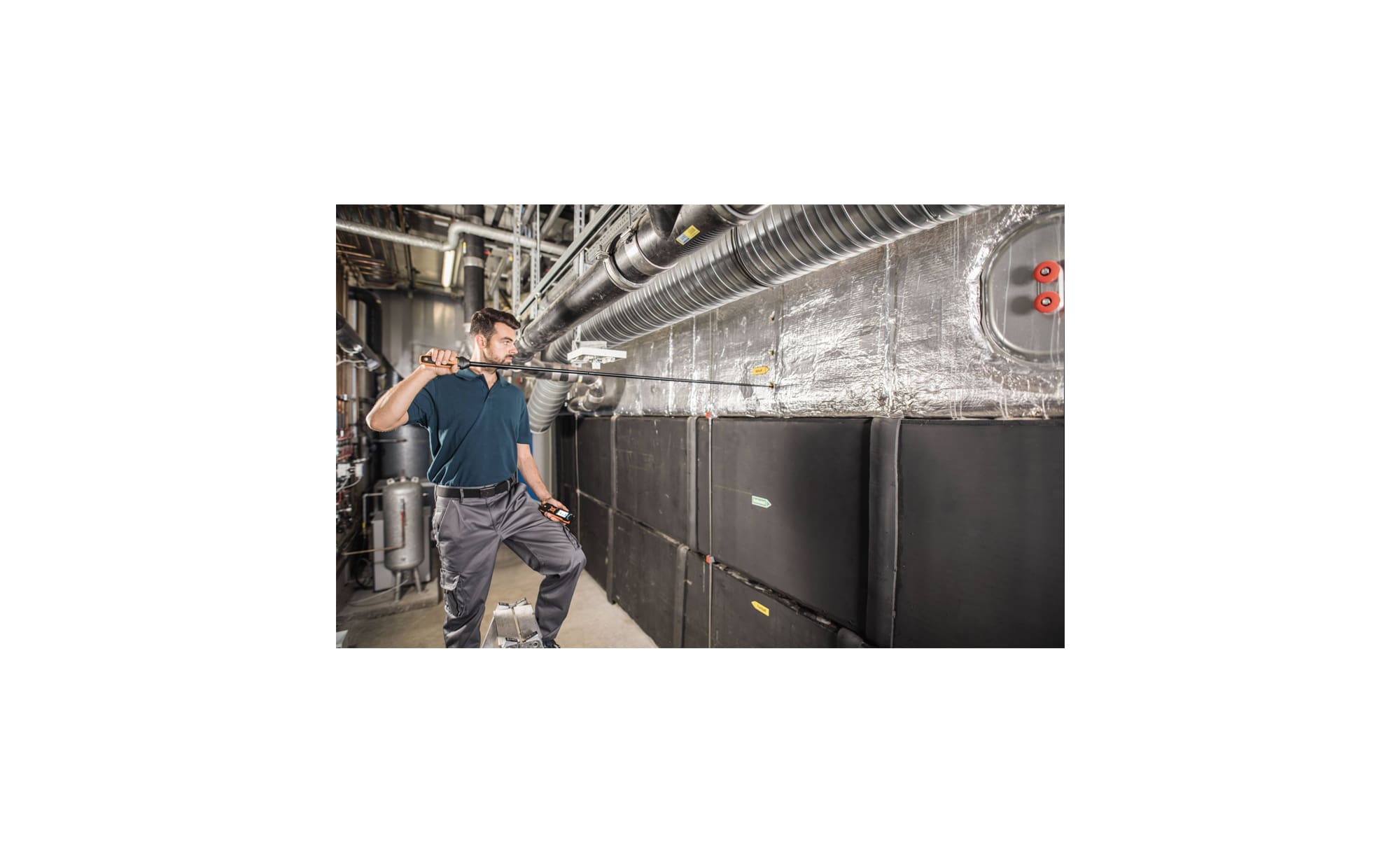

Hot wire probe head including temperature and humidity sensor

Order-Nr. 0635 1570
- Intuitive: parallel determination of relative humidity and air temperature in indoor areas, including long-term measurement
- Precise: includes absolute pressure compensation, calculation of wet bulb temperature, dew point and absolute humidity
Extendable telescope (up to 1 m in length) for flow probes

Order-Nr. 0554 0960
- The telescope is 1.0 m long when extended
- Easy-to-read scaling for easy measurement in ducts
Combi-case for testo 440 and multiple probes

Order-Nr. 0516 4401
- Case for the testo 440 or testo 440 dP air velocity and IAQ measuring instrument
- Dimensions: 516 x 135 x 256 mm (W x H x L)

Delivery Scope

testo 440 dP air velocity and IAQ measuring instrument including differential pressure sensor, connection hose, 3 x AA batteries, USB cable and calibration protocol (0560 4402)
Vane probe (Ø 100 mm) with Bluetooth^® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth^® handle); bracket for testovent measurement funnel; 4 x AA batteries and calibration protocol (0635 9431)
Hot wire probe head (Ø 9 mm) including temperature and humidity sensor and calibration protocol (0635 1570)
Extendable telescope (up to 1 m in length) for air velocity probes with a universal handle including 90° angle (0554 0960)
Combi-case for testo 440 and multiple probes (0516 4401)

testo 440 dP - Air velocity and IAQ measuring instrument including differential pressure sensor

Order-Nr. 0560 4402

Temperature - NTC
Measuring range	-40 to +150 °C
Accuracy	±0.4 °C (-40 to -25.1 °C) ±0.3 °C (-25 to +74.9 °C) ±0.4 °C (+75 to +99.9 °C) ±0.5 % of mv (Remaining Range)
Resolution	0.1 °C

Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±0.4 °C (-40 to -25.1 °C)

±0.3 °C (-25 to +74.9 °C)

±0.4 °C (+75 to +99.9 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C

Temperature - TC Type K (NiCr-Ni)
Measuring range	-200 to +1370 °C
Accuracy	±(0.3 °C + 0.3 % of mv)
Resolution	0.1 °C

Differential pressure (internal sensor) - Piezoresistive
Measuring range	-150 to +150 hPa
Accuracy	±0.05 hPa (0 to 1.00 hPa) ±0.2 hPa + 1.5 % of mv (1.01 to +150 hPa)
Resolution	0.01 hPa

Differential pressure (internal sensor) - Piezoresistive

Measuring range

-150 to +150 hPa

Accuracy

±0.05 hPa (0 to 1.00 hPa)

±0.2 hPa + 1.5 % of mv

(1.01 to +150 hPa)

Resolution

0.01 hPa

General technical data
Weight	250 g
Dimensions	154 x 65 x 32 mm
Operating temperature	-20 to +50 °C
Product colour	black/orange
Connectable probes	1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x differential pressure (internal), 1 x Temperature TC Type K
Battery type	3 AA mignon 1.5 V
Battery life	12 h (typically vane measurement)
Interface	Bluetooth®; USB
Storage temperature	-20 to +50 °C

Vane probe (Ø 100 mm, digital) - with Bluetooth^® including temperature sensor

Order-Nr. 0635 9431

Temperature - NTC
Measuring range	-20 to +70 °C
Accuracy	±0.5 °C
Resolution	0.1 °C

Velocity / Volume flow
Measuring range	0.3 to 35 m/s
Accuracy	±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
Resolution	0.01 m/s

Velocity / Volume flow

Measuring range

0.3 to 35 m/s

Accuracy

±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)

±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)

Resolution

0.01 m/s

General technical data
Storage temperature	-20 to +60 °C
Weight	360 g
Dimensions	375 x 105 x 46 mm
Operating temperature	-5 to +50 °C
Probe head diameter	100 mm
Product colour	black/orange
Battery type	4 x type AA batteries
Battery life	60 h
Data transfer	Bluetooth®
Radio range	20 m

Hot wire probe head including temperature and humidity sensor

Order-Nr. 0635 1570

Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.5 °C (0 to +70 °C)

±0.8 °C (-20 to 0 °C)

Resolution

0.1 °C

Humidity - Capacitive
Measuring range	5 to 95 %RH
Accuracy	±3 %RH (10 to 35 %RH) ±2 %RH (35 to 65 %RH) ±3 %RH (65 to 90 %RH) ±5 %RH (Remaining Range) ±0.06 %RH/K (k=1)
Resolution	0.1 %RH

Humidity - Capacitive

Measuring range

5 to 95 %RH

Accuracy

±3 %RH (10 to 35 %RH)

±2 %RH (35 to 65 %RH)

±3 %RH (65 to 90 %RH)

±5 %RH (Remaining Range)

±0.06 %RH/K (k=1)

Resolution

0.1 %RH

Please see the additional accuracy information for humidity in the instruction manual.

Absolute Pressure
Measuring range	+700 to +1100 hPa
Accuracy	±3.0 hPa
Resolution	0.1 hPa

Velocity - Hot wire
Measuring range	0 to 50 m/s
Accuracy	±(0.03 m/s + 4 % of mv) (0 to 20 m/s) ±(0.5 m/s + 5 % of mv) (20.01 to 30 m/s)
Resolution	0.10 %RH

Velocity - Hot wire

Measuring range

0 to 50 m/s

Accuracy

±(0.03 m/s + 4 % of mv)

(0 to 20 m/s)

±(0.5 m/s + 5 % of mv)

(20.01 to 30 m/s)

Resolution

0.10 %RH

General technical data
Storage temperature	-20 to +70 °C
Weight	35 g
Dimensions	235 x 9 x 9 mm
Operating temperature	-20 to +70 °C
Length probe shaft	230 mm
Diameter probe shaft	9 mm
Product colour	Black

Extendable telescope (up to 1 m in length) for flow probes

Order-Nr. 0554 0960

General technical data
Weight	155 g
Dimensions	telescope: 375 x 17 x 16 mm angle: 65 x 65 x 15 mm
Operating temperature	-5 to +50 °C
Length telescope	1,000 mm
Diameter telescope	12 mm
Product colour	Black
Storage temperature	-20 to +60 °C

Combi-case for testo 440 and multiple probes

Order-Nr. 0516 4401

General technical data
Weight	1400 g
Dimensions	516 x 135 x 256 mm
Product colour	Black
