testo 805i - INFRARED THERMOMETER WITH SMARTPHONE OPERATION

Order-Nr. 0560 1805
  • Non-contact infrared measurement of surface temperature

  • Easy selection of emission level via stored materials list

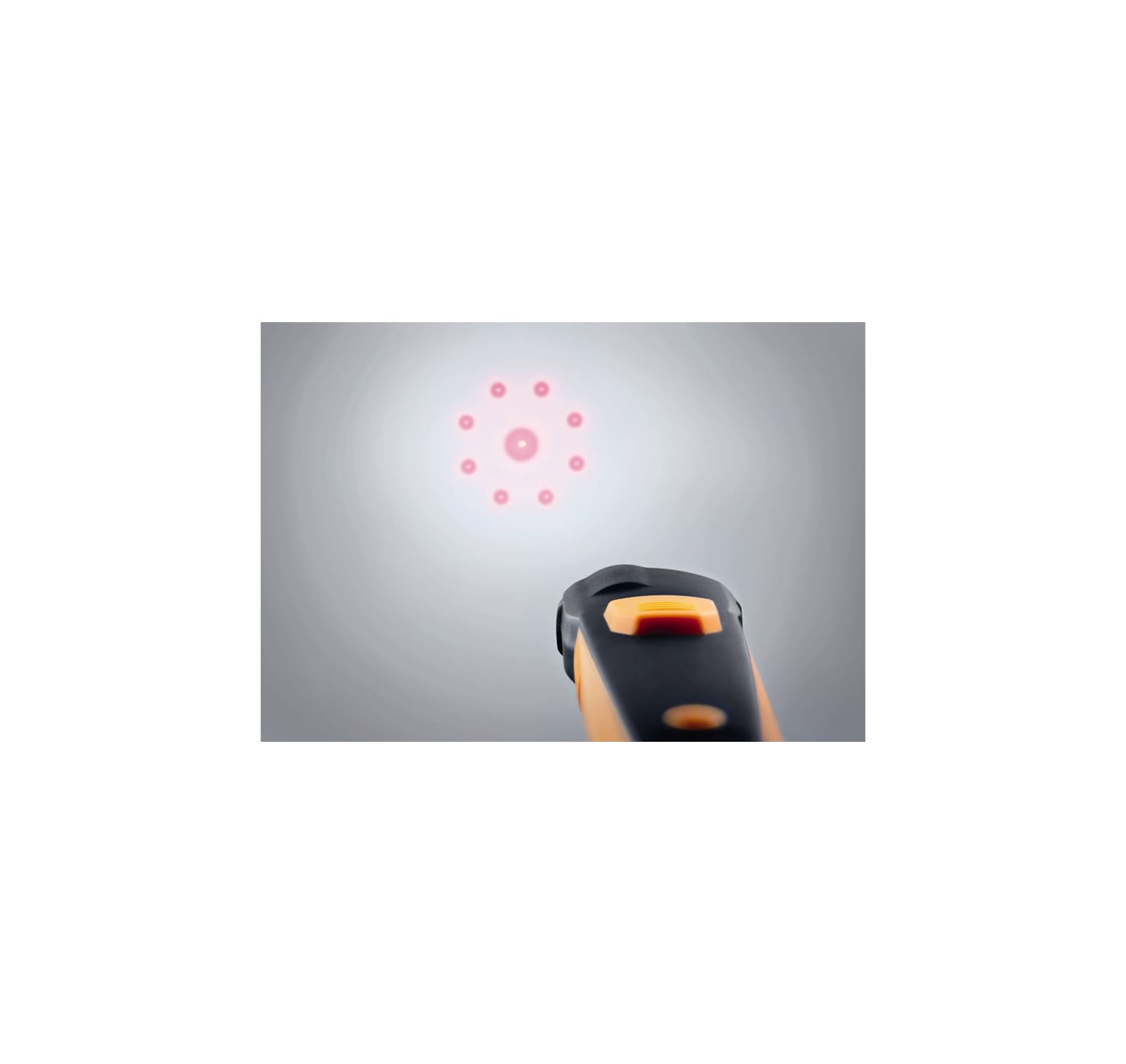

  • Highly visible marking of the measuring spot thanks to 8-point laser

  • Image documentation with readings and measuring spot marking

Thông tin sản phẩm
  • Chi tiết sản phẩm
  • Thông số kỹ thuật
  • Phụ kiện
  • Download

Product Description

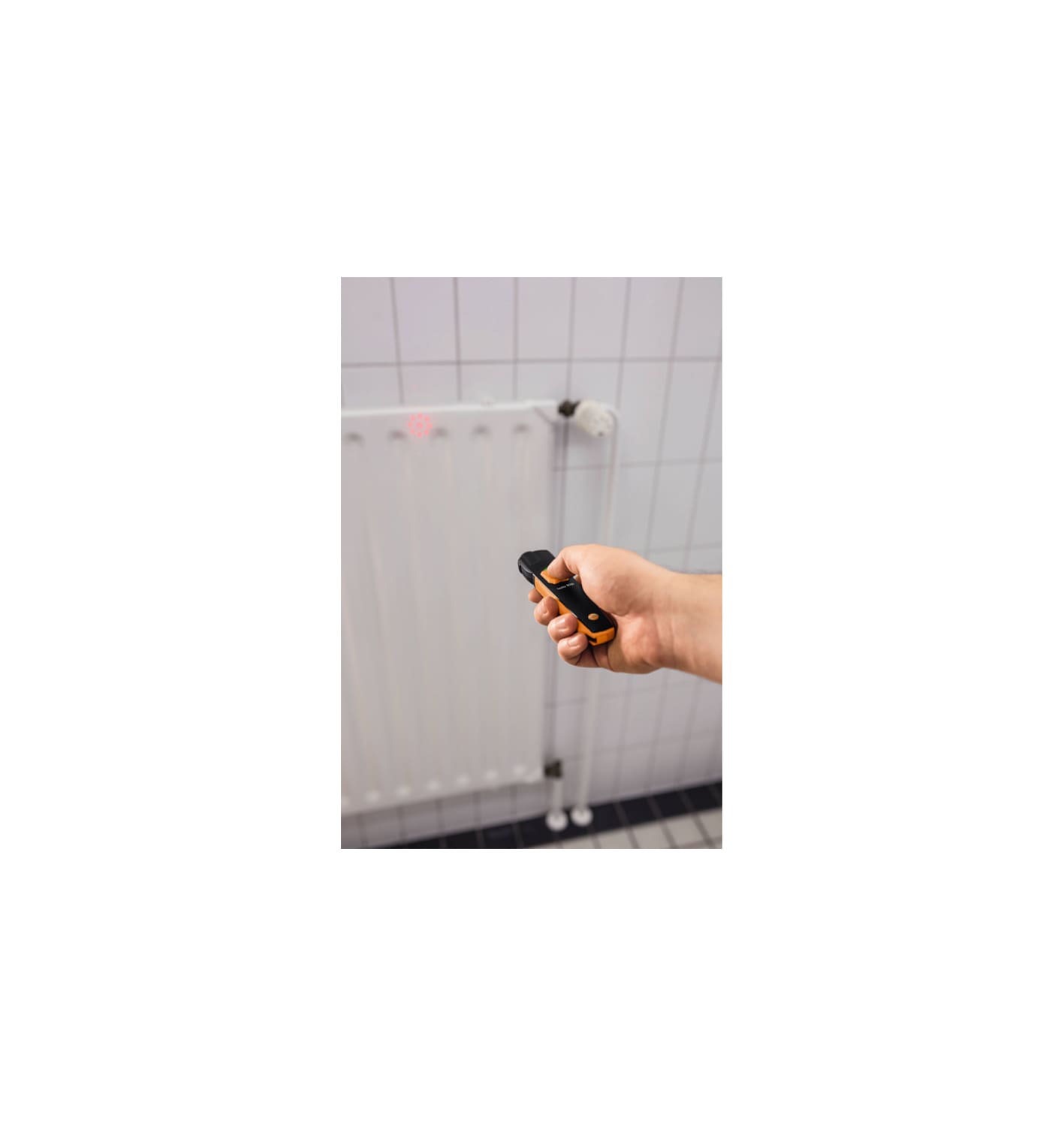

The testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.

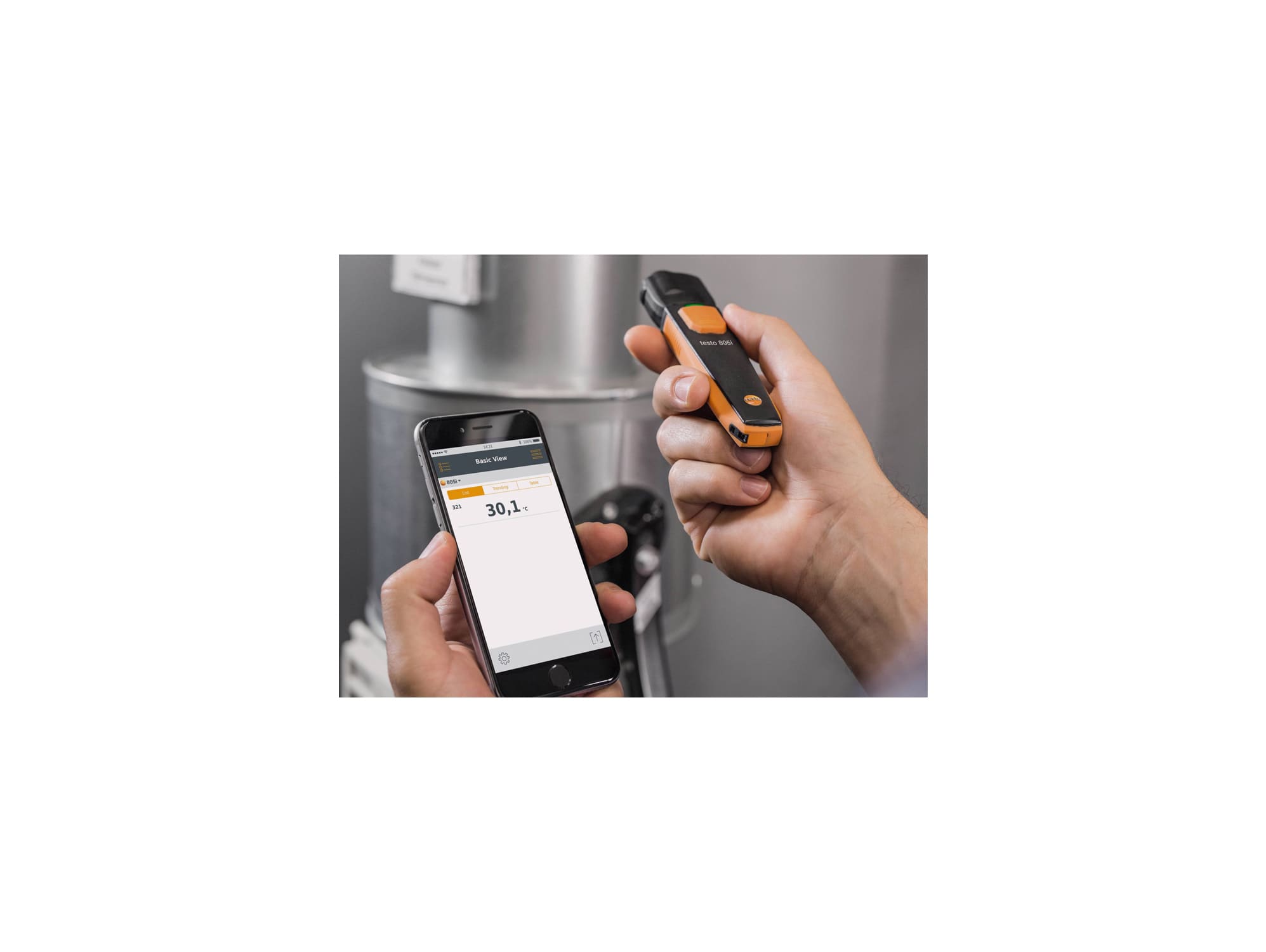

Documentation including images via App on a smartphone/tablet

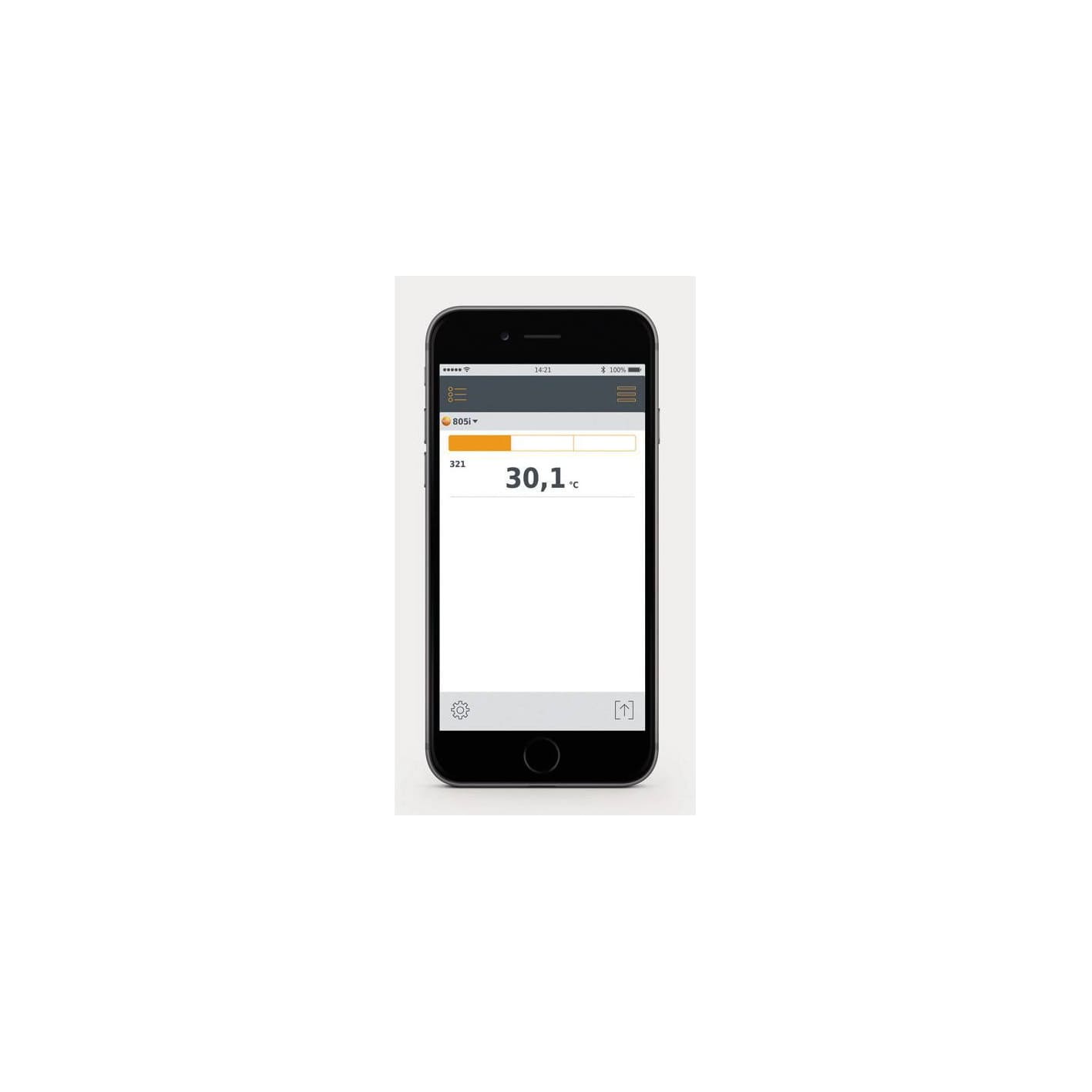

With the testo Smart Probes App installed on a terminal device, users can view their readings conveniently. And that's not all: the App can also be used to create and document images, including temperature values and laser marking. A separate measurement menu makes it easier to detect areas that are susceptible to mould. Particularly useful: a list containing the emission levels of certain materials is already stored in the App, so there's no longer any need to waste your time looking these up in tables. All measurement data is displayed either as a chart or in table form. The measurement data log can then be emailed directly as a PDF or Excel file.

System requirements:

  •  iOS 8.3 or later

  • Android 4.3 or later

  • Bluetooth 4.0

Delivery Scope

testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

General technical data

Dimensions

140 x 36 x 25 mm

Operating temperature

-10 to +50 °C

Product-/housing material

ABS / TPE

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

30 h

Storage temperature

-20 to +60 °C

Weight

97 g

Smart Case VAC Set

testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Order Number: 0516 0260


testo HVAC softcase storage case

testo HVAC softcase storage case: for testo Smart Probes measuring instruments

Order Number: 0516 0283


Calibration certificate

ISO calibration certificate for temperature (infrared) for infrared measuring instruments; calibration at 3 measuring points: +60 / +120 / +180 °C

Order Number: 0520 0002
